What the 3M22 Zircon is made of
17 documented parts and 19 photos, from recovered wreckage and the reporting on it. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: 3M22 Zircon.
Where the parts were made
- Russian Federation 12
- NPP RADAR MMS JSC, GOSNIIMASH JSC, VPK NPO MASHINOSTROENIYA JSC, NPO ISKRA PJSC, TSNIIAG JSC, PZ MASH JSC, PERMSKY ZAVOD MASHYNOSTROITEL JSC, KNIRTI JSC, KB KORUND-M JSC, KAMENSKVOLOKNO JSC, ENERGIA PJSC, NII GIRIKOND JSC
- United States of America 2
- TriQuint Semiconductor (Qorvo), Altera Corporation (Intel)
Sources
- HUR War & Sanctions: 3M22 Zircon ballistic missile · українською
- Open Source Munitions Portal — search its munition identification records
Ukrainian pages read alongside the English: same items, markings and text.
Specifications (HUR)
- Housing diameter
- 0,666 m
- Length
- 8 m
- Weight of the warhead
- 120 kg
3M22 Zircon ballistic missile
Protective fairing with orientation system engines
Захисний обтічник з двигунами системи орієнтації
Photo: HUR War & Sanctions

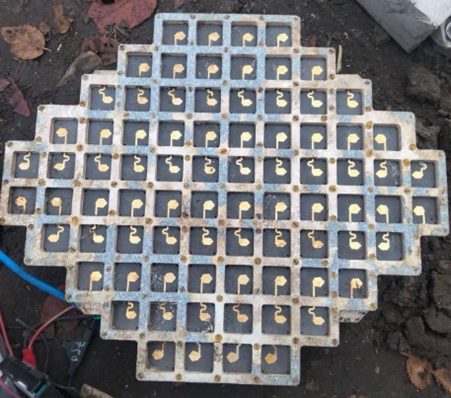

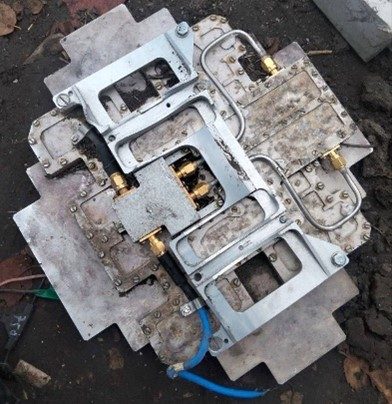

3B222 active radar homing head
Активна радіолокаційна головка самонаведення 3Б222
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

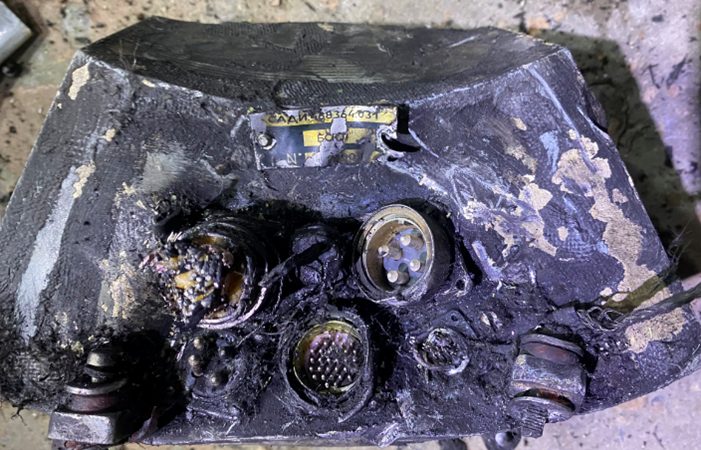

SADI.468364 onboard equipment switching unit
Блок комутації бортового обладнання САДИ.468364
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
- СП4-8В
2211
21
Measuring potentiometer
record ↗
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

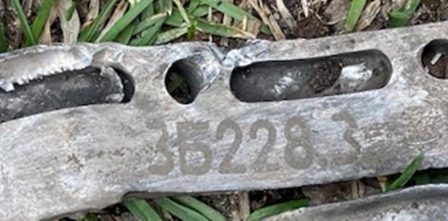

3B228 radio-technical countermeasure system
Система радіотехнічного захисту 3Б228
Photo: HUR War & Sanctions

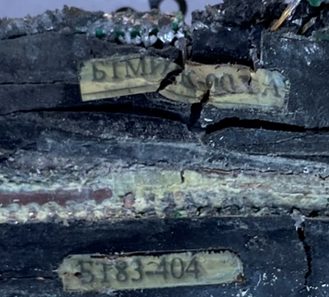

Baget 83 on-board digital computer
Бортова цифрова обчислювальна машина (БЦОМ) "Багет-83"
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

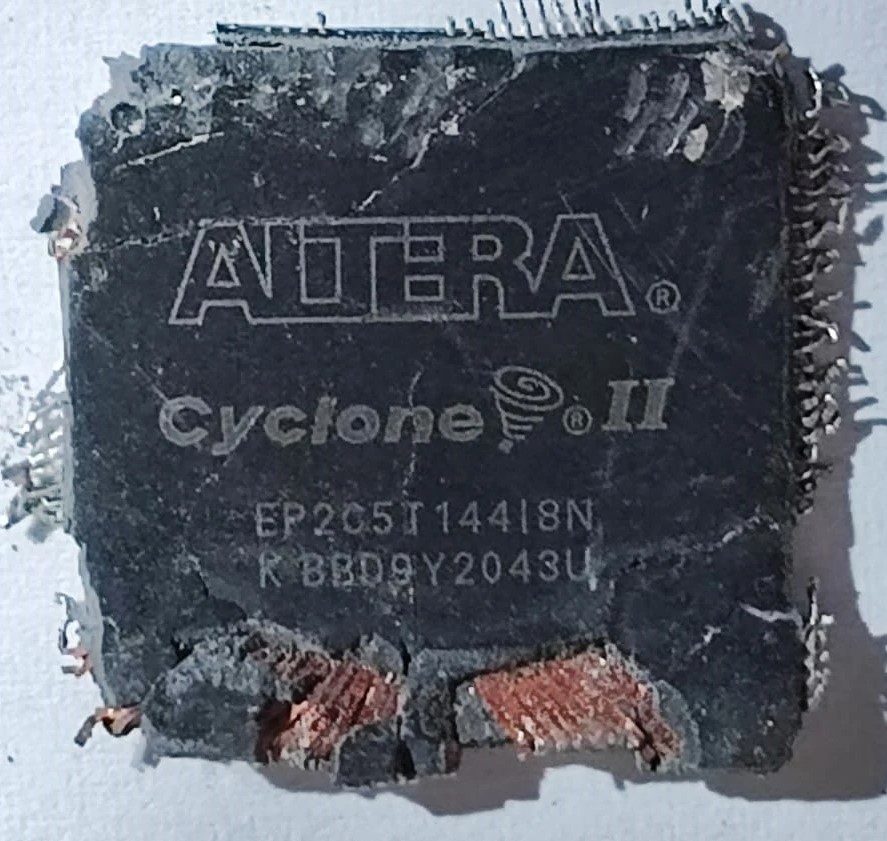

Field-Programmable Gate Array (FPGA)
Програмована вентильна матриця (FPGA)
Altera Cyclone II EP2C5T144I8N KBBD9Y2043U
Photo: HUR War & Sanctions
Open questions
What has not been published about the 3M22 Zircon, and where the available evidence points: measurements from published photos, the physics, the parts its relatives carry, and the trade in the parts themselves. An indication is not a confirmation. Each one shows how it was reached; last reviewed 2026-10-23.
Also not yet established
- Protective fairing with orientation system engines of the 3M22 Zircon: what type is it, and who makes it? — A photo or teardown record of the protective fairing with orientation system engines showing a marking, a maker's label or a model name.
Also reported

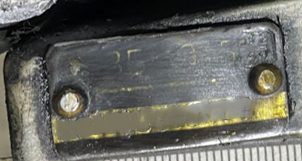

- Steering actuators — 3B915 electro-hydraulic steering units by TsNIIAG driving folding aerodynamic control surfaces; the whole tail section is titanium source
- Protective fairing — Nose fairing carrying small orientation thrusters for initial course alignment, jettisoned after launch source
- US-origin FPGA — Altera Cyclone II EP2C5T144I8N field-programmable gate array (Altera, now Intel), United States source
- Component markings (first combat debris) — Kyiv forensic institute found fragments laser-engraved "3L22", steering-mechanism bolts marked "26" and production dates of late 2023–2024 on debris from the 7 February 2024 strike; some boards were hand-assembled source
Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
