What the Orlan-10 is made of

163 documented parts and 165 photos, from recovered wreckage and the reporting on it. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: Orlan-10.

Where the parts were made

United States of America 102
Xilinx Inc. (AMD), Texas Instruments, Intel Corporation, Analog Devices, Micron Technology, Marvell Technology Group, Spansion (Cypress Semiconductor, Infineon Technologies), Pulse Electronics Corporation, Linear Technology Corporation (Analog Devices), Altera Corporation (Intel), KEMET (YAGEO Corporation), Alliance Memory Inc., JST, Qorvo, Semtech Corporation, Atmel (Microchip Technology), Honeywell International, InvenSense (TDK), Allegro MicroSystems, ON Semiconductor (ONSEMI), Vishay Intertechnology, Inc., TTM Technologies, Inc., Mini-Circuits, Maxim Integrated Products (Analog Devices), Turnigy (Hextronik), Integrated Device Technology (Renesas), Sirenza Microdevices, Microchip Technology Inc., Gumstrix, AMD, SanDisk Corporation
Switzerland 18
U-blox, Traco Power, STMicroelectronics
Japan 11
SONY, NGK, Saito, Renesas, TDK Corporation
Taiwan 7
Winbond Electronics Corporation, Unisonic Technologies, Tai-Saw Technology Co., Ltd., Sunonwealth Electric Machine Co. (SUNON), Delta Electronics, Inc
Netherlands 7
NXP Semiconductors
People's Republic of China 4
SIMCom Wireless Solutions, Shenzhen Joy Battery Technology Co.
Russian Federation 3
NVS Technologies, АО ВНИИР-Прогресс, ООО ИРЗ-СВЯЗЬ
Ireland 2
Taoglas
Germany 2
EPCOS AG
Poland 1
Telpod
Israel 1
Controp
Belgium 1
Sonitron
Sweden 1
Axis Communications
Canada 1
Tallysman Wireless Inc. (Calian Group Ltd.)
Republic of Korea 1
RN2 Technologies
Great Britain 1
Raspberry Pi Ltd

Sources

Ukrainian pages read alongside the English: same items, markings and text.

Orlan-10 UAV No. 14662 record ↗

Kometa-M navigation unit

  • Taoglas CGGP.18.4.C.02 GNSS signal receiver TaoglasIrelandrecord ↗ GNSS signal receiver, marked Taoglas CGGP.18.4.C.02
  • NEO-M8N-0-10 GNSS module U-bloxSwitzerlandrecord ↗ GNSS module, marked NEO-M8N-0-10

Sony FCB video camera unit

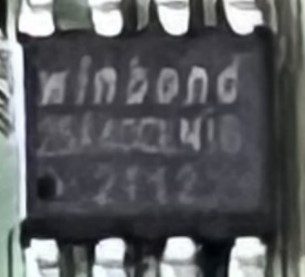

  • WINBOND 2112 Memory module Winbond Electronics CorporationTaiwanrecord ↗ Memory module, marked WINBOND 2112
  • SPARTAN 6 Field Programmable Gate Array (FPGA) Xilinx Inc. (AMD)United States of Americarecord ↗ Field Programmable Gate Array (FPGA), marked SPARTAN 6
  • CX0900106 2007 WBR 61 Processor SONYJapanrecord ↗ Processor, marked CX0900106 2007 WBR 61

Video data transmission module

  • ZYNQ XC7Z030 FFG676ABX2217 Field Programmable Gate Array (FPGA) Xilinx Inc. (AMD)United States of Americarecord ↗ Field Programmable Gate Array (FPGA), marked ZYNQ XC7Z030 FFG676ABX2217
  • LVC541A 1198.109 osnD429D Buffer/driver Texas InstrumentsUnited States of Americarecord ↗ Buffer/driver, marked LVC541A 1198.109 osnD429D
  • EN5339 SFU27 U101 DC-DC converter Intel CorporationUnited States of Americarecord ↗ DC-DC converter, marked EN5339 SFU27 U101
  • 1755 ADJ #150 24272 Low dropout linear regulator Analog DevicesUnited States of Americarecord ↗ Low dropout linear regulator, marked 1755 ADJ #150 24272

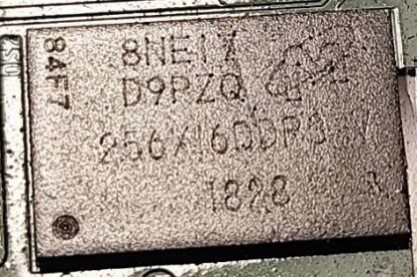

  • 8NEI7 D9PZQ 256XI6DDR3 1828 84F7 Memory module Micron TechnologyUnited States of Americarecord ↗ Memory module, marked 8NEI7 D9PZQ 256XI6DDR3 1828 84F7
  • EN6347 SFU06 U221 DC-DC converter Intel CorporationUnited States of Americarecord ↗ DC-DC converter, marked EN6347 SFU06 U221
  • AD9361BBCZ #2236 5964580 High performance radio frequency transmitter Analog DevicesUnited States of Americarecord ↗ High performance radio frequency transmitter, marked AD9361BBCZ #2236 5964580
  • 7SAI8 JWAO3 Memory module Micron TechnologyUnited States of Americarecord ↗ Memory module, marked 7SAI8 JWAO3
  • 88E1512 – NNP2 NAGW51 2220 AO SG Ethernet transceiver Marvell Technology GroupUnited States of Americarecord ↗ Ethernet transceiver, marked 88E1512 – NNP2 NAGW51 2220 AO SG
  • FL256SAIF00 221QQ033 Flash memory Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ Flash memory, marked FL256SAIF00 221QQ033
  • H5008NL 2202-H Discrete network transformation module Pulse Electronics CorporationUnited States of Americarecord ↗ Discrete network transformation module, marked H5008NL 2202-H
  • AOZQ VP 232 22M CAN bus transceiver Texas InstrumentsUnited States of Americarecord ↗ CAN bus transceiver, marked AOZQ VP 232 22M
  • LTM 4628Y N87305 2238 MY Voltage converter Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Voltage converter, marked LTM 4628Y N87305 2238 MY

Video image processing module

  • EPCQ256N GO12N VS CHN 836 Flash memory Altera Corporation (Intel)United States of Americarecord ↗ Flash memory, marked EPCQ256N GO12N VS CHN 836
  • 477 6K Tantalum capacitor KEMET (YAGEO Corporation)United States of Americarecord ↗ Tantalum capacitor, marked 477 6K
  • MAX3221 107 RS-232 line driver and receiver Texas InstrumentsUnited States of Americarecord ↗ RS-232 line driver and receiver, marked MAX3221 107
  • 216 B540C Schottky diode Unisonic TechnologiesTaiwanrecord ↗ Schottky diode, marked 216 B540C
  • 5150AM1 88T AL67 Video encoder Texas InstrumentsUnited States of Americarecord ↗ Video encoder, marked 5150AM1 88T AL67
  • ADV7391BCPZ 3 #2204 56742841 Digital to analogue converter Analog DevicesUnited States of Americarecord ↗ Digital to analogue converter, marked ADV7391BCPZ 3 #2204 56742841
  • A34G2561503 – 128IN 2211 MBA30020 Memory Alliance Memory Inc.United States of Americarecord ↗ Memory, marked A34G2561503 – 128IN 2211 MBA30020
  • LTM4619V N66466e4 1831MY Voltage converter Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Voltage converter, marked LTM4619V N66466e4 1831MY
  • ALTERA Cyclone 5 Field Programmable Gate Array (FPGA) Altera Corporation (Intel)United States of Americarecord ↗ Field Programmable Gate Array (FPGA), marked ALTERA Cyclone 5

Power supply board

  • JST J110 Power connector JSTUnited States of Americarecord ↗ Power connector, marked JST J110

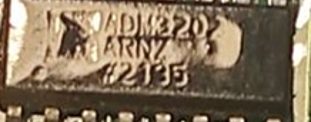

  • ADM3202 ARNZ #2135 High-speed two-channel transceiver Analog DevicesUnited States of Americarecord ↗ High-speed two-channel transceiver, marked ADM3202 ARNZ #2135
  • Voltage converter Traco PowerSwitzerlandrecord ↗ Voltage converter
  • Single-phase inductor EPCOS AGGermanyrecord ↗ Single-phase inductor
  • STM32F103 RET 7B687 PHL 7 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32F103 RET 7B687 PHL 7

Radio modem for transmission of control and telemetry signals

  • ML 7v Bandpass filter for surface acoustic waves TA1163A Tai-Saw Technology Co., Ltd.Taiwanrecord ↗ Bandpass filter for surface acoustic waves TA1163A, marked ML 7v
  • RF3194 Power amplifier of the radio transmission path QorvoUnited States of Americarecord ↗ Power amplifier of the radio transmission path, marked RF3194
  • SPF5122Z Amplifier of the radio path QorvoUnited States of Americarecord ↗ Amplifier of the radio path, marked SPF5122Z
  • SX12BC 1634 31466 Low-power transceiver voltage Semtech CorporationUnited States of Americarecord ↗ Low-power transceiver voltage, marked SX12BC 1634 31466
  • ATXMEGA256A3 959542 1939//40 Microcontroller Atmel (Microchip Technology)United States of Americarecord ↗ Microcontroller, marked ATXMEGA256A3 959542 1939//40

Flight controller

  • L883 2124 Three-axis digital compass chip HMC5883L Honeywell InternationalUnited States of Americarecord ↗ Three-axis digital compass chip HMC5883L, marked L883 2124
  • LT 1830 LTM8020 V N647 e4 MY Step-down voltage converter Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Step-down voltage converter, marked LT 1830 LTM8020 V N647 e4 MY
  • InvenSense MPU-6000 DFC030LA1 EL 2127 E Inertial sensor InvenSense (TDK)United States of Americarecord ↗ Inertial sensor, marked InvenSense MPU-6000 DFC030LA1 EL 2127 E
  • STM32F103 VCT6 X 991NG 93 MYS 99 207 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32F103 VCT6 X 991NG 93 MYS 99 207
  • MPXAZ6115 T104E Air pressure measurement sensor NXP SemiconductorsNetherlandsrecord ↗ Air pressure measurement sensor, marked MPXAZ6115 T104E
  • MPXV5004DP KCR230D Two-port differential pressure sensor NXP SemiconductorsNetherlandsrecord ↗ Two-port differential pressure sensor, marked MPXV5004DP KCR230D

Board with controllers

  • ACS713ELCTR-30A-T 22062 Current sensor Allegro MicroSystemsUnited States of Americarecord ↗ Current sensor, marked ACS713ELCTR-30A-T 22062
  • PTH08080WAH 212904V Step-down integrated switching regulator Texas InstrumentsUnited States of Americarecord ↗ Step-down integrated switching regulator, marked PTH08080WAH 212904V
  • PTN78060WAH 236333V Step-down integrated switching regulator Texas InstrumentsUnited States of Americarecord ↗ Step-down integrated switching regulator, marked PTN78060WAH 236333V

Transmitter with power amplifier

  • A34 VNP10 Schottky diode ON Semiconductor (ONSEMI)United States of Americarecord ↗ Schottky diode, marked A34 VNP10
  • D833AA FDWS 86368 N-channel MOSFET ON Semiconductor (ONSEMI)United States of Americarecord ↗ N-channel MOSFET, marked D833AA FDWS 86368
  • 4.7uH 2215NA Power inductor IHLP3232CZER4R7M11 Vishay Intertechnology, Inc.United States of Americarecord ↗ Power inductor IHLP3232CZER4R7M11, marked 4.7uH 2215NA
  • 14 XC2500P-20S 03 High performance signal generator TTM Technologies, Inc.United States of Americarecord ↗ High performance signal generator, marked 14 XC2500P-20S 03
  • 07X3C26P1 -03S 82 High performance hybrid connector TTM Technologies, Inc.United States of Americarecord ↗ High performance hybrid connector, marked 07X3C26P1 -03S 82
  • MCL DS50 +2210 DAT-31R5A+ series digital step attenuator Mini-CircuitsUnited States of Americarecord ↗ DAT-31R5A+ series digital step attenuator, marked MCL DS50 +2210
  • STM32F103 RBT6 GQ20X 93 CHN GQ 152 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32F103 RBT6 GQ20X 93 CHN GQ 152
  • 3507 В889979 Voltage converter Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Voltage converter, marked 3507 В889979
  • LTG4 E3 MOSFET driver LTC1871EMS-7 Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ MOSFET driver LTC1871EMS-7, marked LTG4 E3
  • ADRF 5130 #96876 Radio frequency switch Analog DevicesUnited States of Americarecord ↗ Radio frequency switch, marked ADRF 5130 #96876
  • A2125H060N QAM2215W Broadband RF power amplifier NXP SemiconductorsNetherlandsrecord ↗ Broadband RF power amplifier, marked A2125H060N QAM2215W
  • SC2200A-00 1912A1 968BE Two-channel radio frequency amplifier Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Two-channel radio frequency amplifier, marked SC2200A-00 1912A1 968BE

Orlan-10 UAV (June 2022) record ↗

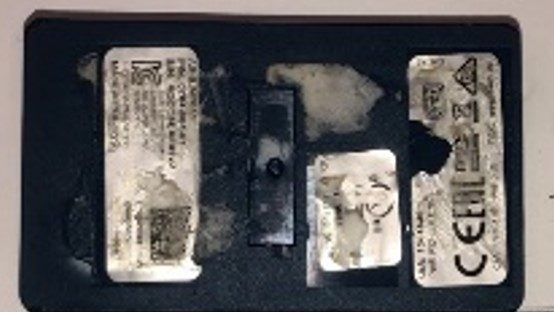

Video encoder cover

Кришка від відеокодера

Axis CommunicationsSweden

M7011

HUR War & Sanctions record ↗

  • Video encoder cover — photo
  • Video encoder cover — photo
1 / 2

Photo: HUR War & Sanctions

The engine is a single-cylinder, gasoline, four-stroke engine

Двигун – одноциліндровий, бензиновий, чотиритактний

SaitoJapan

FG-40 № ASSS8EAF4222

HUR War & Sanctions record ↗

  • The engine is a single-cylinder, gasoline, four-stroke engine — photo

Photo: HUR War & Sanctions

Orlan-10 UAV №11333 (May 2022) record ↗

Orlan-10 GPS tracker

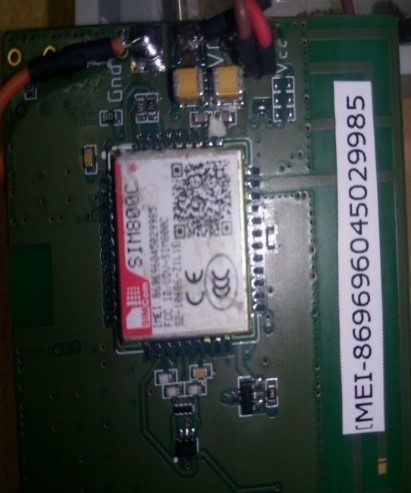

  • GSM/GPRS SIM800C Miniature module SIMCom Wireless SolutionsPeople's Republic of Chinarecord ↗ Miniature module, marked GSM/GPRS SIM800C

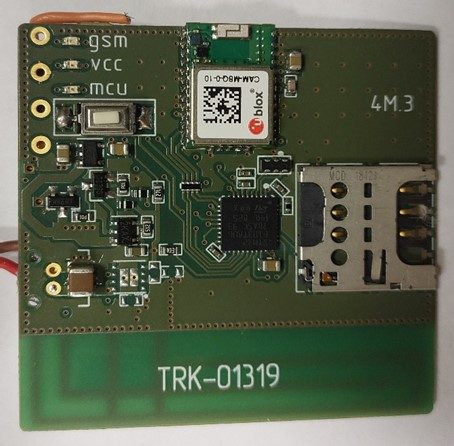

  • M8 GNSS CAM-M8Q-0-10 u-blox omnidirectional antenna module U-bloxSwitzerlandrecord ↗ u-blox omnidirectional antenna module, marked M8 GNSS CAM-M8Q-0-10
  • STM32 F103T8U6 7BA4F 93 PHL 905 32-bit microcontroller STMicroelectronicsSwitzerlandrecord ↗ 32-bit microcontroller, marked STM32 F103T8U6 7BA4F 93 PHL 905

Stabilizing system of UAV "Orlan-10" GOES-V

  • серії FCB Video camera SONY SONYJapanrecord ↗ Video camera SONY, marked серії FCB
  • AX-2206 80T 11.30 Brushless Gimbal Motor Turnigy (Hextronik)United States of Americarecord ↗ Brushless Gimbal Motor, marked AX-2206 80T 11.30

Orlan-10 UAV battery

  • 11,1V 2700mAh 25C RESKY853496SH25 Lithium polymer battery Shenzhen Joy Battery Technology Co.People's Republic of Chinarecord ↗ Lithium polymer battery, marked 11,1V 2700mAh 25C RESKY853496SH25

Board with controllers of Orlan-10 UAV

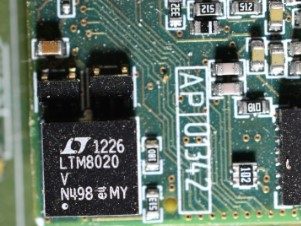

  • LTM8020V N498 e4 MY DC-DC integrated converter Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ DC-DC integrated converter, marked LTM8020V N498 e4 MY
  • ATXMEGA256A3 Low-power, high-performance 8/16-bit microcontroller Atmel (Microchip Technology)United States of Americarecord ↗ Low-power, high-performance 8/16-bit microcontroller, marked ATXMEGA256A3

Orlan-10 UAV power board

  • AC B82721A2362N001 17406-8P7 Throttle common mode EPCOS AGGermanyrecord ↗ Throttle common mode, marked AC B82721A2362N001 17406-8P7
  • STM32F103 VETb 90XN 98 32-bit ARM based microcontroller STMicroelectronicsSwitzerlandrecord ↗ 32-bit ARM based microcontroller, marked STM32F103 VETb 90XN 98

AXIS M701 video image processing module with a converter and storage device for the UAV "Orlan-10"

  • ALTERA Cyclone 5CEFA7F23I7N F BBCAU1731A Processor Altera Corporation (Intel)United States of Americarecord ↗ Processor, marked ALTERA Cyclone 5CEFA7F23I7N F BBCAU1731A
  • P70811700E.17 1734 Memory chip Alliance Memory Inc.United States of Americarecord ↗ Memory chip, marked P70811700E.17 1734
  • ADV 7391BCPZ-3 #1739 Video signal encoder Analog DevicesUnited States of Americarecord ↗ Video signal encoder, marked ADV 7391BCPZ-3 #1739
  • 5150AMI 26T C9DQ Video encoder Texas InstrumentsUnited States of Americarecord ↗ Video encoder, marked 5150AMI 26T C9DQ
  • LTM4619V І21371 e4 1734KR Suspended, 26VIN, 4A DC/DC μModule (life module) regulator Analog DevicesUnited States of Americarecord ↗ Suspended, 26VIN, 4A DC/DC μModule (life module) regulator, marked LTM4619V І21371 e4 1734KR
  • Altera Cyclone 5C3FA7-2317N BBCAU1731A Processor Altera Corporation (Intel)United States of Americarecord ↗ Processor, marked Altera Cyclone 5C3FA7-2317N BBCAU1731A
  • AXIS M7011 p/n: 0764-001-01 Single channel video encoder Delta Electronics, IncTaiwanrecord ↗ Single channel video encoder, marked AXIS M7011 p/n: 0764-001-01

Orlan-10 UAV power amplifier

  • Block 011-UMM-17/0194
  • 07 XC2500P-20S 02 directed HF splitter TTM Technologies, Inc.United States of Americarecord ↗ directed HF splitter, marked 07 XC2500P-20S 02
  • LM2937 67K4 L69B Voltage regulator Texas InstrumentsUnited States of Americarecord ↗ Voltage regulator, marked LM2937 67K4 L69B
  • 7М9102 6645 High-line amplifier Integrated Device Technology (Renesas)United States of Americarecord ↗ High-line amplifier, marked 7М9102 6645
  • SBB4089Z PB06 High performance InGaP HBT MMIC amplifier Sirenza MicrodevicesUnited States of Americarecord ↗ High performance InGaP HBT MMIC amplifier, marked SBB4089Z PB06
  • LM317S 6CA97XUE3 P+ Voltage stabilizer Texas InstrumentsUnited States of Americarecord ↗ Voltage stabilizer, marked LM317S 6CA97XUE3 P+

Video data transmission module

  • VSKS RAW board
  • WT774 79KG4 C2H9 Power Manager Texas InstrumentsUnited States of Americarecord ↗ Power Manager, marked WT774 79KG4 C2H9
  • XC6VLX130T FFG484AGN1 Hardware microcircuit Xilinx Inc. (AMD)United States of Americarecord ↗ Hardware microcircuit, marked XC6VLX130T FFG484AGN1
  • AD9361BBCZ #1716 3822045.1 RF transceiver Analog DevicesUnited States of Americarecord ↗ RF transceiver, marked AD9361BBCZ #1716 3822045.1
  • D9JRX 2НВ17 1GBK Attachment of memory Micron TechnologyUnited States of Americarecord ↗ Attachment of memory, marked D9JRX 2НВ17 1GBK
  • Ethernet 10/100 LAN9221zAB A1722-ABz 722888A ASE-FW Full-featured single crystal controller Microchip Technology Inc.United States of Americarecord ↗ Full-featured single crystal controller, marked Ethernet 10/100 LAN9221zAB A1722-ABz 722888A ASE-FW
  • WiLink Model: WL18 MODGB FCC ID-ZB1-WL155WOD WiFi module Texas InstrumentsUnited States of Americarecord ↗ WiFi module, marked WiLink Model: WL18 MODGB FCC ID-ZB1-WL155WOD
  • 7ЕА97 JWB31 5B91 Flash memory chip Micron TechnologyUnited States of Americarecord ↗ Flash memory chip, marked 7ЕА97 JWB31 5B91
  • GS3703FEY W/O 56894 17-18 INN W/O 77953 Card reader GumstrixUnited States of Americarecord ↗ Card reader, marked GS3703FEY W/O 56894 17-18 INN W/O 77953
  • TPS65950A3 6AAQ3CWS4G1 Integrated power management circuit Texas InstrumentsUnited States of Americarecord ↗ Integrated power management circuit, marked TPS65950A3 6AAQ3CWS4G1
  • Pulse HX1188NL 1716 C.CHINA Integrated circuit for processing video data Pulse Electronics CorporationUnited States of Americarecord ↗ Integrated circuit for processing video data, marked Pulse HX1188NL 1716 C.CHINA
  • XMEGA256A3 MH1315 35954B №8H4352 8/16-bit microcontroller Atmel (Microchip Technology)United States of Americarecord ↗ 8/16-bit microcontroller, marked XMEGA256A3 MH1315 35954B №8H4352
  • LTM4628V №59852 e4 1622MY Modular DC regulator Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Modular DC regulator, marked LTM4628V №59852 e4 1622MY

Cooling cooler

Кулер охолодження

Sunonwealth Electric Machine Co. (SUNON)Taiwan

MF 25060V1-1000U-A99

HUR War & Sanctions record ↗

  • Cooling cooler — photo

Photo: HUR War & Sanctions

UAV "Orlan-10" (July 2022) record ↗

RTK board

  • TALLYSMAN GPS antenna Tallysman Wireless Inc. (Calian Group Ltd.)Canadarecord ↗ GPS antenna, marked TALLYSMAN
  • RCP1500Q03 Chip RN2 TechnologiesRepublic of Korearecord ↗ Chip, marked RCP1500Q03
  • UBLOX ZED-F9P-01B-01 GPS/ RTK receiver U-bloxSwitzerlandrecord ↗ GPS/ RTK receiver, marked UBLOX ZED-F9P-01B-01
  • NV08C-CSM GPS receiver NVS TechnologiesRussian Federationrecord ↗ GPS receiver, marked NV08C-CSM
  • Raspberry Pi 3 Model B ver 1.2 Microcomputer Raspberry Pi LtdGreat Britainrecord ↗ Microcomputer, marked Raspberry Pi 3 Model B ver 1.2
  • ADIS16488BMLZ Gyroscope Analog DevicesUnited States of Americarecord ↗ Gyroscope, marked ADIS16488BMLZ

"Board for a radio technical reconnaissance stationGSM mobile communication standard"

  • XCF04 Chip AMDUnited States of Americarecord ↗ Chip, marked XCF04
  • SIM300Z S2-1019H-A0030 GSM/GPS module SIMCom Wireless SolutionsPeople's Republic of Chinarecord ↗ GSM/GPS module, marked SIM300Z S2-1019H-A0030
  • LMX9838SB Bluetooth module Texas InstrumentsUnited States of Americarecord ↗ Bluetooth module, marked LMX9838SB
  • XC3S1000 Microprocessor AMDUnited States of Americarecord ↗ Microprocessor, marked XC3S1000
  • ADSP-BF561 Processor Analog DevicesUnited States of Americarecord ↗ Processor, marked ADSP-BF561
  • MT48LC32M16A2 Microprocessor Micron TechnologyUnited States of Americarecord ↗ Microprocessor, marked MT48LC32M16A2

GPS tracker

  • NEO-M8Q-0-10 GPS module U-bloxSwitzerlandrecord ↗ GPS module, marked NEO-M8Q-0-10
  • NEO-M8Q-0-10 GPS module U-bloxSwitzerlandrecord ↗ GPS module, marked NEO-M8Q-0-10

Data transmission amplifier module

  • ATmega32BP Microcontroller Microchip Technology Inc.United States of Americarecord ↗ Microcontroller, marked ATmega32BP
  • 7M9102, SBB4089Z Radio frequency amplifier QorvoUnited States of Americarecord ↗
  • F1912 Attenuato RenesasJapanrecord ↗ Attenuato, marked F1912
  • THN 30-1212 Voltage conversion module Traco PowerSwitzerlandrecord ↗ Voltage conversion module, marked THN 30-1212
  • ATmega32BP Microcontroller Microchip Technology Inc.United States of Americarecord ↗ Microcontroller, marked ATmega32BP
  • 7M9102, SBB4089Z Radio frequency amplifier QorvoUnited States of Americarecord ↗ Radio frequency amplifier, marked 7M9102, SBB4089Z
  • F1912 Attenuatorof the type RenesasJapanrecord ↗ Attenuatorof the type, marked F1912
  • THN 30-1212 Voltage conversion module Traco PowerSwitzerlandrecord ↗ Voltage conversion module, marked THN 30-1212

Module for transferring information from the payload

  • AD9361 Universal transceiver chip Analog DevicesUnited States of Americarecord ↗ Universal transceiver chip, marked AD9361
  • LAN9221 Network controller Microchip Technology Inc.United States of Americarecord ↗ Network controller, marked LAN9221
  • PULSE HX1188 Transformer Pulse Electronics CorporationUnited States of Americarecord ↗ Transformer, marked PULSE HX1188
  • ATX Mega A3 Microcontroller Microchip Technology Inc.United States of Americarecord ↗ Microcontroller, marked ATX Mega A3
  • GS3703FEY серії OveroIron STORM-Y Module GumstrixUnited States of Americarecord ↗ Module, marked GS3703FEY серії OveroIron STORM-Y
  • AD9361 Universal transceiver chip Analog DevicesUnited States of Americarecord ↗ Universal transceiver chip, marked AD9361
  • LAN9221 Network controller Microchip Technology Inc.United States of Americarecord ↗ Network controller, marked LAN9221
  • PULSE HX1188 Transformer Pulse Electronics CorporationUnited States of Americarecord ↗ Transformer, marked PULSE HX1188
  • ATX Mega A3 Microcontroller Microchip Technology Inc.United States of Americarecord ↗ Microcontroller, marked ATX Mega A3
  • OveroIron STORM-Y GS3703FEY module GumstrixUnited States of Americarecord ↗ GS3703FEY module, marked OveroIron STORM-Y

Flight controller

  • MPXV5004DP Two-port inline piezoresistive monolithic differential pressure sensor NXP SemiconductorsNetherlandsrecord ↗ Two-port inline piezoresistive monolithic differential pressure sensor, marked MPXV5004DP
  • MPX4115 Static pressure measurement sensor NXP SemiconductorsNetherlandsrecord ↗ Static pressure measurement sensor, marked MPX4115
  • InvenSense MPU-6000 Inertial sensor I TDK CorporationJapanrecord ↗ Inertial sensor I, marked InvenSense MPU-6000
  • STM32F103VCT6 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32F103VCT6
  • MPXV5004DP Two-port inline piezoresistive monolithic differential pressure sensor NXP SemiconductorsNetherlandsrecord ↗ Two-port inline piezoresistive monolithic differential pressure sensor, marked MPXV5004DP
  • MPX4115 Static pressure measurement sensor NXP SemiconductorsNetherlandsrecord ↗ Static pressure measurement sensor, marked MPX4115
  • nvenSense MPU-6000 Inertial sensor TDK CorporationJapanrecord ↗ Inertial sensor, marked nvenSense MPU-6000
  • STM32F103VCT6 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32F103VCT6

Modem of command and telemetry radio line

  • TA1163A Bandpass filter on surface acoustic waves Tai-Saw Technology Co., Ltd.Taiwanrecord ↗ Bandpass filter on surface acoustic waves, marked TA1163A
  • SPF5122Z Low-noise amplifier for the radio receiving path QorvoUnited States of Americarecord ↗ Low-noise amplifier for the radio receiving path, marked SPF5122Z
  • RF3194 Power amplifier for the radio transmission path QorvoUnited States of Americarecord ↗ Power amplifier for the radio transmission path, marked RF3194
  • W1A814 (SX12BC) Low-power transceiver chip Semtech CorporationUnited States of Americarecord ↗ Low-power transceiver chip, marked W1A814 (SX12BC)

Switching and control board for power supply

  • (PTH08080WAH) Power management integrated circuit Texas InstrumentsUnited States of Americarecord ↗ Power management integrated circuit, marked (PTH08080WAH)
  • JST J-1100 Power connector JSTUnited States of Americarecord ↗ Power connector, marked JST J-1100

Navigation and positioning system

  • Комета-М-ВТ Four-element small-sized adaptive antenna array of the series АО ВНИИР-ПрогрессRussian Federationrecord ↗ Four-element small-sized adaptive antenna array of the series, marked Комета-М-ВТ
  • CGGP.18.4.C.02 Т-003 GPS-antenna CGGP.18.4.C.02 T-003 TaoglasIrelandrecord ↗ GPS-antenna CGGP.18.4.C.02 T-003, marked CGGP.18.4.C.02 Т-003
  • NEO-M6N-0-10 Two-port inline piezoresistive monolithic differential pressure sensor U-bloxSwitzerlandrecord ↗ Two-port inline piezoresistive monolithic differential pressure sensor, marked NEO-M6N-0-10
  • МНП-М7 Navigation receiver ООО ИРЗ-СВЯЗЬRussian Federationrecord ↗ Navigation receiver, marked МНП-М7
  • NEO-M8N-0-01 GPS module U-bloxSwitzerlandrecord ↗ GPS module, marked NEO-M8N-0-01

Device for recording telemetry

  • Flash mediaSan Disk Ultra SanDisk CorporationUnited States of Americarecord ↗ Flash mediaSan Disk Ultra

Target load control unit load control unit

  • серії OveroIron STORM-Y GS3703FEY module GumstrixUnited States of Americarecord ↗ GS3703FEY module, marked серії OveroIron STORM-Y

Radio modem for transmitting signals control and telemetry

  • TA1163A Bandpass filter on surface acoustic waves Tai-Saw Technology Co., Ltd.Taiwanrecord ↗ Bandpass filter on surface acoustic waves, marked TA1163A
  • SPF5122Z Low-noise amplifier for the radio receiving path QorvoUnited States of Americarecord ↗ Low-noise amplifier for the radio receiving path, marked SPF5122Z
  • RF3194 Power amplifier for the radio transmission path QorvoUnited States of Americarecord ↗ Power amplifier for the radio transmission path, marked RF3194
  • W1A814 SX12BC Low-power transceiver chip Semtech CorporationUnited States of Americarecord ↗ Low-power transceiver chip, marked W1A814 SX12BC

Switching and control board power supply

  • PTH08080WAH Power management integrated circuit Texas InstrumentsUnited States of Americarecord ↗ Power management integrated circuit, marked PTH08080WAH
  • JST J-1100 Power connector JSTUnited States of Americarecord ↗ Power connector, marked JST J-1100

TRK-01319 platform with Orlan-10 wing UAV

  • SIM800C Cellular communication module SIMCom Wireless SolutionsPeople's Republic of Chinarecord ↗ Cellular communication module, marked SIM800C
  • CAM-M8Q-0-10 Receiver module U-bloxSwitzerlandrecord ↗ Receiver module, marked CAM-M8Q-0-10

Also reported

  • Day camera — Canon EOS 750D (Rebel T6i) consumer DSLR, fixed with Velcro/tape, mode dial glued, found in a Ukrainian MoD teardown (April 2022) source
  • Fuel system detail — Bottle-top fuel cap and duct-taped fittings noted in the same teardown source
  • Navigation module — u-blox (Switzerland) GNSS navigation module source
  • RF transceiver / video encoder — Analog Devices (USA) configurable RF transceiver, video encoder, voltage regulator source
  • Microcontrollers and memory — Microchip Technology (USA) microcontrollers, Ethernet controller and flash; STMicroelectronics microcontrollers source
  • Programmable logic — Xilinx and Altera (USA) FPGAs source
  • Computer-on-module — Gumstix (USA) CoM; ~1,400 GUM3703FEBY processor modules shipped to STC's supplier source
  • Power and video electronics — Texas Instruments (USA) power module, video decoder, audio codec, Wi-Fi module; Traco Power (Switzerland) DC converter; Linear Technology regulator; Qorvo amplifiers source
  • Sensors — TDK (Japan) gyro stabiliser; NXP (Netherlands) pressure sensor; Renesas attenuator; Tai-Saw (Taiwan) SAW filter source
  • Later supply (2023 leaked documents) — Chinese T-Motor propellers/motors and Radiolink flight controllers and GPS modules, Sony cameras, Gpixel CMOS sensors source
  • GNSS chips (CBS teardown) — US and Swiss GNSS chips (Maxim, Microchip, u-blox) accessing GLONASS, GPS and Galileo source

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.

Open original ↗
