What the KN-23 is made of

37 documented parts and 37 photos, from recovered wreckage and the reporting on it. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: KN-23.

Where the parts were made

United States of America 20: Semtech Corporation, Fairchild Semiconductor (ON Semiconductor), Bourns Inc, Altera Corporation (Intel), Analog Devices, Texas Instruments, Linear Technology Corporation (Analog Devices), Agilent Technologies, AVAGO Technologies (Broadcom)
People's Republic of China 4: Shenzhen LONGSON Century Technology Co.,Ltd., MORNSUN Guangzhou Science & Technology Co., Ltd., Jiukai Special Cable (Shanghai) Co., Ltd., ZHONGKEWEI
Netherlands 3: NXP Semiconductors
Japan 3: Toshiba, NSK
Great Britain 2: XP Power
Switzerland 2: LEM International SA, Traco Power
Germany 2: Diotec Semiconductor, Siemens

Sources

HUR War & Sanctions: Ballistic missile KN-23/KN-24 · українською
Open Source Munitions Portal — search its munition identification records

Ukrainian pages read alongside the English: same items, markings and text.

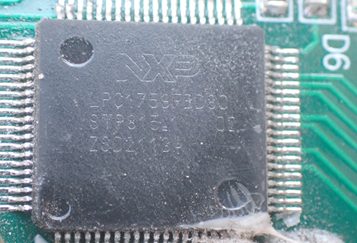

Microcontroller

Мікроконтролер

NXP SemiconductorsNetherlands

LPC1759FBD80 SYP815 02 ZSD2113

An NXP LPC1759 32-bit ARM Cortex-M3 microcontroller. In the weapon it runs embedded control code on one of the circuit boards, handling input and output and driving the surrounding components.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

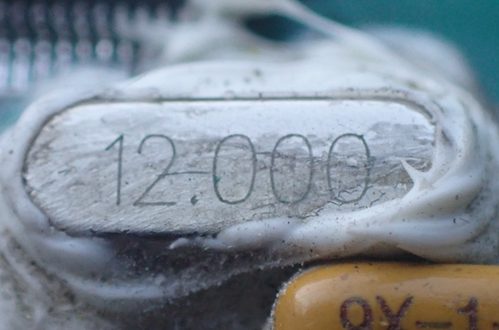

Quartz resonator

Кварцевий резонатор

Shenzhen LONGSON Century Technology Co.,Ltd.People's Republic of China

12.000

A 12 MHz quartz crystal resonator. It provides the stable clock reference that nearby digital chips need to time their operations.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

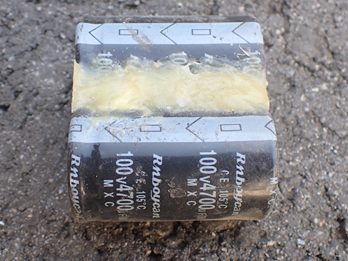

Electrolytic capacitor

Електролітичний конденсатор

Not identified

100v 4700uF MXC

A 100 V, 4700 µF aluminium electrolytic capacitor, described in the record as a copy of a Rubycon part. It stores energy on a power rail and smooths voltage ripple.

Copy of Rubycon capacitors

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

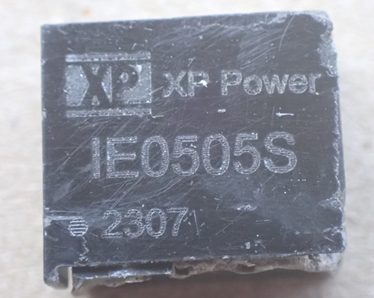

DC/DC converter

DC/DC перетворювач

XP PowerGreat Britain

IE0505S

An XP Power IE0505S isolated 1 W DC/DC converter. It takes a 5 V input and delivers an isolated 5 V output, keeping one part of the circuit electrically separated from another.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

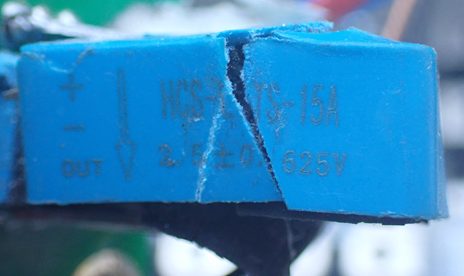

Hall Effect Current Sensor

Датчик струму на ефекті Холла

LEM International SASwitzerland

HCS-LTS-15A

A LEM HCS-LTS-15A Hall-effect current sensor rated for 15 A. It measures the current flowing through a conductor without a direct electrical connection to it.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

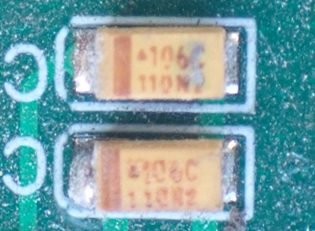

Tantalum Capacitor

Танталовий конденсатор

Semtech CorporationUnited States of America

106C

A surface-mount tantalum capacitor, 10 µF rated for 16 V. It smooths and decouples a low-voltage power rail on the circuit board.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Microchip

Мікросхема

Fairchild Semiconductor (ON Semiconductor)United States of America

PA4AA M74HC

An M74HC-series high-speed CMOS logic chip. It performs a basic digital logic function between other components on the board.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Resistor assembly

Резисторна збірка

Bourns IncUnited States of America

9X-1-472LF 1027

A Bourns 9X-series resistor network containing several 4.7 kΩ resistors in one package. It typically sets pull-up or termination resistors for digital signal lines.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

DC/DC converter

DC/DC перетворювач

Traco PowerSwitzerland

TEN 8-2411WI

A Traco Power TEN 8-2411WI isolated 8 W DC/DC converter. It accepts a wide input range around 24 V and delivers a regulated, isolated output to power another section of the electronics.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Field programmable gate array (FPGA)

Програмована вентильна матриця (FPGA)

Altera Corporation (Intel)United States of America

ALTERA Cyclone EP3C25E144I7N

An Altera Cyclone III EP3C25 field-programmable gate array. It is a configurable logic chip whose internal circuit is defined by firmware, used here for custom high-speed digital processing.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

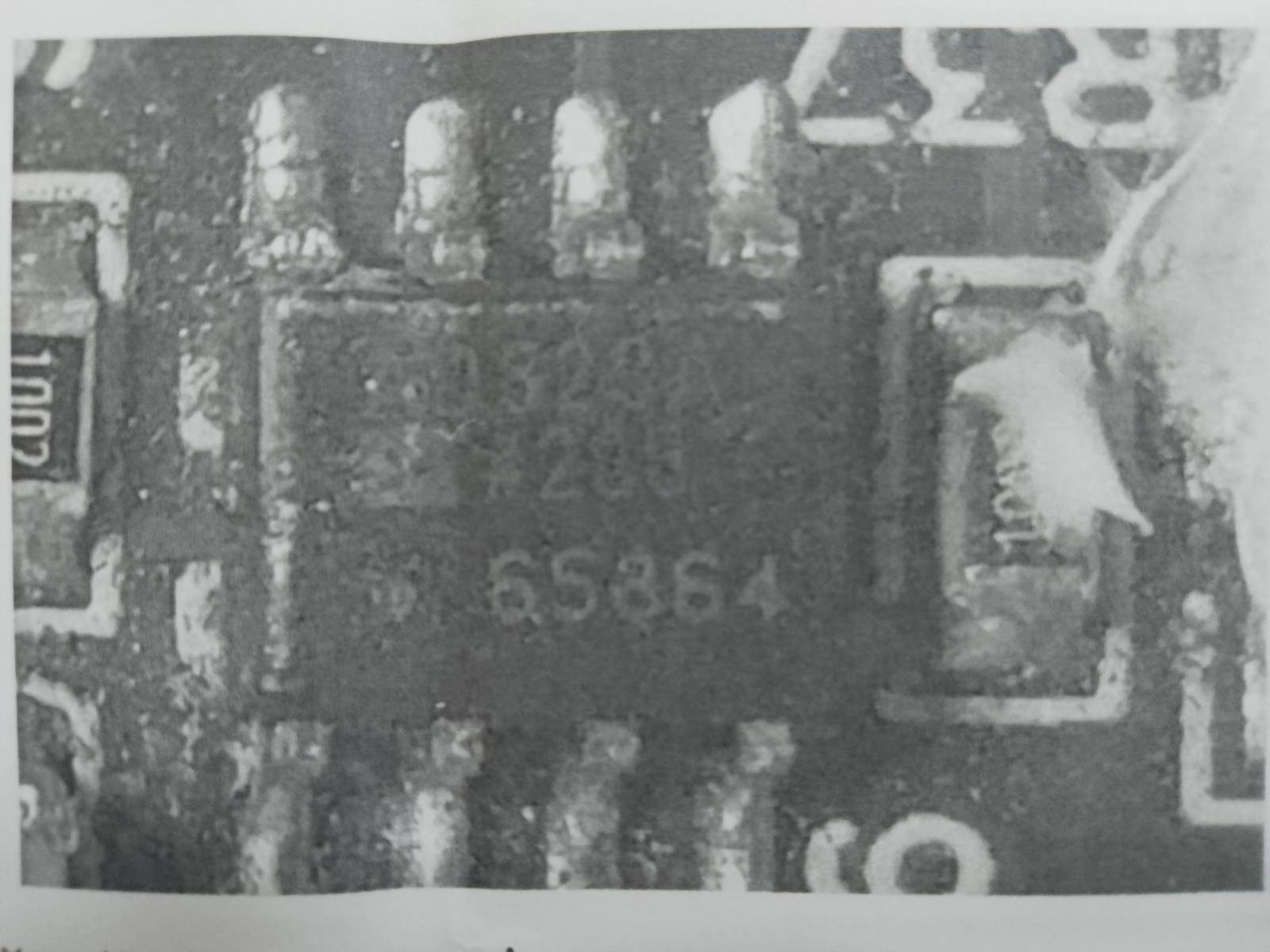

Operational Amplifier

Операційний підсилювач

Analog DevicesUnited States of America

AD820A

An Analog Devices AD820 single operational amplifier with a FET input. It conditions a small analogue signal, for example from a sensor, before it is sampled by other circuitry.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Digital signal processor

Цифровий сигнальний процесор

Texas InstrumentsUnited States of America

TMS320C6726BRFP

A Texas Instruments TMS320C6726B floating-point digital signal processor. It executes real-time mathematical routines, such as signal filtering or control calculations, on the board.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Optocoupler

Оптопара

ToshibaJapan

TLP281-4 1648

A Toshiba TLP281-4 four-channel optocoupler. It passes digital signals across an optical barrier so that two circuits can communicate while staying electrically isolated.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

8ch Darlington driver

Восьмиканальний драйвер Дарлінгтона

ToshibaJapan

ULN2803APG

A Toshiba ULN2803APG eight-channel Darlington transistor array. It lets low-power logic outputs switch higher-current loads such as relays, solenoids or small motors.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

DC/DC converter

DC/DC перетворювач

MORNSUN Guangzhou Science & Technology Co., Ltd.People's Republic of China

URB2405LD-20WR3 2140

A MORNSUN URB2405LD 20 W isolated DC/DC converter. It converts a 24 V input to an isolated 5 V output to supply another part of the electronics.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

RS485/RS422 transceiver

Трансивер RS485/RS422

Linear Technology Corporation (Analog Devices)United States of America

1813 LTC2864S-1

A Linear Technology LTC2864 RS-485/RS-422 transceiver. It drives and receives the differential signals of a serial data link between circuit boards or subsystems.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Microcontroller

Мікроконтролер

NXP SemiconductorsNetherlands

LPC1763FBD100

An NXP LPC1763 ARM Cortex-M3 microcontroller. It runs embedded firmware on the board, handling input, output and communication with other components.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Tantalum Capacitor

Танталовий конденсатор

Semtech CorporationUnited States of America

106T 80203

A surface-mount tantalum capacitor, 10 µF rated for 16 V. It decouples and stabilises a low-voltage power rail.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

SMD rectifier diod

SMD випрямляючий діод

Diotec SemiconductorGermany

US1K

A Diotec US1K ultrafast surface-mount rectifier diode rated for 800 V. It lets current flow in one direction only, used for rectification or as a protection diode.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

PNP low saturation transistor

PNP транзистор низького насичення

Fairchild Semiconductor (ON Semiconductor)United States of America

FZT749

An ON Semiconductor FZT749 PNP bipolar transistor in a surface-mount package. It switches or amplifies currents of up to a few amps on the board.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Synchronous buck PWM switcher with integrated FETs

Синхронний широтно-імпульсний перемикач з інтегрованим польовим транзистором

Texas InstrumentsUnited States of America

TPS54312

A Texas Instruments TPS54312 synchronous buck PWM converter with integrated power transistors. It steps a higher input voltage down to a lower regulated voltage for other chips on the board.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Tantalum capacitor

Танталовий конденсатор

Semtech CorporationUnited States of America

337 J 115F1

A tantalum capacitor, 330 µF rated for about 10 V. It stabilises a power rail and buffers short current peaks.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Optocoupler HCPL-3120

Оптопара HCPL-3120

Agilent TechnologiesUnited States of America

A 3120 2213

An Avago HCPL-3120 optocoupler with a built-in gate-driver output. It passes a logic signal across an optical barrier and uses it to drive the gate of a power MOSFET or IGBT.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Low saturation transistor

Транзистор з низьким насиченням

Fairchild Semiconductor (ON Semiconductor)United States of America

FZT649

An ON Semiconductor FZT649 NPN bipolar transistor in a surface-mount package. It switches or amplifies currents of up to a few amps on the board.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Operational amplifier

Операційний підсилювач

Analog DevicesUnited States of America

AD822 #2223 4399

An Analog Devices AD822 dual operational amplifier with FET inputs. It conditions two analogue signals, for example from sensors, before they are sampled or compared.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

RS-485 transceiver

Трансивер RS-485

Analog DevicesUnited States of America

ADM2490E BRWZ #2101 3172616

An isolated RS-485 line driver and receiver from Analog Devices, used to send serial data between circuit boards over a twisted-pair link while keeping their electrical grounds separated.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Low dropout regulator REG 1117-3.3

Стабілізатор з низьким падінням напруги REG 1117-3.3

Texas InstrumentsUnited States of America

BB11174 67Z275H

A linear voltage regulator from Texas Instruments that takes a higher input voltage and holds a steady 3.3 V output to power digital electronics on the board.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Communication cable

Кабель звʼязку

Jiukai Special Cable (Shanghai) Co., Ltd.People's Republic of China

E249743 AWM 2464 22A WG

A multi-conductor shielded cable rated to the UL 2464 standard, used to carry signals or low-voltage power between modules inside the weapon.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

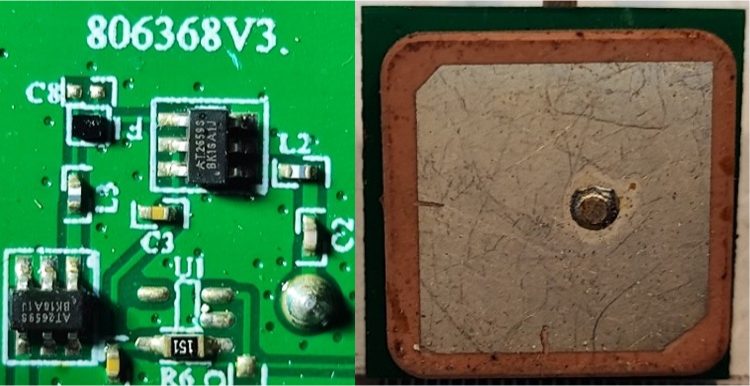

Satellite signal patch antenna GPS/GNSS/Beidou

Патч-антена супутникового сигналу GPS/ГЛОНАСС/Beidou

ZHONGKEWEIPeople's Republic of China

AT2659s

A small active patch antenna that receives satellite navigation signals from GPS, GLONASS and the Chinese BeiDou system, feeding the on-board positioning electronics.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Radial contact bearing

Радіально-упорний підшипник

NSKJapan

5209Z

A single-row deep-groove ball bearing from NSK, used to support a rotating shaft inside a mechanical assembly.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Isolated amplifier

Ізольований підсилювач

AVAGO Technologies (Broadcom)United States of AmericaMade September (37th week) of 2021

A 7800A 2137 038

An optically isolated analogue amplifier that passes a measured voltage, typically from a current-sense or motor-feedback circuit, across a safety barrier to the control electronics.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

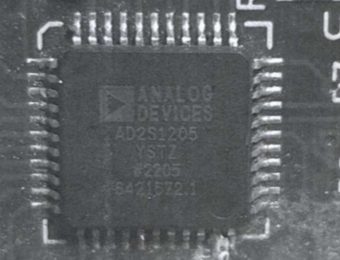

12-Bit R/D Converter with Reference Oscillator

12-розрядний RDC з опорним генератором

Analog DevicesUnited States of AmericaMade February (5th week) of 2022

AD2S1205 YSTZ #2205 6421572.1

A resolver-to-digital converter from Analog Devices that reads the sine/cosine signals from a resolver and outputs a 12-bit digital angle, used to measure the position of a rotating shaft such as a fin actuator.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Buffer

Буфер

Fairchild Semiconductor (ON Semiconductor)United States of America

MM74HC244

An octal three-state buffer logic chip used to drive digital signals between parts of a circuit and isolate them when the output is disabled.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Power supply

Джерело живлення

XP PowerGreat Britain

JTC0424S15

An isolated DC-DC converter module from XP Power that takes a 24 V input and produces a regulated 15 V output to supply other electronics in the system.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Octal Buffer

ВосьмерІчний буфер

Texas InstrumentsUnited States of America

HC244

An octal three-state buffer from Texas Instruments, functionally equivalent to the 74HC244, used to drive and separate digital signal lines.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Microcontroller

Мікроконтролер

NXP SemiconductorsNetherlands

LPC1759FBD80 S2N462.1 03 ZSD2210A

An NXP 32-bit ARM Cortex-M3 microcontroller that runs the firmware controlling this subsystem of the weapon.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

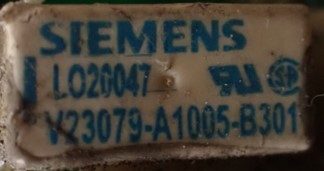

Relay

Реле

SiemensGermany

LO20047 V23079-A1005-B301

A small signal relay from Siemens, used to switch a low-current electrical circuit on or off under logic control.

HUR War & Sanctions record ↗

Photo: HUR War & Sanctions

Also reported

Navigation-system electronics — Conflict Armament Research documented more than 290 non-domestic electronic components in the missile that hit Kharkiv on 2 January 2024, most of them in the navigation system; about 75% linked to US-incorporated companies, 16% to European and 9% to Asian ones, from 26 companies in eight countries and territories. Date codes ran 2021–2023, so the missile could not have been assembled before March 2023 source
Voltage converter — XP Power (UK) voltage converter produced in February 2023, found by Ukraine's Defence Intelligence (HUR) in KN-23/KN-24 debris source
Control electronics (supplier countries) — HUR's updated War&Sanctions entry lists foreign components from companies in China, the United States, Japan, the United Kingdom and Switzerland; an earlier list named 19 companies from seven countries source
Satellite-navigation receivers — Ukrainian defence-ministry engineers matched niches for satellite-navigation receivers in Kharkiv debris to photographs from North Korean missile factories, one of seven matching parameters source
Circuit boards and assembly — Ukraine's defence ministry describes soldering methods and component quality about 50 years behind modern standards, built around civilian-purpose parts likely obtained in breach of sanctions source
Nose thermal protection — Graphite-material fairing on the nose section plus a thermal protective coating, which the ministry calls a cheap substitute for modern thermal-protection materials source
Rocket motor — Single-stage solid-propellant motor roughly 1.5 times larger and longer than Russian counterparts for a similar range, per Ukraine's defence ministry; the nozzle-fastening bolt pattern matches North Korean factory photographs source
Gas-dynamic rudders (jet vanes) — Made of what Ukraine's Institute of Armaments and Military Equipment identified as a Russian grade-9 tungsten alloy, as relayed in a RUSI commentary by Oleksandr Danylyuk source
Motor case — Fuel-tank body steels identified as Russian grades (12Kh2NVFA to 23Kh2NVFA family) and markings conforming to Russian standard GOST 2.113-75, per the same Ukrainian analysis source
