What the Kalibr is made of

89 documented parts and 87 photos, from recovered wreckage and the reporting on it. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: Kalibr.

1 open question ↓

Where the parts were made

United States of America 80
ON Semiconductor (ONSEMI), Texas Instruments, Analog Devices, Altera Corporation (Intel), Linear Technology Corporation (Analog Devices), Maxim Integrated Products (Analog Devices), Holt Integrated Circuits, Inc., Micron Technology, Cypress Semiconductor (Infineon Technologies), Marvell Technology Group, AMD, HALO Electronics, Inc., Motorola, Inc, Integrated Device Technology (Renesas), Spansion (Cypress Semiconductor, Infineon Technologies)
Switzerland 5
STMicroelectronics
Uzbekistan 1
ОКБ Фотон
Taiwan 1
VBsemi Electronics Co.,Ltd

Sources

Ukrainian pages read alongside the English: same items, markings and text.

Active radar homing head ARGS-14 of the 3M-14 Kalibr missile record ↗

Module "У514-2204" (ИСАТ. 466533.007) №22-17025

  • 269-3G RMH17 Transistor ON Semiconductor (ONSEMI)United States of Americarecord ↗ Transistor, marked 269-3G RMH17

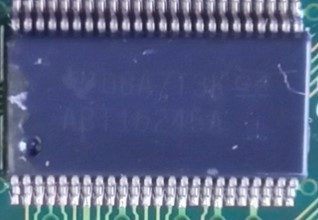

  • 08A7T3K G4 ABT16245A Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked 08A7T3K G4 ABT16245A
  • AD7450 BRZ Integrated circuit Analog DevicesUnited States of Americarecord ↗ Integrated circuit, marked AD7450 BRZ
  • AD7243BR Integrated circuit Analog DevicesUnited States of Americarecord ↗ Integrated circuit, marked AD7243BR
  • ALTERA EPC2LI20 U HAF481613A Programmable logistic integrated circuit Altera Corporation (Intel)United States of Americarecord ↗ Programmable logistic integrated circuit, marked ALTERA EPC2LI20 U HAF481613A
  • AD8016ARP Digital analog converter Analog DevicesUnited States of Americarecord ↗ Digital analog converter, marked AD8016ARP

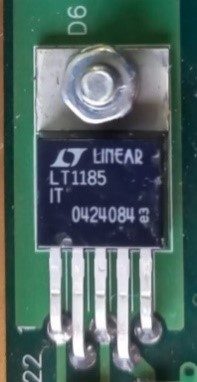

  • LT1185IT (5V, 3A) Linear voltage stabilizer Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Linear voltage stabilizer, marked LT1185IT (5V, 3A)
  • ALTERA ACEXТМ ЕР1К50QI208-2 Q СВD581707A We program a logical integrated circuit Altera Corporation (Intel)United States of Americarecord ↗ We program a logical integrated circuit, marked ALTERA ACEXТМ ЕР1К50QI208-2 Q СВD581707A

Module "У514-2206" (ИСАТ.467489.053) № 22-17752

  • LX245B 19K G4 Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked LX245B 19K G4
  • EPCS64N G012W VS CHN839 Programmable logic integrated circuit Altera Corporation (Intel)United States of Americarecord ↗ Programmable logic integrated circuit, marked EPCS64N G012W VS CHN839
  • MAXIM MAX1623EAP Regulator Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Regulator, marked MAXIM MAX1623EAP
  • HI-8382J 83-01-3222 Linear driver Holt Integrated Circuits, Inc.United States of Americarecord ↗ Linear driver, marked HI-8382J 83-01-3222
  • AD9218 BSTZ-105 #2015 Transformer Analog DevicesUnited States of Americarecord ↗ Transformer, marked AD9218 BSTZ-105 #2015

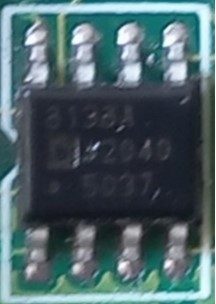

  • 8138A #2040 IC ADC driver Analog DevicesUnited States of Americarecord ↗ IC ADC driver, marked 8138A #2040
  • GN 1086 GK1LS925 Linear voltage regulator STMicroelectronicsSwitzerlandrecord ↗ Linear voltage regulator, marked GN 1086 GK1LS925
  • D9LRB 9FX27 Memory module Micron TechnologyUnited States of Americarecord ↗ Memory module, marked D9LRB 9FX27
  • 29F32C08AFABA 1928 Memory module Micron TechnologyUnited States of Americarecord ↗ Memory module, marked 29F32C08AFABA 1928

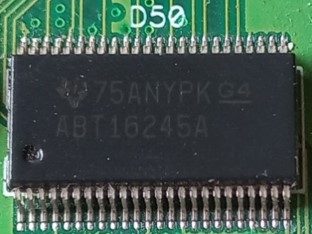

  • 75ANYPK G4 ABT16245A Microcontroller Texas InstrumentsUnited States of Americarecord ↗ Microcontroller, marked 75ANYPK G4 ABT16245A
  • CY7C1381KV33-133AXI TWN2113 Memory module Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Memory module, marked CY7C1381KV33-133AXI TWN2113

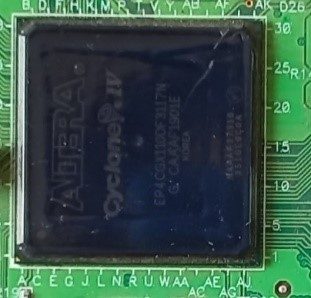

  • ALTERA Cyclone IV ЕР4CGX110DF3117N G CAAAF1901E KOREA Programmable logistic integrated circuit Altera Corporation (Intel)United States of Americarecord ↗ Programmable logistic integrated circuit, marked ALTERA Cyclone IV ЕР4CGX110DF3117N G CAAAF1901E KOREA
  • 88E1111-BAB1 Network controller Marvell Technology GroupUnited States of Americarecord ↗ Network controller, marked 88E1111-BAB1
  • ALXD800EEXJ2VF Processor AMDUnited States of Americarecord ↗ Processor, marked ALXD800EEXJ2VF
  • HALO TG1G-E001NY 2132LF Digital signal converter HALO Electronics, Inc.United States of Americarecord ↗ Digital signal converter, marked HALO TG1G-E001NY 2132LF

Module "У514-0501" (ИСАТ.467881.016) №22-17008

  • MAX1658 ESA Transistor Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Transistor, marked MAX1658 ESA
  • ALTERA EPC2LI20 U HAF481613A Programmable logistic integrated circuit Altera Corporation (Intel)United States of Americarecord ↗ Programmable logistic integrated circuit, marked ALTERA EPC2LI20 U HAF481613A
  • ALTERA FLEX EPF10K30EQІ208-2N Q DAE581731A Programmable gate matrix Altera Corporation (Intel)United States of Americarecord ↗ Programmable gate matrix, marked ALTERA FLEX EPF10K30EQІ208-2N Q DAE581731A

Missile 3M-14 Kalibr (produced not earlier than 2021) record ↗

Board ИСАТ.467881.014

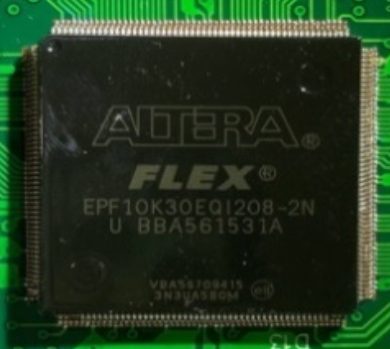

  • ALTERA®FLEX® EPF10K30EQI208-2N U BBA561531A VBA56709415 3N3UA5B0M PLD Altera Corporation (Intel)United States of AmericaMade July (31st week) 2015record ↗ PLD, marked ALTERA®FLEX® EPF10K30EQI208-2N U BBA561531A VBA56709415 3N3UA5B0M

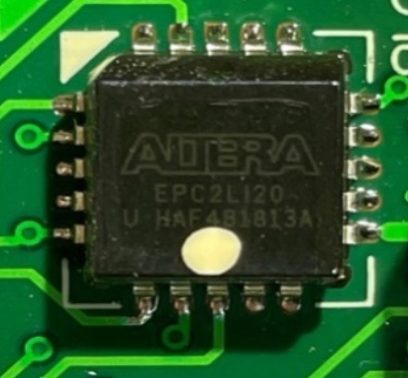

  • ALTERA EPC2LI20 U HAF481813A Microcircuit Altera Corporation (Intel)United States of AmericaMade April (13th week) 2018record ↗ Microcircuit, marked ALTERA EPC2LI20 U HAF481813A

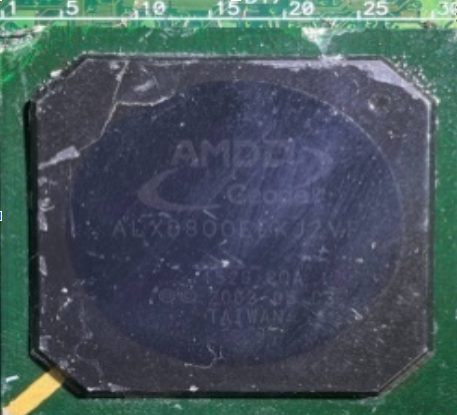

  • AMD Geode ™ ALXD800EEXJ2VF 1529 COA ⅿ© 2003-05 C3 TAIWAN PLD AMDUnited States of Americarecord ↗ PLD, marked AMD Geode ™ ALXD800EEXJ2VF 1529 COA ⅿ© 2003-05 C3 TAIWAN

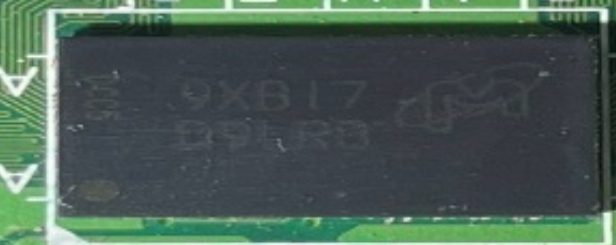

  • 9XBI7 D9LRB (DCC5) Microcircuit Micron TechnologyUnited States of AmericaMade November (48th week) 2019record ↗ Microcircuit, marked 9XBI7 D9LRB (DCC5)

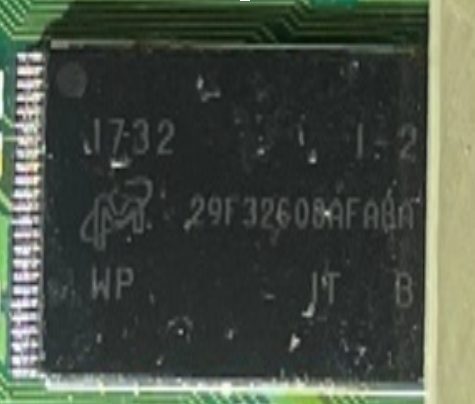

  • I732 I-2 29F32COBAFABA WP IT B NAND Flash memory Micron TechnologyUnited States of AmericaMade August (32nd week) 2017record ↗ NAND Flash memory, marked I732 I-2 29F32COBAFABA WP IT B

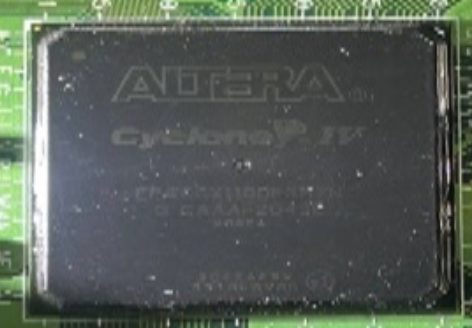

  • ALTERA® Cyclone ®IV EP4CCX110DF3117N G CAAAF2043E KOREA PLD Altera Corporation (Intel)United States of AmericaMade October (43rd week) 2020record ↗ PLD, marked ALTERA® Cyclone ®IV EP4CCX110DF3117N G CAAAF2043E KOREA

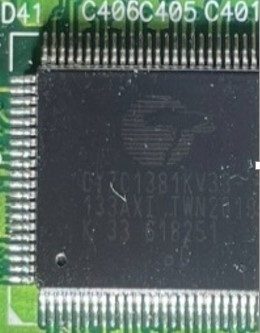

  • CY7C1381KV33 133AXI TWN2019 K 33 618251 Main memory Cypress Semiconductor (Infineon Technologies)United States of AmericaMade May (19th week) 2020record ↗ Main memory, marked CY7C1381KV33 133AXI TWN2019 K 33 618251

Board ИСАТ.466533.007

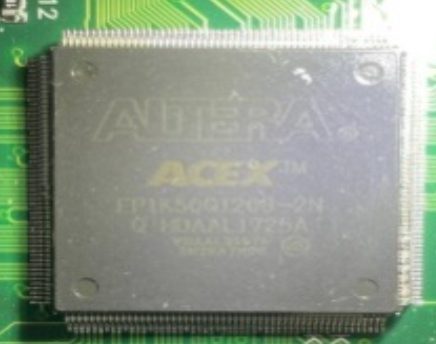

  • ALTERA® ACEX™ EP1K50QI208-2N Q HDAAL1725A VDAAL39076 3N2QA7N0Q) PLD Altera Corporation (Intel)United States of AmericaMade June (25th week) 2017record ↗ PLD, marked ALTERA® ACEX™ EP1K50QI208-2N Q HDAAL1725A VDAAL39076 3N2QA7N0Q)

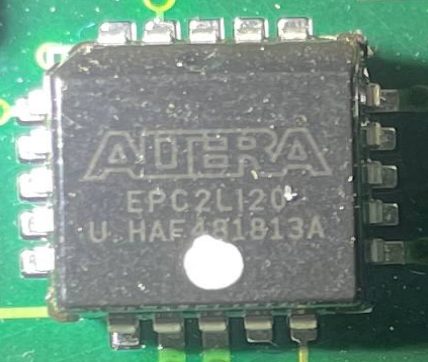

  • ALTERA EPC2LI20 U. HAF481813A Microcircuit Altera Corporation (Intel)United States of AmericaMade April (13th week) 2018record ↗ Microcircuit, marked ALTERA EPC2LI20 U. HAF481813A

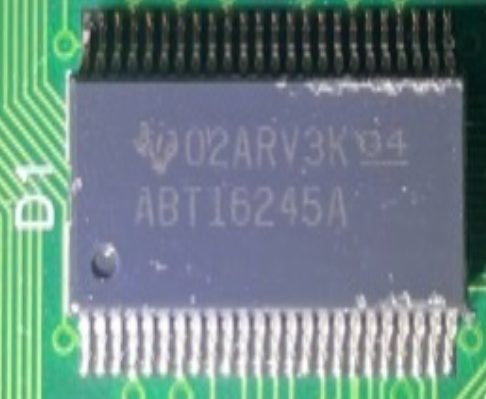

  • 02ARV3KG4 ABT16245A Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked 02ARV3KG4 ABT16245A

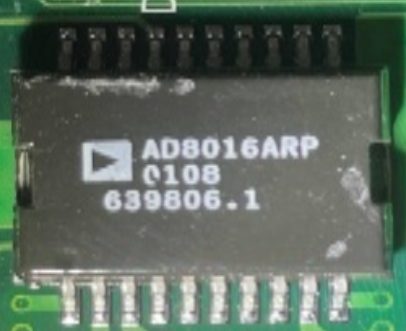

  • AD8016ARP 108 639806,1 Board element Analog DevicesUnited States of Americarecord ↗ Board element, marked AD8016ARP 108 639806,1

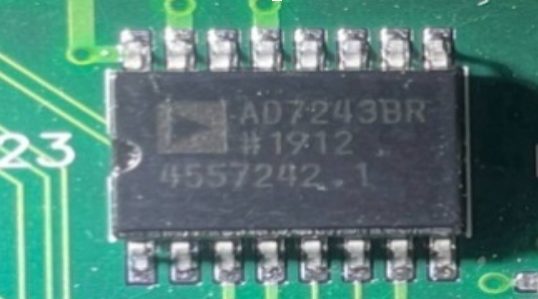

  • AD7243BR #1912 4557242,1 DAC microcircuit (12-bit) Analog DevicesUnited States of AmericaMade March (12th week) 2019record ↗ DAC microcircuit (12-bit), marked AD7243BR #1912 4557242,1

Missile 3M-14 Kalibr record ↗

module U514-2204

  • 286ЕП3 та 286ЕП4 microcircuits ОКБ ФотонUzbekistanrecord ↗ microcircuits, marked 286ЕП3 та 286ЕП4
  • OP276 Microcircuit Analog DevicesUnited States of Americarecord ↗ Microcircuit, marked OP276
  • AD780 Microcircuit Analog DevicesUnited States of Americarecord ↗ Microcircuit, marked AD780
  • TPS51100 Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked TPS51100
  • EPF10K30EQI208-2N Q Processor Altera Corporation (Intel)United States of Americarecord ↗ Processor, marked EPF10K30EQI208-2N Q
  • MC33269DT-3.3G Transistor ON Semiconductor (ONSEMI)United States of Americarecord ↗ Transistor, marked MC33269DT-3.3G
  • MAX1658 Microcircuit Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Microcircuit, marked MAX1658
  • EPC2LI20 U HAF481613A Memory management module Altera Corporation (Intel)United States of Americarecord ↗ Memory management module, marked EPC2LI20 U HAF481613A
  • LT1185IT Transistor Analog DevicesUnited States of Americarecord ↗ Transistor, marked LT1185IT
  • REF195 Microcircuit Analog DevicesUnited States of Americarecord ↗ Microcircuit, marked REF195
  • AD7243BR Microcircuit Analog DevicesUnited States of Americarecord ↗ Microcircuit, marked AD7243BR

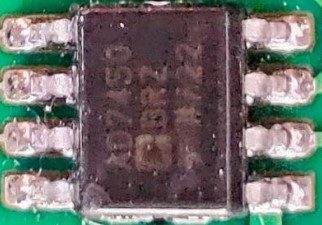

  • AD7450 Microcircuit Analog DevicesUnited States of Americarecord ↗ Microcircuit, marked AD7450
  • AD8016ARP Microcontroller Analog DevicesUnited States of Americarecord ↗ Microcontroller, marked AD8016ARP
  • EP1K50QI208-2NQ Processor Altera Corporation (Intel)United States of Americarecord ↗ Processor, marked EP1K50QI208-2NQ
  • LX245B Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked LX245B
  • EPCS64N 9911E V5 Microcircuit Altera Corporation (Intel)United States of Americarecord ↗ Microcircuit, marked EPCS64N 9911E V5
  • MAX 1623EAP Microcircuit Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Microcircuit, marked MAX 1623EAP
  • TG1G-E001NY 2024LF Microcircuit HALO Electronics, Inc.United States of Americarecord ↗ Microcircuit, marked TG1G-E001NY 2024LF
  • 8138A Transistor Analog DevicesUnited States of Americarecord ↗ Transistor, marked 8138A
  • HI-8382J-17-02-5086 Microcontroller Holt Integrated Circuits, Inc.United States of Americarecord ↗ Microcontroller, marked HI-8382J-17-02-5086
  • AD9218BSTZ-105 A single-chip microcomputer optimized for digital signal processing Analog DevicesUnited States of Americarecord ↗ A single-chip microcomputer optimized for digital signal processing, marked AD9218BSTZ-105
  • 76ACTTK ABT16245A Integrated microcircuit Texas InstrumentsUnited States of Americarecord ↗ Integrated microcircuit, marked 76ACTTK ABT16245A
  • 08A7T3K ABT16245A Integrated microcircuit Texas InstrumentsUnited States of Americarecord ↗ Integrated microcircuit, marked 08A7T3K ABT16245A

module U514-2206

  • 29F32C08AFABA Memory module Micron TechnologyUnited States of Americarecord ↗ Memory module, marked 29F32C08AFABA
  • 88Е111-ВАВ1 G25853YA 2JW Microcircuit Marvell Technology GroupUnited States of Americarecord ↗ Microcircuit, marked 88Е111-ВАВ1 G25853YA 2JW
  • MT46H32LFB5-5 D9LRB Microcircuit Micron TechnologyUnited States of Americarecord ↗ Microcircuit, marked MT46H32LFB5-5 D9LRB

module U514-0501

  • CY7C1381KV33-133AXI Microcircuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Microcircuit, marked CY7C1381KV33-133AXI
  • EP4CGX110DF31I7N Processor Altera Corporation (Intel)United States of Americarecord ↗ Processor, marked EP4CGX110DF31I7N
  • ALXD800EEXJ2VF Processor AMDUnited States of Americarecord ↗ Processor, marked ALXD800EEXJ2VF

Missile 3M-14 Kalibr (May 2022) record ↗

On-board satellite navigation equipment TDCK.468173.005-01

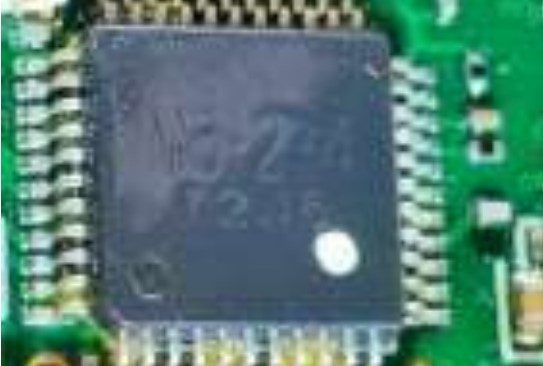

  • М5-2-4 TQFP44 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked М5-2-4 TQFP44

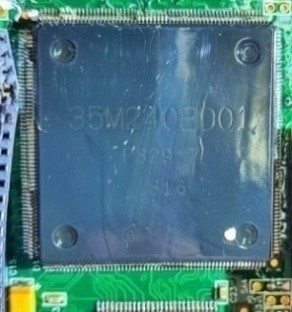

  • 35M240BD01 Processor Altera Corporation (Intel)United States of Americarecord ↗ Processor, marked 35M240BD01
  • RC64475 RISController Embedded 64-bit microprocessor built on RISCore 4000 Integrated Device Technology (Renesas)United States of Americarecord ↗ RISController Embedded 64-bit microprocessor built on RISCore 4000, marked RC64475
  • TQFP44 Microcontroller M5-1-4 in the case STMicroelectronicsSwitzerlandrecord ↗ Microcontroller M5-1-4 in the case, marked TQFP44

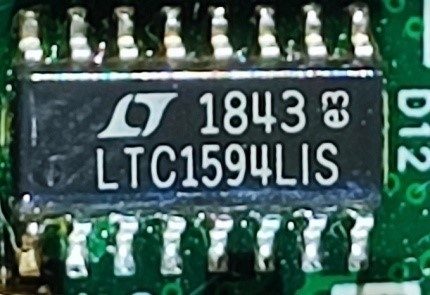

  • LTC1594LIS 8-channel 12-bit analog-to-digital converter Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ 8-channel 12-bit analog-to-digital converter, marked LTC1594LIS

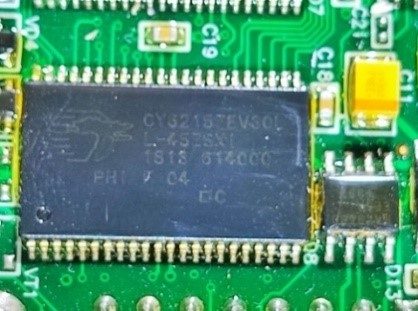

  • L-45ZSXI 1813 614000 F 04 Microcircuit CY62157EV30L Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Microcircuit CY62157EV30L, marked L-45ZSXI 1813 614000 F 04

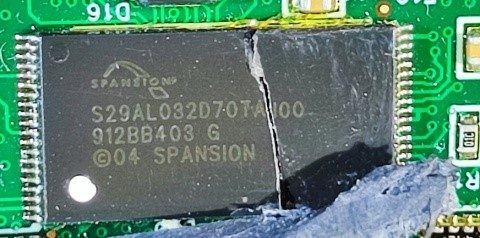

  • S29AL032D70TАI00 32-megabit flash memory device Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ 32-megabit flash memory device, marked S29AL032D70TАI00

Radio altimeter

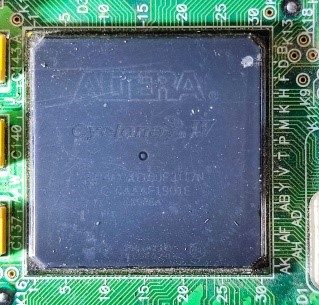

  • ALTERA Cyclone IV EP 4C6X110DF3117N G CAAA F1901E Processor (programmable gate array) Altera Corporation (Intel)United States of Americarecord ↗ Processor (programmable gate array), marked ALTERA Cyclone IV EP 4C6X110DF3117N G CAAA F1901E

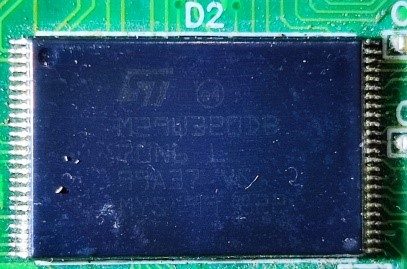

  • M29W320DB Memory card STMicroelectronicsSwitzerlandrecord ↗ Memory card, marked M29W320DB

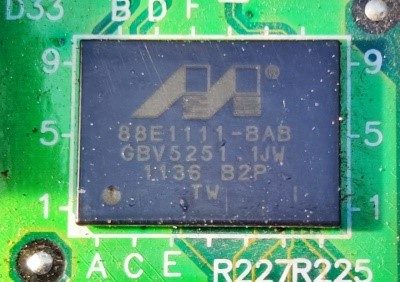

  • 88E1111-BAB GBV5251 1JW Integrated transceiver Marvell Technology GroupUnited States of Americarecord ↗ Integrated transceiver, marked 88E1111-BAB GBV5251 1JW
  • HALO TG1G-E001NY Transformer HALO Electronics, Inc.United States of Americarecord ↗ Transformer, marked HALO TG1G-E001NY

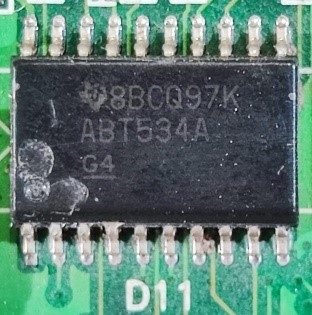

  • 8BCQ97K ABT534A G4 Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked 8BCQ97K ABT534A G4

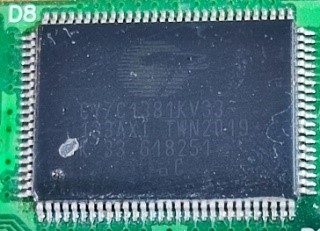

  • CY7C1381KV33 133AXI TWN2019 K 33 618251 Integrated circuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Integrated circuit, marked CY7C1381KV33 133AXI TWN2019 K 33 618251

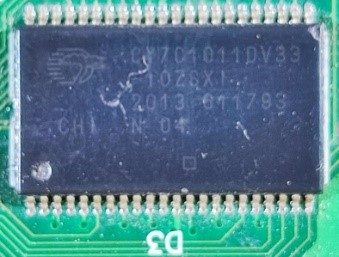

  • CY7C1011DV33 10ZSX1 2013 Integrated circuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Integrated circuit, marked CY7C1011DV33 10ZSX1 2013

Block BCVM Zarya-61M

  • DSP TMS320C30GEL JG-22S2LG8 1988 TI Digital signal processor Texas InstrumentsUnited States of Americarecord ↗ Digital signal processor, marked DSP TMS320C30GEL JG-22S2LG8 1988 TI
  • CY7C10490 Microcircuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Microcircuit, marked CY7C10490
  • TMS 320C25GBA DSP chip (Digital Signal Processor) Texas InstrumentsUnited States of Americarecord ↗ DSP chip (Digital Signal Processor), marked TMS 320C25GBA

On-board satellite navigation equipment TDCK.436647.001-03

  • W47G Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked W47G
  • 8L05A PLUAB Voltage regulator Motorola, IncUnited States of Americarecord ↗ Voltage regulator, marked 8L05A PLUAB

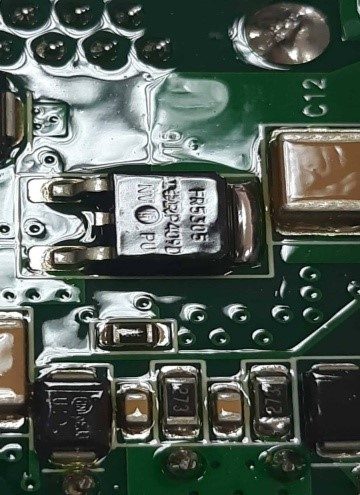

  • FR5305 P-channel 60 V (DS) MOSFET VBsemi Electronics Co.,LtdTaiwanrecord ↗ P-channel 60 V (DS) MOSFET, marked FR5305

From other sources

Cluster (submunition) warhead

Ukraine’s Ministry of Defence says Kalibrs recovered after the full-scale invasion had been refitted with a cluster warhead.

mod.gov.ua record ↗

Launch (booster) engine

The Ukrainian MoD teardown lists a dedicated starter engine as one of the Kalibr’s main sections, separate from the sustainer.

mod.gov.ua record ↗

Open questions

What has not been published about the Kalibr, and where the available evidence points: measurements from published photos, the physics, the parts its relatives carry, and the trade in the parts themselves. An indication is not a confirmation. Each one shows how it was reached; last reviewed 2026-10-23.

Also not yet established

  • Cluster (submunition) warhead: does recovered wreckage of the Kalibr show it? — A teardown record from HUR or another official body listing it, or a photo of it in recovered wreckage.

Also reported

  • Active radar homing head maker — Seekers are attributed to Radar MMS (St Petersburg), which bought diodes and microcircuits worth almost 700 million roubles through the distributor Inkotech in the first year of the full-scale war (iStories) source
  • Satellite navigation receiver (SN-99) — SN-99 navigation equipment, designed in the 2000s in Smila, Ukraine, now mass-produced in Russia; also used in Iskander. Ukraine's MoD says the tail section, satnav and onboard computer are shared with Iskander and some modules with Bastion and Bereg source
  • Onboard computer and guidance boards — Ukrainian MoD teardown (June 2026) found guidance boards more than 80–90% foreign-made; an onboard computer built in 2025 still contained imported parts after a failed 2023–2024 switch to Russian electronics source
  • Circuit boards (early war) — Conflict Armament Research found foreign components made between 2012 and 2020 on Kalibr circuit boards recovered in 2022 (as reported by iStories) source
