What the Iskander-M is made of

324 documented parts and 329 photos, from recovered wreckage and the reporting on it. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: Iskander-M.

1 open question ↓

Where the parts were made

United States of America 186
MACOM Technology Solutions, Micrel Inc. (Microchip Technology Inc.), Texas Instruments, Analog Devices, Mini-Circuits, Linear Technology Corporation (Analog Devices), Altera Corporation (Intel), International Rectifier (Infineon Technologies), Maxim Integrated Products (Analog Devices), Spansion (Cypress Semiconductor, Infineon Technologies), AMD, Cypress Semiconductor (Infineon Technologies), Integrated Device Technology (Renesas), Vishay Intertechnology, Inc., ON Semiconductor (ONSEMI), Apex Microtechnology, Xilinx Inc. (AMD), Burr-Brown Corporation (Texas Instruments), Atmel (Microchip Technology), KYOCERA AVX, Diodes Incorporated, Micron Technology, Fox Electronics, National Semiconductor (Texas Instruments), Fairchild Semiconductor (ON Semiconductor), KEMET (YAGEO Corporation), Bourns Inc, Cortina Systems, Coilcraft Inc., MaxLinear Inc, Integrated Silicon Solution (Ingenic Semiconductor), Microchip Technology Inc., M-TRON
Russian Federation 55
ONPP TECHNOLOGIYA NAMED AFTER A. G. ROMASHIN JSC, GOSNIIMASH JSC, NIC KURCHATOV INSTITUTE - NISI, ELEKTROPRIBOR PJSC, PLANT KRASNOE ZNAMYA PJSC, ENERGIA PJSC, UPKB DETAIL JSC, LEPSE JSC, ODK-SATURN PJSC, VT JSC, NPO MOLNIYA JSC, TSNIIAG JSC, KB NAVIS JSC, GOSNIIP JSC, TSNIRTI NAMED AKADEMIKA A.I. BERGA JSC, KOMBINAT KAMENSKY FKP, Not identified, PLANT ATLANT JSC, SERPUKHOVSKY ZAVOD METALLIST JSC, PJSC MSTATOR, ELEKOND JSC, OKB MEL JSC, NPK SEVERNAYA ZARYA JSC, NPO ERKON JSC, PROTON JSC, MIKRON JSC, BZPP JSC, SKTB RT JSC, VECTOR PJSC, ORBITA JSC, NII KP JSC, KREMNII EL GROUP JSC, VOSKHOD-KRLZ JSC, MORION JSC, AEDON LLC, NITI AVANGARD JSC
Switzerland 15
Traco Power, STMicroelectronics, U-blox
Germany 10
HARTING, EPCOS AG
Japan 9
FUJITSU, Panasonic, Nippon Instruments Corporation, Toshiba
Belarus 8
INTEGRAL OJSC
Taiwan 6
DM&P Electronics, Winbond Electronics Corporation, Macronix International
People's Republic of China 3
Gowin Semiconductor, SJK, Union Semiconductor
Sweden 2
RIFA
Great Britain 1
Golledge Electronics Ltd.

Sources

Ukrainian pages read alongside the English: same items, markings and text.

Specifications (HUR)

Housing diameter
0,514 m
Launch weight
up to 1 500 kg
Length
6,02 m
Weight of the warhead
450 kg

9M727 cruise missile from the Iskander-K missile system record ↗

Nose cone - fuel tank

Носовий обтічник - паливний бак

ONPP TECHNOLOGIYA NAMED AFTER A. G. ROMASHIN JSCRussian Federation

HUR War & Sanctions record ↗

  • Nose cone - fuel tank — photo
  • Nose cone - fuel tank — photo
1 / 2

Photo: HUR War & Sanctions

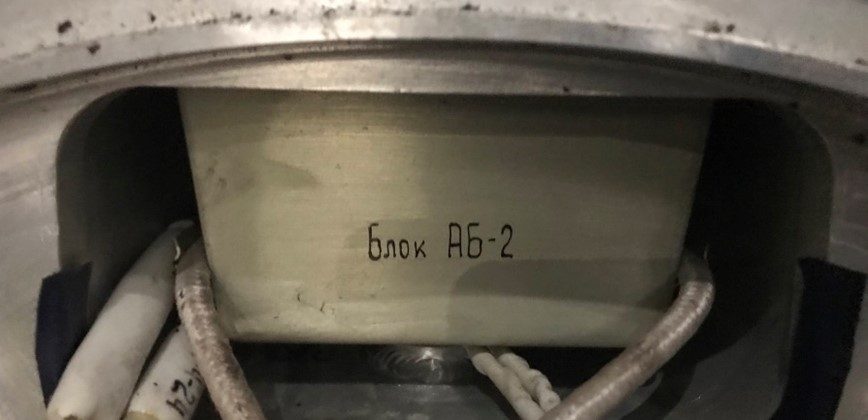

AB-2 antenna device of the 9B914 active jamming system

Антенний пристрій АБ-2 системи постановки активних завад 9Б914

HUR War & Sanctions record ↗

  • AB-2 antenna device of the 9B914 active jamming system — photo
  • AB-2 antenna device of the 9B914 active jamming system — photo
1 / 2

Photo: HUR War & Sanctions

AB-3 antenna device of the 9B914 active jamming system

Антенний пристрій АБ-3 системи постановки активних завад 9Б914

HUR War & Sanctions record ↗

  • AB-3 antenna device of the 9B914 active jamming system — photo

Photo: HUR War & Sanctions

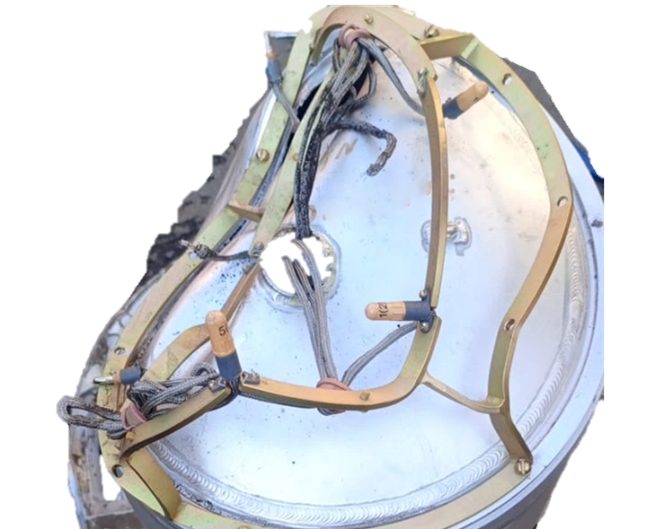

Target contact sensor system (KDTs)

Система контактних датчиків цілі (КДЦ)

HUR War & Sanctions record ↗

  • Target contact sensor system (KDTs) — photo

Photo: HUR War & Sanctions

9N184 fragmentation-high explosive warhead

Осколково-фугасна бойова частина 9Н184

GOSNIIMASH JSCRussian Federation

HUR War & Sanctions record ↗

  • 9N184 fragmentation-high explosive warhead — photo

Photo: HUR War & Sanctions

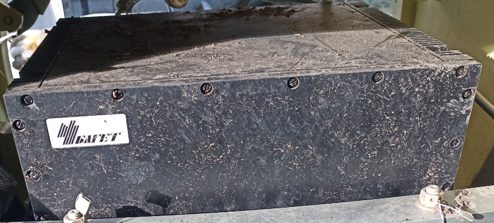

Baget 62-04 on-board digital computer

Бортова цифрова обчислювальна машина Багет 62-04

NIC KURCHATOV INSTITUTE - NISIRussian Federation

HUR War & Sanctions record ↗

  • Baget 62-04 on-board digital computer — photo

Photo: HUR War & Sanctions

Inertial navigation system GIB-123-4 based on MT-401M-1AT laser gyroscope

Інерціальна навігаційна система ГИБ-123-4 на основі лазерного гіроскопу МТ-401М-1АТ

ELEKTROPRIBOR PJSCRussian Federation

HUR War & Sanctions record ↗

  • Inertial navigation system GIB-123-4 based on MT-401M-1AT laser gyroscope — photo

Photo: HUR War & Sanctions

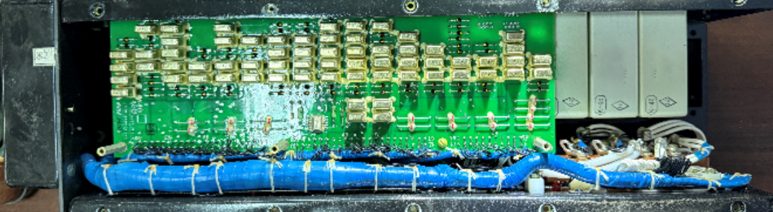

Distribution relay RR-97

Розподільче реле РР-97

PLANT KRASNOE ZNAMYA PJSCRussian Federation

HUR War & Sanctions record ↗

  • Distribution relay RR-97 — photo

Photo: HUR War & Sanctions

Air pressure measurement system (SIVD)

Система вимірювання повітряного тиску (СИВД)

HUR War & Sanctions record ↗

  • Air pressure measurement system (SIVD) — photo

Photo: HUR War & Sanctions

Chemical power supply 9B280-1

Хімічне джерело живлення 9Б280-1

ENERGIA PJSCRussian Federation

HUR War & Sanctions record ↗

  • Chemical power supply 9B280-1 — photo

Photo: HUR War & Sanctions

Receiving and transmitting antenna for radio altimeter A-079-01L

Приймально-передавальна антена радіовисотоміру А-079-01Л

HUR War & Sanctions record ↗

  • Receiving and transmitting antenna for radio altimeter A-079-01L — photo

Photo: HUR War & Sanctions

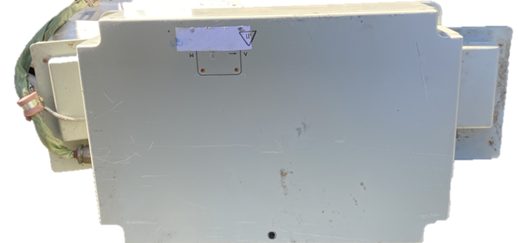

Radio altimeter A-079-01

Радіовисотомір А-079-01

UPKB DETAIL JSCRussian Federation

HUR War & Sanctions record ↗

  • Radio altimeter A-079-01 — photo

Photo: HUR War & Sanctions

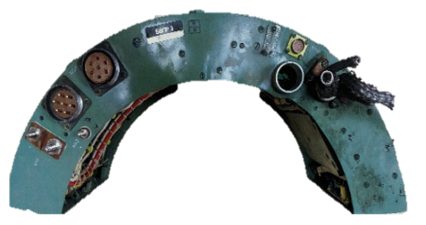

Voltage rectifier unit BVRP-3

Блок випрямлення напруги БВПР-3

LEPSE JSCRussian Federation

HUR War & Sanctions record ↗

  • Voltage rectifier unit BVRP-3 — photo

Photo: HUR War & Sanctions

Two-circuit turbojet engine TRDD-50B (Product 37-03)

Турбореактивний двоконтурний двигун ТРДД-50Б (Изделие 37-03)

ODK-SATURN PJSCRussian Federation

HUR War & Sanctions record ↗

  • Two-circuit turbojet engine TRDD-50B (Product 37-03) — photo

Photo: HUR War & Sanctions

Ignition system SKF-12-05M

Система запалювання СКФ-12-05М

NPO MOLNIYA JSCRussian Federation

HUR War & Sanctions record ↗

  • Ignition system SKF-12-05M — photo

Photo: HUR War & Sanctions

MPR9M actuator (with MP-0.18 electric motor)

Виконавчий механізм МПР9М (з електродвигуном МП-0.18)

HUR War & Sanctions record ↗

  • MPR9M actuator (with MP-0.18 electric motor) — photo

Photo: HUR War & Sanctions

Contact sensor switching unit BPK-217

Блок комутації контактних датчиків цілі БПК-217

HUR War & Sanctions record ↗

  • Contact sensor switching unit BPK-217 — photo

Photo: HUR War & Sanctions

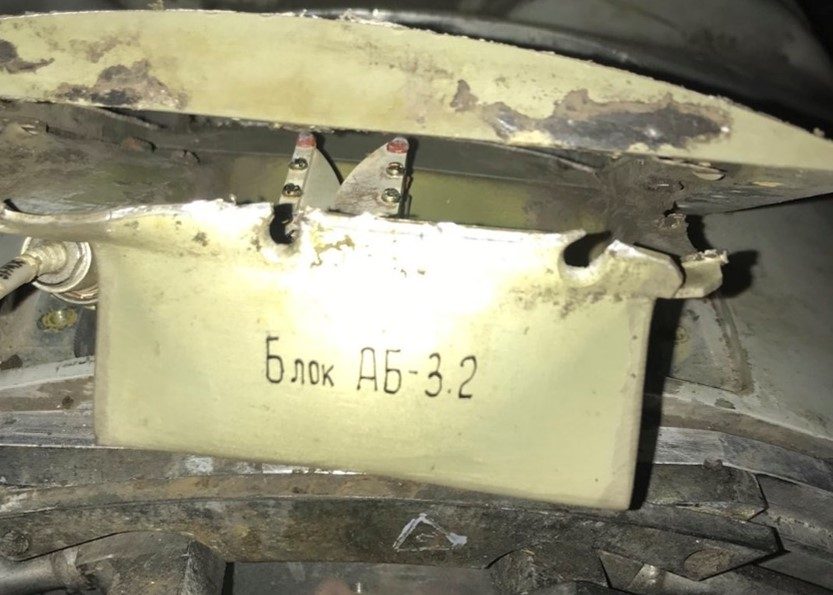

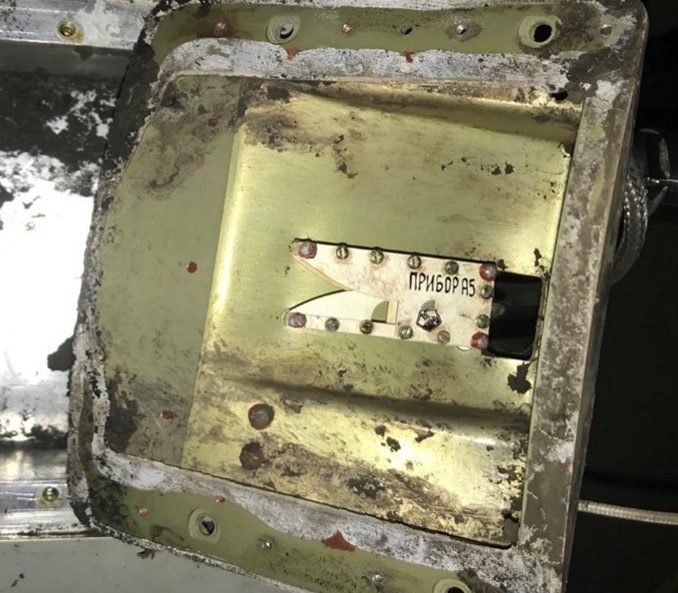

AB-3.1 and AB-3.2 antenna devices of the 9B914 active jamming system

Антенні пристрої АБ-3.1 та АБ-3.2 системи постановки активних завад 9Б914

HUR War & Sanctions record ↗

1 / 4

Photo: HUR War & Sanctions

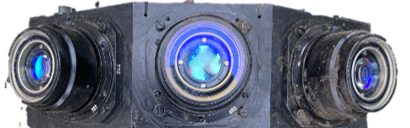

Optical sensor unit 9E437 OES "Otblesk-U"

Блок оптичних датчиків 9Э437 ОЕС "Отблеск-У"

TSNIIAG JSCRussian Federation

HUR War & Sanctions record ↗

  • Optical sensor unit 9E437 OES "Otblesk-U" — photo

Photo: HUR War & Sanctions

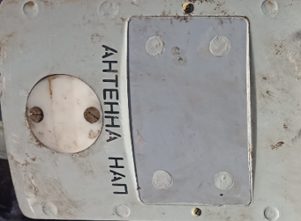

Receiving navigation antenna (NAP) of SN-99 satellite navigation system

Навігаційна антена приймальна (НАП) супутникової навігаційної системи СН-99

HUR War & Sanctions record ↗

  • Receiving navigation antenna (NAP) of SN-99 satellite navigation system — photo

Photo: HUR War & Sanctions

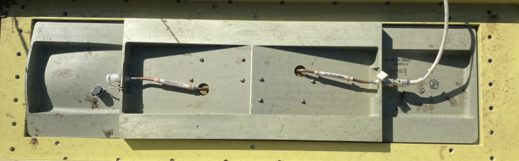

AB-4 antenna device of the 9B914 active jamming system

Антенний пристрій АБ-4 системи постановки активних завад 9Б914

HUR War & Sanctions record ↗

  • AB-4 antenna device of the 9B914 active jamming system — photo

Photo: HUR War & Sanctions

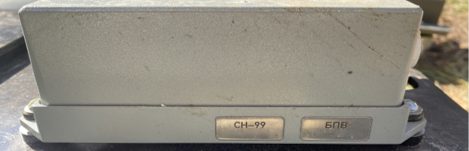

Satellite navigation system SN-99

Супутникова навігаційна система СН-99

KB NAVIS JSCRussian Federation

HUR War & Sanctions record ↗

  • Satellite navigation system SN-99 — photo

Photo: HUR War & Sanctions

On-board digital computer "ZARYA-61M"

Бортова цифрова обчислювальна машина "ЗАРЯ-61М"

Russian Federation

HUR War & Sanctions record ↗

  • On-board digital computer "ZARYA-61M" — photo

Photo: HUR War & Sanctions

  • Board BT62-406M

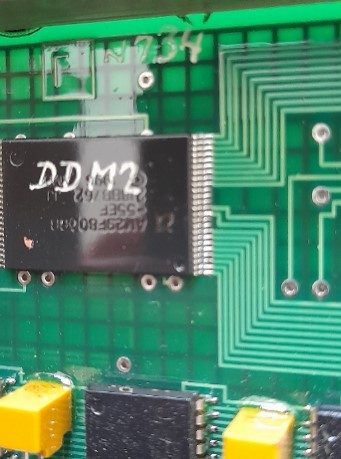

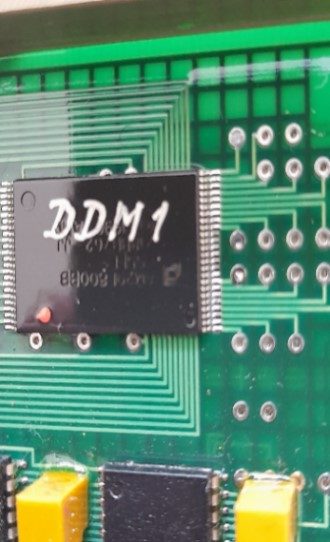

  • AM29F800BB-70EF 349BB393 J 1996 AMD Memory chip AMDUnited States of AmericaMade 1996record ↗ Memory chip, marked AM29F800BB-70EF 349BB393 J 1996 AMD
  • CY7C10490 10VXI 1520 N 04 692359 Memory chip Cypress Semiconductor (Infineon Technologies)United States of AmericaMade May (20 week) 2015record ↗ Memory chip, marked CY7C10490 10VXI 1520 N 04 692359
  • MAX233EPP +2147 RS-232 Driver/Receiver Maxim Integrated Products (Analog Devices)United States of AmericaMade November (47 week) 2021record ↗ RS-232 Driver/Receiver, marked MAX233EPP +2147
  • Board BT62-408M
  • MAX3250EAI 2205 RS-232 Transceiver Maxim Integrated Products (Analog Devices)United States of AmericaMade February (5 week) 2022record ↗ RS-232 Transceiver, marked MAX3250EAI 2205
  • MAX1480AEPI 2245 RS-485/RS-422 Data Interface Maxim Integrated Products (Analog Devices)United States of AmericaMade November (45 week) 2022record ↗ RS-485/RS-422 Data Interface, marked MAX1480AEPI 2245
  • TL16C552AIFN 28AJ59N G4 Dual Asynchronous Communications Element Texas InstrumentsUnited States of Americarecord ↗ Dual Asynchronous Communications Element, marked TL16C552AIFN 28AJ59N G4

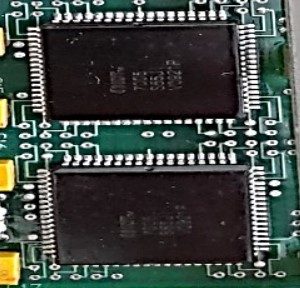

  • IDT7005 S55JI Х51804Р Р37526FU KR Memory chip Integrated Device Technology (Renesas)United States of Americarecord ↗ Memory chip, marked IDT7005 S55JI Х51804Р Р37526FU KR
  • TMS320C25GBA FE-19E2WF7 1986 TI Digital signal processor Texas InstrumentsUnited States of AmericaMade 1986record ↗ Digital signal processor, marked TMS320C25GBA FE-19E2WF7 1986 TI

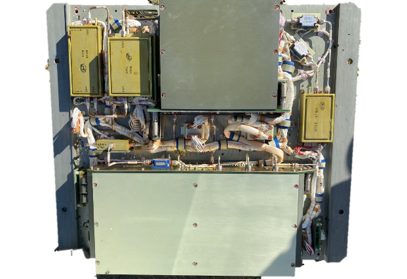

Active jamming station 9B914

Станція постановки активних завад 9Б914

TSNIRTI NAMED AKADEMIKA A.I. BERGA JSCRussian Federation

HUR War & Sanctions record ↗

  • Active jamming station 9B914 — photo

Photo: HUR War & Sanctions

  • Board ПМЖИ.687264.007-01

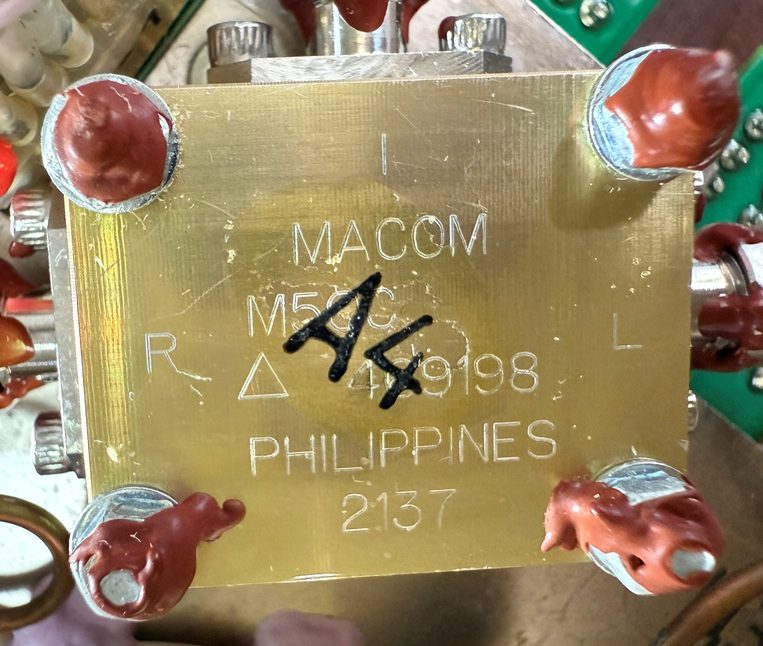

  • M50C 469198 2137 Triple-Balanced Mixer MACOM Technology SolutionsUnited States of AmericaMade September (17 week) 2021record ↗ Triple-Balanced Mixer, marked M50C 469198 2137

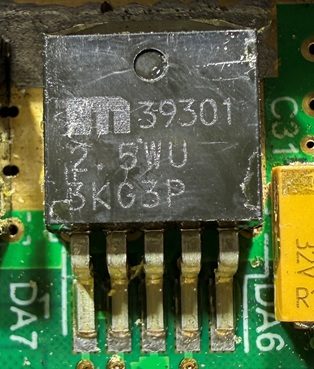

  • MIC39301 39301 2.5WU 3KG3P Voltage regulator Micrel Inc. (Microchip Technology Inc.)United States of Americarecord ↗ Voltage regulator, marked MIC39301 39301 2.5WU 3KG3P
  • SN74ALVC00 89DJ5TK G4 ALVC00 Quadruple 2-Input Positive-NAND Gate Texas InstrumentsUnited States of Americarecord ↗ Quadruple 2-Input Positive-NAND Gate, marked SN74ALVC00 89DJ5TK G4 ALVC00
  • SN74AHCT86 84AJN8X G4 AHCT86 Quadruple 2-Input Exclusive-OR Gate Texas InstrumentsUnited States of Americarecord ↗ Quadruple 2-Input Exclusive-OR Gate, marked SN74AHCT86 84AJN8X G4 AHCT86
  • 10.000MHz 560N/KM MA05773AG Quartz oscillator Golledge Electronics Ltd.Great Britainrecord ↗ Quartz oscillator, marked 10.000MHz 560N/KM MA05773AG
  • CD74AC174 67COD2M AC174M G4 D-trigger Texas InstrumentsUnited States of Americarecord ↗ D-trigger, marked CD74AC174 67COD2M AC174M G4
  • AD8343 8343 ARUZ #028 High-performance active mixer Analog DevicesUnited States of Americarecord ↗ High-performance active mixer, marked AD8343 8343 ARUZ #028

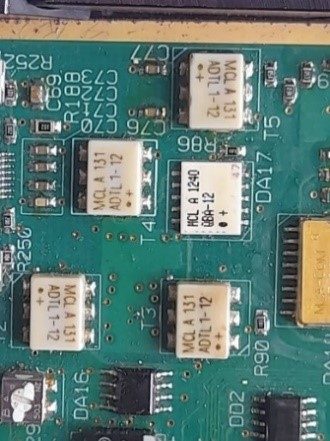

  • MCLH 0M8 ADTL 1-12 RF-transformer Mini-CircuitsUnited States of Americarecord ↗ RF-transformer, marked MCLH 0M8 ADTL 1-12

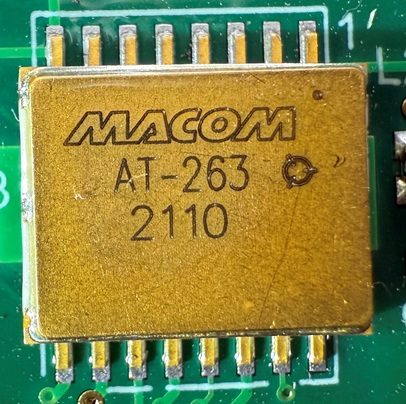

  • AT-263-PIN AT-263 2110 Digital Attenuator, 31 dB, 5-Bit MACOM Technology SolutionsUnited States of AmericaMade March (10 week) 2021record ↗ Digital Attenuator, 31 dB, 5-Bit, marked AT-263-PIN AT-263 2110

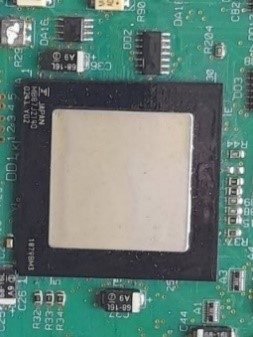

  • MB87J2140 0308 Y13 Microcircuit FUJITSUJapanMade 2013record ↗ Microcircuit, marked MB87J2140 0308 Y13
  • Ts303 Module

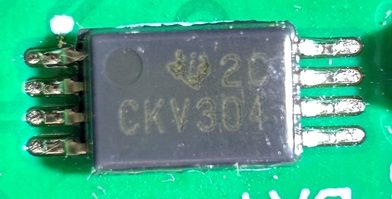

  • CDCV304 2C CKV304 Clock buffer Texas InstrumentsUnited States of Americarecord ↗ Clock buffer, marked CDCV304 2C CKV304

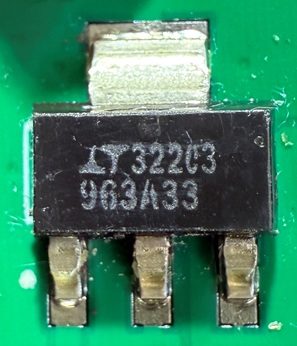

  • LT1963A 322C3 963A33 Voltage regulator Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Voltage regulator, marked LT1963A 322C3 963A33
  • TES1-0512 2242 DC/DC converter Traco PowerSwitzerlandMade October (42 week) 2022record ↗ DC/DC converter, marked TES1-0512 2242

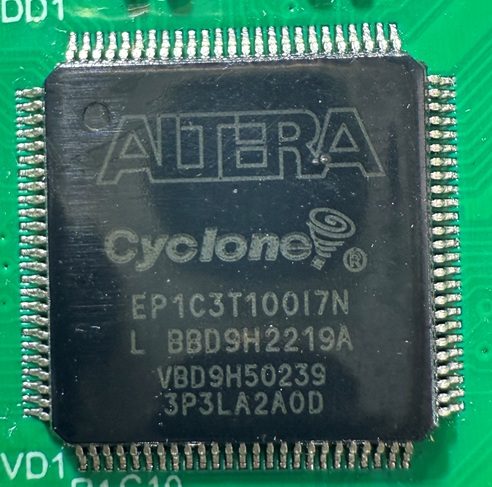

  • EP1C3T100I7N L BBD9H2219A VBD9H50239 3P3LA2A0D PLD Altera Corporation (Intel)United States of AmericaMade May (19 week) 2022record ↗ PLD, marked EP1C3T100I7N L BBD9H2219A VBD9H50239 3P3LA2A0D
  • Board ПМЖИ.687264.038
  • IRF7341PbF P913G GP1Y F7341 N-channel MOSFET International Rectifier (Infineon Technologies)United States of Americarecord ↗ N-channel MOSFET, marked IRF7341PbF P913G GP1Y F7341
  • EPCS1N 1710A Serial Configuration (EPCS) Device Altera Corporation (Intel)United States of AmericaMade March (10 week) 2017record ↗ Serial Configuration (EPCS) Device, marked EPCS1N 1710A
  • MAX1308 ECM 942 KA3 Analog-to-Digital Converter 12 bit Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Analog-to-Digital Converter 12 bit, marked MAX1308 ECM 942 KA3
  • MAX964 ESE 2012 Comparator Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Comparator, marked MAX964 ESE 2012
  • AD8397 ARDZ #105 Current Amplifier Analog DevicesUnited States of AmericaMade February (5 week) 2001record ↗ Current Amplifier, marked AD8397 ARDZ #105

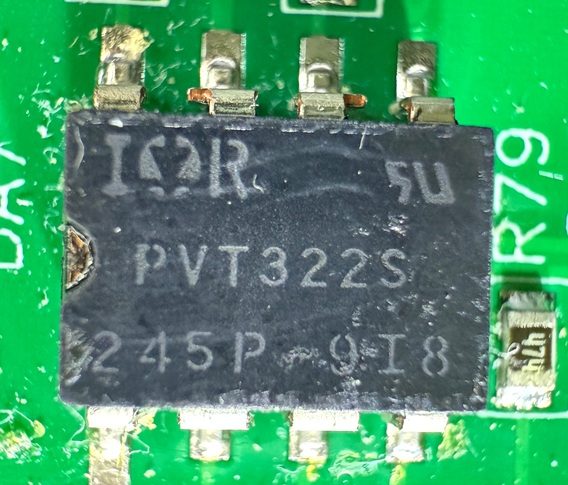

  • PVT322PbF PVT322S 245P 9I8 Photovoltaic Relay International Rectifier (Infineon Technologies)United States of Americarecord ↗ Photovoltaic Relay, marked PVT322PbF PVT322S 245P 9I8
  • EP1C3T144I7N L BBD9H1907A S905MJ01 3P3LA9C00 PLD Altera Corporation (Intel)United States of AmericaMade February (7 week) 2019record ↗ PLD, marked EP1C3T144I7N L BBD9H1907A S905MJ01 3P3LA9C00
  • Board ПМЖИ. 687264.009-01

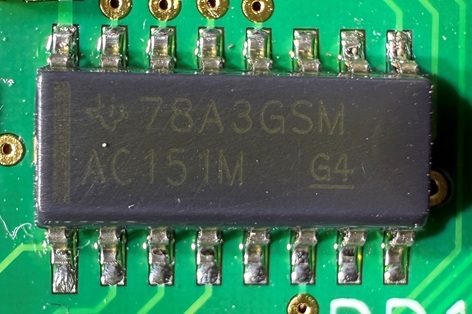

  • CD74AC151 78A3GSM AC151M G4 Data Selector/Multiplexer Texas InstrumentsUnited States of Americarecord ↗ Data Selector/Multiplexer, marked CD74AC151 78A3GSM AC151M G4

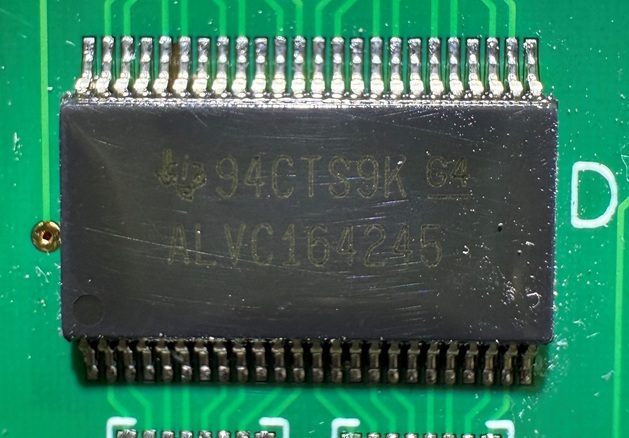

  • SN74ALVC164245 94CTS9K ALVC164245 Transceiver Texas InstrumentsUnited States of Americarecord ↗ Transceiver, marked SN74ALVC164245 94CTS9K ALVC164245

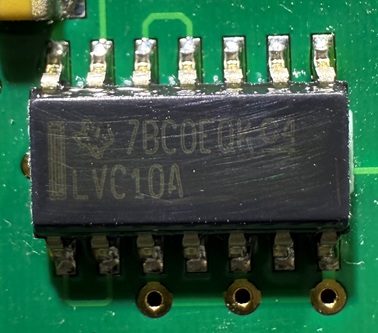

  • SN74LVC10A 7BC0EQK LVC10A Triple 3-Input Gate Texas InstrumentsUnited States of Americarecord ↗ Triple 3-Input Gate, marked SN74LVC10A 7BC0EQK LVC10A

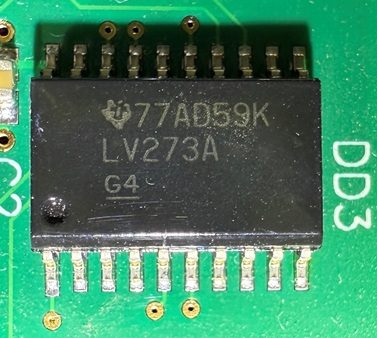

  • SN74LV273A 77AD59K LV273A G4 Octal D-Type Flip-Flops Texas InstrumentsUnited States of Americarecord ↗ Octal D-Type Flip-Flops, marked SN74LV273A 77AD59K LV273A G4

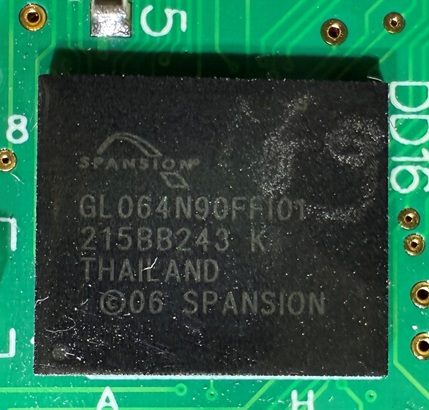

  • GL064N90FFI01 215BB243 K THAILAND 06 SPANSION Memory chip Spansion (Cypress Semiconductor, Infineon Technologies)United States of AmericaMade 2006record ↗ Memory chip, marked GL064N90FFI01 215BB243 K THAILAND 06 SPANSION
  • TMS320C6414GLZ C20-04A8Q7W 2003 92 Digital signal processor Texas InstrumentsUnited States of AmericaMade 2003record ↗ Digital signal processor, marked TMS320C6414GLZ C20-04A8Q7W 2003 92
  • Board ПМЖИ 687251.006
  • ADF4350 #2121 53751591 Wideband synthesizer with integrated VCO Analog DevicesUnited States of AmericaMade May (21 week) 2021record ↗ Wideband synthesizer with integrated VCO, marked ADF4350 #2121 53751591
  • Board ПМЖИ.657253.034
  • LT136 e3 1521l33 Microcircuit Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Microcircuit, marked LT136 e3 1521l33

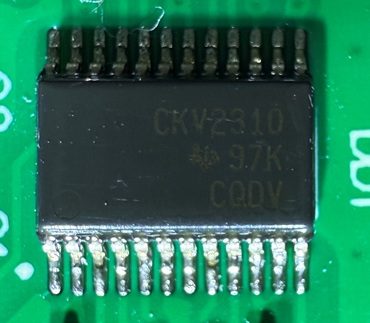

  • CKV2310 97K CQDV Clock Buffer Texas InstrumentsUnited States of Americarecord ↗ Clock Buffer, marked CKV2310 97K CQDV

Launch engine 9H837

Стартовий двигун 9Х837

KOMBINAT KAMENSKY FKPRussian Federation

HUR War & Sanctions record ↗

  • Launch engine 9H837 — photo

Photo: HUR War & Sanctions

Ballistic missile 9M723 "Iskander-M" record ↗

Platformless inertial navigation system 9B918

  • Board 687253.054
  • ILQ74 V 205H68 Optocoupler Vishay Intertechnology, Inc.United States of Americarecord ↗ Optocoupler, marked ILQ74 V 205H68
  • Unit board 9B918

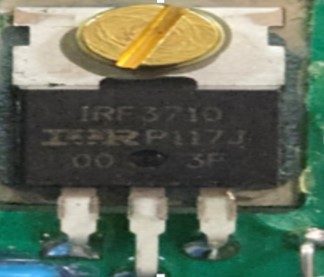

  • IRF 3710 IOR P117J 00 3F Field effect transistor (MOSFET) International Rectifier (Infineon Technologies)United States of Americarecord ↗ Field effect transistor (MOSFET), marked IRF 3710 IOR P117J 00 3F
  • BD911 G4128 VW CHN 341 Bipolar transistor STMicroelectronicsSwitzerlandrecord ↗ Bipolar transistor, marked BD911 G4128 VW CHN 341
  • 7915BT RJUN15G Voltage regulator ON Semiconductor (ONSEMI)United States of Americarecord ↗ Voltage regulator, marked 7915BT RJUN15G

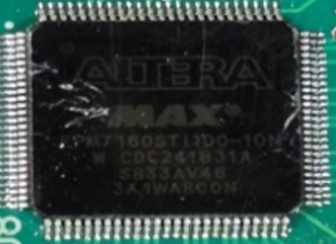

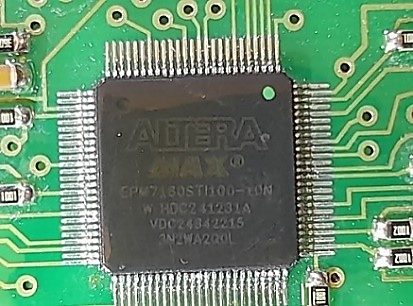

  • ALTERA MAX EPM7160STI100-10N WCDC241831A S833AV46 3A1QABCON FPGA Altera Corporation (Intel)United States of AmericaMade July (31st week) 2018record ↗ FPGA, marked ALTERA MAX EPM7160STI100-10N WCDC241831A S833AV46 3A1QABCON
  • Coupling module with two redundant multiplex channels (PC/104 form factor)
  • IDT QS32X861Q1G Y52143T GP50374Y TWN F8 Bus switch Integrated Device Technology (Renesas)United States of Americarecord ↗ Bus switch, marked IDT QS32X861Q1G Y52143T GP50374Y TWN F8
  • CY7C1041DV 33-10BVXI PHI 2015 N 04 CYP 701379 RAM chip (4-Mbit, 256K x 16, SRAM) Cypress Semiconductor (Infineon Technologies)United States of AmericaMade April (15th week) 2020record ↗ RAM chip (4-Mbit, 256K x 16, SRAM), marked CY7C1041DV 33-10BVXI PHI 2015 N 04 CYP 701379
  • Board 687263.023 (form factor: PC/104)
  • APEX USA VRE 3025J 17439C2309 Reference power supply Apex MicrotechnologyUnited States of AmericaMade March (9th week) 2023record ↗ Reference power supply, marked APEX USA VRE 3025J 17439C2309
  • ADUM1300 СRWZ #1409 723945.1* Three-channel digital isolator Analog DevicesUnited States of AmericaMade March (9th week) 2014record ↗ Three-channel digital isolator, marked ADUM1300 СRWZ #1409 723945.1*

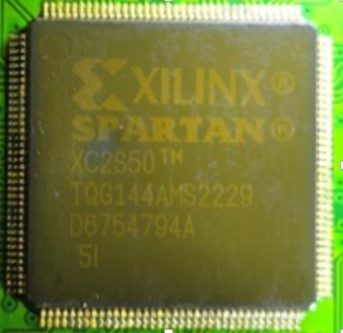

  • XILINX SPARTAN XC2S50 TQG144AMS2229 D6754794A 5I FPGA Xilinx Inc. (AMD)United States of AmericaMade July (29th week) 2022record ↗ FPGA, marked XILINX SPARTAN XC2S50 TQG144AMS2229 D6754794A 5I
  • Board 467444.006 (form factor: PC/104)
  • DM&P Vortex86DX 2222-D-PBGA CFG-4KE6125-01 ISOinChip Microprocessor (x86 compatible SoC) DM&P ElectronicsTaiwanrecord ↗ Microprocessor (x86 compatible SoC), marked DM&P Vortex86DX 2222-D-PBGA CFG-4KE6125-01 ISOinChip Microprocessor (x86 compatible SoC), marked DM&P Vortex86DX 2222-D-PBGA CFG-4KE6125-01 ISOinChip
  • 1CAN65K 65C23243 RS-232 driver Texas InstrumentsUnited States of Americarecord ↗ RS-232 driver, marked 1CAN65K 65C23243
  • AC245 PWZ2113 8-channel dual directional transceiver ON Semiconductor (ONSEMI)United States of AmericaMade March (13th week) 2021record ↗ 8-channel dual directional transceiver, marked AC245 PWZ2113
  • winbond 2SQ64FVSIG 2207 SPI FLASH BIOS memory chip Winbond Electronics CorporationTaiwanMade February (7th week) 2022record ↗ SPI FLASH BIOS memory chip, marked winbond 2SQ64FVSIG 2207
  • Board 468157.013 (form factor: PC/104)
  • ADUM1300 BRWZ #2143 5546021,1 Three-channel digital isolator Analog DevicesUnited States of AmericaMade October (43rd week) 2021record ↗ Three-channel digital isolator, marked ADUM1300 BRWZ #2143 5546021,1
  • ADG509FB #2133 5109756,1 Analogue multiplexer Analog DevicesUnited States of AmericaMade August (33rd week) 2021record ↗ Analogue multiplexer, marked ADG509FB #2133 5109756,1
  • HT573 21K C9JG Microchip Texas InstrumentsUnited States of Americarecord ↗ Microchip, marked HT573 21K C9JG
  • XCF02S VG 60111 12N VS Platform Flash In-System Programmable Configuration PROMs. Xilinx Inc. (AMD)United States of Americarecord ↗ Platform Flash In-System Programmable Configuration PROMs., marked XCF02S VG 60111 12N VS
  • DAC8420E #2149 6217379,1 Digital-to-analog converter Analog DevicesUnited States of AmericaMade December (49th week) 2021record ↗ Digital-to-analog converter, marked DAC8420E #2149 6217379,1
  • PGA206UA 19AEV6T Operational amplifier Burr-Brown Corporation (Texas Instruments)United States of Americarecord ↗ Operational amplifier, marked PGA206UA 19AEV6T
  • XILINX SPARTAN XC2S50 TQG144AMS2041 A6109476A 5.I FPGA Xilinx Inc. (AMD)United States of AmericaMade October (41st week) 2020record ↗ FPGA, marked XILINX SPARTAN XC2S50 TQG144AMS2041 A6109476A 5.I
  • Power supply board 230735B for the digital processing module (form factor: PC/104)
  • ALTERA MAX EPM7256SRI208-10N W BDG241749A FPGA Altera Corporation (Intel)United States of AmericaMade December (49th week) 2017record ↗ FPGA, marked ALTERA MAX EPM7256SRI208-10N W BDG241749A
  • TEN 20-2411 DC/DC converter Traco PowerSwitzerlandrecord ↗ DC/DC converter, marked TEN 20-2411
  • TSM0505S 2201 DC/DC converter Traco PowerSwitzerlandMade January (1st week) 2022record ↗ DC/DC converter, marked TSM0505S 2201
  • S2EB-5V 4А 1/20HP125 130Ω AG302960 Relay PanasonicJapanrecord ↗ Relay, marked S2EB-5V 4А 1/20HP125 130Ω AG302960

Receiving and processing unit of a satellite navigation system "Kometa-MR4-01"

  • TxDAC+ AD9755 ASTZ #2132 492192,1 14-bit digital-to-analog converter Analog DevicesUnited States of AmericaMade August (32nd week) 2021record ↗ 14-bit digital-to-analog converter, marked TxDAC+ AD9755 ASTZ #2132 492192,1
  • ALTERA EPCQ64A 2052 Serial configuration device Altera Corporation (Intel)United States of AmericaMade December (52nd week) 2020record ↗ Serial configuration device, marked ALTERA EPCQ64A 2052
  • ADF 4360-4 #2113 233521 Frequency synthesiser, with voltage controlled oscillator Analog DevicesUnited States of AmericaMade March (13th week) 2021record ↗ Frequency synthesiser, with voltage controlled oscillator, marked ADF 4360-4 #2113 233521
  • ADL 5355 ACPZ #1120 126356,1 Balanced mixer (1200 to 2500 MHz) Analog DevicesUnited States of AmericaMade May (20th week) 2011record ↗ Balanced mixer (1200 to 2500 MHz), marked ADL 5355 ACPZ #1120 126356,1
  • LINEAR LTM4615V uModule №81547 е4 2309 MY Low voltage regulator Linear Technology Corporation (Analog Devices)United States of AmericaMade March (9th week) 2023record ↗ Low voltage regulator, marked LINEAR LTM4615V uModule №81547 е4 2309 MY
  • 5CEFA7F23I7N F BBCAU2319A TAIWAN S317MK07 314FA310B FPGA Altera Corporation (Intel)United States of AmericaMade May (19th week) 2023record ↗ FPGA, marked 5CEFA7F23I7N F BBCAU2319A TAIWAN S317MK07 314FA310B FPGA, marked 5CEFA7F23I7N F BBCAU2319A TAIWAN S317MK07 314FA310B
  • AD9517-4 ABCPZ #2323 6317203,1 KOREA 12-channel clock generator with integrated 1.6 GHz oscillator Analog DevicesUnited States of AmericaMade June (23rd week) 2023record ↗ 12-channel clock generator with integrated 1.6 GHz oscillator, marked AD9517-4 ABCPZ #2323 6317203,1 KOREA
  • M10050-KB A0100A 8456204 2240A3 Low-power GNSS receiver U-bloxSwitzerlandMade October (40th week) 2022record ↗ Low-power GNSS receiver, marked M10050-KB A0100A 8456204 2240A3
  • LT 1927 LTC2174 UKG-14 BT30768 4-channel analogue-to-digital converter Linear Technology Corporation (Analog Devices)United States of AmericaMade July (27th week) 2019record ↗ 4-channel analogue-to-digital converter, marked LT 1927 LTC2174 UKG-14 BT30768

Ballistic missile 9M723K5 "Iskander-M" record ↗

Flight data processing unit (BOPI) from the 9B918 BINS system

  • TA1-104-1-03-M GFKP.467100.133-04 Printed Circuit Board
  • ТИЛ6В 2506 Linear pulse transformer PJSC MSTATORRussian FederationMade 6th week (February) of 2025record ↗ Linear pulse transformer, marked ТИЛ6В 2506
  • Printed circuit board
  • 46CLV6K CY861 Field-effect transistor Texas InstrumentsUnited States of Americarecord ↗ Field-effect transistor, marked 46CLV6K CY861
  • TI 47A..51M AC14 BCD-To-Seven-Segment decoder/driver Texas InstrumentsUnited States of Americarecord ↗ BCD-To-Seven-Segment decoder/driver, marked TI 47A..51M AC14
  • Printed circuit board 2504130
  • REF192 #230 4936 Low-voltage reference Analog DevicesUnited States of AmericaMade 30th week (July) of 2022record ↗ Low-voltage reference, marked REF192 #230 4936
  • OP484E #2124 340623 Operational amplifier Analog DevicesUnited States of AmericaMade 24th week (June) of 2021record ↗ Operational amplifier, marked OP484E #2124 340623
  • Printed circuit board 758764.053
  • F9540N P435D MOSFET International Rectifier (Infineon Technologies)United States of Americarecord ↗ MOSFET, marked F9540N P435D
  • К52 -18 2311 Capacitor ELEKOND JSCRussian Federationrecord ↗ Capacitor, marked К52 -18 2311
  • 150 Tantalum capacitor ELEKOND JSCRussian Federationrecord ↗ Tantalum capacitor, marked 150
  • 3H 39 M Diode Not identifiedrecord ↗ Diode, marked 3H 39 M
  • TEN 5 -2423 DC/DC converter Traco PowerSwitzerlandrecord ↗ DC/DC converter, marked TEN 5 -2423
  • Printed circuit board 687253.037
  • OP177G #2239 7945 Operational amplifier Analog DevicesUnited States of AmericaMade 39th week (September) of 2022record ↗ Operational amplifier, marked OP177G #2239 7945
  • ADG509AK #2201 5632440 Analog multiplexer Analog DevicesUnited States of AmericaMade 1st week (January) of 2022record ↗ Analog multiplexer, marked ADG509AK #2201 5632440
  • Printed circuit board
  • ATMLH… 50BL PH 2219GS7 Memory chip Atmel (Microchip Technology)United States of AmericaMade 19th week (May) of 2022record ↗ Memory chip, marked ATMLH… 50BL PH 2219GS7
  • AE Z740 Diode STMicroelectronicsSwitzerlandrecord ↗ Diode, marked AE Z740
  • 226Е 70В14 Tantalum capacitor KYOCERA AVXUnited States of Americarecord ↗ Tantalum capacitor, marked 226Е 70В14
  • ADG50…. #2225 5754118.1 Analog multiplexer Analog DevicesUnited States of AmericaMade 25th week (June) of 2022record ↗ Analog multiplexer, marked ADG50…. #2225 5754118.1
  • HT573 19K AXP9 Octal transparent D-type latche Texas InstrumentsUnited States of Americarecord ↗ Octal transparent D-type latche, marked HT573 19K AXP9
  • DAC8420E #2301 6112647.1 Digital-to-analog converter Analog DevicesUnited States of AmericaMade 1st week (January) of 2023record ↗ Digital-to-analog converter, marked DAC8420E #2301 6112647.1
  • Printed circuit board 468157.012 20 0984 04.22
  • AD7734 #1911 4528454.1 Analog-to-digital converter Analog DevicesUnited States of AmericaMade 11th week (March) of 2019record ↗ Analog-to-digital converter, marked AD7734 #1911 4528454.1
  • 907e3 963A25 Voltage regulator Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Voltage regulator, marked 907e3 963A25
  • XCF02S 78736 225 VS Memory chip Xilinx Inc. (AMD)United States of AmericaMade 25th week (June) of 2022record ↗ Memory chip, marked XCF02S 78736 225 VS
  • ATMLH912 50BL PH 1912PTY Memory chip Atmel (Microchip Technology)United States of AmericaMade 12th week (March) of 2019record ↗ Memory chip, marked ATMLH912 50BL PH 1912PTY
  • W98MP 03 Microchip Not identifiedrecord ↗ Microchip, marked W98MP 03
  • ADUM1300 BRWZ #1902 4477667.1 Triple-channel digital isolator Analog DevicesUnited States of AmericaMade 2nd week (January) 2019record ↗ Triple-channel digital isolator, marked ADUM1300 BRWZ #1902 4477667.1
  • ADG 1409Y iCMOS multiplexer Analog DevicesUnited States of Americarecord ↗ iCMOS multiplexer, marked ADG 1409Y
  • J LA Microchip Analog DevicesUnited States of Americarecord ↗ Microchip, marked J LA
  • HT14 86K CFY8 Hex Inverter with a Schmitt Trigger Texas InstrumentsUnited States of Americarecord ↗ Hex Inverter with a Schmitt Trigger, marked HT14 86K CFY8
  • SPARTAN XC235U TCG144AMS1929 CPLD Xilinx Inc. (AMD)United States of AmericaMade 2019record ↗ CPLD, marked SPARTAN XC235U TCG144AMS1929
  • Printed circuit board 3092 07.25
  • 904 3701 DC/DC controller Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ DC/DC controller, marked 904 3701
  • 25Q64FVS1G 2205 Memory chip Winbond Electronics CorporationTaiwanMade 5th week (February) 2022record ↗ Memory chip, marked 25Q64FVS1G 2205
  • AE Z743 Diode STMicroelectronicsSwitzerlandMade 43rd week (October) of 2017record ↗ Diode, marked AE Z743
  • 049 B330A Diode Diodes IncorporatedUnited States of Americarecord ↗ Diode, marked 049 B330A
  • 21H17 D9SBV Memory chip Micron TechnologyUnited States of Americarecord ↗ Memory chip, marked 21H17 D9SBV
  • Vortex86DX Microprocessor DM&P ElectronicsTaiwanMade 46th week (November) of 2022record ↗ Microprocessor, marked Vortex86DX
  • ТИЛ6В 2506 Linear pulse transformer PJSC MSTATORRussian FederationMade 6th week (February) of 2025record ↗ Linear pulse transformer, marked ТИЛ6В 2506
  • 5559ВВ022 138 1822 2-channel manchester code transceiver OKB MEL JSCRussian FederationMade 22nd week (May) of 2018record ↗ 2-channel manchester code transceiver, marked 5559ВВ022 138 1822
  • 476 E 303M2 Tantalum capacitor KYOCERA AVXUnited States of Americarecord ↗ Tantalum capacitor, marked 476 E 303M2
  • XpressO Quartz oscillator Fox ElectronicsUnited States of Americarecord ↗ Quartz oscillator, marked XpressO
  • S2EB -5V Relay PanasonicJapanrecord ↗ Relay, marked S2EB -5V
  • PGA206UA 1AC9HGT Operational amplifier Burr-Brown Corporation (Texas Instruments)United States of Americarecord ↗ Operational amplifier, marked PGA206UA 1AC9HGT
  • AG245 PWZ2113 Transceiver ON Semiconductor (ONSEMI)United States of Americarecord ↗ Transceiver, marked AG245 PWZ2113
  • TEN 8-2423 DC/DC converter Traco PowerSwitzerlandrecord ↗ DC/DC converter, marked TEN 8-2423
  • TEN 20-2411 DC/DC converter Traco PowerSwitzerlandrecord ↗ DC/DC converter, marked TEN 20-2411

Printed circuit board

  • РЭК60В 027-05 07-25 870 Relay NPK SEVERNAYA ZARYA JSCRussian FederationMade 7th week (February) of 2025record ↗ Relay, marked РЭК60В 027-05 07-25 870
  • 150R Resistor NPO ERKON JSCRussian Federationrecord ↗ Resistor, marked 150R
  • S3 Fµ10 Capacitor Not identifiedrecord ↗ Capacitor, marked S3 Fµ10
  • T3 Fµ22 Capacitor Not identifiedrecord ↗ Capacitor, marked T3 Fµ22
  • 1533ИР33 2508 Eight-bit buffer register INTEGRAL OJSCBelarusMade 8th week (February) of 2025record ↗ Eight-bit buffer register, marked 1533ИР33 2508
  • 249ЛП5 2411 185 Inverter switch PROTON JSCRussian FederationMade 11th week (March) of 2024record ↗ Inverter switch, marked 249ЛП5 2411 185
  • САП5 2426 Microchip MIKRON JSCRussian FederationMade 26th week (June) 2024record ↗ Microchip, marked САП5 2426
  • 2505 1554ИР22Т Eight-bit buffer register INTEGRAL OJSCBelarusMade 5th week (January) of 2025record ↗ Eight-bit buffer register, marked 2505 1554ИР22Т
  • 2450 1533АП6 TTL series digital transistor logic integrated circuit with schottky diodes INTEGRAL OJSCBelarusMade 50th week (December) of 2024record ↗ TTL series digital transistor logic integrated circuit with schottky diodes, marked 2450 1533АП6
  • 1533ЛА4 2415 TTL series digital transistor logic integrated circuit with schottky diodes MIKRON JSCRussian FederationMade 15th week (April) of 2024record ↗ TTL series digital transistor logic integrated circuit with schottky diodes, marked 1533ЛА4 2415
  • 1533ЛЕ1 2423 TTL series digital transistor logic integrated circuit with schottky diodes INTEGRAL OJSCBelarusMade 23rd week (June) of 2024record ↗ TTL series digital transistor logic integrated circuit with schottky diodes, marked 1533ЛЕ1 2423
  • 2Д906 24 Diode matrix BZPP JSCRussian Federationrecord ↗ Diode matrix, marked 2Д906 24
  • РЭС43 РС4.569.202 07-25 04 Relay SKTB RT JSCRussian FederationMade 7th week (February) of 2025record ↗ Relay, marked РЭС43 РС4.569.202 07-25 04
  • РЭК80 Relay SKTB RT JSCRussian Federationrecord ↗ Relay, marked РЭК80
  • 1533ИЕ7 2508 TTL series digital transistor logic integrated circuit with schottky diodes INTEGRAL OJSCBelarusMade 8th week (February) of 2025record ↗ TTL series digital transistor logic integrated circuit with schottky diodes, marked 1533ИЕ7 2508
  • 1533ЛА3 2416 TTL series digital transistor logic integrated circuit with schottky diodes MIKRON JSCRussian FederationMade 16-я неделя (апрель) 2024 г.record ↗ TTL series digital transistor logic integrated circuit with schottky diodes, marked 1533ЛА3 2416
  • 1533ЛН1 2415 TTL series digital transistor logic integrated circuit with schottky diodes MIKRON JSCRussian FederationMade 15th week (April) of 2024record ↗ TTL series digital transistor logic integrated circuit with schottky diodes, marked 1533ЛН1 2415
  • 1533ТМ2 2416 Two D-triggers MIKRON JSCRussian FederationMade 16th week (April) of 2024record ↗ Two D-triggers, marked 1533ТМ2 2416

Printed circuit board IRCU.469155.172

  • Б19К-2 1К2J 2502 Resistor assembly VECTOR PJSCRussian FederationMade 2nd week (January) of 2025record ↗ Resistor assembly, marked Б19К-2 1К2J 2502
  • 1533ЛН1 2505 TTL series digital transistor logic integrated circuit with schottky diodes INTEGRAL OJSCBelarusMade 5th week (January) of 2025record ↗ TTL series digital transistor logic integrated circuit with schottky diodes, marked 1533ЛН1 2505
  • 1533ЛЕ1 2423 TTL series digital transistor logic integrated circuit with schottky diodes INTEGRAL OJSCBelarusMade 23rd week (June) of 2024record ↗ TTL series digital transistor logic integrated circuit with schottky diodes, marked 1533ЛЕ1 2423

Printed circuit board IRCU.469135.137

  • 1К8 Resistor NPO ERKON JSCRussian Federationrecord ↗ Resistor, marked 1К8
  • 2Д212А 2404 Diode ORBITA JSCRussian FederationMade 4th week (January) of 2024record ↗ Diode, marked 2Д212А 2404

Printed circuit board RR828 -0

  • НИИ КП 96DEM1056 FS32OTP LxOC 2217 Microchip NII KP JSCRussian FederationMade 17th week (April) of 2022record ↗ Microchip, marked НИИ КП 96DEM1056 FS32OTP LxOC 2217
  • 2Т630Б Transistor KREMNII EL GROUP JSCRussian Federationrecord ↗ Transistor, marked 2Т630Б
  • РУД20 2246 Microchip VOSKHOD-KRLZ JSCRussian FederationMade 46th week (November) of 2022record ↗ Microchip, marked РУД20 2246

Receiving and processing unit of the BNA-B 9B919 satellite navigation system for MA2B

  • Printed circuit board BNAP VIP v8
  • ГК54М -ТС 19,М -S №ТК2078 2508 Quartz oscillator MORION JSCRussian Federationrecord ↗ Quartz oscillator, marked ГК54М -ТС 19,М -S №ТК2078 2508
  • 49AKDYUG3 LM2575T -3.3 P+ Voltage regulator National Semiconductor (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked 49AKDYUG3 LM2575T -3.3 P+
  • 46CDE1UG3 LM2576T -5.0 P+ Voltage regulator National Semiconductor (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked 46CDE1UG3 LM2576T -5.0 P+
  • FDS6680A GMABVS FET (field-effect transistor) Fairchild Semiconductor (ON Semiconductor)United States of Americarecord ↗ FET (field-effect transistor), marked FDS6680A GMABVS
  • МДМ …МУП 24.08 №241373813 Power supply AEDON LLCRussian FederationMade 8th week (February) 2024record ↗ Power supply, marked МДМ …МУП 24.08 №241373813
  • МДМ 25.05 №2510..3507 Power supply AEDON LLCRussian FederationMade 5th week (January) of 2025record ↗ Power supply, marked МДМ 25.05 №2510..3507
  • 106 50K 015 Tantalum capacitor KEMET (YAGEO Corporation)United States of Americarecord ↗ Tantalum capacitor, marked 106 50K 015
  • 1H 4B M Diode Not identifiedrecord ↗ Diode, marked 1H 4B M
  • 193A3 GZ325 Comparator STMicroelectronicsSwitzerlandMade 25th week (June) of 2023record ↗ Comparator, marked 193A3 GZ325
  • 3F 33 M Diode Not identifiedrecord ↗ Diode, marked 3F 33 M
  • B˚ 202 PVG5A 520C Trimmer potentiometer Bourns IncUnited States of Americarecord ↗ Trimmer potentiometer, marked B˚ 202 PVG5A 520C
  • 477J 90A4E Capacitor KYOCERA AVXUnited States of Americarecord ↗ Capacitor, marked 477J 90A4E
  • 156C 30E04 Capacitor KYOCERA AVXUnited States of Americarecord ↗ Capacitor, marked 156C 30E04
  • 107C 72AM Capacitor KYOCERA AVXUnited States of Americarecord ↗ Capacitor, marked 107C 72AM
  • 845 EUA Microchip Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Microchip, marked 845 EUA
  • MAX883 ESA +208 Linear regulator Maxim Integrated Products (Analog Devices)United States of AmericaMade 8th week (February) 2022record ↗ Linear regulator, marked MAX883 ESA +208
  • 0721 2145 TJY Operational amplifier Texas InstrumentsUnited States of Americarecord ↗ Operational amplifier, marked 0721 2145 TJY
  • MAX232 ESE 2503 RS-232 transceiver Not identifiedMade 3rd week (January) of 2025record ↗ RS-232 transceiver, marked MAX232 ESE 2503
  • TGH.A 74ACT244 Octal buffer/line driver Fairchild Semiconductor (ON Semiconductor)United States of Americarecord ↗ Octal buffer/line driver, marked TGH.A 74ACT244
  • Printed circuit board NP1D2C64K2_V8
  • ADM3202 ARNZ Transceiver Analog DevicesUnited States of Americarecord ↗ Transceiver, marked ADM3202 ARNZ
  • 157 10 248 SMD component KEMET (YAGEO Corporation)United States of Americarecord ↗ SMD component, marked 157 10 248
  • 475С 10СЕ3 Tantalum capacitor KYOCERA AVXUnited States of Americarecord ↗ Tantalum capacitor, marked 475С 10СЕ3
  • 226С 3С73 Tantalum capacitor KYOCERA AVXUnited States of Americarecord ↗ Tantalum capacitor, marked 226С 3С73
  • XCR3032XL VQG44CMN2137 A6493160A 71 CPLD Xilinx Inc. (AMD)United States of AmericaMade 37th week (September) of 2021record ↗ CPLD, marked XCR3032XL VQG44CMN2137 A6493160A 71
  • 768 4-02 SMD component Not identifiedrecord ↗ SMD component, marked 768 4-02
  • 9092 5210 SMD component Not identifiedrecord ↗ SMD component, marked 9092 5210
  • POL401 XV2221 Microchip Not identifiedrecord ↗ Microchip, marked POL401 XV2221

IRCU.301716.031 unit (module)

  • Printed circuit board YUKSU.687265.371 v3.2 BT83.404 v3.2
  • HARTING 9 Connector HARTINGGermanyMade March 2025record ↗ Connector, marked HARTING 9
  • HARTING 15 Connector HARTINGGermanyMade January 2025record ↗ Connector, marked HARTING 15
  • C474N 6505 Choke EPCOS AGGermanyrecord ↗ Choke, marked C474N 6505
  • МДМ10 -1В27СУ 25.01 №241143103 Power supply module AEDON LLCRussian FederationMade January 2025record ↗ Power supply module, marked МДМ10 -1В27СУ 25.01 №241143103
  • 38A1JZK LVC2244A Line driver Texas InstrumentsUnited States of Americarecord ↗ Line driver, marked 38A1JZK LVC2244A
  • WJLXT971ALE A4 C738D01E Ethernet transceiver Cortina SystemsUnited States of Americarecord ↗ Ethernet transceiver, marked WJLXT971ALE A4 C738D01E
  • L230515 29LV040CQI -70G 5P406500 Memory chip Macronix InternationalTaiwanMade 5th week (January) of 2023record ↗ Memory chip, marked L230515 29LV040CQI -70G 5P406500
  • 533ЛЕ1 2436 Microchip MIKRON JSCRussian FederationMade 36th week (September) of 2024record ↗ Microchip, marked 533ЛЕ1 2436
  • ВА996А1 28763 IV-25 Microassembly NITI AVANGARD JSCRussian FederationMade April 2025record ↗ Microassembly, marked ВА996А1 28763 IV-25 Microassembly, marked ВА996А1 28763 IV-25
  • 1899ВГ2Т 2504 Microprocessor NIC KURCHATOV INSTITUTE - NISIRussian FederationMade 4th week (January) of 2025record ↗ Microprocessor, marked 1899ВГ2Т 2504
  • SJK 12.000 MHz Quartz resonator SJKPeople's Republic of Chinarecord ↗ Quartz resonator, marked SJK 12.000 MHz
  • 1594ТМ2Т 2446 Two D-triggers INTEGRAL OJSCBelarusMade 46th week (November) of 2024record ↗ Two D-triggers, marked 1594ТМ2Т 2446
  • ТИЛ3В 2506 Linear pulse transformer PJSC MSTATORRussian FederationMade 6th week (February) of 2025record ↗ Linear pulse transformer, marked ТИЛ3В 2506
  • 10-20L P9 Tantalum capacitor Vishay Intertechnology, Inc.United States of Americarecord ↗ Tantalum capacitor, marked 10-20L P9
  • Printed circuit board UKSU.687265.5
  • 99A6XPM LVC14A Hex inverting Schmitt trigger Texas InstrumentsUnited States of Americarecord ↗ Hex inverting Schmitt trigger, marked 99A6XPM LVC14A
  • C 10 SMD component Coilcraft Inc.United States of Americarecord ↗ SMD component, marked C 10
  • 42AE02K CB3T16211 FET bus switch Texas InstrumentsUnited States of Americarecord ↗ FET bus switch, marked 42AE02K CB3T16211
  • UM3483 EESA RS-485 transceiver Union SemiconductorPeople's Republic of Chinarecord ↗ RS-485 transceiver, marked UM3483 EESA
  • 39ABVRM MAX3232I Multi-channel RS-232 line driver and receiver Texas InstrumentsUnited States of Americarecord ↗ Multi-channel RS-232 line driver and receiver, marked 39ABVRM MAX3232I
  • Printed circuit board YUKSU.687265.534 v9.1.1 PCB
  • 38A1JZK LVC2244A Line driver Texas InstrumentsUnited States of Americarecord ↗ Line driver, marked 38A1JZK LVC2244A
  • ВM2 2502 Microprocessor NIC KURCHATOV INSTITUTE - NISIRussian FederationMade 2nd week (January) of 2025record ↗ Microprocessor, marked ВM2 2502
  • Connector HARTINGGermanyrecord ↗ Connector
  • CD GP102 Diode STMicroelectronicsSwitzerlandMade 2nd week (January) of 2021record ↗ Diode, marked CD GP102
  • DFAD5 2SE1 Diode Not identifiedrecord ↗ Diode, marked DFAD5 2SE1
  • SP706SEN 2209 729390 Power control chip MaxLinear IncUnited States of AmericaMade 9th week (February) 2022record ↗ Power control chip, marked SP706SEN 2209 729390
  • IS61WV20488FBLL AP22006XF Memory chip Integrated Silicon Solution (Ingenic Semiconductor)United States of AmericaMade 25th week (June) of 2024record ↗ Memory chip, marked IS61WV20488FBLL AP22006XF
  • L225084 MX29GL256FHT2I -90Q 5N763800 Memory chip Macronix InternationalTaiwanMade Week 50 (December) 2022record ↗ Memory chip, marked L225084 MX29GL256FHT2I -90Q 5N763800

Cable bundle

Джгут кабелів

Not identifiedRussian FederationMade 2025

25020725 ИРЦУ.685027.073 К8

HUR War & Sanctions record ↗

  • Cable bundle — photo

Photo: HUR War & Sanctions

Connector

З’єднувач

PLANT ATLANT JSCRussian FederationMade 12th week (March) of 2024

РП15 -50ШВ -В 2412

HUR War & Sanctions record ↗

  • Connector — photo

Photo: HUR War & Sanctions

Connector

З’єднувач

PLANT ATLANT JSCRussian FederationMade 12th week (March) of 2024

РП15-50ГВ-В 2412

HUR War & Sanctions record ↗

  • Connector — photo

Photo: HUR War & Sanctions

Connector

З’єднувач

PLANT ATLANT JSCRussian FederationMade 1st week (January) of 2025

РП15-50ШВ-В 0501

HUR War & Sanctions record ↗

  • Connector — photo

Photo: HUR War & Sanctions

Connector

З'єднувач

Not identifiedRussian FederationMade 10th week (March) of 2025

798-10.25

HUR War & Sanctions record ↗

  • Connector — photo

Photo: HUR War & Sanctions

Quartz accelerometers

Кварцеві акселерометри

SERPUKHOVSKY ZAVOD METALLIST JSCRussian Federation

АК-18

HUR War & Sanctions record ↗

  • Quartz accelerometers — photo

Photo: HUR War & Sanctions

Temperature sensors

Датчики температури

Analog DevicesUnited States of AmericaMade 20th week (May) of 2022

AD 22100 STZ #2220

HUR War & Sanctions record ↗

  • Temperature sensors — photo

Photo: HUR War & Sanctions

Field-programmable gate array (FPGA)

Програмована вентильна матриця (FPGA)

Gowin SemiconductorPeople's Republic of ChinaMade 29th week (July) of 2022

GW1N-UV9 UG169C6/15 2229C PNG349.00

HUR War & Sanctions record ↗

  • Field-programmable gate array (FPGA) — photo

Photo: HUR War & Sanctions

DC/DC converter

DC/DC перетворювач

Traco PowerSwitzerlandMade 13th week (March) of 2024

TSM0505S 2413

HUR War & Sanctions record ↗

  • DC/DC converter — photo

Photo: HUR War & Sanctions

Operational amplifier

Операційний підсилювач

Analog DevicesUnited States of AmericaMade 39th week (September) of 2022

OP1776 2239 #345

HUR War & Sanctions record ↗

  • Operational amplifier — photo

Photo: HUR War & Sanctions

Quad 2-input NAND gate

Чотириканальний 2-вхідний логічний елемент NAND

ON Semiconductor (ONSEMI)United States of America

HC00A PSFS06

HUR War & Sanctions record ↗

  • Quad 2-input NAND gate — photo

Photo: HUR War & Sanctions

Memory chip

Мікросхема пам'яті

Cypress Semiconductor (Infineon Technologies)United States of AmericaMade 43rd week (October) of 2023

CY7C1041G3 0-10BVXI THA 2343 A 33 CYP 62287

HUR War & Sanctions record ↗

  • Memory chip — photo

Photo: HUR War & Sanctions

Operational amplifier

Операційний підсилювач

Analog DevicesUnited States of AmericaMade 24th week (June) of 2021

OP484E #2124 5406233

HUR War & Sanctions record ↗

  • Operational amplifier — photo

Photo: HUR War & Sanctions

Operational amplifier

Операційний підсилювач

Burr-Brown Corporation (Texas Instruments)United States of America

PGA206UA 1AC9HGT

HUR War & Sanctions record ↗

  • Operational amplifier — photo

Photo: HUR War & Sanctions

Transceiver

Трансивер

ON Semiconductor (ONSEMI)United States of AmericaMade 8th week (February) 2022

AC245 PWZ 2208

HUR War & Sanctions record ↗

  • Transceiver — photo

Photo: HUR War & Sanctions

Triple-channel digital isolator

Триканальний цифровий ізолятор

Analog DevicesUnited States of AmericaMade 33rd week (August) of 2018

ADUM1300 CRWZ #1833 4328522

HUR War & Sanctions record ↗

  • Triple-channel digital isolator — photo

Photo: HUR War & Sanctions

Navigation equipment Kometa R8 of the 9M723-1 Iskander-M missile record ↗

Receiving and processing unit of the Kometa-R8 satellite navigation system

  • AD9517-4 ABCPZ #2311 6217978.1 KOREA Clock Generator Analog DevicesUnited States of AmericaMade March (11th week) 2023record ↗ Clock Generator, marked AD9517-4 ABCPZ #2311 6217978.1 KOREA
  • 2201 LTC2175 OKG-14 B641664 Analogue-to-digital converter Linear Technology Corporation (Analog Devices)United States of AmericaMade January (1st week) 2022record ↗ Analogue-to-digital converter, marked 2201 LTC2175 OKG-14 B641664
  • Cyclone V 5CEFA7F23I7N F BBCAU2325A TAIWAN S326MK77 314FAMOB Field-programmable gate array (FPGA) Altera Corporation (Intel)United States of Americarecord ↗ Field-programmable gate array (FPGA), marked Cyclone V 5CEFA7F23I7N F BBCAU2325A TAIWAN S326MK77 314FAMOB

Missile 9M727 "Iskander-K" (Chernihiv, 19.08.2023) record ↗

Unit of the global navigation satellite system SN-99

  • ADM3202ARUZ-REEL7 Interface RS-232 - [TSSOP-16]: TX: 2: RX: 2: Analog DevicesUnited States of Americarecord ↗ Interface RS-232 - [TSSOP-16]: TX: 2: RX: 2:, marked ADM3202ARUZ-REEL7
  • IS62WV102416BLL-25tli DU6640Y2 2228 1M x 16 HIGH-SPEED LOW POWER ASYNCHRONOUS CMOS STATIC RAM Integrated Silicon Solution (Ingenic Semiconductor)United States of Americarecord ↗ 1M x 16 HIGH-SPEED LOW POWER ASYNCHRONOUS CMOS STATIC RAM, marked IS62WV102416BLL-25tli DU6640Y2 2228
  • Universal GPS Receiver MAX2769 (MAX2769ETI+) Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Universal GPS Receiver MAX2769 (MAX2769ETI+)
  • S29AL016J70BFI010 NOR Flash 16Mb 3V 70ns Parallel NOR Flash Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ NOR Flash 16Mb 3V 70ns Parallel NOR Flash, marked S29AL016J70BFI010

Missile 9M727 Iskander-K record ↗

Комплекс командних приладів 9Б918 зі складу бортової системи управління балістичної ракети "Іскандер"

  • PHE 426 400~ Film capacitors RIFASwedenrecord ↗ Film capacitors, marked PHE 426 400~
  • Electrolytic capacitor Nippon Instruments CorporationJapanrecord ↗ Electrolytic capacitor
  • 1242: TLP627-4 4-channel optocoupler ToshibaJapanrecord ↗ 4-channel optocoupler, marked 1242: TLP627-4
  • MAX EPM7160SТI100-10N W HDC241281A VDC24842215 3N2WAQOL Microcircuit Altera Corporation (Intel)United States of Americarecord ↗ Microcircuit, marked MAX EPM7160SТI100-10N W HDC241281A VDC24842215 3N2WAQOL

Процесор 016 №734 оперативно-тактичного ракетного комплексу "Іскандер-К"

  • Board BT62-408 No. 355 of processor 016 No. 734 of operational-tactical missile complex "Iskander-K"
  • TL16C552AFN 21A IDRW C4 Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked TL16C552AFN 21A IDRW C4
  • IDTTM 7005 S55JI VO921P Microcircuit Integrated Device Technology (Renesas)United States of Americarecord ↗ Microcircuit, marked IDTTM 7005 S55JI VO921P
  • MAXIM MAX1480BEPI 1112 Microcircuit Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Microcircuit, marked MAXIM MAX1480BEPI 1112
  • DSP TMS320C25GBA FE- 2BS8QCB 1986 TI Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked DSP TMS320C25GBA FE- 2BS8QCB 1986 TI
  • Board BT62-406 No. 816 of processor 016 No. 734 of operational-tactical missile complex "Iskander-K"
  • 492 A US 1218 09031966921 Corner socket HARTINGGermanyrecord ↗ Corner socket, marked 492 A US 1218 09031966921
  • DSP TMS 320C30GBA FE-94AB04T 1990 ТІ Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked DSP TMS 320C30GBA FE-94AB04T 1990 ТІ
  • 7005 S55JI VO92IP Microcircuit Integrated Device Technology (Renesas)United States of Americarecord ↗ Microcircuit, marked 7005 S55JI VO92IP
  • M29F800BB 35EF 218BB762-JJ 1990AMD DDM1 Microcircuit AMDUnited States of Americarecord ↗ Microcircuit, marked M29F800BB 35EF 218BB762-JJ 1990AMD DDM1
  • Y29390033-3373 833-32 1996 AMD DDM2 Microcircuit AMDUnited States of Americarecord ↗ Microcircuit, marked Y29390033-3373 833-32 1996 AMD DDM2
  • CY7C10490 – 10VXI 1137 04 645988 Microcircuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Microcircuit, marked CY7C10490 – 10VXI 1137 04 645988
  • DSP TMS 320C30GEL JG-22S2LGB 1988 Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked DSP TMS 320C30GEL JG-22S2LGB 1988

Electronic computing machine "Baget-62-04" (ser.No.976204200098) from the BU-152 control unit (Ser. No. 2363040009)

  • 10-35L X5 2 Tantalum capacitor 593D series Vishay Intertechnology, Inc.United States of Americarecord ↗ Tantalum capacitor 593D series, marked 10-35L X5 2
  • ALTERA Cyclone EP1C3T14417N L HCE951049A Microcircuit Altera Corporation (Intel)United States of Americarecord ↗ Microcircuit, marked ALTERA Cyclone EP1C3T14417N L HCE951049A
  • SN74LV273A 01СZD2K LV273Ʌ Octal D-Type Flip-Flops Texas InstrumentsUnited States of Americarecord ↗ Octal D-Type Flip-Flops, marked SN74LV273A 01СZD2K LV273Ʌ
  • 99 AMD 1640DU90NI 943BBC32 Microcircuit AMDUnited States of Americarecord ↗ Microcircuit, marked 99 AMD 1640DU90NI 943BBC32
  • 74ALVC164245 ALVC 164215 A3X3 – 0411270 16-bit dual supply translating transceiver Integrated Device Technology (Renesas)United States of Americarecord ↗ 16-bit dual supply translating transceiver, marked 74ALVC164245 ALVC 164215 A3X3 – 0411270
  • MIC 49300WR 1004PHIL 3A Low Voltage LDO Regulator with Dual Input Voltages Microchip Technology Inc.United States of Americarecord ↗ 3A Low Voltage LDO Regulator with Dual Input Voltages, marked MIC 49300WR 1004PHIL
  • A6E3 DSP TMS320C6414GLZ C-20 24A10CW Fixed point digital signal processor Texas InstrumentsUnited States of AmericaMade 2012record ↗ Fixed point digital signal processor, marked A6E3 DSP TMS320C6414GLZ C-20 24A10CW
  • AMD L6AODU9ON 11401 BM G NA LAND Microcircuit AMDUnited States of Americarecord ↗ Microcircuit, marked AMD L6AODU9ON 11401 BM G NA LAND
  • TSM0505S DC-DC converter Traco PowerSwitzerlandrecord ↗ DC-DC converter, marked TSM0505S
  • ADTL1-12 Transformer Mini-CircuitsUnited States of Americarecord ↗ Transformer, marked ADTL1-12
  • MB87J2140 0243 Y02 Microcircuit FUJITSUJapanMade 2002record ↗ Microcircuit, marked MB87J2140 0243 Y02
  • FLEX EPF10К30AQ1240-3N S HCA511213A Microcircuit Altera Corporation (Intel)United States of Americarecord ↗ Microcircuit, marked FLEX EPF10К30AQ1240-3N S HCA511213A
  • 0724 02021602301 Connector 234 HARTINGGermanyrecord ↗ Connector 234, marked 0724 02021602301
  • 940 1226 17050952401 Connector HARTINGGermanyrecord ↗ Connector, marked 940 1226 17050952401
  • MAX EPM7128SQI100-1 Microcircuit Altera Corporation (Intel)United States of Americarecord ↗ Microcircuit, marked MAX EPM7128SQI100-1
  • 00601-236-R 16.000000MHz MHO+23FAD-R M-TRON №103225 Quartz element M-TRONUnited States of Americarecord ↗ Quartz element, marked 00601-236-R 16.000000MHz MHO+23FAD-R M-TRON №103225
  • 79R3081E-40DL XC0124P Processor Integrated Device Technology (Renesas)United States of Americarecord ↗ Processor, marked 79R3081E-40DL XC0124P
  • S29GL256P117F 22988609 B Parallel NOR flash memory Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Parallel NOR flash memory, marked S29GL256P117F 22988609 B
  • CY7C1069DV33 -10ZSXI, 1231 627029, N 04 SRAM memory chip Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ SRAM memory chip, marked CY7C1069DV33 -10ZSXI, 1231 627029, N 04
  • XC4036XLA HQ208AKP0723 F2368107A, 09I Microcircuit Xilinx Inc. (AMD)United States of Americarecord ↗ Microcircuit, marked XC4036XLA HQ208AKP0723 F2368107A, 09I

Missile "Iskander-K" (April 2022) record ↗

Processor 016 No. 734 of the operational-tactical missile complex "Iskander-K"

  • Board BT62-408 No. 355 of processor 016 No. 734 of operational-tactical missile complex "Iskander-K"
  • TL16C552AFN 21A IDRW C4 microcircuit Texas InstrumentsUnited States of Americarecord ↗ microcircuit, marked TL16C552AFN 21A IDRW C4
  • IDT TM 7005 S55JI VO921P microcircuit Integrated Device Technology (Renesas)United States of Americarecord ↗ microcircuit, marked IDT TM 7005 S55JI VO921P
  • MAXIM MAX1480BEPI 1112 microcircuit Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ microcircuit, marked MAXIM MAX1480BEPI 1112
  • DSP TMS320C25GBA FE- 2BS8QCB 1986 TI microcircuit Texas InstrumentsUnited States of Americarecord ↗ microcircuit, marked DSP TMS320C25GBA FE- 2BS8QCB 1986 TI
  • Board BT62-406 No. 816 of processor 016 No. 734 of operational-tactical missile complex "Iskander-K"
  • 492 A US 1218 09031966921 In the corner nest HARTINGGermanyrecord ↗ In the corner nest, marked 492 A US 1218 09031966921
  • DSP TMS 320C30GBA FE-94AB04T 1990 ТІ microcircuit Texas InstrumentsUnited States of Americarecord ↗ microcircuit, marked DSP TMS 320C30GBA FE-94AB04T 1990 ТІ
  • 7005 S55JI VO92IP microcircuit Integrated Device Technology (Renesas)United States of Americarecord ↗ microcircuit, marked 7005 S55JI VO92IP
  • M29F800BB 35EF 218BB762-JJ 1990AMD DDM1 microcircuit AMDUnited States of Americarecord ↗ microcircuit, marked M29F800BB 35EF 218BB762-JJ 1990AMD DDM1
  • Y29390033-3373 833-32 1996 AMD DDM2 microcircuit AMDUnited States of Americarecord ↗ microcircuit, marked Y29390033-3373 833-32 1996 AMD DDM2
  • CY7C10490 – 10VXI 1137 04 645988 microcircuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ microcircuit, marked CY7C10490 – 10VXI 1137 04 645988
  • DSP TMS 320C30GEL JG-22S2LGB 1988 microcircuit Texas InstrumentsUnited States of Americarecord ↗ microcircuit, marked DSP TMS 320C30GEL JG-22S2LGB 1988

Electronic calculator "Baget-62-04" (factory number 976204200098) from the BU-152 control unit (factory number 2363040009)

  • 10-35L X5 2 microcircuit Vishay Intertechnology, Inc.United States of Americarecord ↗ microcircuit, marked 10-35L X5 2
  • ALTERA Cyclone EP1C3T14417N L HCE951049A microcircuit Altera Corporation (Intel)United States of Americarecord ↗ microcircuit, marked ALTERA Cyclone EP1C3T14417N L HCE951049A
  • 01СZD2K LV273Л, 04 microcircuit Texas InstrumentsUnited States of Americarecord ↗ microcircuit, marked 01СZD2K LV273Л, 04
  • 99 AMD L640DU90NI 943BBC32 THAILAND Memory chip AMDUnited States of Americarecord ↗ Memory chip, marked 99 AMD L640DU90NI 943BBC32 THAILAND
  • ALVC 164215 A3X3 – 04 11270 microcircuit Integrated Device Technology (Renesas)United States of Americarecord ↗ microcircuit, marked ALVC 164215 A3X3 – 04 11270
  • MIC 49300WR 1004PHIL microcircuit Microchip Technology Inc.United States of Americarecord ↗ microcircuit, marked MIC 49300WR 1004PHIL
  • A6E3 DSP TMS320C6414GLZ C-20 24A10CW microcircuit Texas InstrumentsUnited States of Americarecord ↗ microcircuit, marked A6E3 DSP TMS320C6414GLZ C-20 24A10CW
  • AMD L6AODU9ON 11401 BM G NA LAND microcircuit AMDUnited States of Americarecord ↗ microcircuit, marked AMD L6AODU9ON 11401 BM G NA LAND
  • TRACO POWER TSM0505S microcircuit Traco PowerSwitzerlandrecord ↗ microcircuit, marked TRACO POWER TSM0505S
  • ADTL1-12 microcircuit Mini-CircuitsUnited States of Americarecord ↗ microcircuit, marked ADTL1-12
  • MB87J2140 0243 Y02 microcircuit FUJITSUJapanrecord ↗ microcircuit, marked MB87J2140 0243 Y02
  • FLEX EPГ10К30AQ1240-3N S HCA511213A microcircuit Altera Corporation (Intel)United States of Americarecord ↗ microcircuit, marked FLEX EPГ10К30AQ1240-3N S HCA511213A
  • 0724 02021602301 Connector 234 HARTINGGermanyrecord ↗ Connector 234, marked 0724 02021602301
  • 1226 17050952401 Connector 940 HARTINGGermanyrecord ↗ Connector 940, marked 1226 17050952401
  • MAX EPM7160SТI100-10N microcircuit Altera Corporation (Intel)United States of Americarecord ↗ microcircuit, marked MAX EPM7160SТI100-10N
  • 16.000000MHz MHO+23FAD-R M-TRON №103225 Quartz element00601-236-R M-TRONUnited States of Americarecord ↗ Quartz element00601-236-R, marked 16.000000MHz MHO+23FAD-R M-TRON №103225
  • 79R3031E -40DL, XC0124P Processor Integrated Device Technology (Renesas)United States of Americarecord ↗ Processor, marked 79R3031E -40DL, XC0124P
  • S29GL236P117F102 22988609 B microcircuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ microcircuit, marked S29GL236P117F102 22988609 B

Cruise missile type 9М727 of the operational-tactical missile complex "Iskander-K"

  • CY7C1069DV33 -10ZSXI, 1231 627029, N 04 microcircuit Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ microcircuit, marked CY7C1069DV33 -10ZSXI, 1231 627029, N 04
  • XC4036XLA HQ208AKP0723 F2368107A, 09I microcircuit Xilinx Inc. (AMD)United States of Americarecord ↗ microcircuit, marked XC4036XLA HQ208AKP0723 F2368107A, 09I

Electrolytic capacitor

Конденсатор електролітичний

Nippon Instruments CorporationJapan

HUR War & Sanctions record ↗

  • Electrolytic capacitor — photo

Photo: HUR War & Sanctions

Photocoupler (w/ darlington transistor output)

Оптопара (з виходом на транзисторі Дарлінгтона)

ToshibaJapan

1242: TLP627-4

HUR War & Sanctions record ↗

  • Photocoupler (w/ darlington transistor output) — photo

Photo: HUR War & Sanctions

microcircuit

Мікросхема

Altera Corporation (Intel)United States of America

MAX EPM7160SТI100-10N W HDC241281A VDC24842215 3N2WAQOL

HUR War & Sanctions record ↗

  • microcircuit — photo

Photo: HUR War & Sanctions

From other sources

Open questions

What has not been published about the Iskander-M, and where the available evidence points: measurements from published photos, the physics, the parts its relatives carry, and the trade in the parts themselves. An indication is not a confirmation. Each one shows how it was reached; last reviewed 2026-10-23.

Also not yet established

  • Submunition warhead: does recovered wreckage of the Iskander-M show it? — A teardown record from HUR or another official body listing it, or a photo of it in recovered wreckage.

Also reported

  • Accelerometers — Accelerometers for the inertial system made by the Serpukhov Metalist Plant, which HUR said in December 2025 was not under any coalition sanctions source
  • Satellite navigation (nose array) — Kometa-M12R-VT 12-element digital antenna array in the nose for initial and mid-course navigation, successor to the Kometa-MR12; reported July 2026 by the Telegram channel Colonel GSh source
  • Control-system electronics — Foreign microprocessor, FPGA, memory and DAC/ADC parts from DM&P Electronics, Xilinx (AMD), Atmel (Microchip), Winbond, Micron and Analog Devices; of 140 components disclosed in August 2026, 63 were US-made and about a quarter Russian source
  • Optics (claimed) — Ukraine's HUR claimed in July 2026, from files it says it took from NII Polyus, that Chinese-made optical parts sit in Iskander navigation and targeting systems; not independently verified Telegram channel:source

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.

Open original ↗
