What the Geran-2 is made of
931 documented parts and 816 photos, from recovered wreckage and the reporting on it. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: Geran-2.
What it costs
Every price is given three ways: in roubles, in dollars at the market exchange rate, and as the relative cost for Russia: the dollars price scaled down to Russian price levels, which are about a third of American ones. Each figure names its source.
Figures for the whole Geran-2
Estimate whole drone, working estimate · Analyst estimate, CSIS, 2025
- Roubles
- ₽2.9 million
- Dollars, market rate
- $35,000
- Dollars, relative cost for Russia
- $12,000
Stated as US$35,000: Though estimates vary, each Shahed is estimated to cost $35,000 per drone.
CSIS, "Calculating the Cost-Effectiveness of Russia's Drone Strikes" ↗
Reported Shahed, upper bound of cost to Russia · Official statement, Andriy Chernyak, HUR spokesperson, speaking to Reuters, 2025
- Roubles
- ₽17 million
- Dollars, market rate
- $200,000
- Dollars, relative cost for Russia
- $71,000
Stated as US$200,000: While a single Shahed drone costs Russia up to $200,000, the Gerbera is estimated at just $10,000 per unit.
An upper bound.
Estimate Alabuga's own estimate of build cost per Shahed-136 once franchise costs to Iran are paid off · Analyst estimate, JSC Alabuga (per leaked documents), as reported by ISIS, 2024
- Roubles
- ₽6.5 million
- Dollars, market rate
- $70,000
- Dollars, relative cost for Russia
- $22,000
Stated as US$70,000: For example, JSC Alabuga estimated that once it had paid off all the associated franchise costs to Iran, it could build a Shahed 136 drone for about $70,000.
Documented negotiated per-unit price for the Shahed-136 licence deal at a 6,000-unit order (about $193,000) · Invoice or document, leaked IRGC "Sahara Thunder" e-mail documents, released by the Prana Network hackers, 2024
- Roubles
- ₽12 million
- Dollars, market rate
- $130,000
- Dollars, relative cost for Russia
- $41,000
Stated as ₽12 million: However, during the negotiations, an agreement was reached at the level of RUB 12 million overboard when ordering 6,000 units ($193 thousand) or RUB 18 million ($290 thousand when ordering 2,000 units).
From leaked documents on the licence deal with Iran, published by the Prana Network hackers; their authenticity has not been independently confirmed. Iran's opening price was RUB 23 million.
Documented negotiated per-unit price at a 2,000-unit order (about $290,000) · Invoice or document, leaked Sahara Thunder documents (Prana Network), 2024
- Roubles
- ₽18 million
- Dollars, market rate
- $190,000
- Dollars, relative cost for Russia
- $61,000
Stated as ₽18 million: or RUB 18 million ($290 thousand when ordering 2,000 units)
From the same leaked documents; not independently confirmed.
Documented projected production cost per drone, fully localised with minimal Iranian components (2023 plan, about $48,800) · Invoice or document, leaked Sahara Thunder documents (Prana Network), 2023
- Roubles
- ₽4.4 million
- Dollars, market rate
- $52,000
- Dollars, relative cost for Russia
- $16,000
Stated as ₽4.4 million: According to plans for 2023, with full localization of production with minimal supply of Iranian components, the projected cost of the Shahed-136 should be RUB 4.4 million ($48.8 thousand) per item.
A forecast in the leaked documents, for fully localised production.
Documented planned sale price per drone to the customer (about $165,500) · Invoice or document, leaked Sahara Thunder documents (Prana Network), 2023
- Roubles
- ₽14.9 million
- Dollars, market rate
- $170,000
- Dollars, relative cost for Russia
- $55,000
Stated as ₽14.9 million: At the same time, the cost of sale, that is, the price at which they will be transferred to the customer, will be RUB 14.9 million ($165.5 thousand).
The parts with a known price
8 of the 157 parts on one recovered unit have a published price. Added up, they come to about:
- Roubles
- ₽13,000
- Dollars, market rate
- $170
- Dollars, relative cost for Russia
- $170
This is our sum of the prices below (2026 prices), a floor rather than the price of the weapon: the airframe, assembly and most parts carry no figure. Imported parts make up 100% of it at market prices, and count at the market price in the relative cost.
The priced parts
- Digital signal processor ₽1,600 · $20.69 · $20.69 imported
- Digital signal processor ₽1,600 · $20.69 · $20.69 imported
- Digital signal processor ₽1,600 · $20.69 · $20.69 imported
- Digital signal processor ₽1,600 · $20.69 · $20.69 imported
- Digital signal processor ₽1,600 · $20.69 · $20.69 imported
- Digital signal processor ₽1,600 · $20.69 · $20.69 imported
- Digital signal processor ₽1,600 · $20.69 · $20.69 imported
- Digital signal processor ₽1,600 · $20.69 · $20.69 imported
How the prices are worked out
Each figure is first given as its source states it. A price in dollars, yuan or euros is converted into roubles at the average market exchange rate of its year (for 2026: Bank of Russia official rate, average Jan–Sep 2026). The dollar price at the market rate is those roubles converted back, which is what the item costs someone paying in dollars.
The third price is the relative cost for Russia. Prices inside Russia are far lower than the exchange rate suggests: in 2025 a dollar fetched 83.7 roubles on the market, but 29.6 roubles bought in Russia what a dollar bought in the United States, according to the World Bank's purchasing-power-parity factor. Russian price levels were therefore about 35% of American ones, and the third price is the market-rate price scaled down by that share. It is a comparison, not money paid: it shows how much smaller the burden is when the work is paid at Russian prices, which is why a rouble budget goes about 2.8 times further than its dollar value suggests.
The factor measures prices across the whole economy, not the price of weapons. It fits Russian wages and locally made parts best. Imported parts, such as Chinese engines and radios, are paid for in hard currency, so for them the market price is the real cost and their third price equals it. A figure for a whole weapon mixes both, so its relative cost understates the imported share.
Economists who compare defence budgets make the same point. Michael Kofman and Richard Connolly put Russia's effective military spending at $150–180 billion a year at purchasing-power parity, against the roughly $60 billion a year a market-rate conversion suggests. War on the Rocks, 2019 ↗
Peter Robertson of the University of Western Australia built a price index for military spending itself and found Russia's real budget to be more than three times its market-rate value. University of Western Australia, 2021 ↗
Prices are not adjusted for inflation: each is converted at the rates of its own year, which is shown with it. Sources for the rates: World Bank, official exchange rate (LCU per US$, period average), World Bank, PPP conversion factor, GDP (LCU per international $), Bank of Russia, official exchange rates.
Where the parts were made
- United States of America 534
- Littelfuse, Inc., Atmel (Microchip Technology), Vishay Intertechnology, Inc., Texas Instruments, Analog Devices, ON Semiconductor (ONSEMI), International Rectifier (Infineon Technologies), Sensitron, National Semiconductor (Texas Instruments), CTS Corporation, Monolithic Power Systems, Adesto Technologies (Dialog Semiconductor - Renesas Electronics), Alpha and Omega Semiconductor, Maxim Integrated Products (Analog Devices), Xilinx Inc. (AMD), AMD, Micron Technology, Linear Technology Corporation (Analog Devices), Microchip Technology Inc., Spansion (Cypress Semiconductor, Infineon Technologies), Pulse Electronics Corporation, Advanced Monolithic Systems Inc., Burr-Brown Corporation (Texas Instruments), Integrated Silicon Solution (Ingenic Semiconductor), Marvell Technology Group, Semtech Corporation, Amphenol Corporation, AVX Corporation, Qorvo, Skyworks Solutions, Inc, KYOCERA AVX, Honeywell International, PNI Sensor Corporation, Freescale Semiconductor, Hemisphere GNSS, Micrel Inc. (Microchip Technology Inc.), HALO Electronics, Inc., Silicon Storage Technology, Glenair, Walbro, WIX Filters, Hitec Group USA, Inc., Altera Corporation (Intel), NCR, MERITEK, PowerStor (Eaton), Hittite Microwave Corporation, New Jersey Semiconductor Products Inc, Silex technology America, inc.
- People's Republic of China 129
- Xiamen Hongfa Electroacoustic Co., Ltd., CapXon International Electronic Co., Ltd., CONNFLY, Dongguan Chengxing Electronic Co., Ltd., WeEn Semiconductors Co., Ltd., Shenzhen Codaca Electronic Co.,Ltd., Yantel Corporation, Nanjing Qinheng Microelectronics Co., Ltd. (WinChipHead, WCH), Not identified, Honpho, GXSERVO (Dongguan Gongxun Power Technology Co., Ltd.), Xingkay Tech, Ningbo Songle Relay Co., Ltd, Shanghai Xinlong Semiconductor Technology Co., Ltd, GigaDevice, Unicore Communications, Inc., Ningbo Connfly Electronic Co., Ltd., Shenzhen ForwardVideo Technology Co., Ltd, MORNSUN Guangzhou Science & Technology Co., Ltd., Beijing Microelectronics Technology Institute (BMTI), Yueli Electronic, ComNav Technology Ltd. (SinoGNSS), Daier Electron, AngelWave, Shanghai Chuantu Microelectronics Co., Ltd., Yangzhou Yangjie Electronic Technology Co., Ltd., Shanghai Belling Co., Ltd., Beijing Jingyuxing Technology Co., Ltd., Hunan Silicon Internet of Things Technology Co., Ltd, Beijing Times Minxin Technology Co., Ltd., Sichuan Tu Microelectronics, XLSEMI, SINO-IC Microelectronic Co., Ltd, EGmicro - Yijing Microelectronics Co., Ltd, YueQing Daier Electron Co., Ltd, Shenzhen Avionics Technology Co., Ltd, Xuyi OuGe Electronics Co., Ltd., Binhai Zhirun Electronics co., Ltd, AptSemi/IR, SavantIC Semiconductor, SMC Diode Solutions, KST Digital Technology, China National Weapon Industry Corporation (CNWIC) 214th Research Institute, Juxun Semiconductor Technology Co., Ltd. - Gainsil, Beijing Unistrong Science & Technology, JB Capacitors, Evatronix (HK) Electronics Trade Inc, Shenzhen Jinghao Capacitor Co., Ltd., Man Yue Technology Holdings Limited, International standard, Yiyang Anxing Electronics Co., Ltd (AXBOOM), Horng Jih Cable Wire Enterprise Co Ltd, ERICCO INERTIAL SYSTEM, Jiaweicheng electronics, Shenzhen Woer Heat-shrinkable material, ZOMAX Group, Zhuzhou Torch Spark Plug, Wayon Electronics Co.,Ltd
- Switzerland 77
- STMicroelectronics, U-blox, Axsem AG (ON Semiconductor)
- Japan 48
- Renesas, Rubycon Corporation, Nichicon Corporation, Murata, Toshiba, Nihon Dempa Kogyo co., Ltd (NDK), TDK Corporation, FUJITSU, Elna Co. Ltd, Panasonic, Nippon Thompson, Not identified
- Taiwan 23
- Oupiin Enterprise Co., Ltd., Minmax, PANJIT International, Inc, Winbond Electronics Corporation, MOLICEL, Delta Electronics, Inc, NAK, TEAPO, VBsemi Electronics Co.,Ltd
- Germany 22
- Infineon Technologies, Pierburg, Wurth Elektronik, Vacuumschmelze, EPCOS AG, Bosch, FAG Kugelfischer Georg Schafer AG
- Russian Federation 19
- FNPC NII PRIKLADNOI KHIMII JSC, NPK KBM JSC, VNIIR-PROGRESS JSC, DNPP PJSC, MMP-IRBIS LLC
- Netherlands 14
- NXP Semiconductors, Philips, Nexperia
- Iran 11
- MADO
- Great Britain 6
- Future Technology Devices International Ltd, Raspberry Pi Ltd, Isocom Components 2004 Ltd., TI Fluid Systems
- Ireland 4
- TE Connectivity, Taoglas
- India 3
- Aura Semiconductor Co., Ltd.
- Austria 3
- Ams-OSRAM AG
- Republic of Korea 3
- RN2 Technologies
- Belarus 1
- INTEGRAL OJSC
- Canada 1
- Tallysman Wireless Inc. (Calian Group Ltd.)
Sources
- HUR War & Sanctions: Geran-2 UAV (series "Э", with Verba MPADS) · українською
- HUR War & Sanctions: Geran-2 UAV (series "Э", with R-60 missile) · українською
- HUR War & Sanctions: Shahed-136 (GERAN-2) MS001 · українською
- HUR War & Sanctions: Passive radar homing head for the ‘Geran-2’ UAV (PRGS-UAV) · українською
- HUR War & Sanctions: Geran-2 UAV · українською
- HUR War & Sanctions: UAV "Shahed-136" №13678 · українською
- HUR War & Sanctions: UAV "Shahed-136" №13084 · українською
- HUR War & Sanctions: UAV "Shahed-136" (use in 2025) · українською
- HUR War & Sanctions: GERAN-2 (Shahed-136) ЬІ-8465 · українською

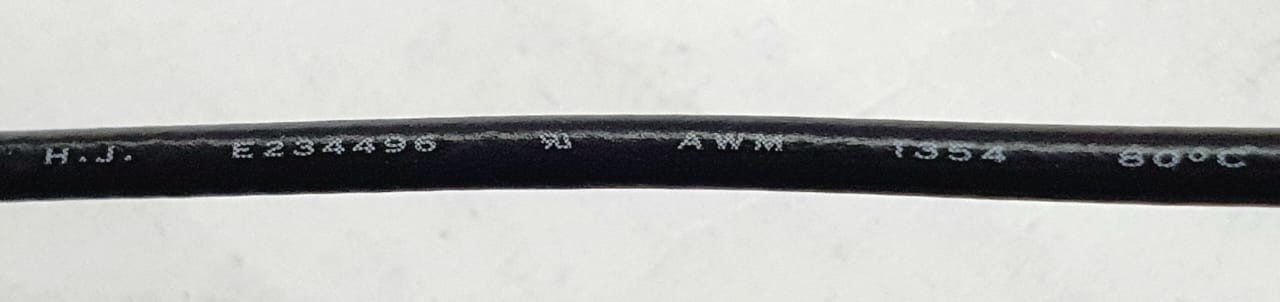

- HUR War & Sanctions: CRP-antenna of UAV "Shahed-136" · українською
- HUR War & Sanctions: UAV "GERAN-2" (Shahed-136) Ы-12686 · українською
- HUR War & Sanctions: UAV "GERAN-2" (Shahed-136) Ы-954 · українською
- HUR War & Sanctions: UAV "Shahed-136" · українською
- HUR War & Sanctions: UAV "GERAN-2" (Shahed-136) Ы-1311 · українською
- HUR War & Sanctions: UAV "GERAN-2" (Shahed-136) Ы-1276 · українською
- HUR War & Sanctions: UAV "GERAN-2" (Shahed-136) Ы-391 · українською
- HUR War & Sanctions: Navigation system of the russian-made Shahed-136 UAV · українською
- HUR War & Sanctions: UAV "GERAN-2" (Shahed-136) black · українською
- HUR War & Sanctions: Shahed-136 UAV (157 components) · українською
- HUR War & Sanctions: UAV "GERAN-2" (Shahed-136) (K series) · українською
- HUR War & Sanctions: Shahed-136 UAV № М214 · українською
- Open Source Munitions Portal — search its munition identification records
Ukrainian pages read alongside the English: same items, markings and text.
Geran-2 UAV (series "Э", with Verba MPADS) record ↗
Warhead TBBCh-50M
Бойова частина ТББЧ-50М
A roughly 50 kg high-explosive warhead; this is the payload that detonates on impact to produce the strike’s effect.
Photo: HUR War & Sanctions

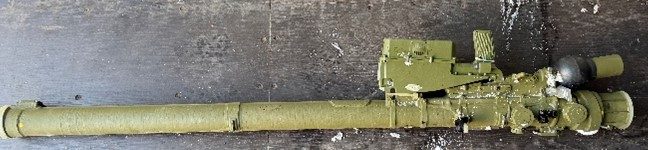

Verba MPADS
ПЗРК "Верба"
A unit sharing its name with the Russian 9K333 Verba shoulder-fired anti-aircraft missile; the record does not describe how it is used inside this airframe.
Photo: HUR War & Sanctions

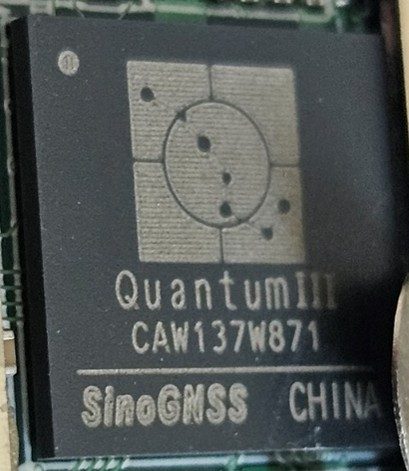

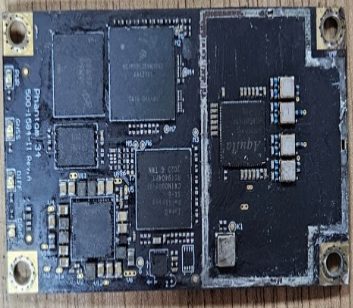

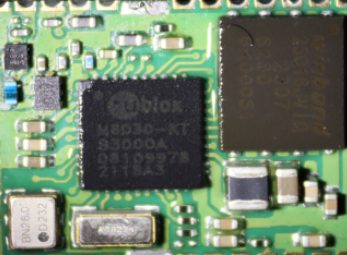

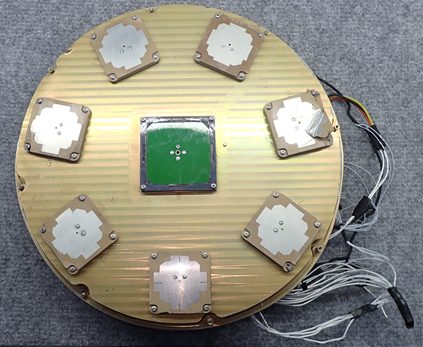

Jammer-proof satellite navigation system "Kometa"
Завадозахищена супутникова навігаційна система "Комета"
A satellite-navigation receiver with a multi-element antenna array designed to reject jamming by suppressing signals from directions other than the satellites, keeping the munition on its programmed GNSS course.
1 / 2
Photo: HUR War & Sanctions

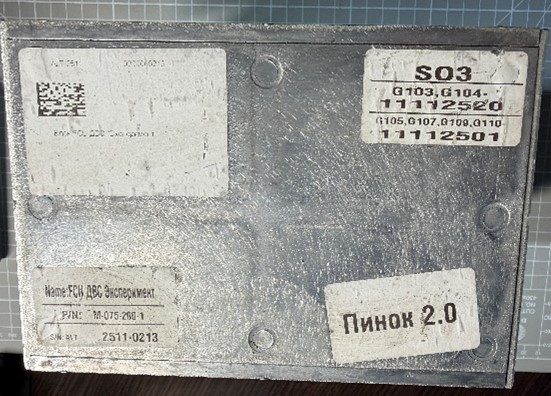

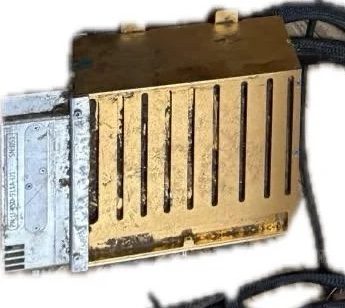

Flight Controller Unit (FCU)
Польотний контролер (FCU)
The autopilot computer. It executes the flight plan, reads the sensors and drives the control surfaces.
Photo: HUR War & Sanctions

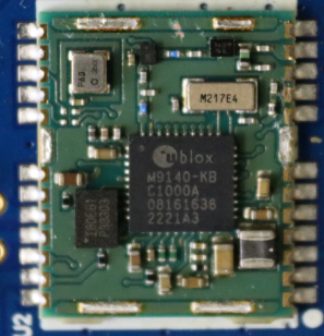

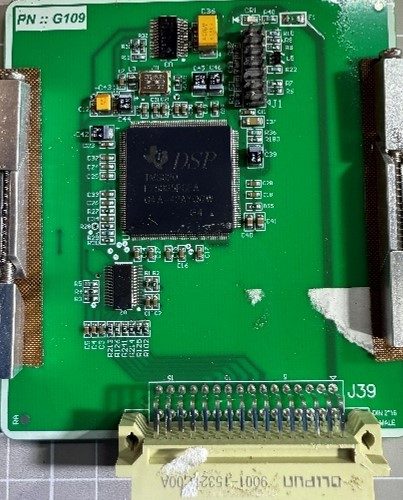

- Satellite navigation system receiver board
- 2A

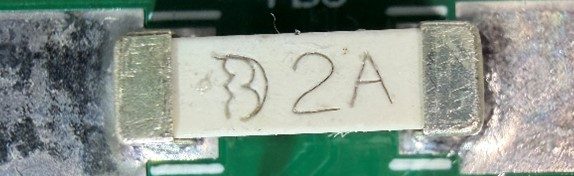

Fuse
A 2-amp fuse that opens if too much current flows, protecting the satellite-navigation receiver board from damage during a short or an overload. The maker is not identified.record ↗

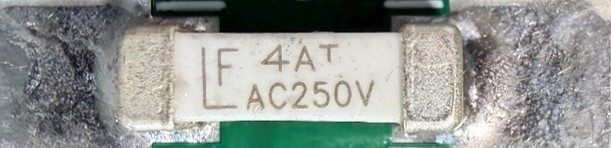

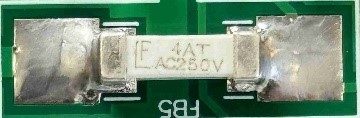

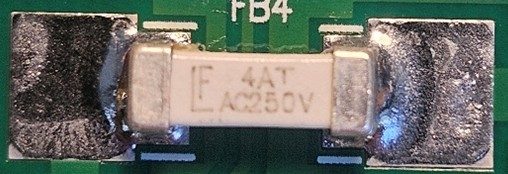

- 4AT
AC250V
Fuse
A 4-amp time-lag fuse that tolerates brief current surges but opens on a sustained overload, protecting the satellite-navigation receiver board from short-circuit damage.record ↗

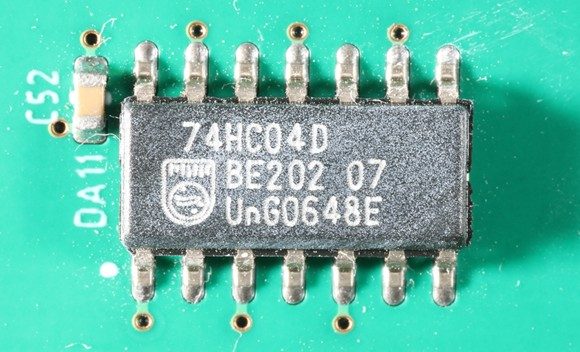

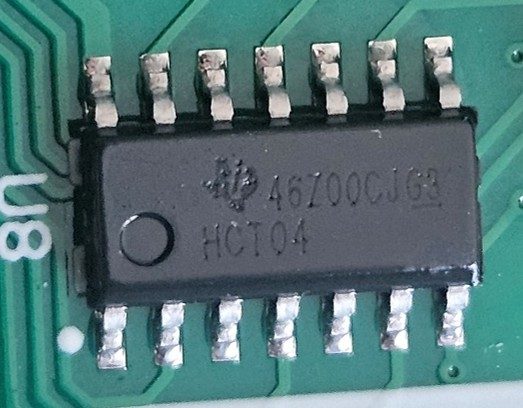

- TI 49C1T6K

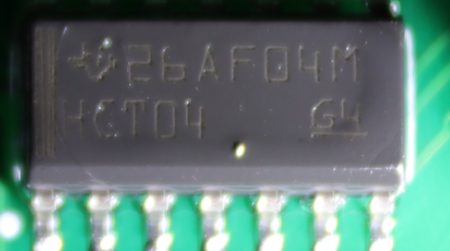

HCT04

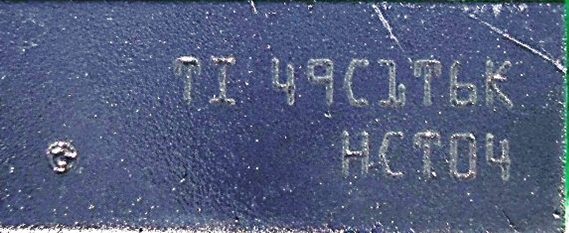

PWM controller
A pulse-width-modulation controller, which generates the switching signal that drives a power converter. It is part of the circuitry that keeps the navigation receiver board at the correct voltage.record ↗

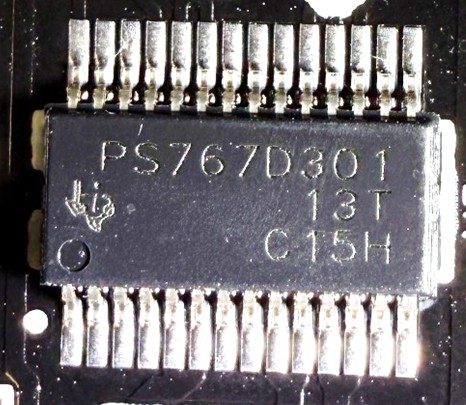

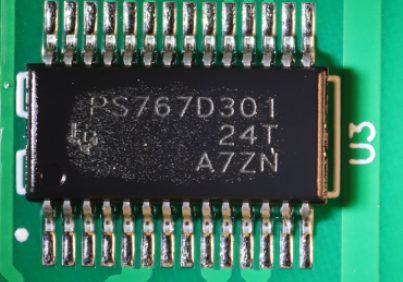

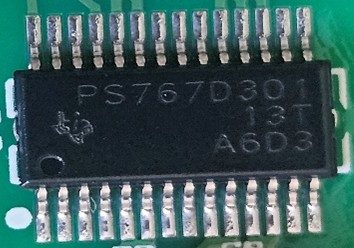

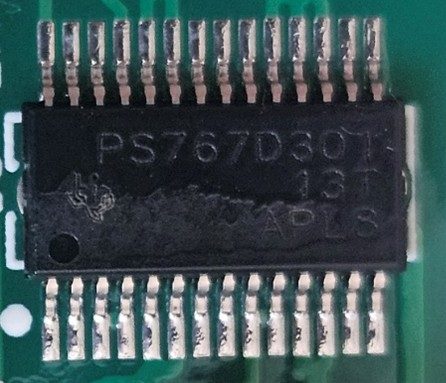

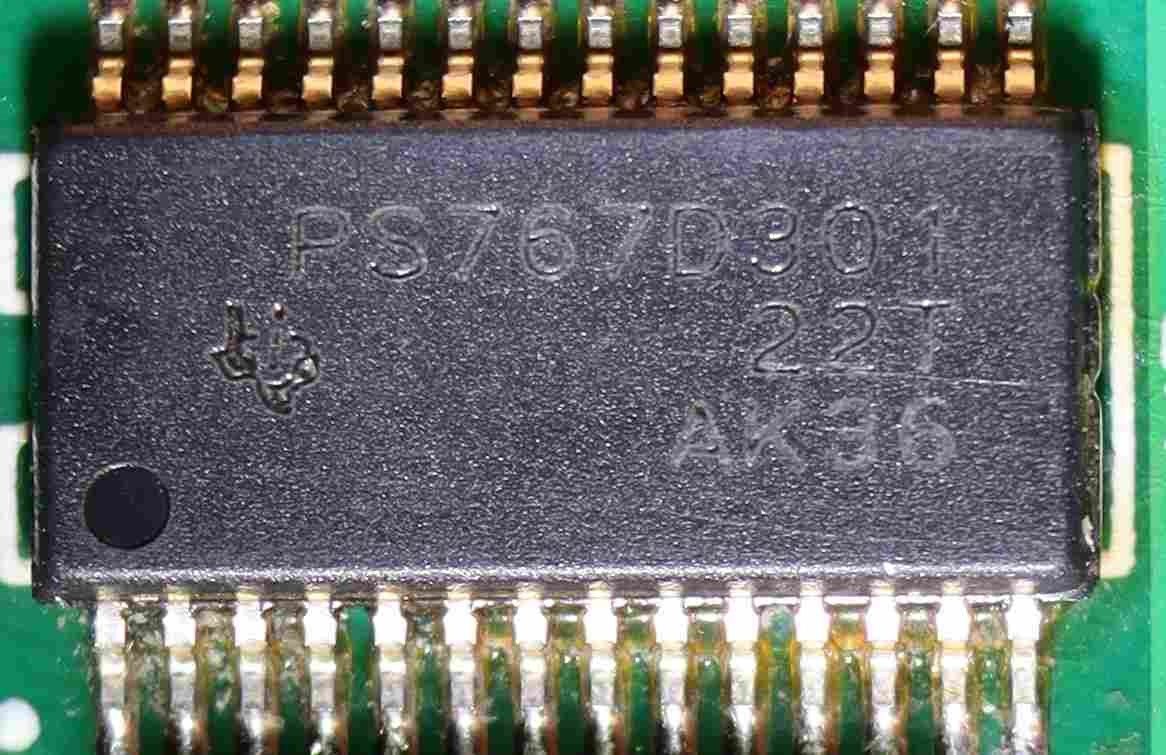

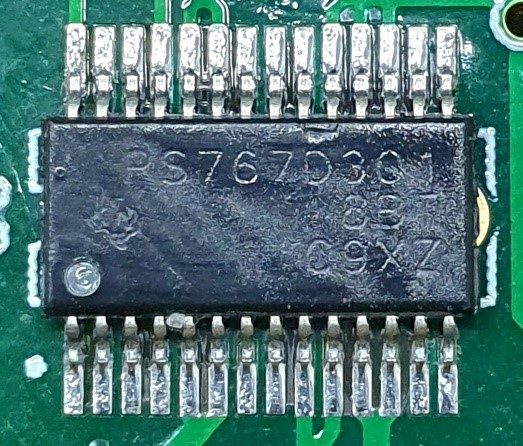

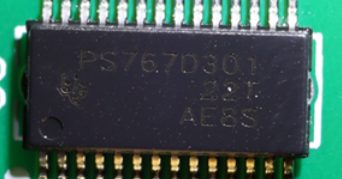

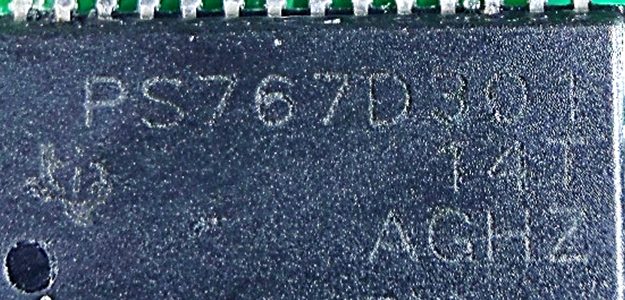

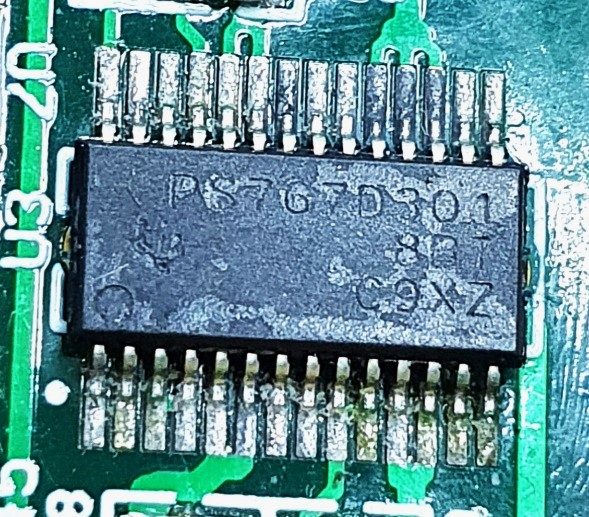

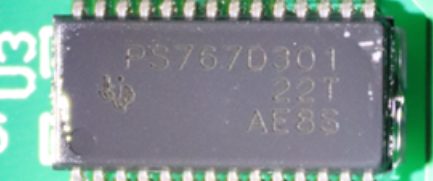

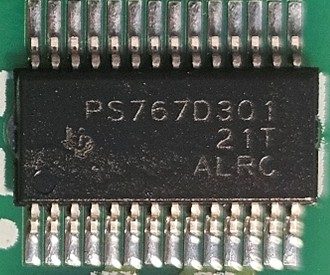

- PS767D301
14T
AGHZ

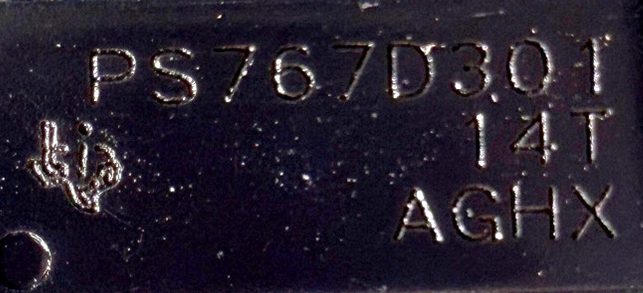

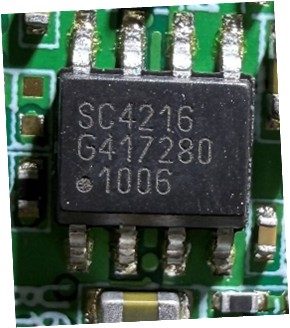

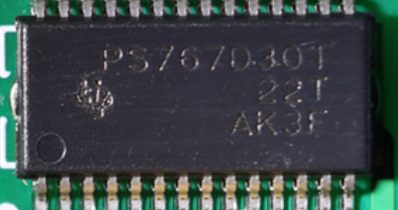

Voltage regulator

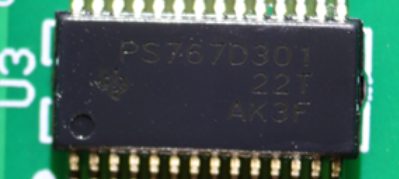

A dual low-dropout voltage regulator that provides two independent, steady supply rails to the chips on the satellite-navigation receiver board.record ↗

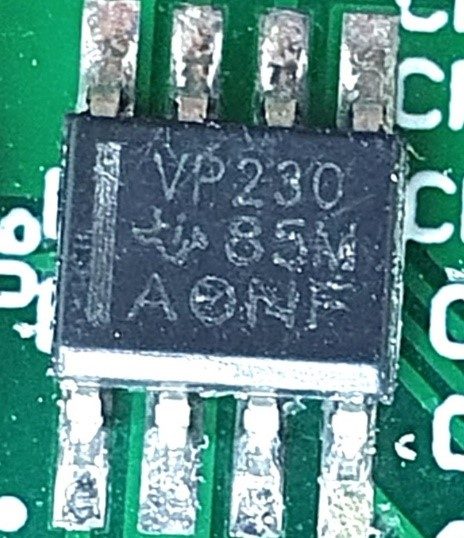

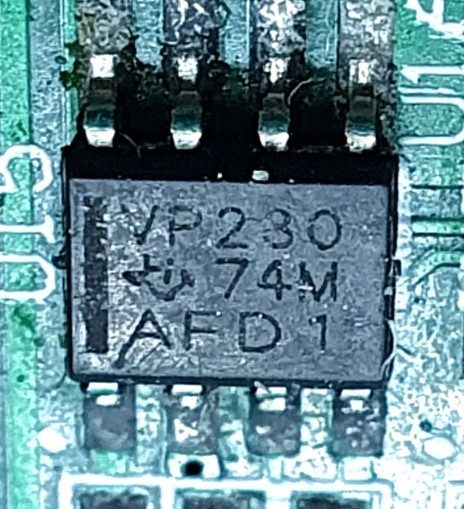

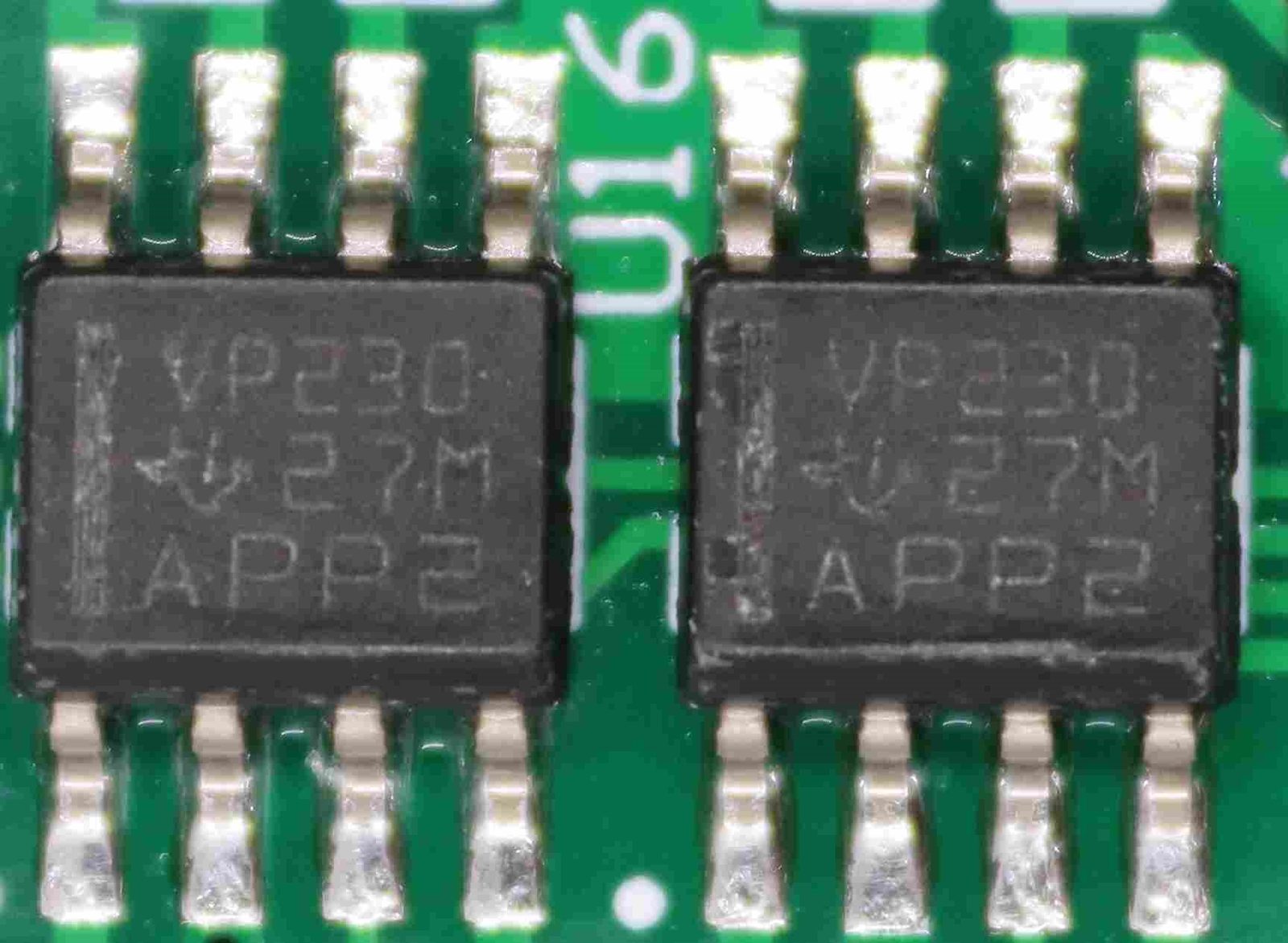

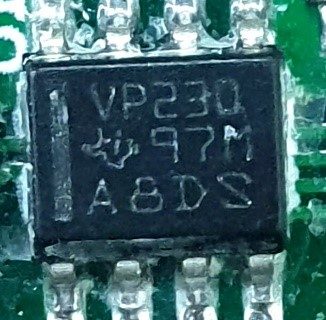

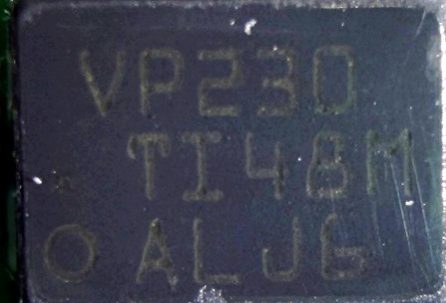

- VP230
TI48K
ALJ6

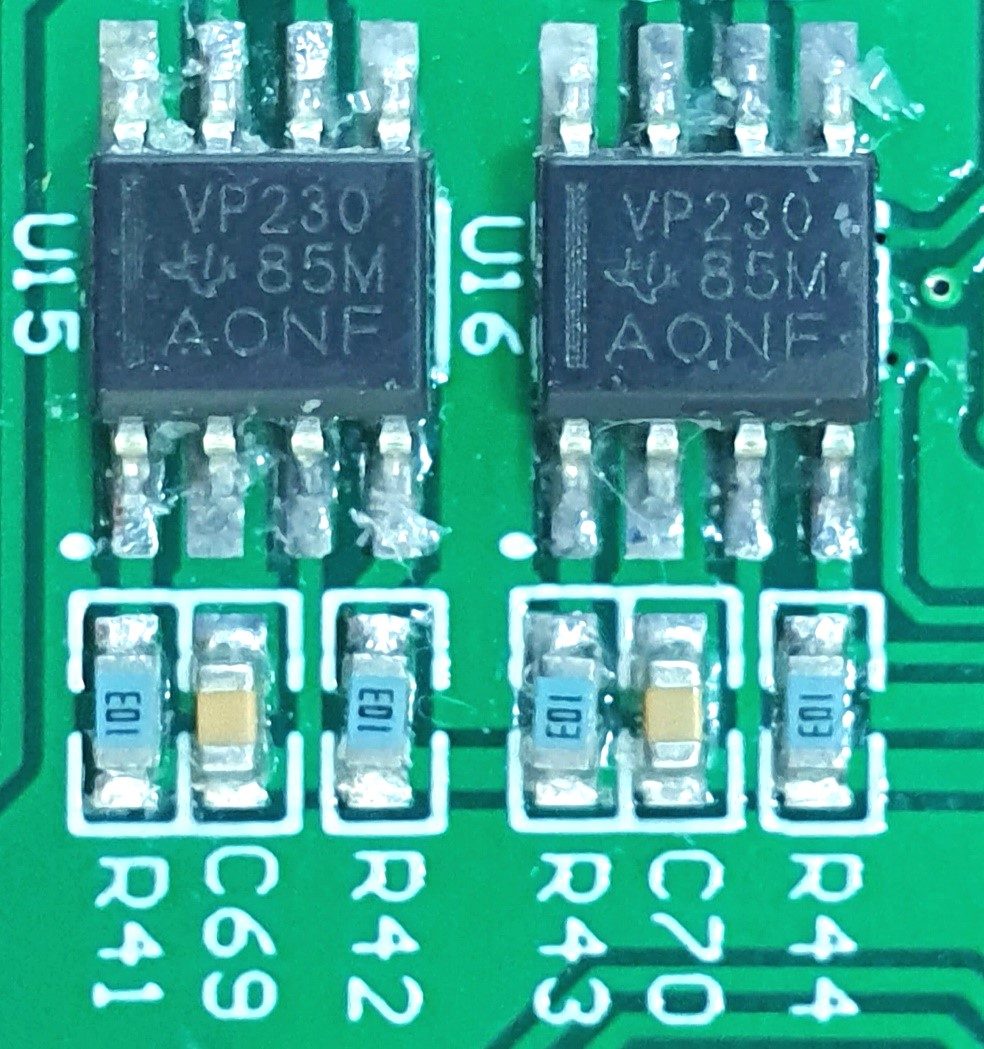

CAN transceiver
A CAN-bus transceiver, the interface between the board’s processor and the drone’s internal data bus. It carries status and command messages between the navigation receiver and the rest of the aircraft.record ↗
- PD150
0U03

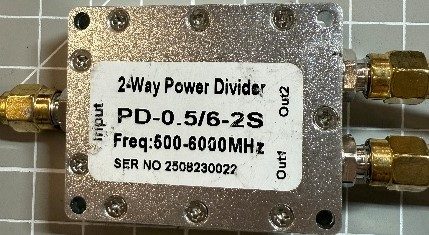

Power divider/combiner

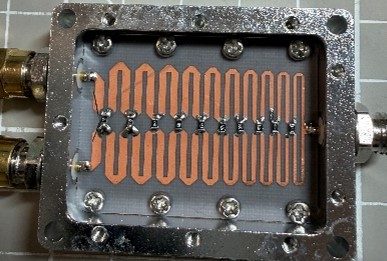

A radio-frequency power divider and combiner, which splits one antenna signal into two paths or merges two into one. It sits in the signal path between the antenna and the GNSS receiver.record ↗

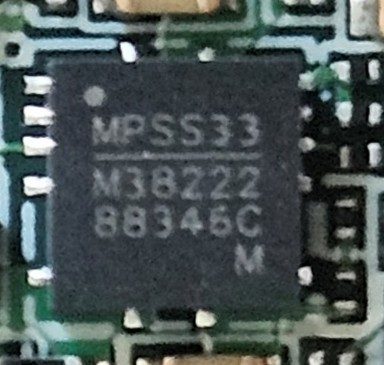

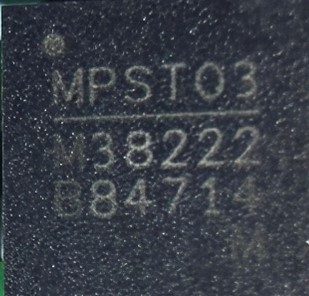

- MPST03
M38222
B84714

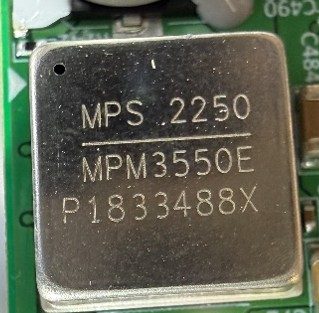

Synchronous step-down converter
A synchronous step-down converter that efficiently drops a higher supply voltage to a lower one. It feeds one of the regulated rails on the satellite-navigation receiver board.record ↗

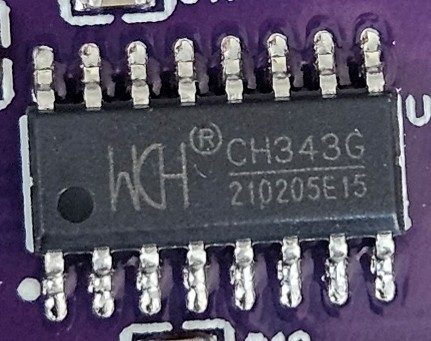

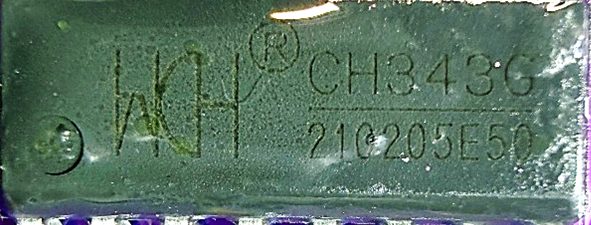

- WCH
CH343G
210205E50
USB to UART Bridge Controller
A USB-to-UART bridge chip. When a computer is plugged into the board for configuration or diagnostics, this chip translates between the laptop’s USB port and the processor’s serial interface.record ↗Part page →
₽96
$1.22
$1.22 imported: market price applies
US$1.22, price list, 2026 · LCSC Electronics ↗

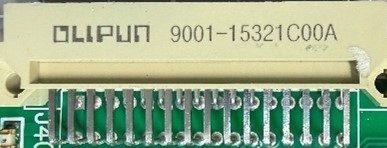

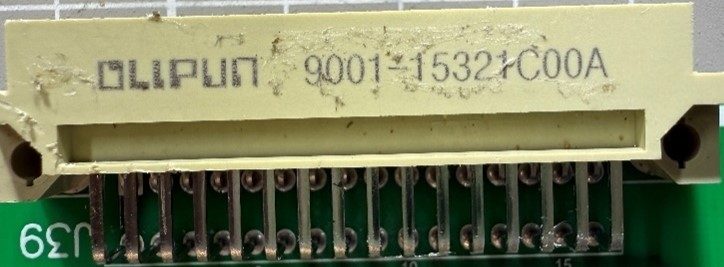

- OLIPUN
9001-15321C00A

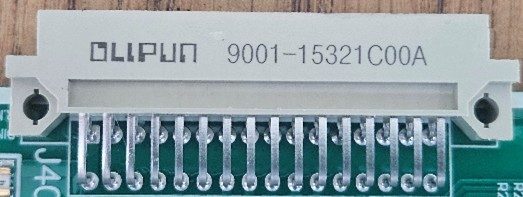

Connector
A board-to-board connector that carries signals and power between circuit boards. The record notes it is probably a Chinese copy of a connector by Taiwan’s Oupiin Enterprise.record ↗

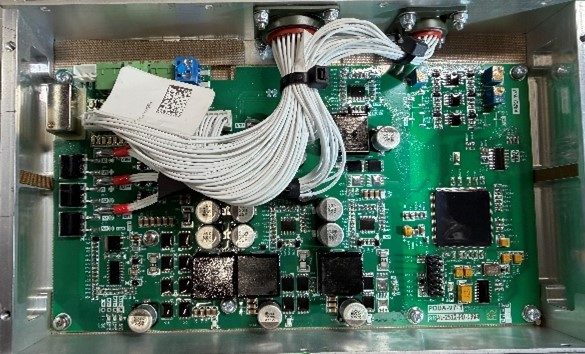

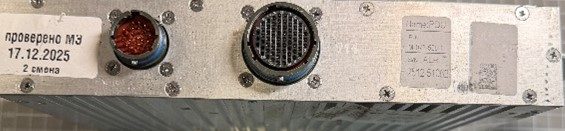

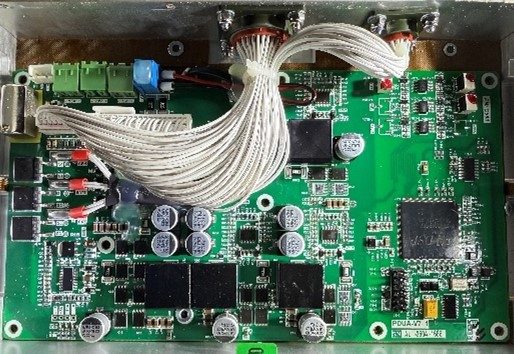

Power distribution unit (PDU)
Блок розподілу потужності (PDU)
Routes electrical power from the battery to the munition’s subsystems and switches those feeds on and off.
1 / 2
Photo: HUR War & Sanctions
- Power distribution unit (PDU) board

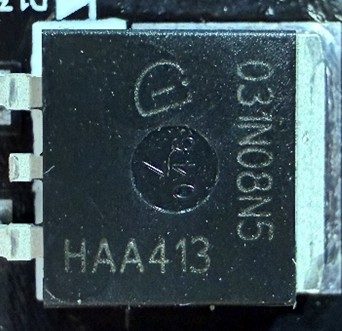

- HAB540
031N08N5
Transistor

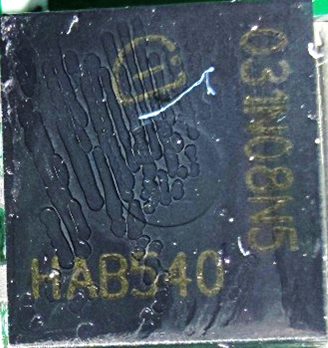

An Infineon OptiMOS N-channel power MOSFET on the power distribution board. It is used as a switch to route and control the high-current power rails that feed the drone’s subsystems.record ↗

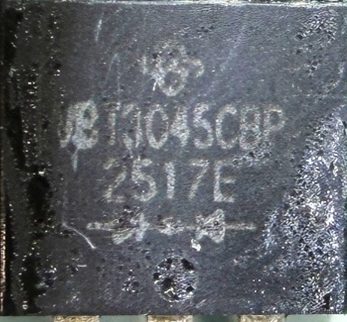

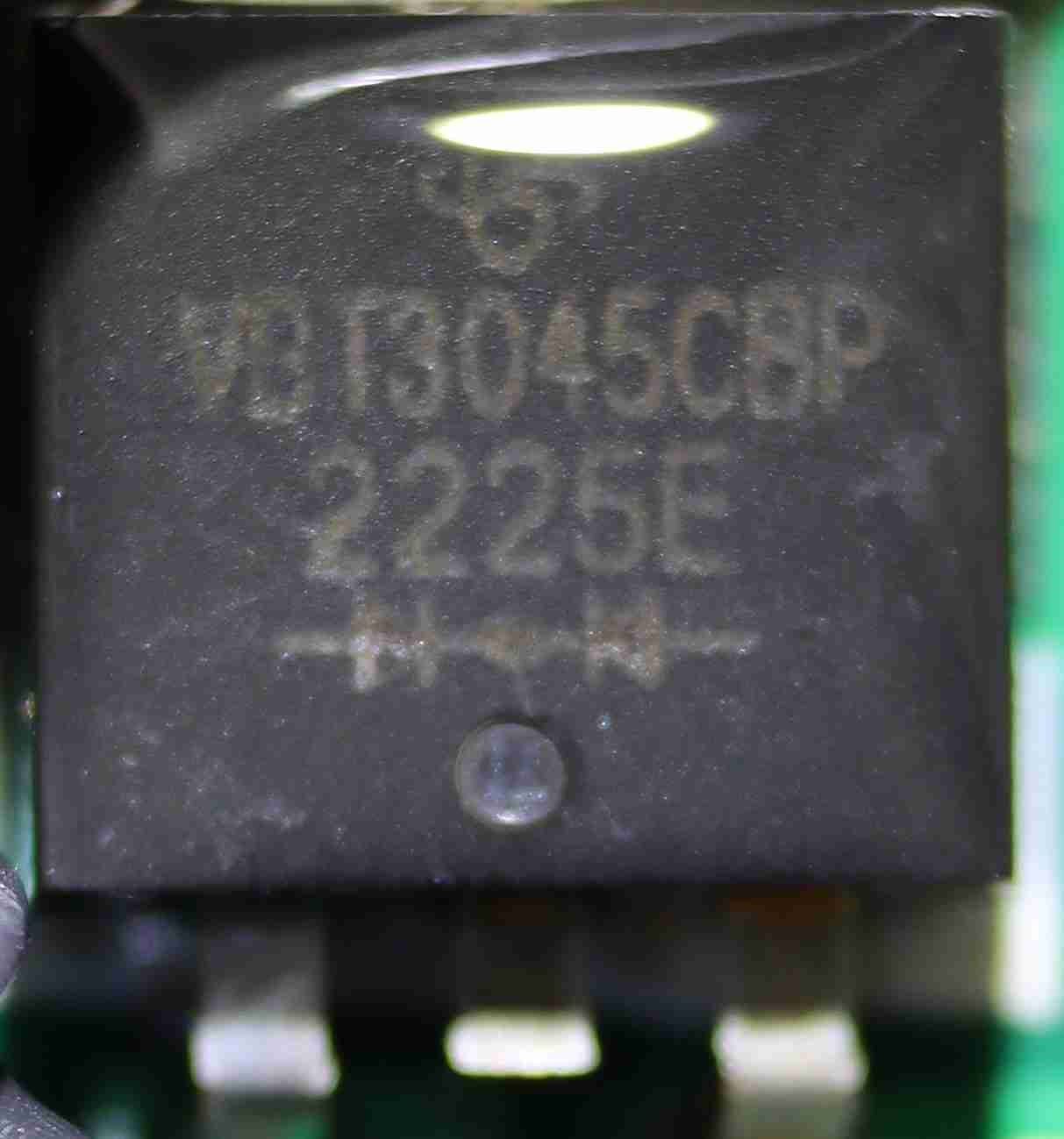

- VBT3045CBP
2517E
Diode
A dual Schottky rectifier that passes current with very low voltage loss and blocks it in the reverse direction. On the power distribution board it steers supply current and guards against reverse polarity.record ↗

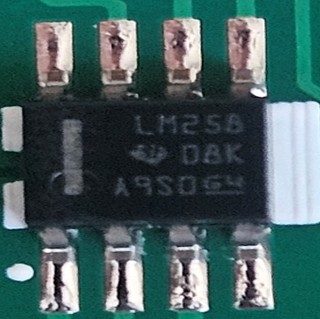

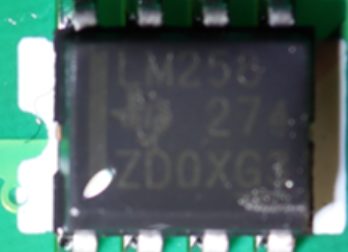

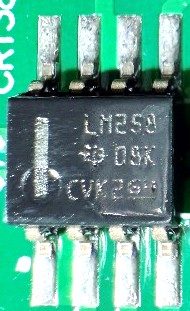

- LM258
93M
DN25HF

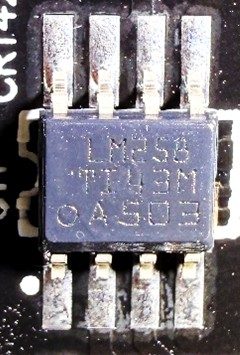

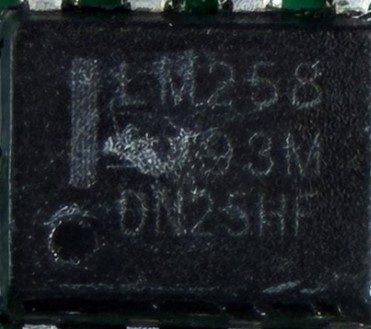

Operational amplifier
A general-purpose dual operational amplifier. On the power distribution board it conditions small analogue signals, such as scaling a current- or voltage-sense reading before it reaches the controller.record ↗

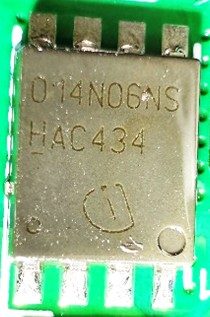

- 014N06NS
HBA522
Transistor
A low-voltage N-channel power MOSFET used as a fast electronic switch. On the power distribution board it switches current to a load or forms part of one of the switching converters.record ↗

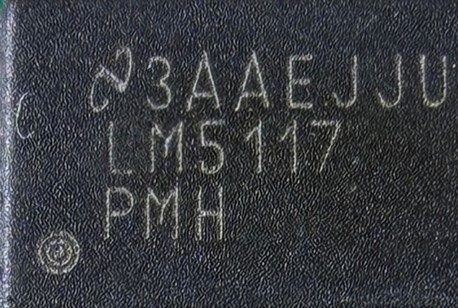

- 3AAAEJJU
LM5117
PMH
Step-down voltage converter
A wide-input step-down DC-DC controller. It drives external transistors to convert the drone’s higher battery voltage down to a lower, regulated rail that other chips on the board need.record ↗

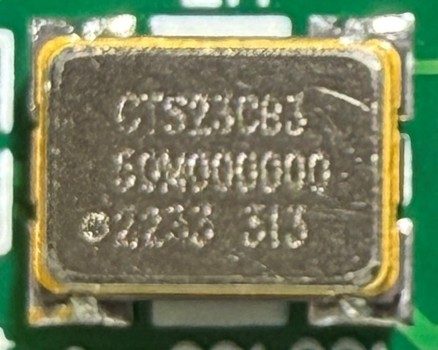

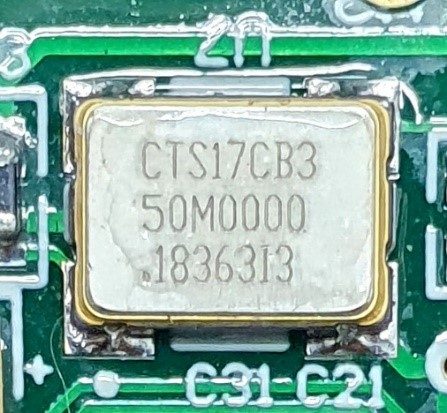

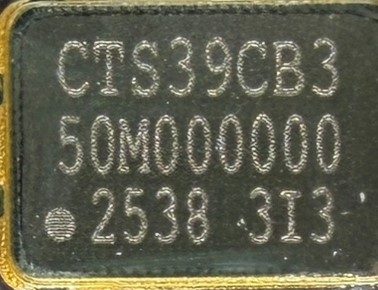

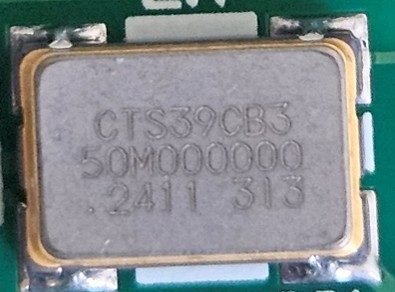

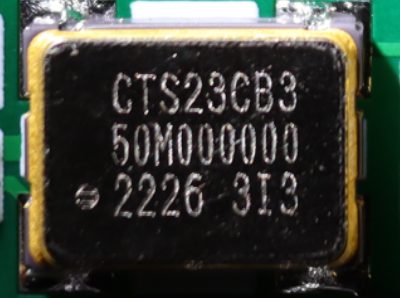

- CTS39CB3
50M000000
2538 3I3

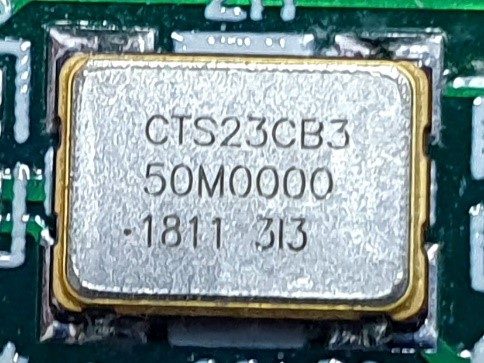

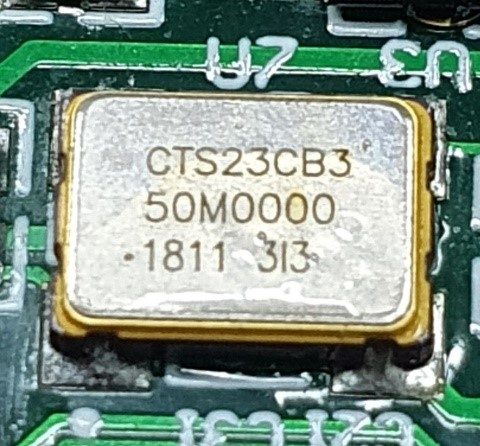

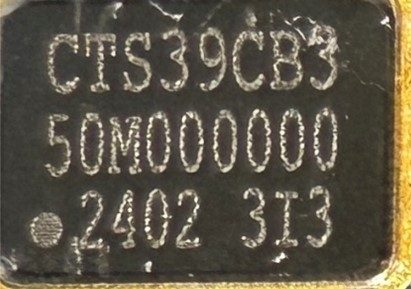

Clock generator
A 50 MHz crystal oscillator that produces a precise, stable clock. The digital chips on the power distribution board use it as their timing reference.record ↗

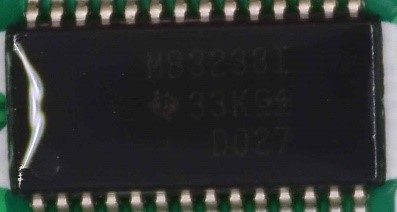

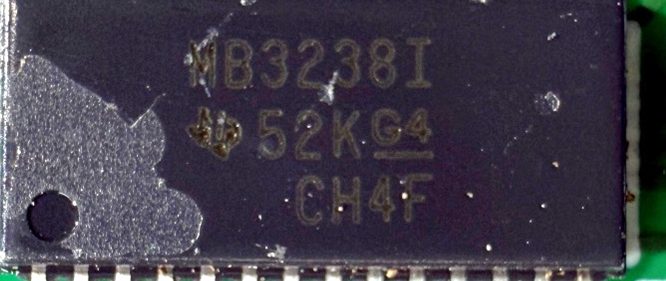

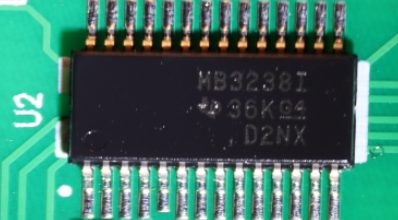

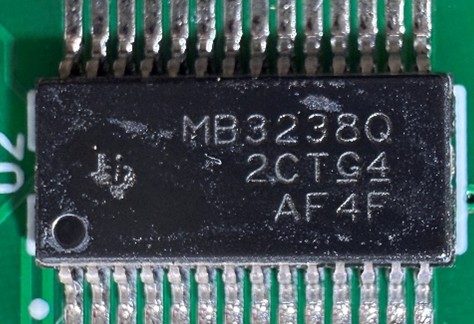

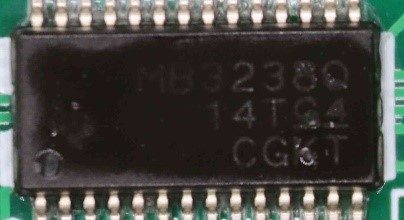

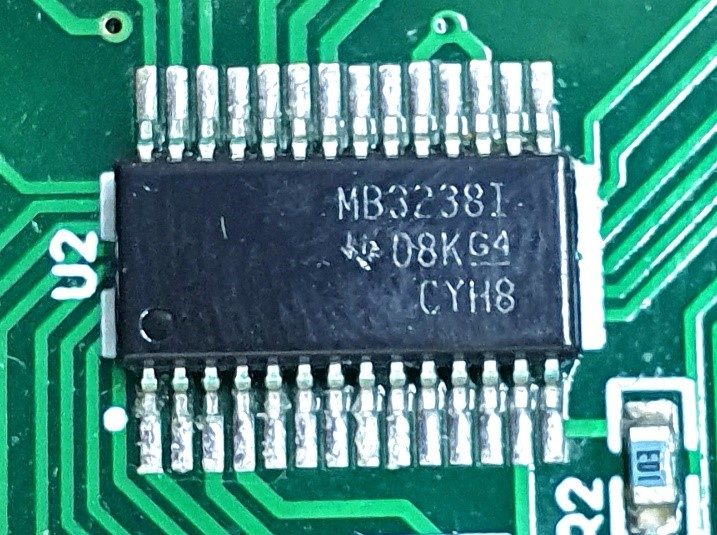

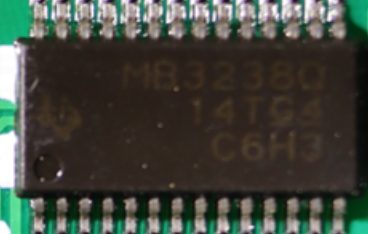

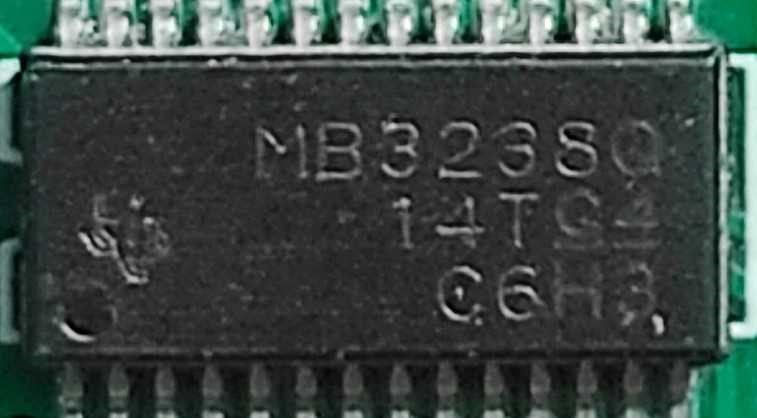

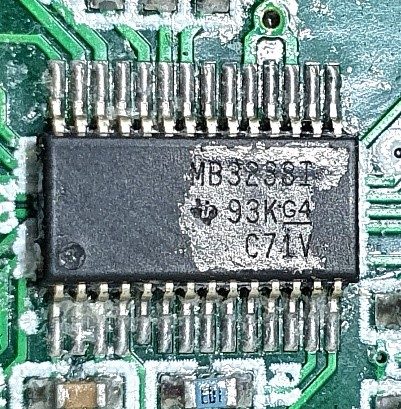

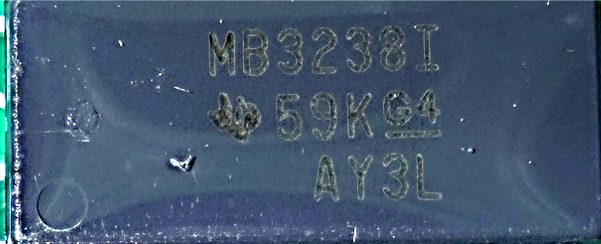

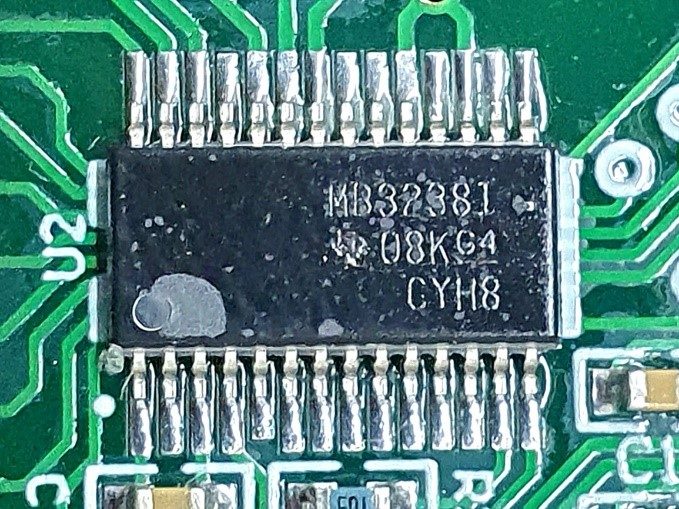

- MB3238I
59K G4
AY3L

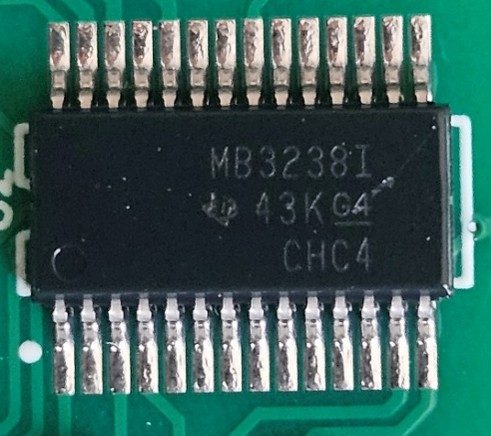

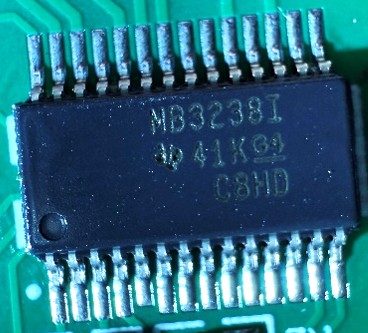

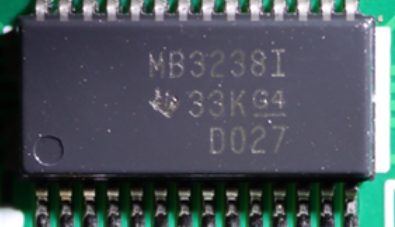

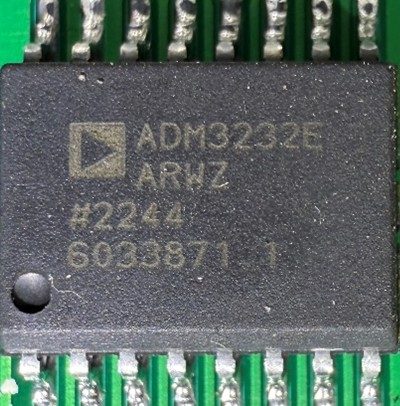

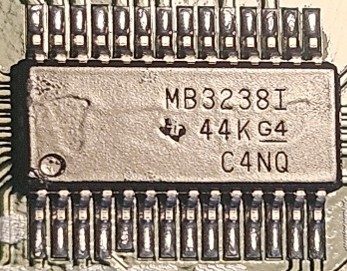

Line driver
A line-driver chip, which boosts digital signals so they can travel reliably across the board or along a cable to another unit in the aircraft.record ↗
-

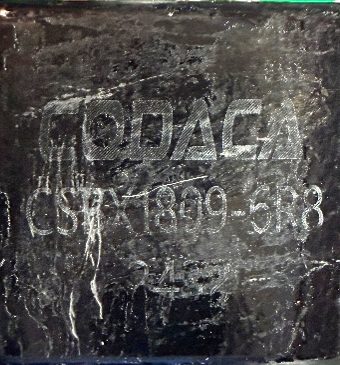

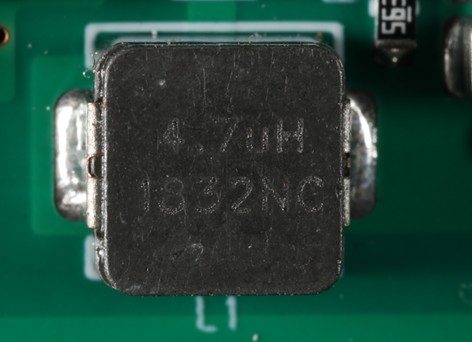

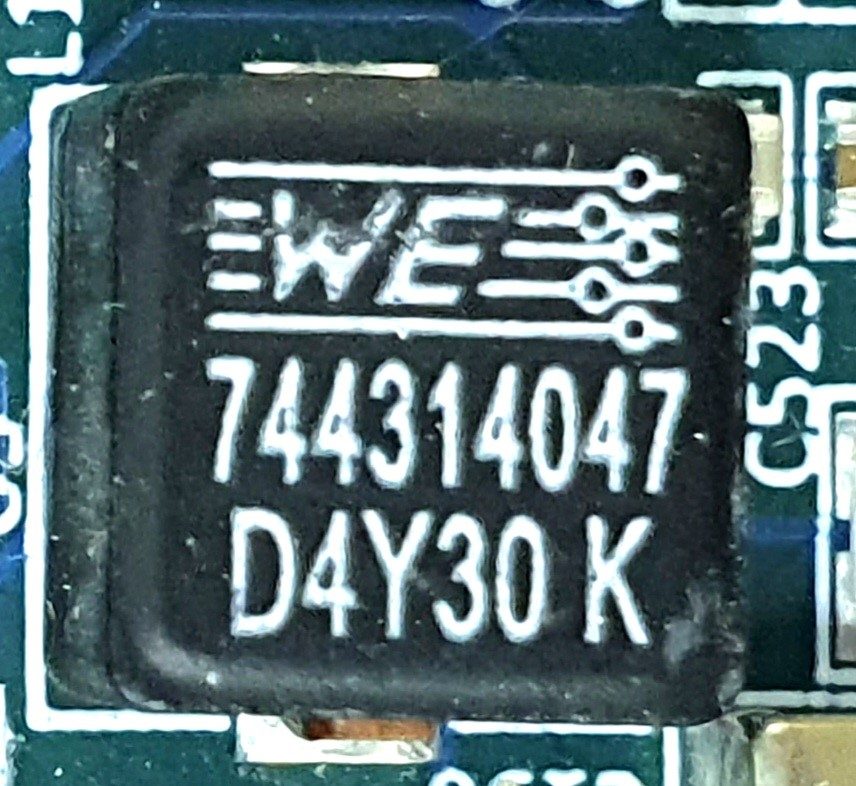

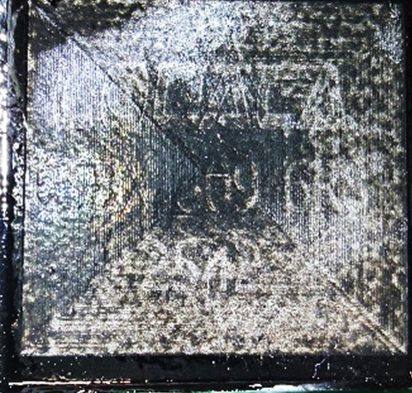

Power inductor
A power inductor, a coil of wire that stores energy in a magnetic field. It smooths current and is one of the main components of the switching power supplies on the board.record ↗

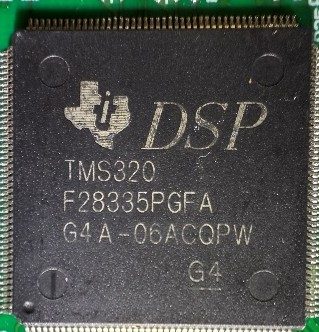

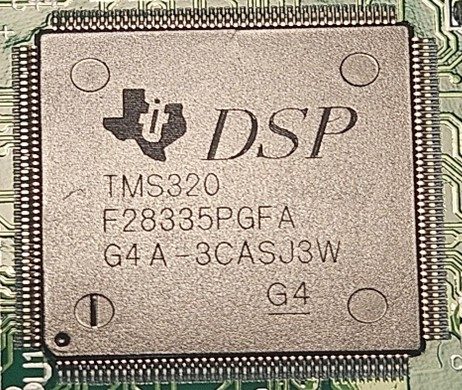

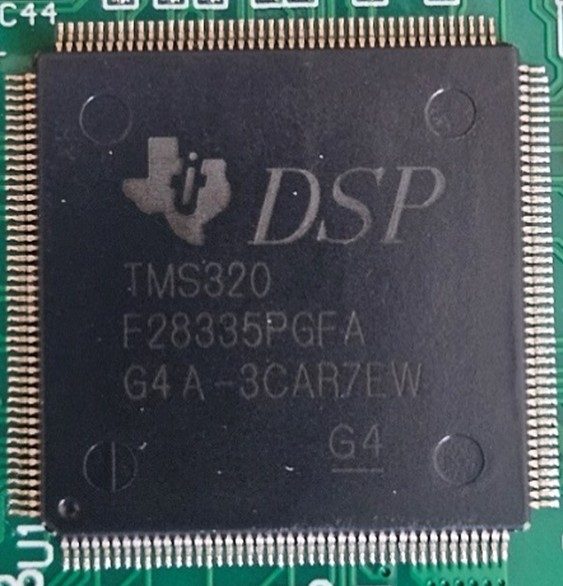

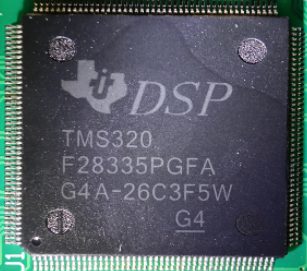

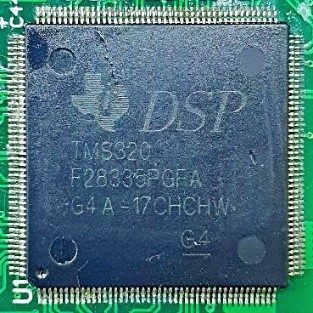

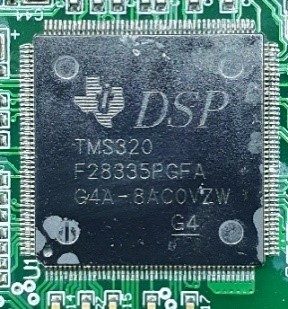

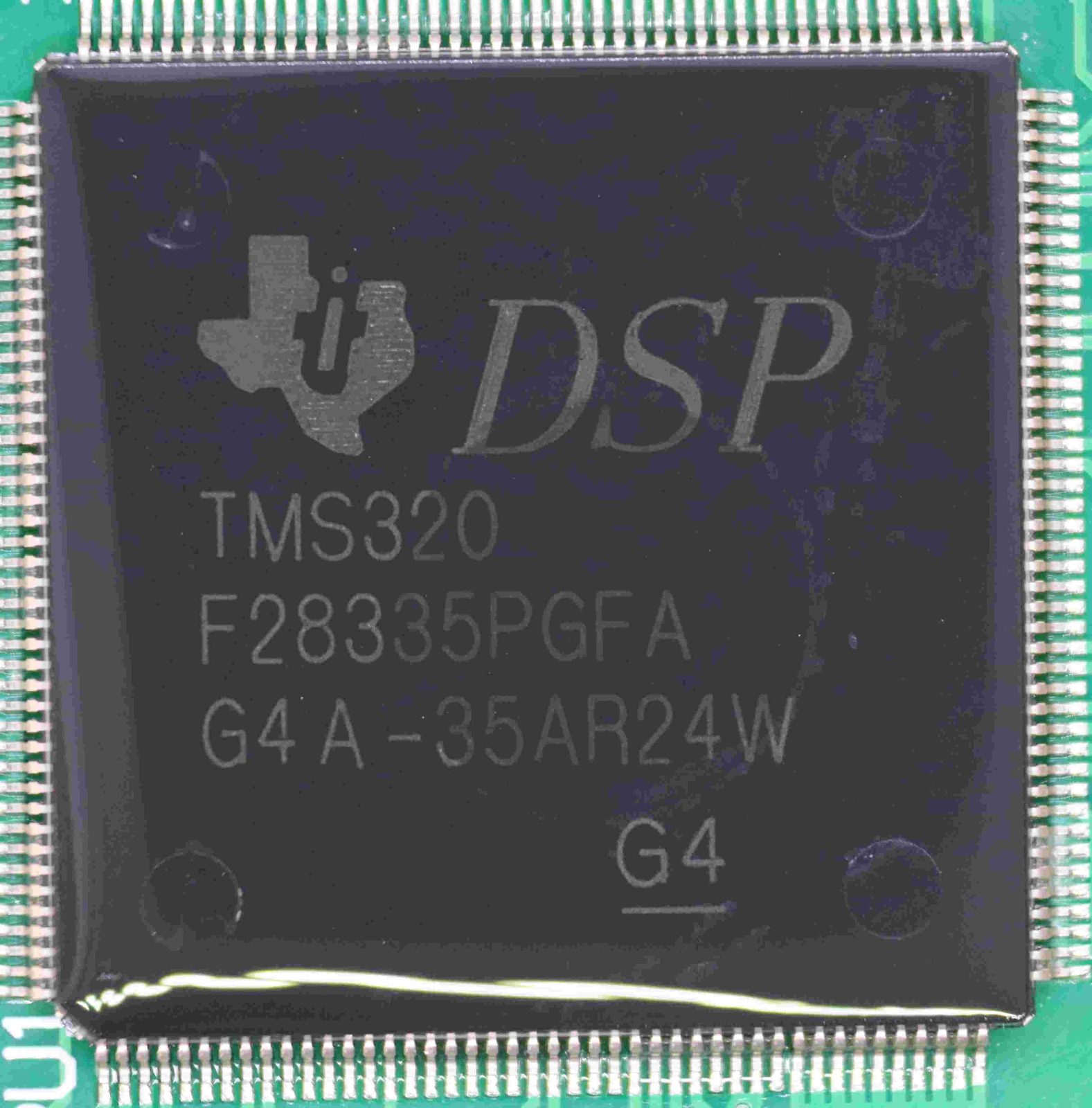

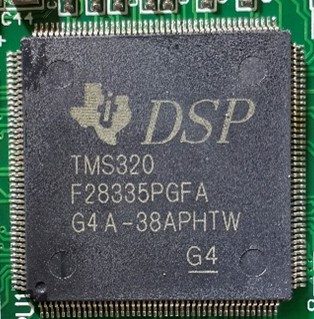

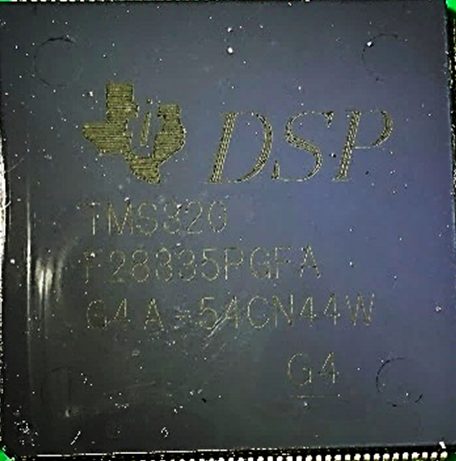

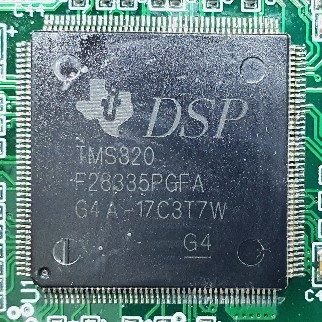

- TMS320
F28335PGFA
G4A-54CN44W
G4

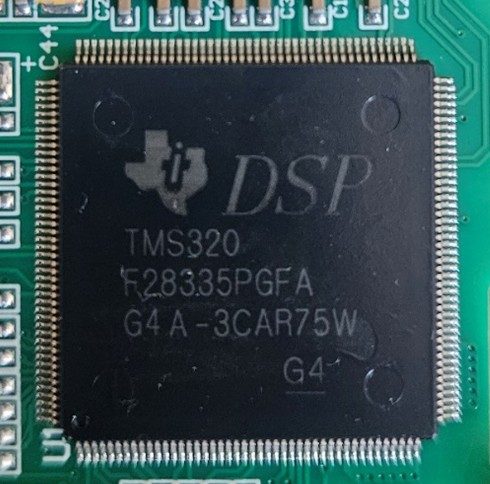

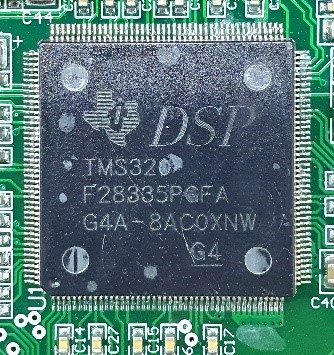

Digital signal processor
A 32-bit digital signal processor from the Texas Instruments C2000 family, designed for real-time control. It runs the firmware that supervises the power distribution unit and manages its switching converters.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗

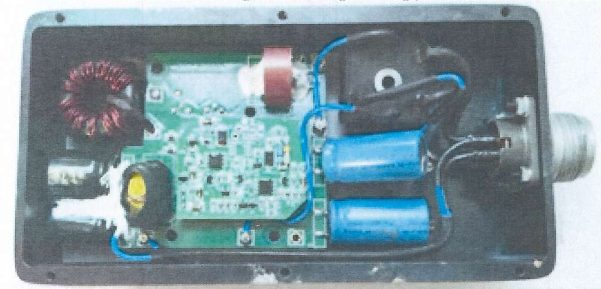

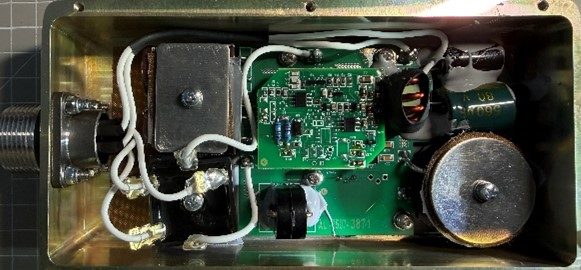

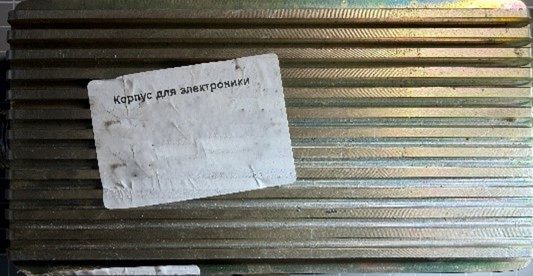

Power supply voltage regulator unit
Блок регулятора напруги живлення
Converts the battery’s raw voltage into the stable supply rails that the different electronic units need.
1 / 2
Photo: HUR War & Sanctions
- Power supply voltage regulator board

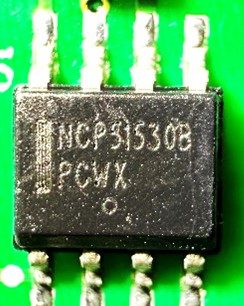

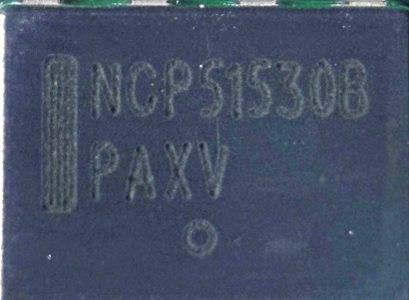

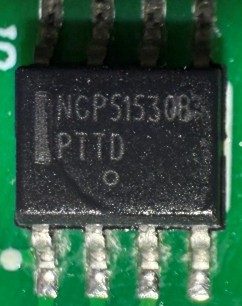

- NCP515308
PAXV
Control driver
An ON Semiconductor driver on the power-supply board, used to switch a power transistor at the frequency set by the PWM controller in a step-down regulator.record ↗

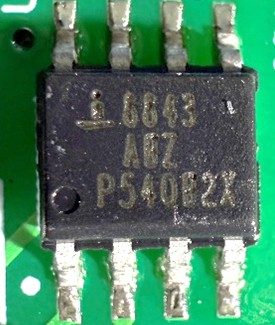

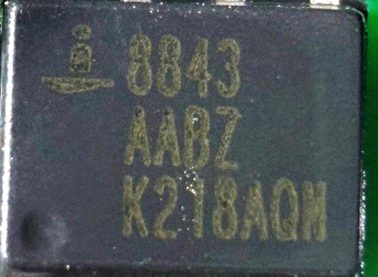

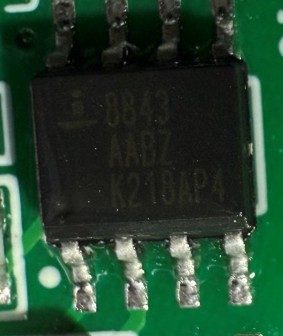

- 8843
AABZ
K218AQN

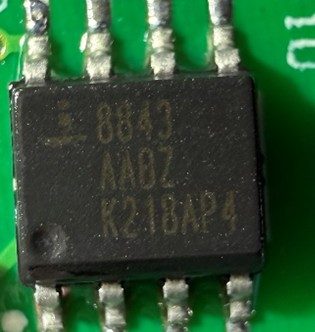

PWM controller
A Renesas pulse-width-modulation controller on the voltage-regulator board. It generates the switching signal that lets the regulator step the supply voltage down to the levels the drone’s electronics need.record ↗
-

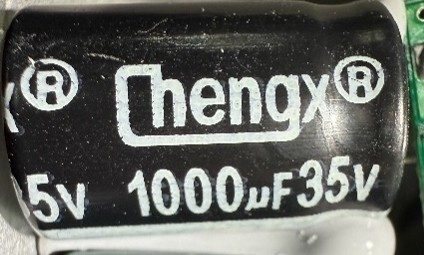

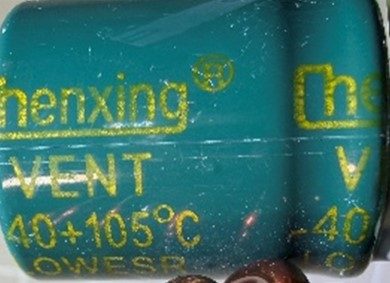

Capacitor
A capacitor from Chinese maker Dongguan Chengxing, used on the voltage-regulator board to smooth the switched power rails.record ↗
-

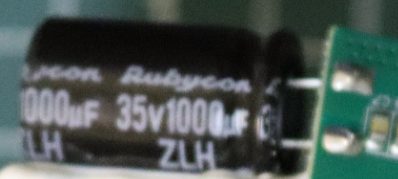

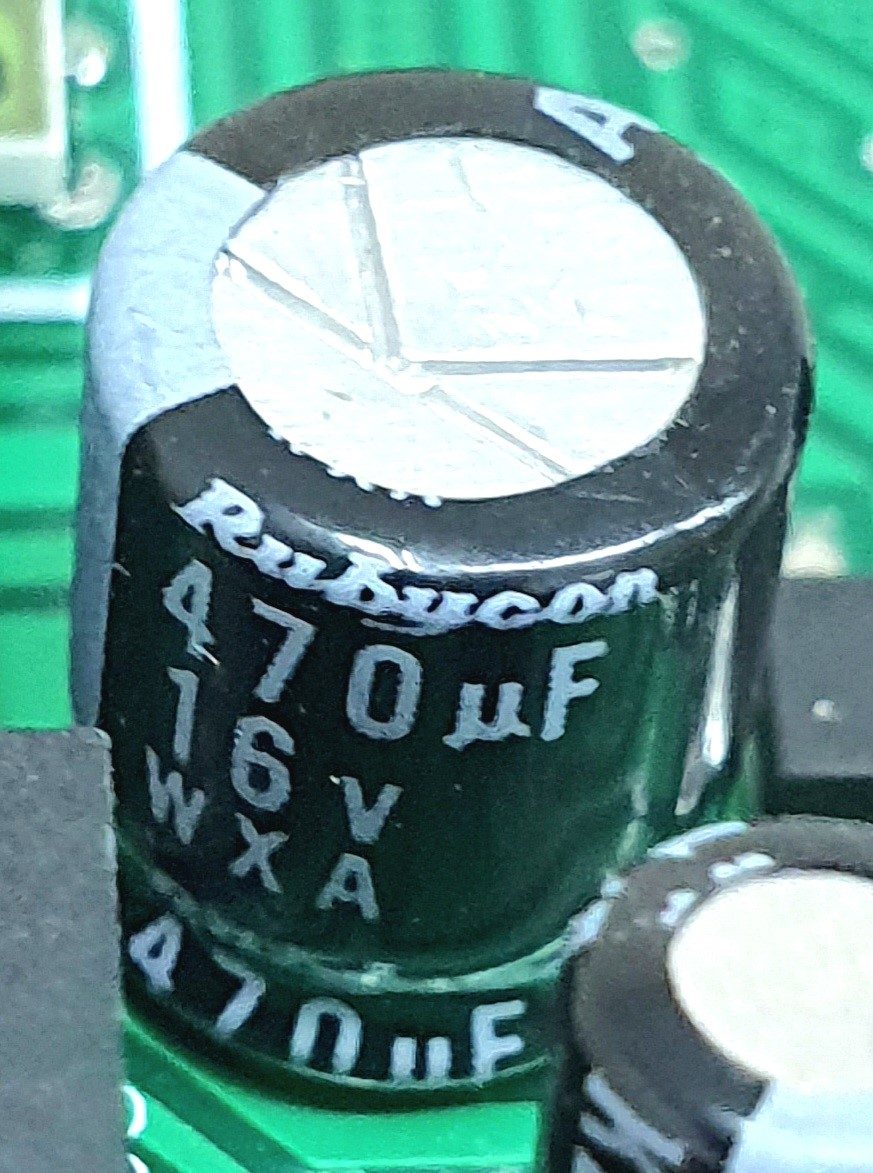

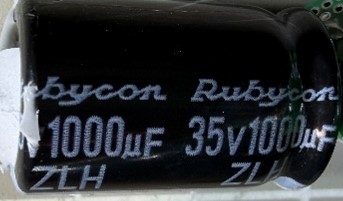

Capacitor
An electrolytic capacitor from Japanese maker Rubycon, used on the voltage-regulator board for bulk energy storage and ripple filtering.record ↗

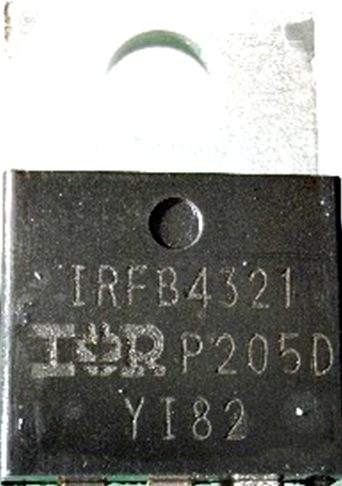

- IRFB4321
P205D
YI82

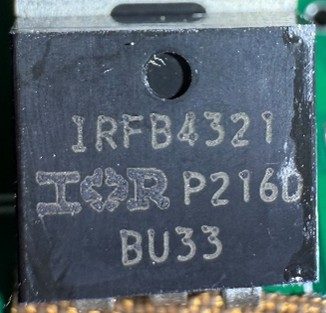

N-channel MOSFET
An Infineon (International Rectifier) 150 V N-channel power MOSFET. It is the switching element in the step-down regulator that chops the input voltage under control of the PWM controller.record ↗

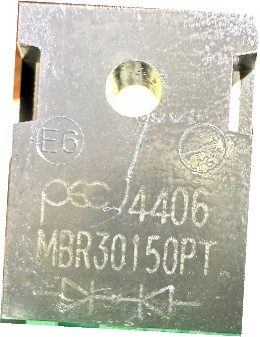

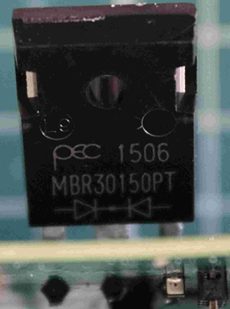

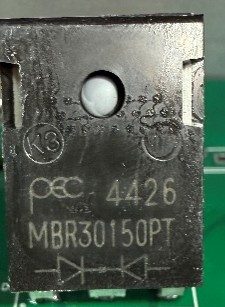

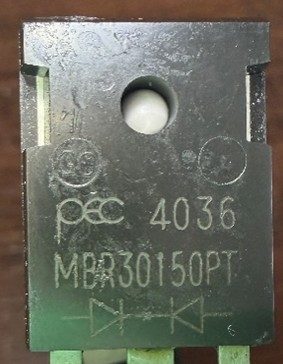

- MBR30150PT
PQ8A3

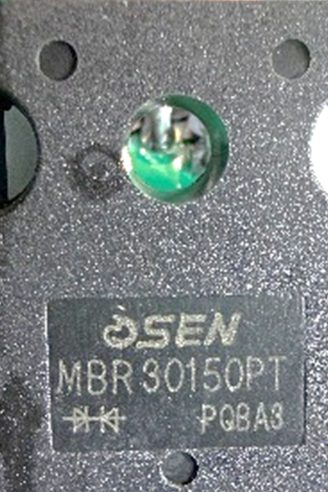

Schottky diode
A 30 A, 150 V Schottky rectifier diode. In a step-down converter it provides the freewheeling path for the inductor current when the MOSFET is off, with low forward voltage for efficiency.record ↗

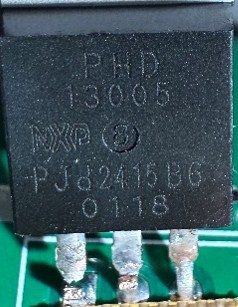

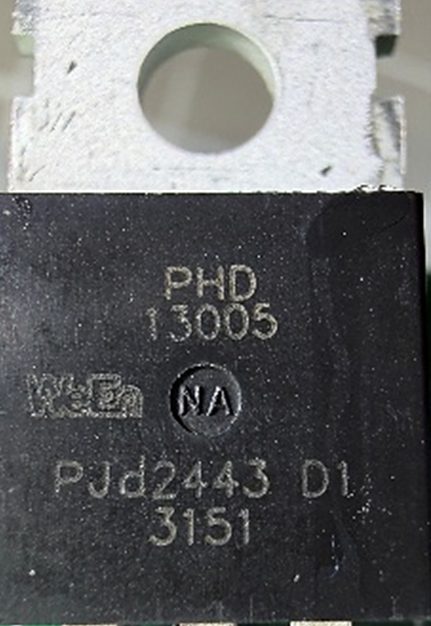

- PHD
13005
PJD2443 DI
3151

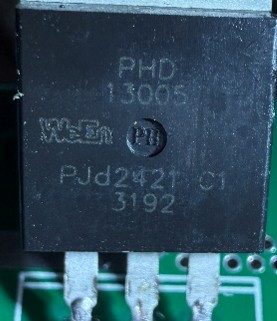

NPN power transistor with an integrated diode
A high-voltage NPN power transistor with an integrated damper diode, from WeEn Semiconductors in China. It is used as a switching element in the drone’s power-supply electronics.record ↗
-

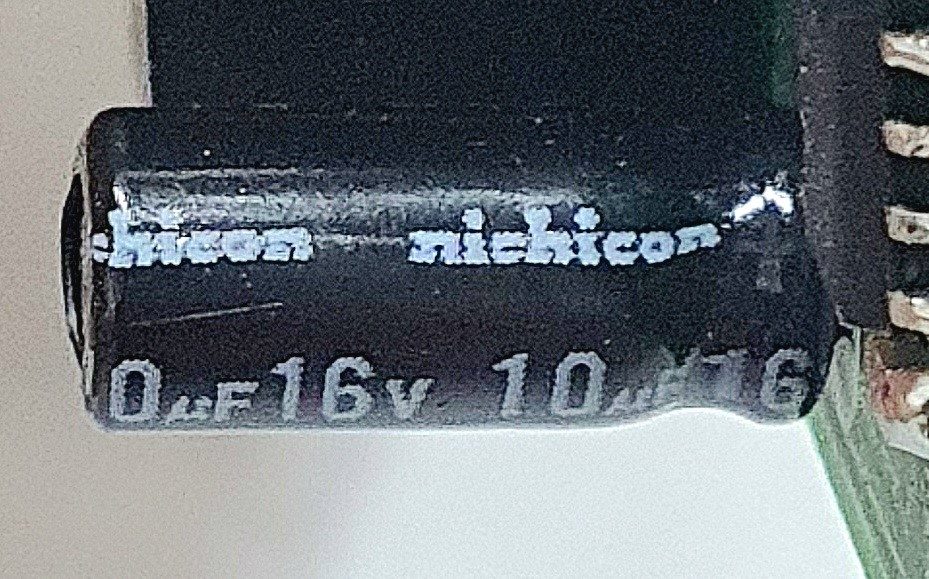

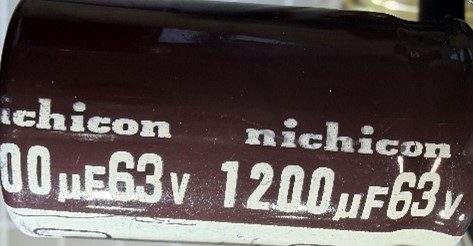

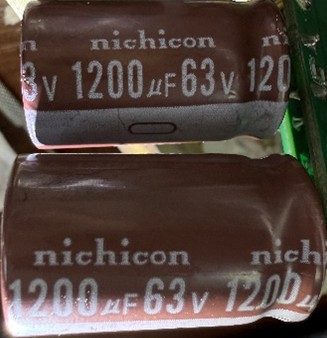

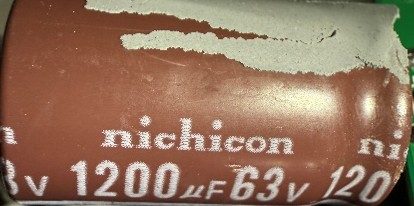

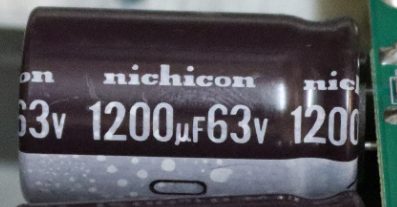

Capacitor
An electrolytic capacitor from Japanese maker Nichicon, used on the voltage-regulator board for bulk smoothing of the power rails.record ↗

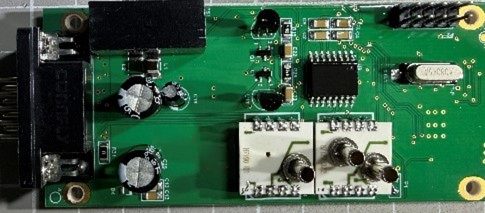

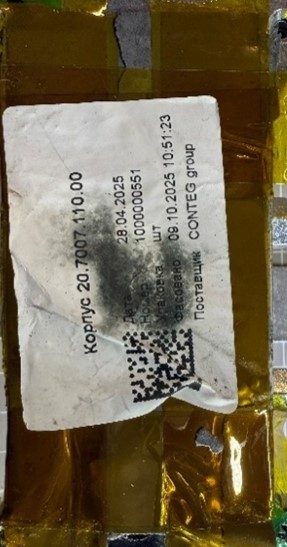

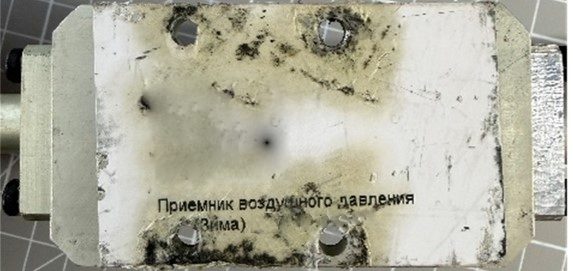

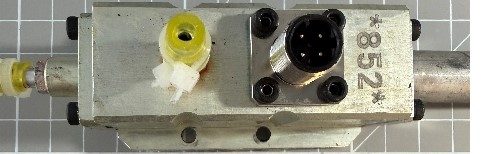

Air pressure receiver (winter)
Приймач повітряного тиску (зима)
A pitot-style probe that senses airspeed and static pressure, in a cold-weather variant intended to resist icing.
1 / 2
Photo: HUR War & Sanctions

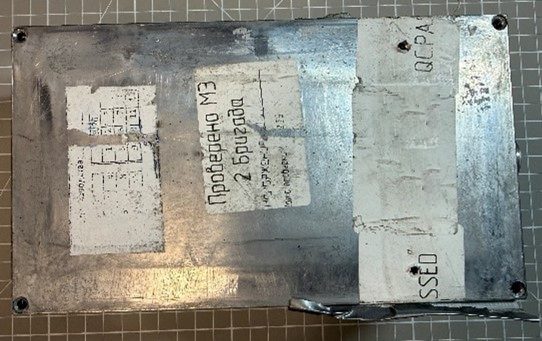

Battery unit
Акумуляторна батарея
The onboard battery pack powering the munition’s electronics and actuators throughout the flight.
Photo: HUR War & Sanctions

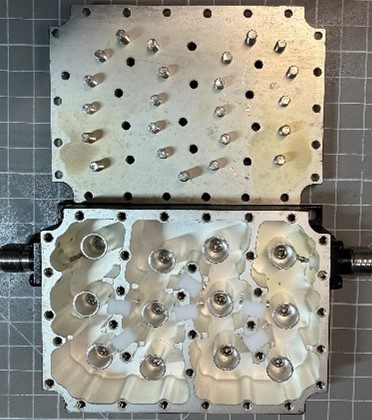

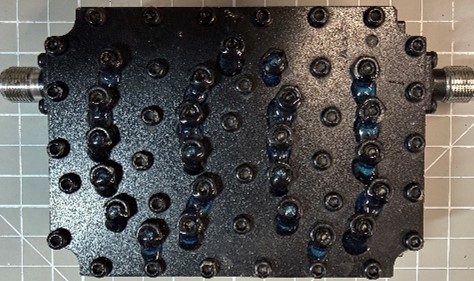

Cavity (resonant) filter
Порожнинний (резонансний) фільтр
A radio-frequency filter whose tuned cavity passes one narrow frequency band and rejects the rest, used in the munition’s radio chain.
1 / 2
Photo: HUR War & Sanctions
Borscht v3 AL Tracker
Трекер Борщ v3 AL
An image-based target tracker that locks onto a selected object in the camera feed and keeps it centred as the munition closes on it.
Photo: HUR War & Sanctions
- Tracker V3_3.992.hex board
-
Schottky diode
A Schottky diode, a one-way current switch with very low voltage loss. On the tracker board it typically protects against reverse polarity or steers current between supply paths.record ↗

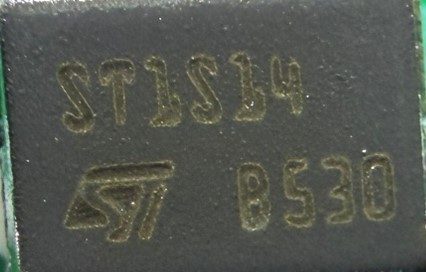

- ST1S14
B530
Step-down switching regulator
A step-down switching regulator from STMicroelectronics that converts the tracker board’s input voltage to a lower, regulated supply for its logic chips.record ↗

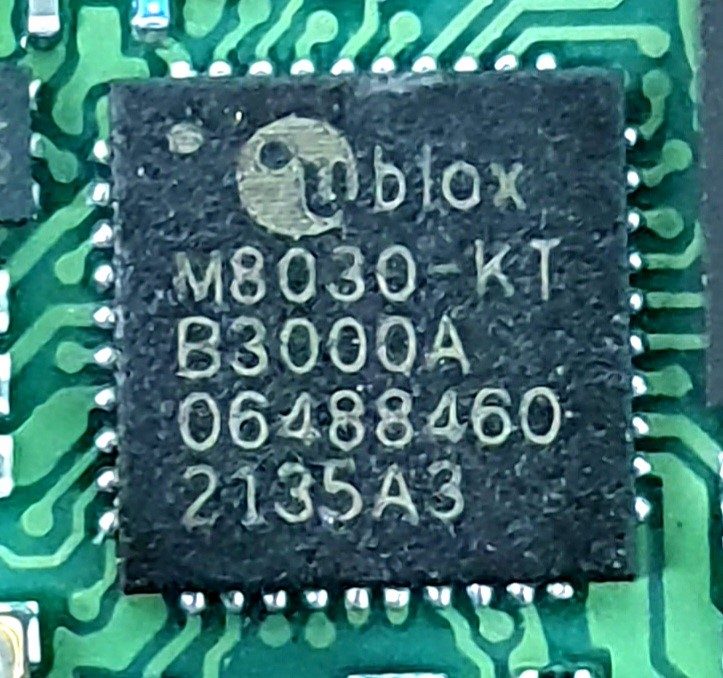

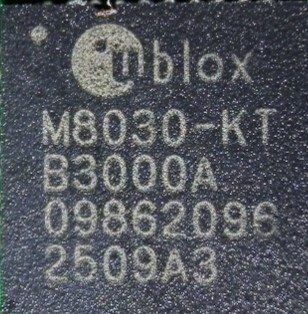

- M8030-KT
B3000A
09862096
2509A3
GNSS module
A U-blox M8-generation satellite-navigation receiver that computes position and time from GPS and other GNSS constellations. It is the tracker board’s source of location data.record ↗
-

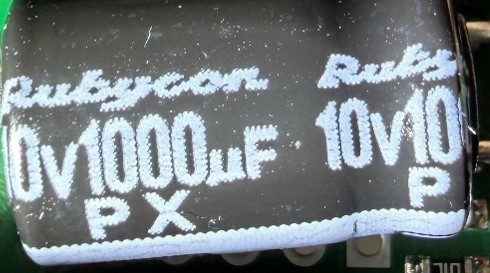

Capacitor
A capacitor from Japanese manufacturer Rubycon. It smooths the supply voltage and stores energy for brief current demands on the tracker board.record ↗

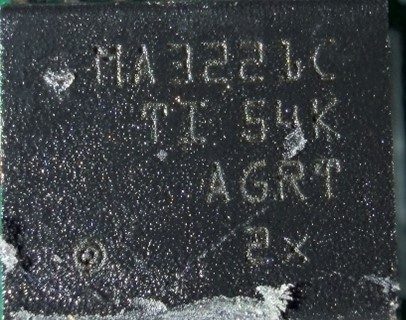

- MA 3221C
TI 54K
AGRT
2X

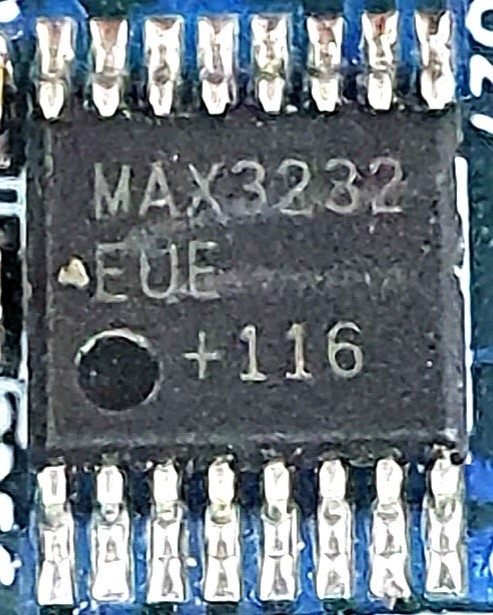

RS-232 line driver/receiver
An RS-232 line driver and receiver, which translates between the processor’s low logic voltages and the higher voltage levels used on an external serial cable.record ↗

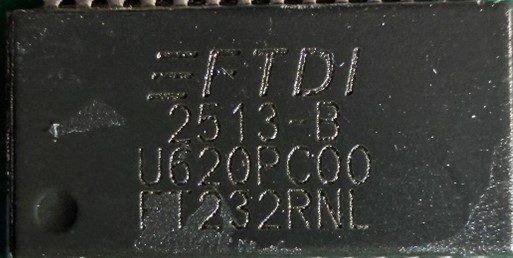

- FTDI
2513 B
U620PC00
FT232RNL
Slave to UART Converter
A USB-to-serial converter from FTDI. Like the WCH chip in the navigation board, it lets a laptop talk to the tracker over USB during configuration or firmware flashing.record ↗
- 449
P291 G8T9

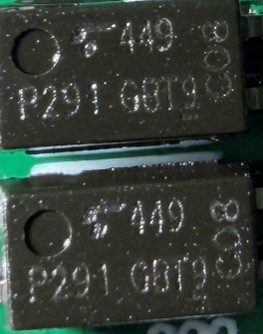

Phototransistor
A phototransistor, a light-sensitive switch. Paired with an LED inside an optocoupler, it lets a signal cross between two parts of the circuit without a direct electrical connection.record ↗

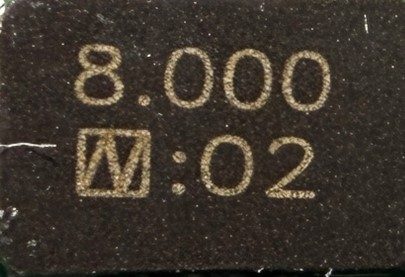

- 8.000
02
Microcircuit
A timing component from NDK, a Japanese maker of quartz crystals and oscillators. It provides a stable reference frequency to a chip on the tracker board.record ↗

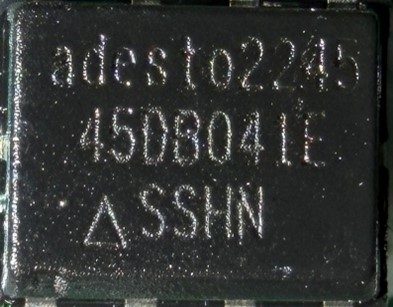

- ADESTO2245
450804IE
SSHN
Flash memory
A non-volatile serial flash memory chip from Adesto (now part of Renesas) that stores firmware and logged data on the tracker board.record ↗

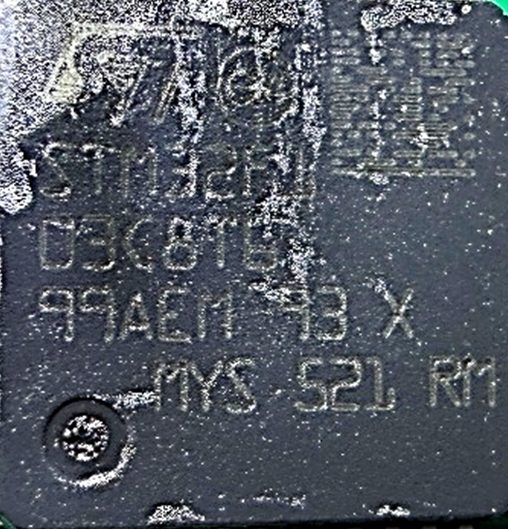

- STM32F1
D3C8T8
99AEM 93 X
MYS 521 RM
Microcontroller
A general-purpose ARM Cortex-M3 microcontroller from the STMicroelectronics STM32F1 family that runs the control software on the Borscht tracker board; the chip was assembled in Malaysia.record ↗

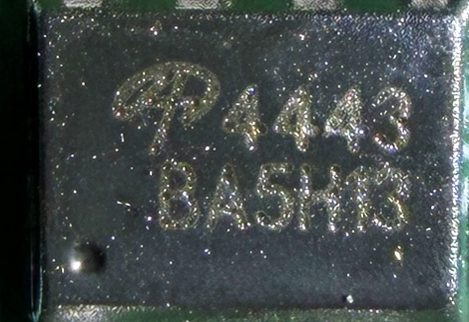

- 4443
BA5H13
MOSFET transistor
A power MOSFET transistor from Alpha and Omega Semiconductor, used on the tracker board as an electronic switch to control current to another component.record ↗
-

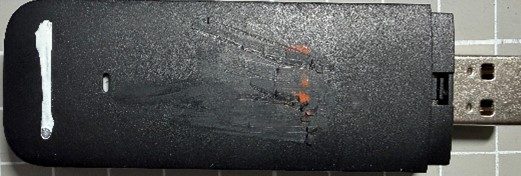

3G/4G USB modem
A USB cellular modem that connects to civilian 3G or 4G mobile networks, giving the Borscht tracker board a data link over commercial telecoms infrastructure.record ↗
-
RASPBERRY PI 4 MODEL microcomputer
A Raspberry Pi 4 single-board computer, a general-purpose ARM-based microcomputer made by Raspberry Pi Ltd in the UK, acting as the main processor of the Borscht tracker.record ↗Part page →
₽2,700
$35
$35 imported: market price applies
US$35, price list, 2026 · Raspberry Pi Ltd (product page) ↗ · 1 more price on the part page
Inertial navigation system (IMU) SADRA MIN 800
Інерціально-навігаційна система (IMU) SADRA MIN 800
An inertial measurement unit, combining gyroscopes and accelerometers, that keeps track of the munition’s motion when satellite navigation is degraded or lost.
1 / 2
Photo: HUR War & Sanctions
- SADRA MIN 800 inertial navigation system board

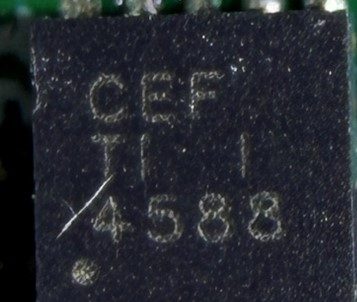

- CEF
TI
4588
Microcircuit
A Texas Instruments integrated circuit on the SADRA inertial navigation board. The visible marking does not identify a specific part number, so its exact function in the unit cannot be stated from the record.record ↗

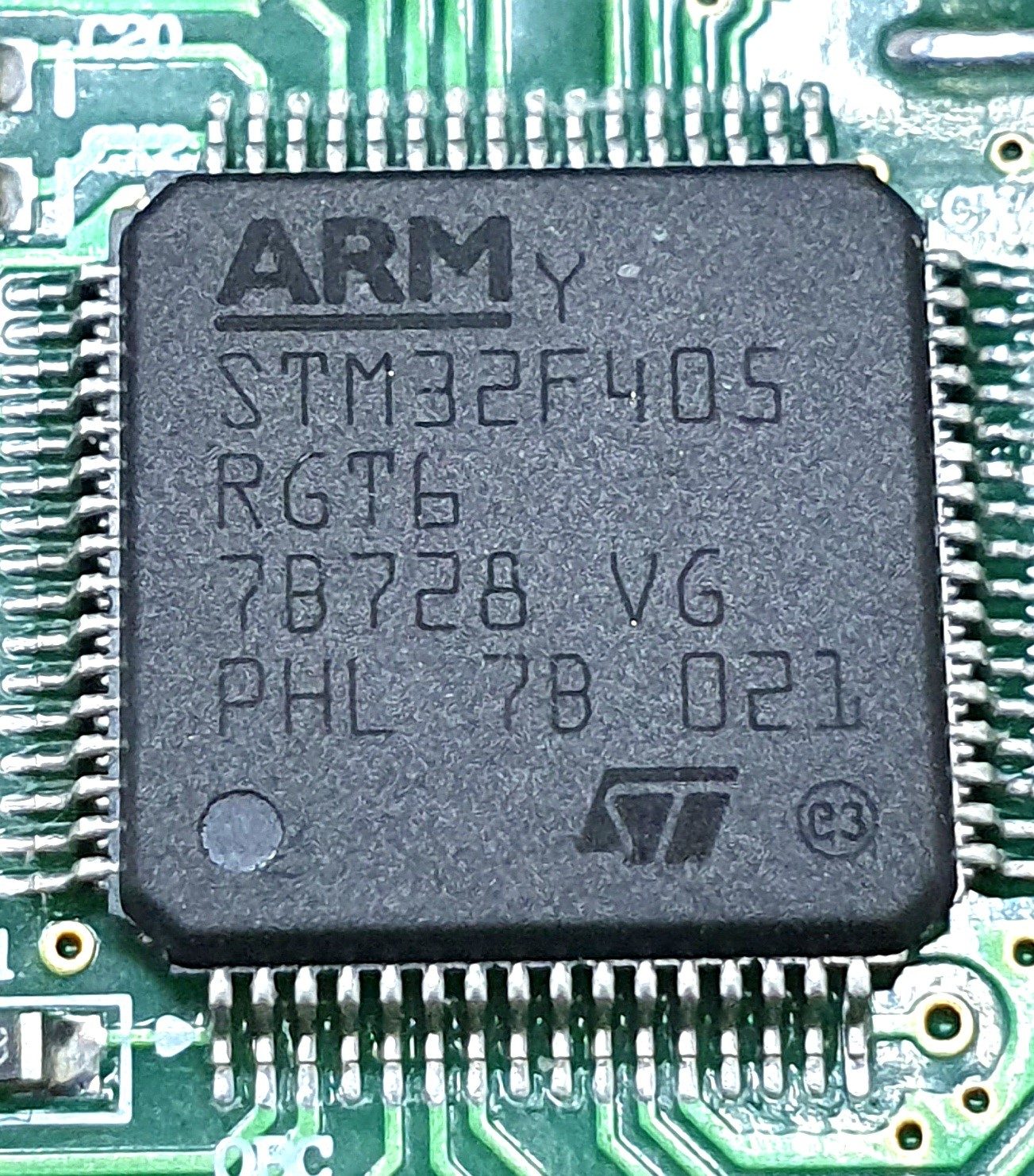

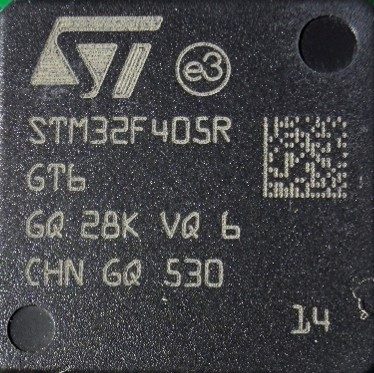

- STM32F405R
GT6
GQ 28K VQ 6
CHN GQ 530
Microcontroller
An STMicroelectronics STM32F405 ARM Cortex-M4 microcontroller on the SADRA inertial navigation board, assembled in China. It handles sensor sampling and data processing for the inertial navigation system.record ↗

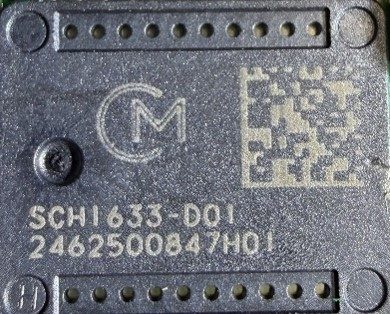

- SCH1633-D0I
2462500847HOI
6-axis inertial module
A Murata 6-axis inertial measurement module combining accelerometers and gyroscopes. It supplies the raw motion data the SADRA inertial navigation system integrates to track the drone’s attitude and movement.record ↗

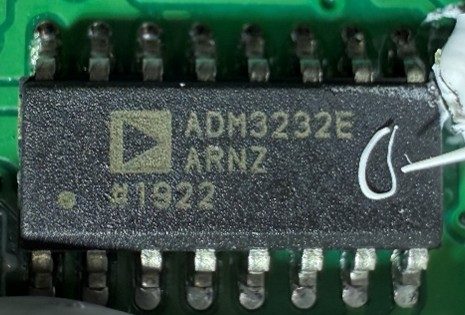

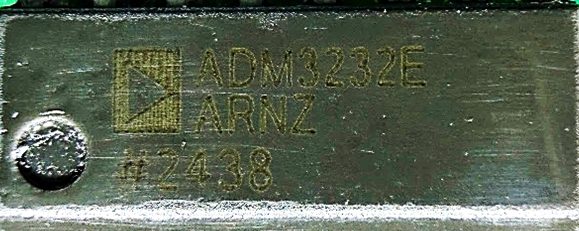

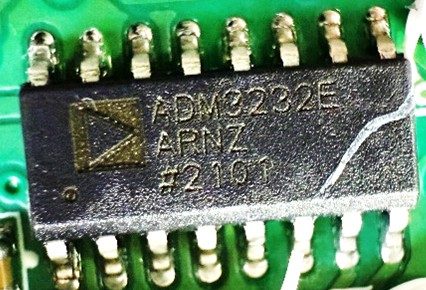

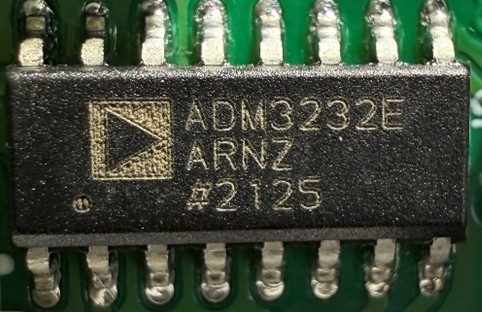

- ADM3232E
ARNZ
#2438
RS-232 Line Driver
An Analog Devices RS-232 line driver and receiver with ESD protection, used on the SADRA inertial navigation board to exchange serial data with other units over an RS-232 link.record ↗

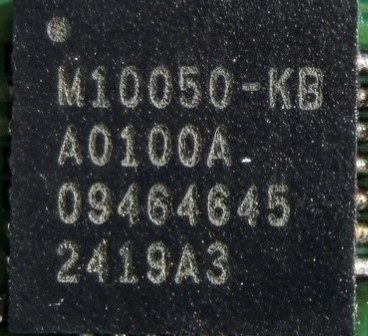

- M10050-KB
A0100A
09464645
2419A3
GNSS module
A U-blox M10 series GNSS receiver module. It processes satellite signals from systems such as GPS, Galileo and others to provide position and timing, which the inertial navigation system fuses with its own measurements.record ↗

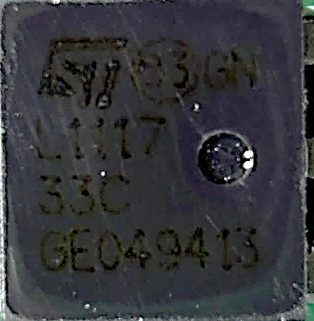

- L1117
33C
GEC49413
Linear voltage regulator
An STMicroelectronics LD1117 low-dropout linear voltage regulator set to 3.3 V. It supplies clean power to the digital electronics on the SADRA inertial navigation board.record ↗

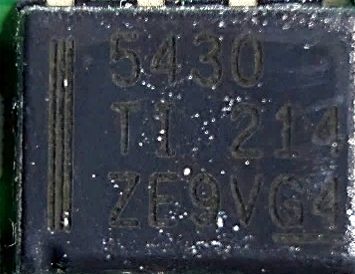

- 5430
TI 214
ZE9VG4
Step-down converter
A Texas Instruments TPS5430 step-down switching regulator. It converts a higher input voltage down efficiently to a lower rail used by circuits on the SADRA inertial navigation board.record ↗

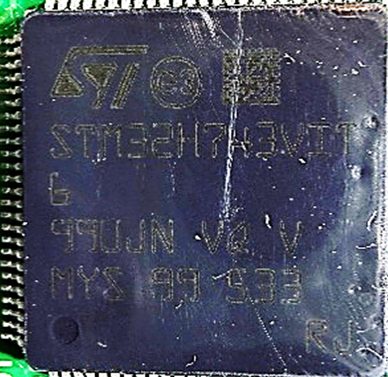

- STM32H743VIT
6
99UJN VQ V
MYS 99 533
Microcontroller
An STMicroelectronics STM32H743 ARM Cortex-M7 microcontroller, assembled in Malaysia. It is the main processor of the SADRA inertial navigation system, fusing inertial and GNSS data to produce the drone’s navigation solution.record ↗

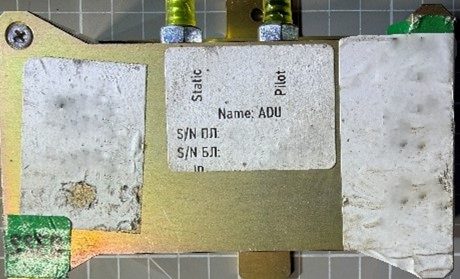

Air pressure measurement unit (ADU)
Блок вимірювання повітряного тиску (ADU)
The air-data unit. It turns the pressure-probe readings into the airspeed and altitude figures the autopilot flies on.
1 / 2
Photo: HUR War & Sanctions
- Air pressure measurement unit (ADU) board

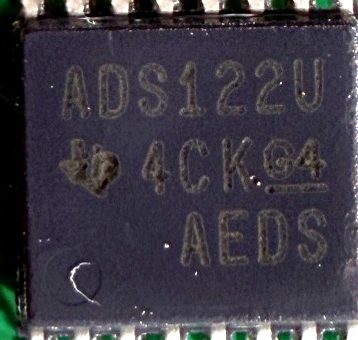

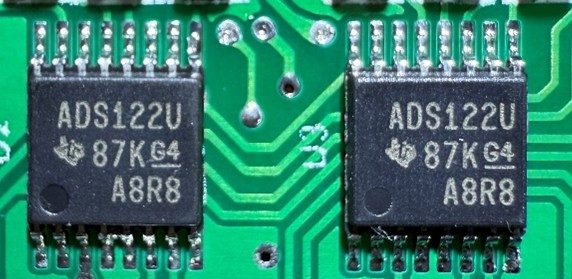

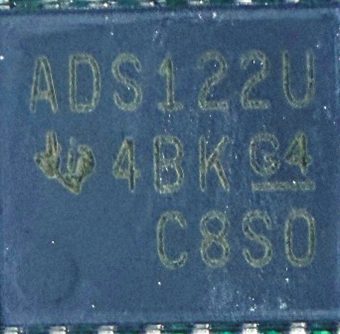

- ADS122U
48K G4
C8S0
Analogue-to-digital converter
A Texas Instruments 24-bit analogue-to-digital converter. In the air-data unit it turns the analogue pressure sensor signal into a precise digital value the microcontroller can read.record ↗

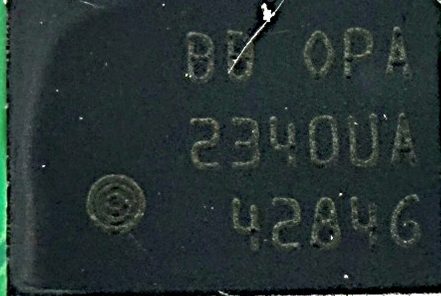

- BB OPA
2340UA
4284G
Operational amplifier

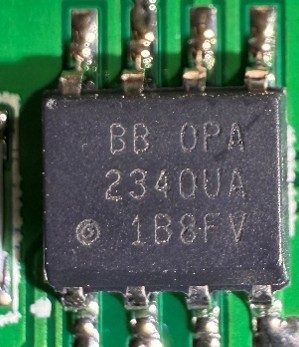

A Texas Instruments dual low-voltage operational amplifier (Burr-Brown line). It conditions and buffers the small analogue signals from the pressure sensors before they reach the ADC.record ↗

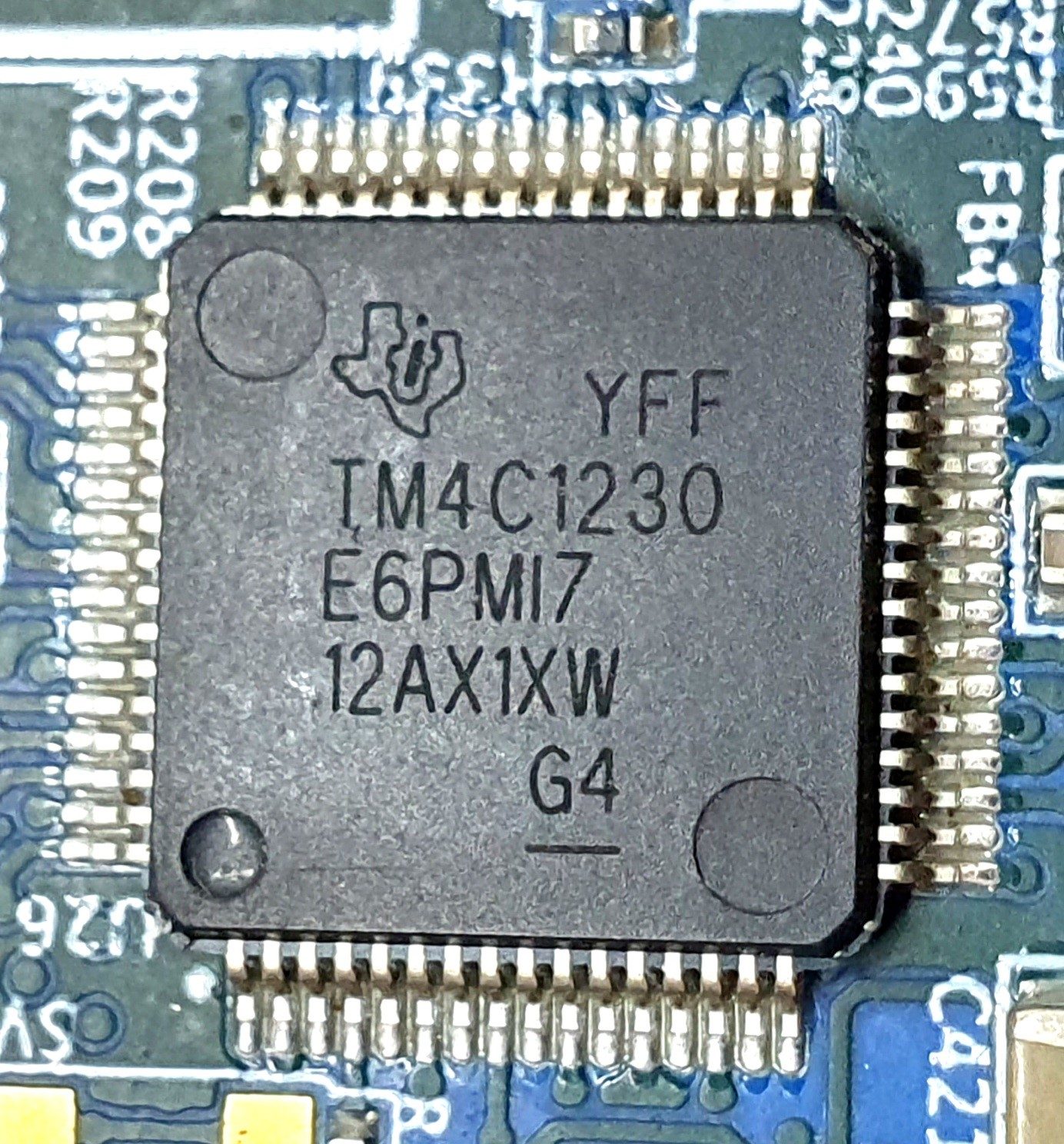

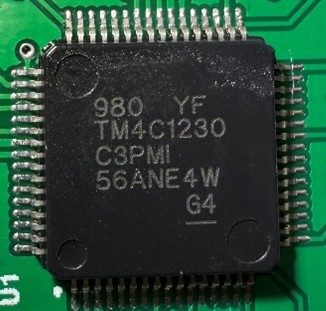

- YFF
TM4C1230
C3PMI7
4CASFXW

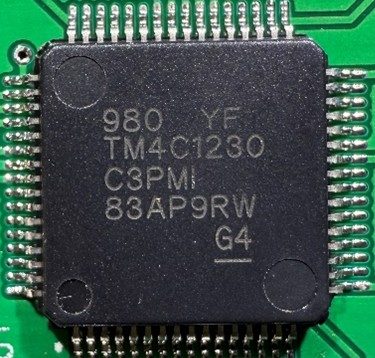

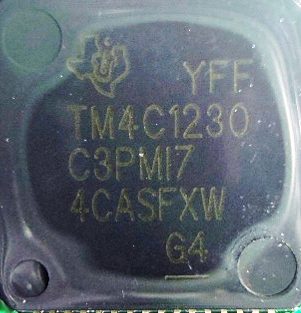

Microcontroller
A Texas Instruments Tiva C ARM Cortex-M4 microcontroller. It runs the air-data unit, reading the pressure sensors through the ADC and sending the processed values on to the flight computer.record ↗
-
Capacitor
An electrolytic capacitor from Chinese maker CapXon, used on the air-data board to smooth supply voltages and filter noise.record ↗
-

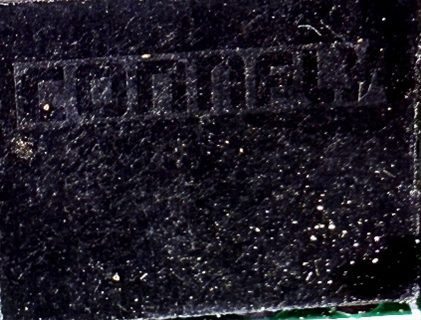

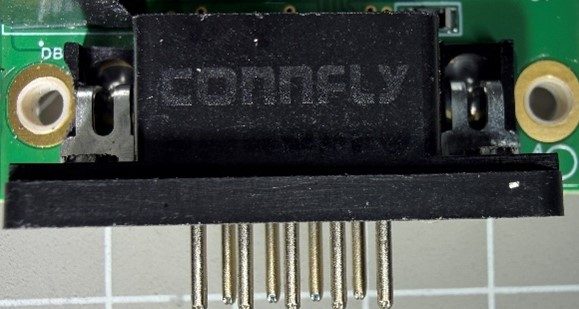

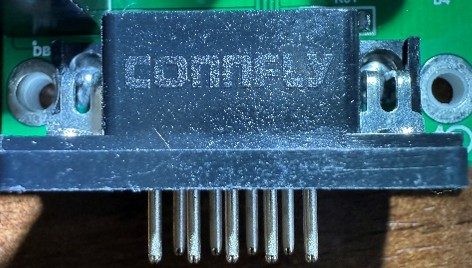

Connector
A board connector from Chinese maker CONNFLY, providing the pluggable electrical interface between the air-data unit’s board and the rest of the drone’s wiring.record ↗

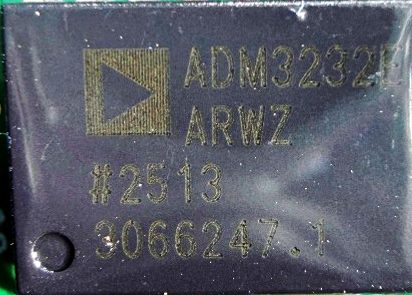

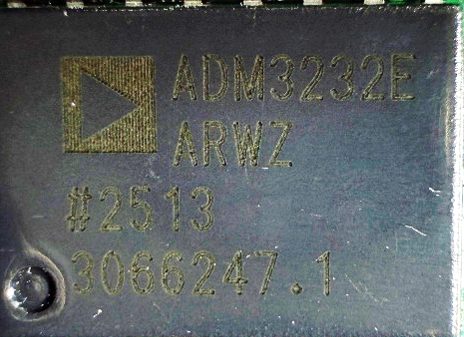

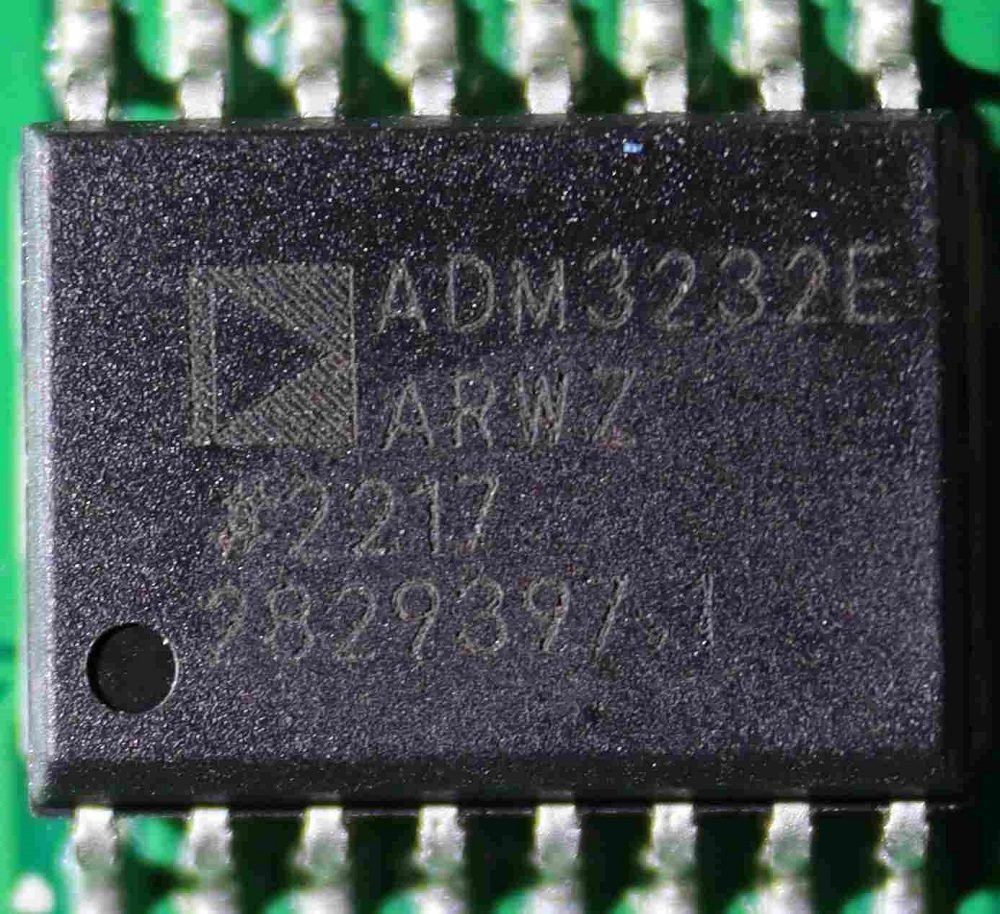

- ADM3232E
ARWZ
#2513
3066247.1

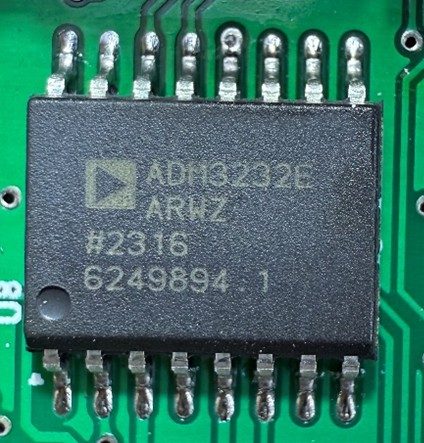

RS-232 Line Driver
An Analog Devices RS-232 line driver and receiver with ESD protection. It converts the microcontroller’s logic signals to RS-232 levels so the air-data unit can talk to other units over a serial link.record ↗
Engine
Двигун

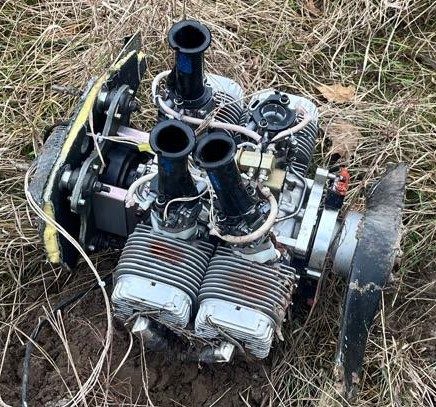

The propulsion unit that drives the airframe through its flight.
Photo: HUR War & Sanctions

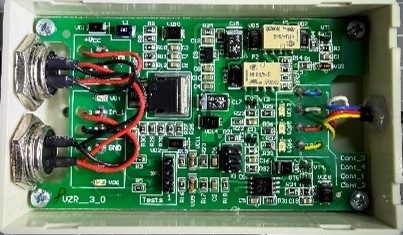

Initiation unit
Блок ініціації
The electronics that fire the warhead’s detonator at the chosen moment of impact.
1 / 2
Photo: HUR War & Sanctions
- Initiation block board

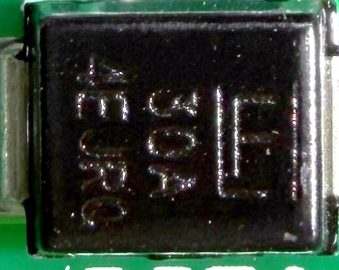

- 30A
4EJR0
Schottky diode
A Schottky rectifier diode rated for 30 amperes, acting as a low-loss one-way valve for current on the initiation board.record ↗

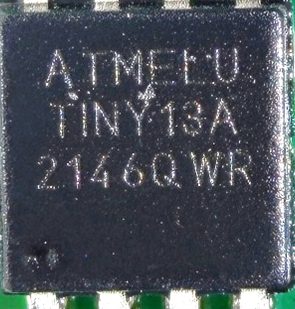

- ATMELU
TINY13A
2146QWR
Microcontroller
A small 8-bit AVR microcontroller from the ATtiny family (Microchip, formerly Atmel), used as the programmable logic chip on the initiation board.record ↗
- L7815AB2T
GKUP6 V6
CHN 433
Linear stabiliser
An L7815 fixed linear voltage regulator from STMicroelectronics, producing a steady 15-volt supply at up to about 1.5 amperes for the initiation board; the device itself is assembled in China.record ↗

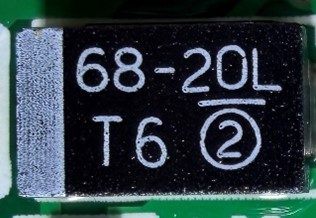

- 68-20L
T6
SMD resistor
A surface-mount resistor used on the initiation unit’s board to set currents and voltages in the firing circuit. Vishay is a long-established American maker of discrete passive components.record ↗

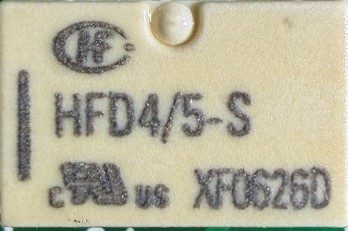

- HFD4/5-S
XF0626D
Relay
A compact signal relay from Chinese maker Hongfa, used as an electrically controlled switch on the initiation board to route power to the firing circuit on command.record ↗
Svekla (Beetroot) unit
Блок "Свекла"
A named internal unit of the munition; the record does not describe its function.
Photo: HUR War & Sanctions

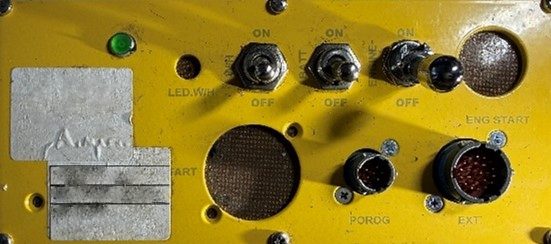

Launch bar AV. Panel
Панель запуску AV. Panel
An avionics panel used in the launch phase, through which the munition is armed and released during takeoff.
1 / 2
Photo: HUR War & Sanctions

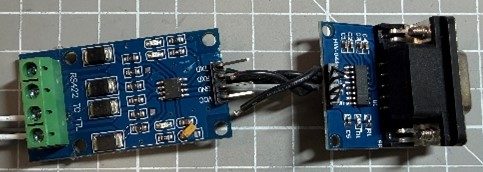

RS-422 module
Модуль RS-422
A small Chinese-made converter board that translates signals to the RS-422 serial standard, used for reliable short-range wired data communication between onboard components.
Photo: HUR War & Sanctions

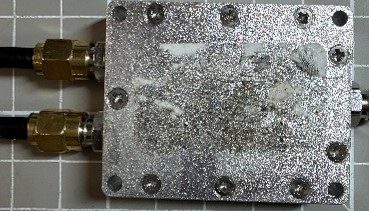

2-channel radio frequency power splitter
2-канальний радіочастотний подільник потужності
A passive Chinese-made component that splits one incoming radio-frequency signal into two outputs, typically to feed a shared antenna signal into two receivers.
1 / 2
Photo: HUR War & Sanctions

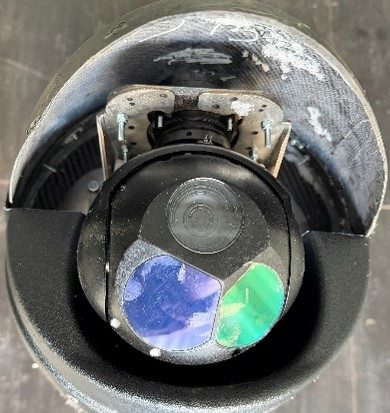

Optical camera
Оптична камера
Honpho TS130C-01
An optical camera module made by Chinese manufacturer Honpho, providing visual imagery to the drone’s onboard systems.
Photo: HUR War & Sanctions

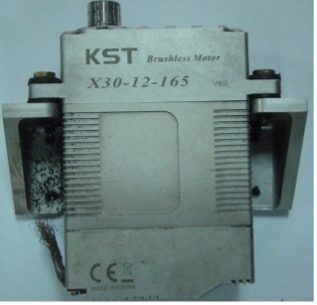

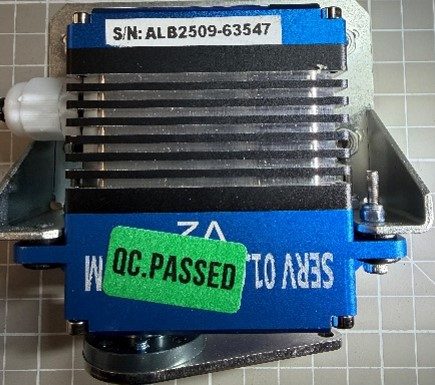

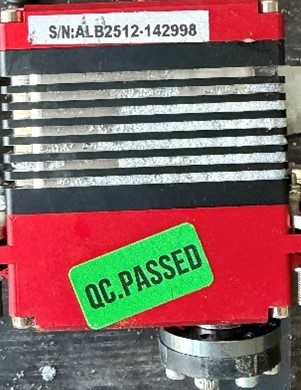

Servo drive
Сервопривід
An electric servo drive that moves a mechanical component, such as a control surface, on command from the flight computer. The maker is not identified.
Photo: HUR War & Sanctions
Servo drive
Сервопривід
An electric servo drive from Chinese maker GXSERVO (Dongguan Gongxun Power Technology) that moves a mechanical component on command from the flight computer.
Photo: HUR War & Sanctions

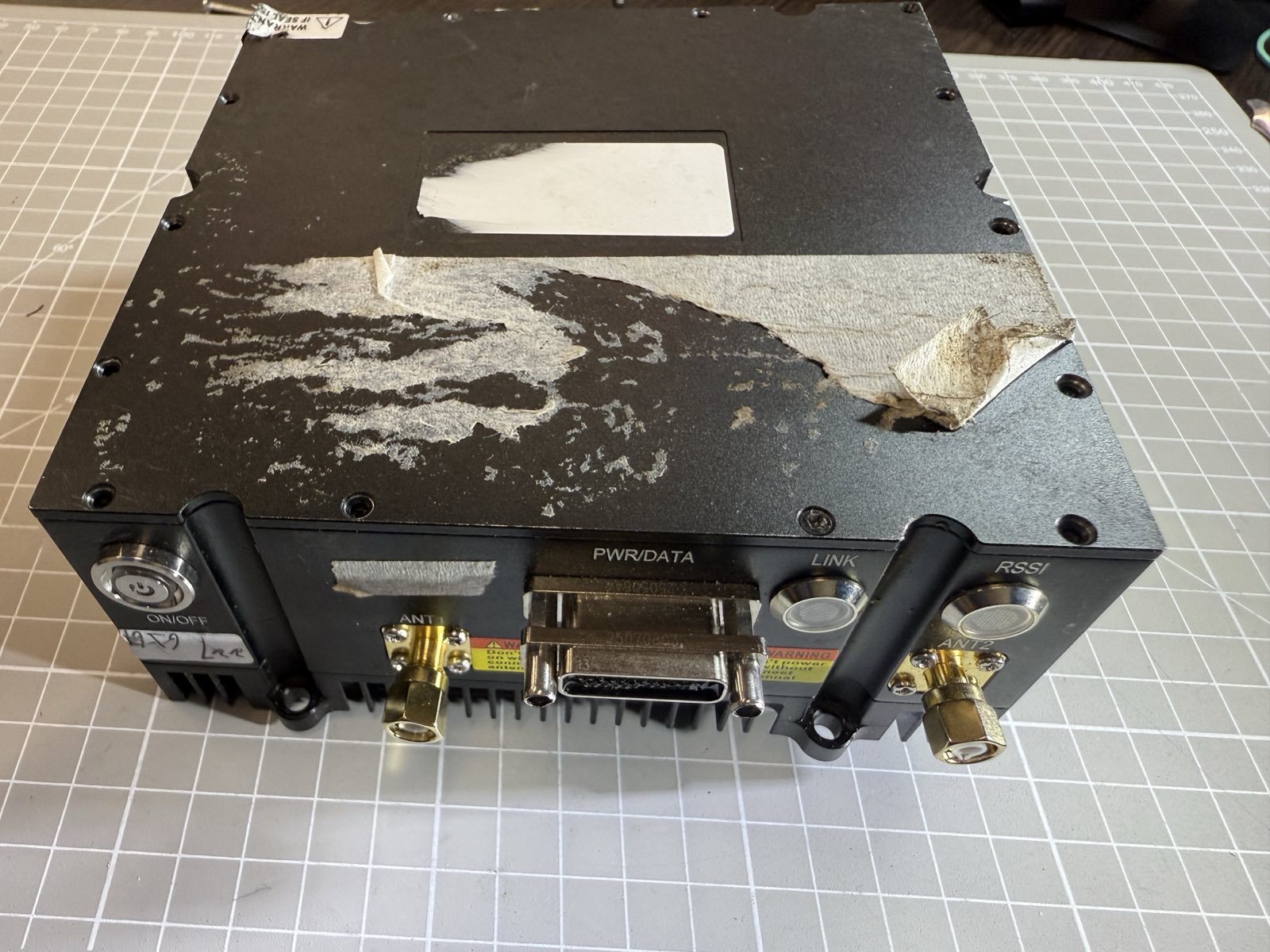

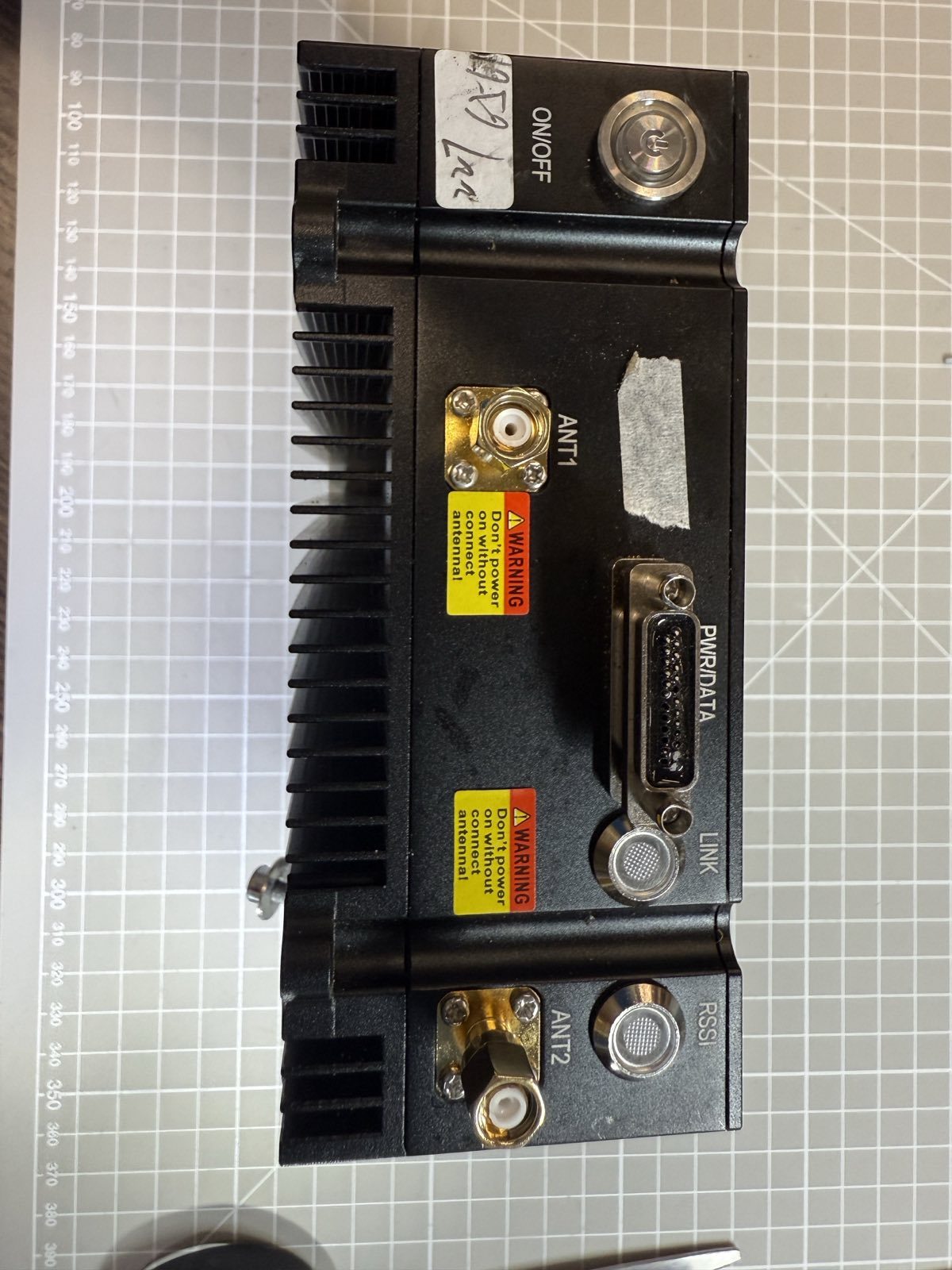

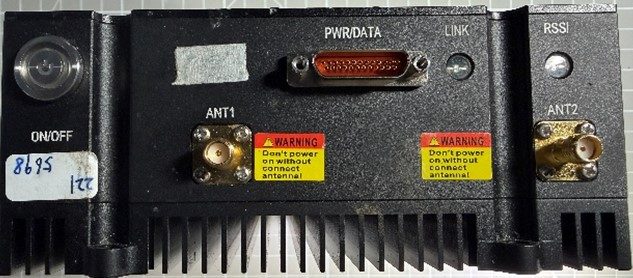

Modem Mesh Network XK-F358
Модем Mesh Network XK-F358
A mesh-networking radio modem from Chinese maker Xingkay Tech, allowing the drone to exchange data with other nodes over a shared peer-to-peer radio link.
Part page: Xingkai XK-F358 mesh radio →
₽450,000 $5,700 $5,700 imported: market price applies CN¥19.5 million for 500 units, invoice or document, 2026 · The Insider (with Nordsint) ↗ · 3 more prices on the part page
Photo: HUR War & Sanctions
Geran-2 UAV (series "Э", with R-60 missile) record ↗

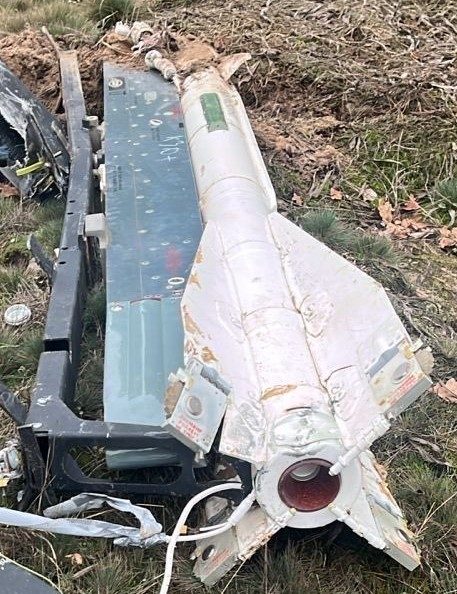

R-60 missile
Ракета Р-60
The R-60 is a Soviet short-range infrared-guided air-to-air missile originally designed for fighter aircraft to engage other aircraft at close range.
Photo: HUR War & Sanctions

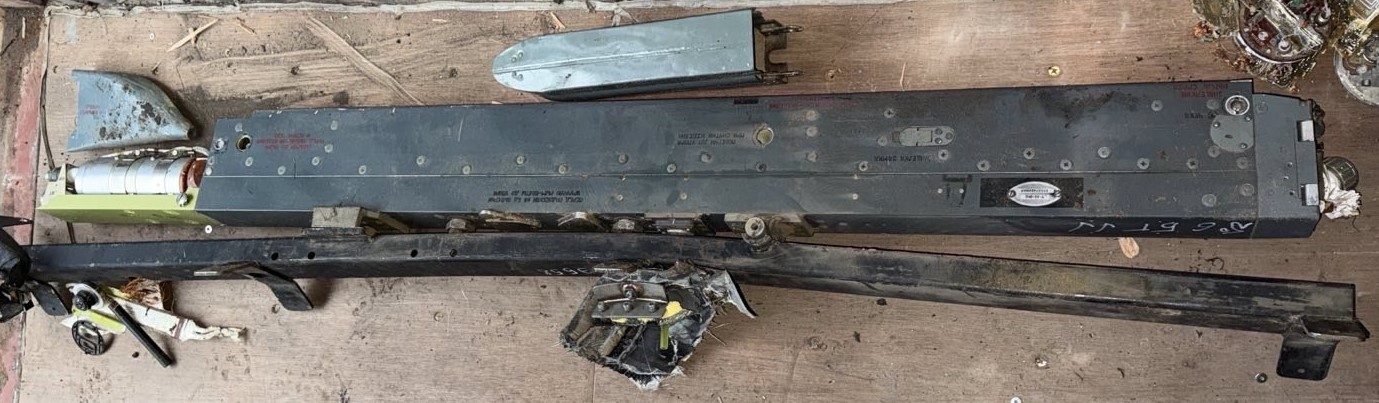

APU-60-1MD (P-62-1MD) aviation launch device
Авіаційний пусковий пристрій АПУ-60-1МД (П-62-1МД)
A Russian aircraft launch rail made by DNPP PJSC that carries and fires the R-60 air-to-air missile.
Photo: HUR War & Sanctions
Camera
Камера
A camera, identified by the source as probably a Hikvision DS-2CD1343G2-LIUF, a Chinese-made IP network surveillance camera.
Probably Hikvision DS-2CD1343G2-LIUF
Photo: HUR War & Sanctions
Power distribution unit (PDU)
Блок розподілу потужності (PDU)
Routes electrical power from the battery to the munition’s subsystems and switches those feeds on and off.
Photo: HUR War & Sanctions

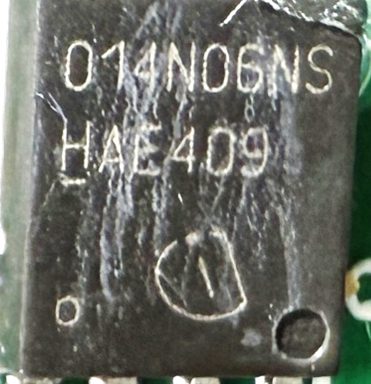

- 014N06NS
HAE409
Transistor
An OptiMOS power MOSFET from Infineon. In the power distribution unit it acts as a solid-state switch that turns loads on and off and carries their current.record ↗

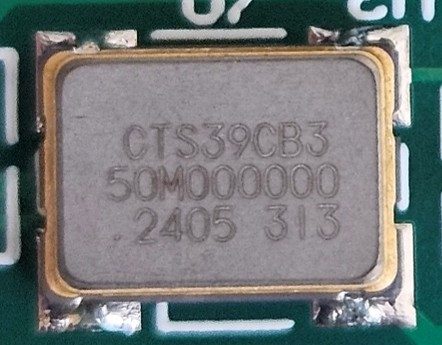

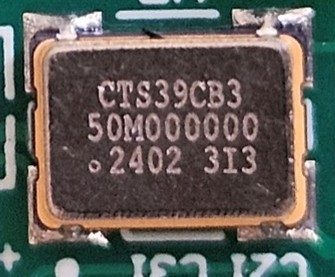

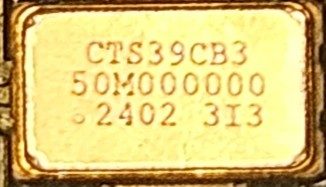

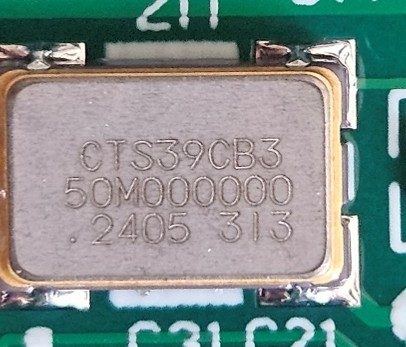

- CTS39CB3
50M000000
2402 3I3
Clock generator
A 50 MHz programmable clock oscillator from CTS Corporation. It supplies the stable timing reference used by the digital electronics in the power distribution unit.record ↗

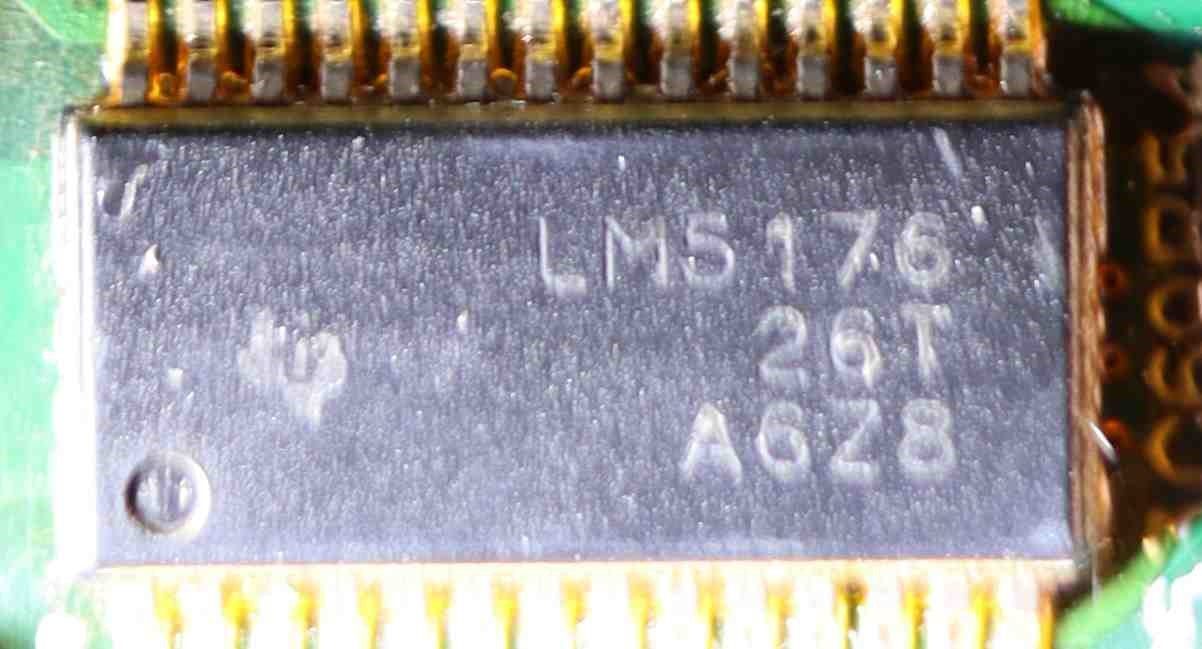

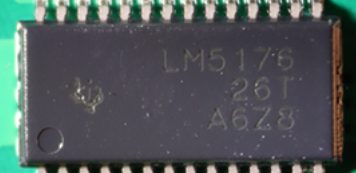

- LM5176
TI 48T
AEGR
003
Operational amplifier

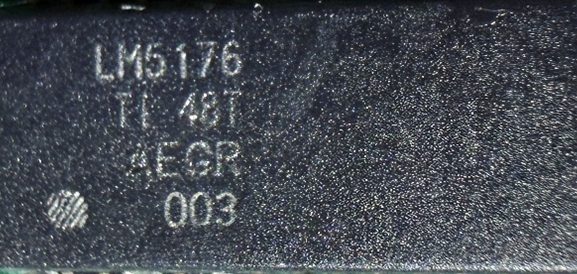

A Texas Instruments LM5176 synchronous four-switch buck-boost controller. In the power distribution unit it regulates a varying battery voltage up or down to the stable rail the other boards need.record ↗
- CODACA
CSX1809-5R8
24
Power inductor
A shielded power inductor from Chinese maker Codaca, rated at 5.8 microhenries. It stores and smooths current for one of the switching converters on the power distribution board.record ↗

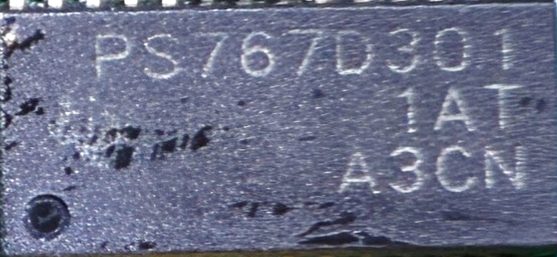

- PS767D301
1AT
A3CN
Voltage regulator
A Texas Instruments PS767D301 dual voltage regulator. It produces two of the fixed low-voltage supplies the power distribution unit hands out to downstream electronics.record ↗

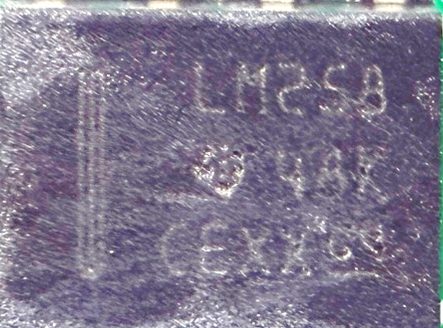

- LM258
48X
CEXX G4
Operational amplifier
A Texas Instruments LM258 dual general-purpose operational amplifier. In the power distribution unit it is used in small analogue conditioning circuits, typically to buffer or compare sensing voltages.record ↗

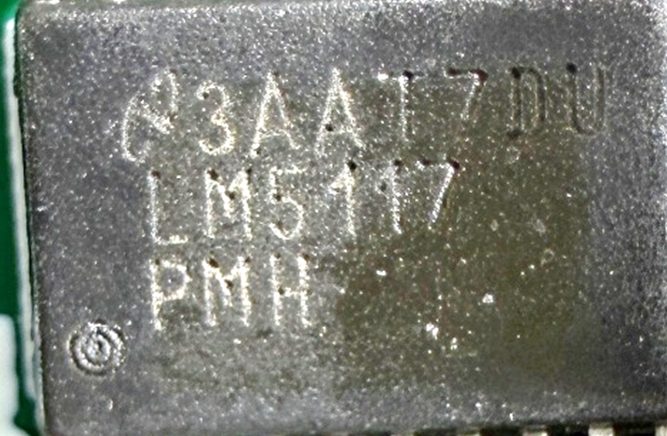

- 3AAT7DU
LM5117
PMH
Step-down voltage converter
A Texas Instruments LM5117 wide-input synchronous buck controller, originally a National Semiconductor part. It steps the drone’s battery voltage down to a lower regulated rail for the electronics.record ↗

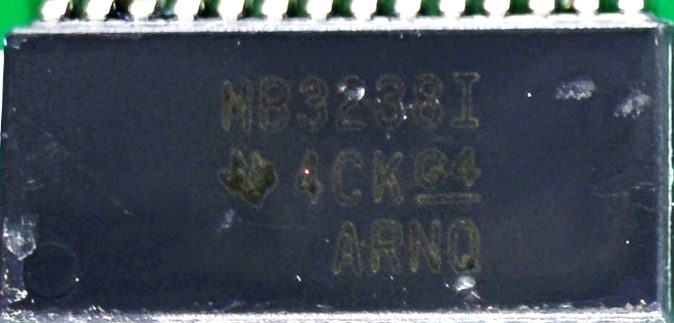

- MB3238I
4CK G4
ARNQ
Line driver
A Texas Instruments MB3238I-class line driver. It conditions logic signals leaving the power distribution unit so they travel reliably over the cabling to other modules.record ↗
Satellite navigation system receiver board
Плата приймача супутникових навігаційних систем
A circuit board that receives signals from navigation satellites and computes the drone’s position, velocity and time.
Photo: HUR War & Sanctions

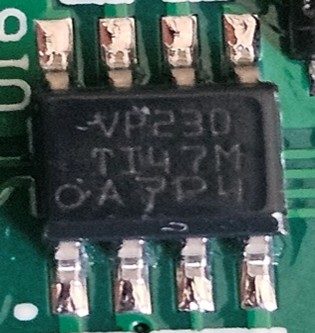

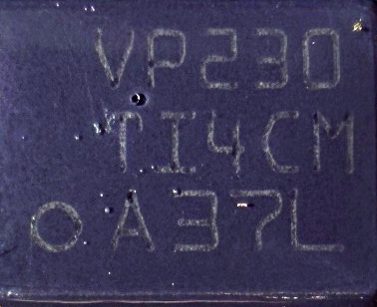

- VP230
TI4CM
A37L
CAN transceiver
A CAN bus transceiver from Texas Instruments. It is the physical-layer interface that lets the satellite-navigation receiver board exchange data with other units in the drone over a CAN bus.record ↗

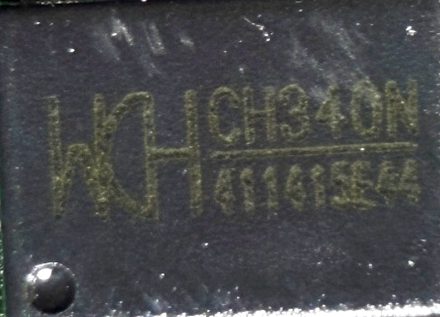

- CH340N
411415E44
SB to UART Bridge Controller
The CH340N is a USB-to-UART bridge chip from the Chinese vendor WCH. It converts a USB connection into a serial port, typically used to configure or debug the satnav board from a computer.record ↗

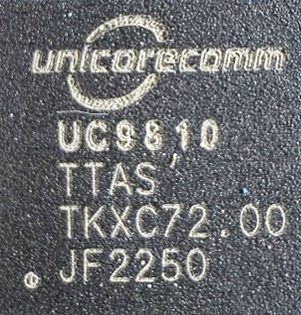

- UC9810
TTAS
TKXC72.00
JF2250
GNSS receiver
The Unicore UC9810 is a multi-constellation GNSS receiver chip from Beijing-based Unicore Communications. It computes the drone’s position from GPS, GLONASS, Galileo and BeiDou satellite signals.record ↗

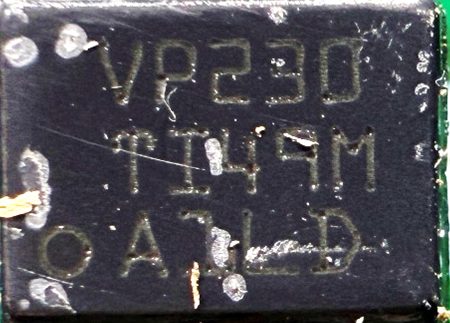

- VP230
TI49M
A1LD
CAN transceiver
A CAN bus transceiver from Texas Instruments, a second one on the same board. It carries the physical signalling of the CAN link used by the satellite-navigation receiver board.record ↗
- 9001-15321C00A
Connector
A board connector from Taiwanese manufacturer Oupiin. It is the mechanical and electrical interface between the satellite-navigation receiver board and the drone’s wiring.record ↗
- PS767D301
14T
AGHX
Voltage regulator
The TPS767D301 is a dual low-dropout linear voltage regulator from Texas Instruments. It provides two clean low-voltage supplies to the digital and analogue sections of the satellite-navigation receiver.record ↗
- MB3238I
52K G4
CH4F
Line driver
An RS-232 line driver from Texas Instruments. It converts logic-level signals to RS-232 so the satnav board can communicate with another unit over a serial link.record ↗

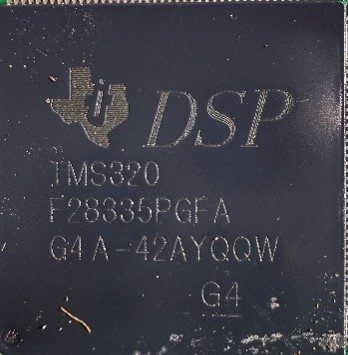

- TMS320
F28335PGFA
G4 A 42AYQQW
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗

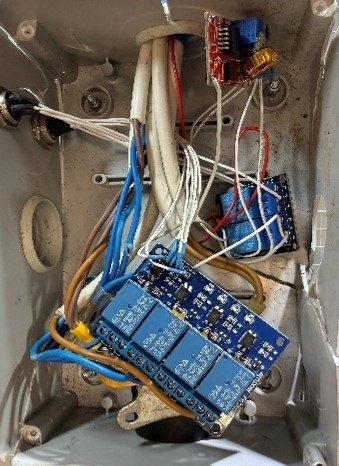

Missile control unit
Блок автоматики ракети
An electronic unit that handles the control signals for the onboard missile system, routing commands between the drone and the missile.
Photo: HUR War & Sanctions

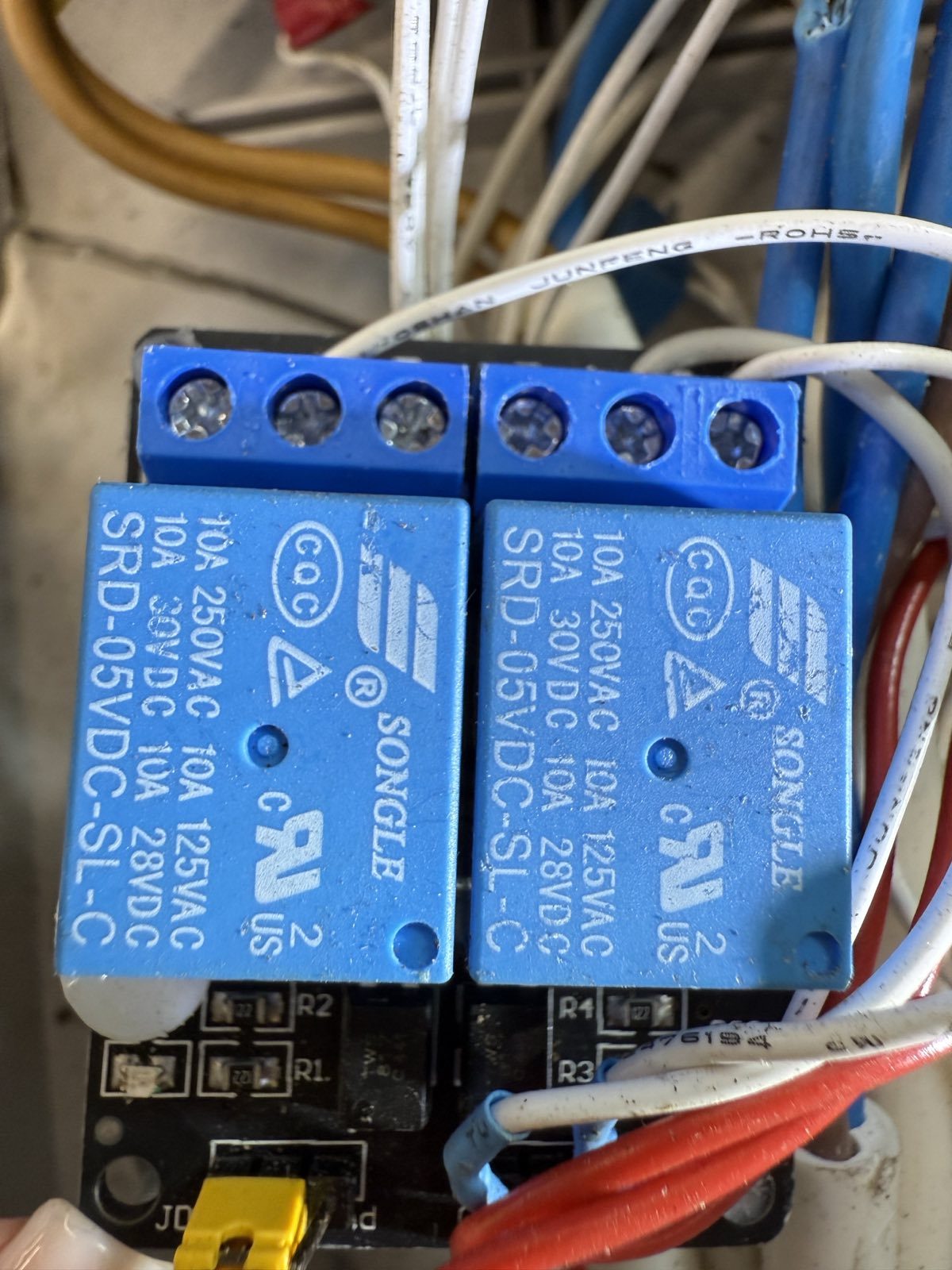

- SRD-05VDC-SL-C
2-channel relay module
A two-channel electromechanical relay module from Chinese maker Ningbo Songle, built around the common SRD-05VDC-SL-C relay, used to switch electrical circuits on and off from a low-voltage control signal.record ↗

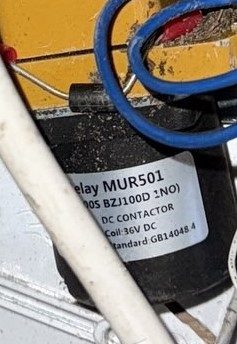

- Relay MUR501
(AZJ100S BZJ100D 1NO)
DC contactor
A heavy-duty electromechanical relay that switches a high DC load on or off. In the missile control unit it connects or disconnects a main power circuit under command from the control electronics.record ↗

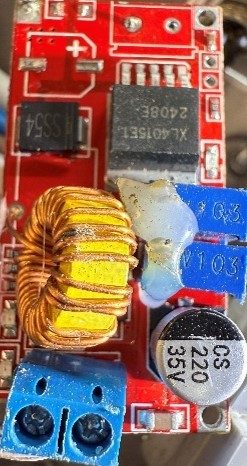

- XL4015E1
Step-down DC-DC converter
The XL4015 is a step-down (buck) DC-DC converter chip that lowers an input DC voltage to a stable lower one. Inside the missile control unit it supplies a regulated power rail to the on-board electronics.record ↗

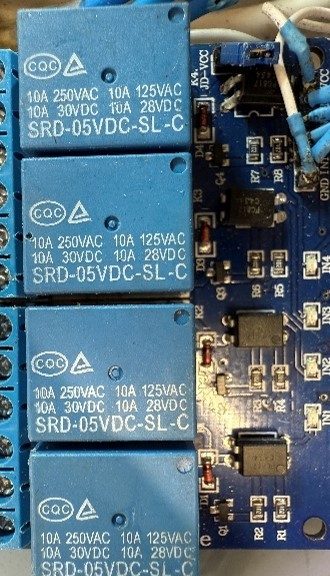

- SRD-05VDC-SL-C
4-channel relay module
A small circuit board carrying four 5-volt Songle relays. It lets the control electronics switch four separate higher-voltage circuits on and off inside the missile control unit.record ↗

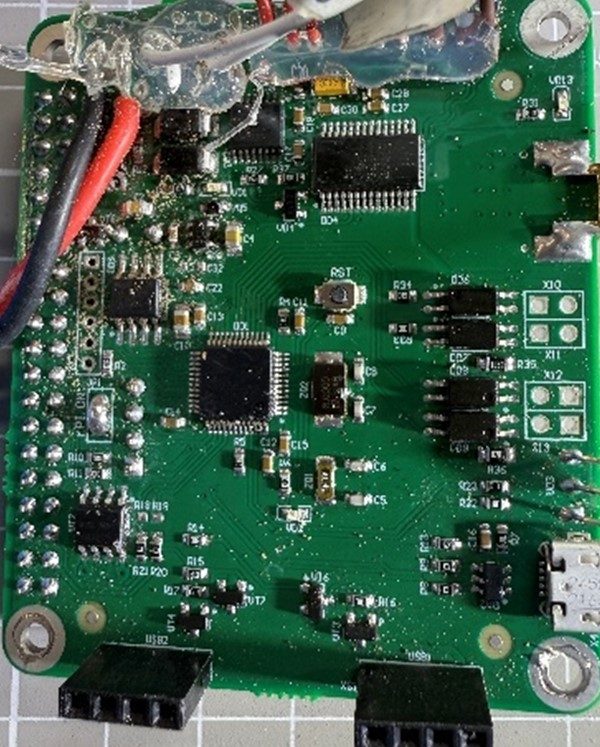

Tracker
Трекер
An onboard tracker assembly that handles navigation and position tracking for the drone; here identified as the Borscht v3 AL Tracker.
Photo: HUR War & Sanctions

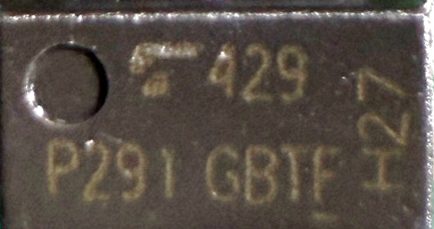

- 429
P291 GBTF
H27
Phototransistor
A Toshiba phototransistor, an optical sensor packaged with an LED. In the tracker it provides galvanic isolation between circuits, passing a signal across as light rather than as a direct electrical connection.record ↗

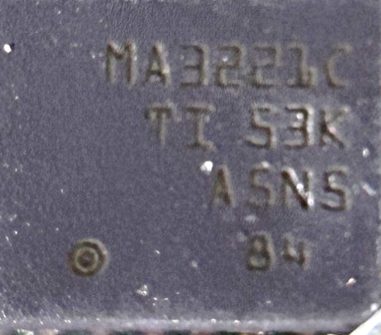

- MA3221C
TI 53K
A5N5
84
RS-232 line driver/receiver
A Texas Instruments MAX3221-class RS-232 transceiver. It converts the microcontroller’s logic-level serial signals to and from the RS-232 voltages used on an external serial link.record ↗
- ADESTO2238
45DB0411
SSNN

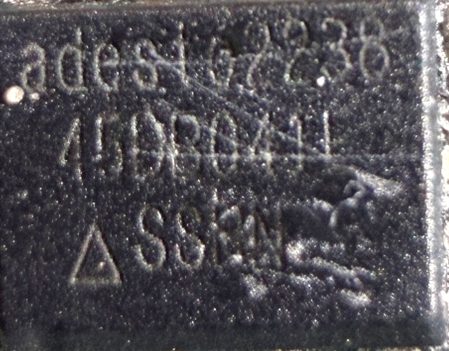

Flash memory
An Adesto AT45DB041 four-megabit serial flash memory, now part of Renesas. It stores firmware or configuration data for the tracker module. Dated to the 38th week of 2022.record ↗

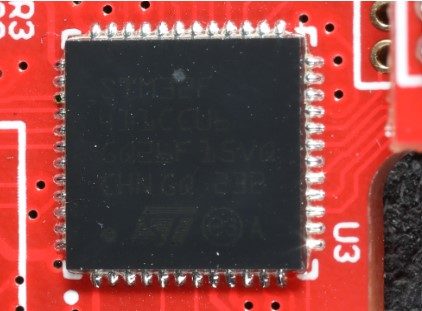

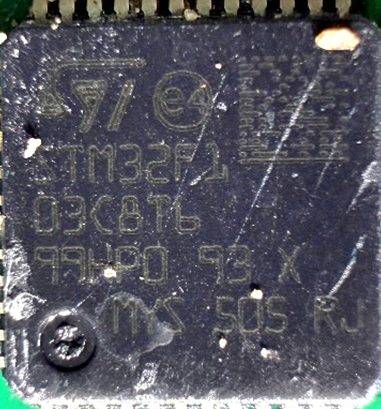

- STM32F1
03C8T6
99HPO 93 X
MYS 505 RJ
Microcontroller
An STMicroelectronics STM32F103C8T6, a widely used 32-bit ARM Cortex-M3 microcontroller. It is the main processor of the tracker board, running its control software and handling its serial interfaces.record ↗

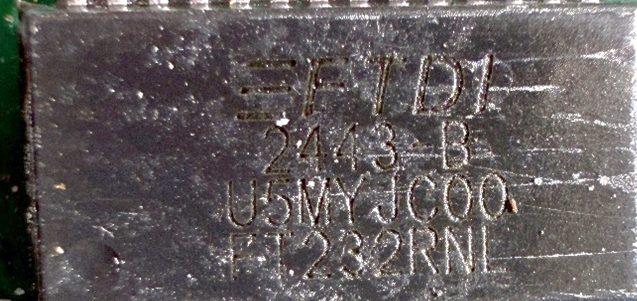

- FTDI
2443-B
U5MYJC00
FT232RNL
Slave to UART Converter
An FTDI FT232RNL USB-to-serial bridge chip, made in Britain. It lets the tracker’s microcontroller exchange data with a USB host as if over a plain serial port. Dated to the 43rd week of 2024.record ↗
-
Connector
A board-to-board or wire-to-board connector from Chinese maker Connfly. It carries power and signals between the tracker board and the modules it plugs into.record ↗

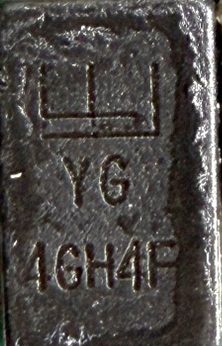

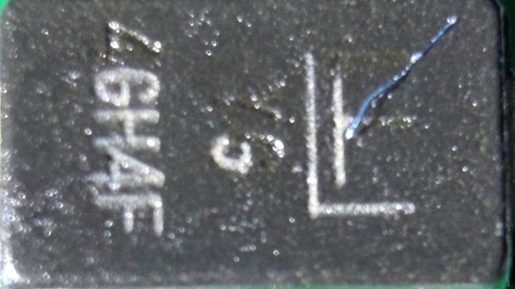

- YG
4GH4F
Schottky diode
A Littelfuse Schottky diode. In the tracker it is used for low-loss rectification or reverse-polarity protection on a power rail.record ↗
- M8030-KT
B3000A
09862096
2509A3
GNSS module

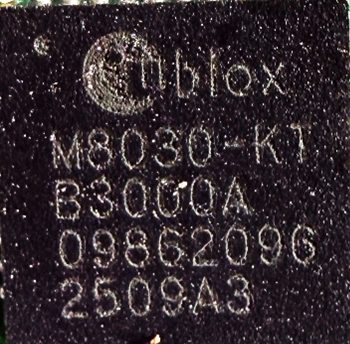

A U-blox M8030 multi-GNSS receiver module from Switzerland, able to use GPS, GLONASS, Galileo and BeiDou satellites. It provides the drone’s position and timing. Dated to the 9th week of 2025.record ↗

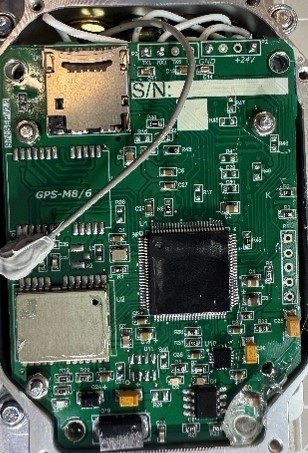

Inertial navigation system (IMU)
Інерційно-навігаційна система (IMU)
An inertial measurement unit that senses the drone’s acceleration and rotation, used by the flight computer to estimate attitude and movement when satellite navigation is unavailable or jammed.
Photo: HUR War & Sanctions

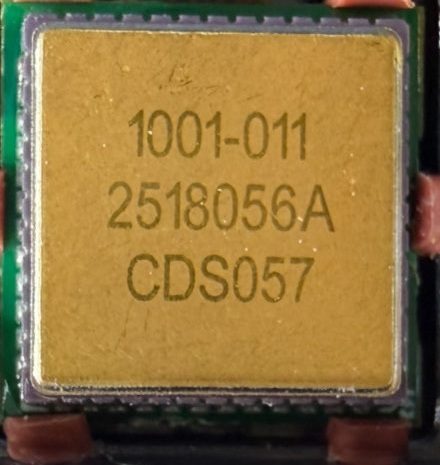

- 1001-011
2518056A
CDS057

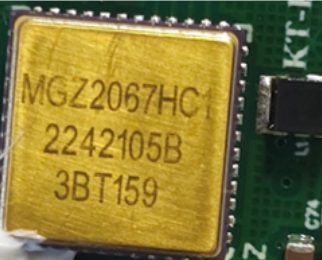

MEMS gyroscope
A micro-electromechanical (MEMS) gyroscope inside the inertial measurement unit that senses the drone’s rate of rotation along its axes.record ↗

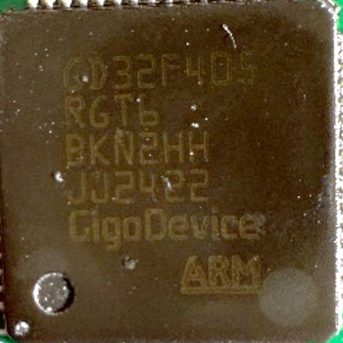

- GD32F405
RGT6
BKN2HH
JJ2422
GigaDevice
Microcontroller
The GD32F405 is a 32-bit ARM Cortex-M4 microcontroller from Chinese vendor GigaDevice. It runs firmware inside the inertial measurement unit, reading its gyros and accelerometers and outputting the motion data used to steer the drone.record ↗

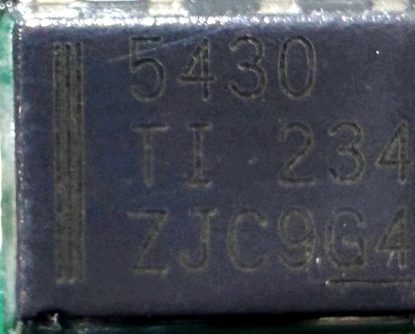

- 5430
TI 234
ZJC9G4
Step-down converter
The TPS5430 is a step-down (buck) switching regulator from Texas Instruments. It converts the main supply down to a lower voltage that powers the electronics inside the inertial navigation unit.record ↗

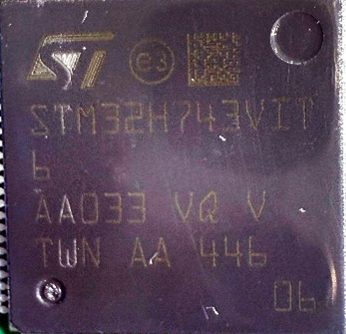

- STM32H743VIT
6
AA033 VQ V
TWN AA 446
Microcontroller
The STM32H743 is a high-performance ARM Cortex-M7 microcontroller from STMicroelectronics. It is the main processor of the inertial navigation unit, fusing gyro, accelerometer and GNSS data in real time.record ↗

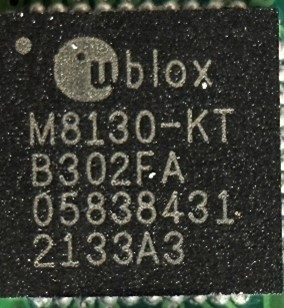

- M8130-KT
B302FA
05838431
2133A3
GNSS module

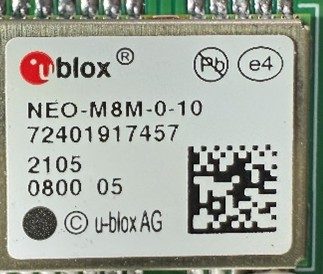

A u-blox M8 series satellite-navigation receiver module. It supplies the inertial navigation unit with position and timing from GPS, GLONASS, Galileo and BeiDou, used to correct the drift of the inertial sensors.record ↗

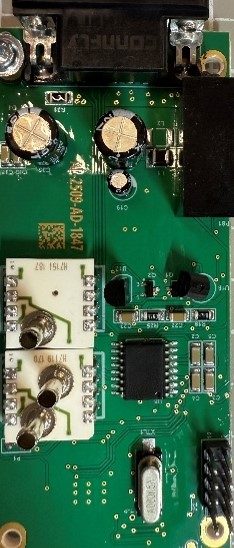

Air pressure measurement unit
Блок вимірювання повітряного тиску
A sensor assembly that measures the surrounding air pressure, used by the flight computer to derive the drone’s altitude.
1 / 2
Photo: HUR War & Sanctions

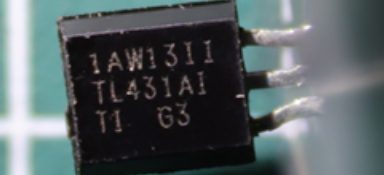

- 46M8ECE

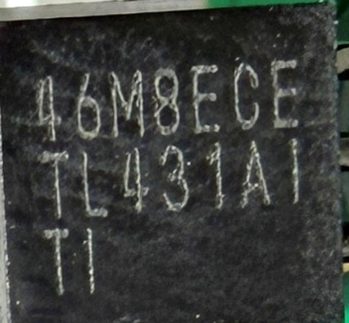

TL431AI
TI
Adjustable shunt regulator
The TL431 is a precision adjustable shunt voltage reference. Inside the air-pressure measurement unit it sets and stabilises a reference voltage used by the surrounding analogue circuitry.record ↗

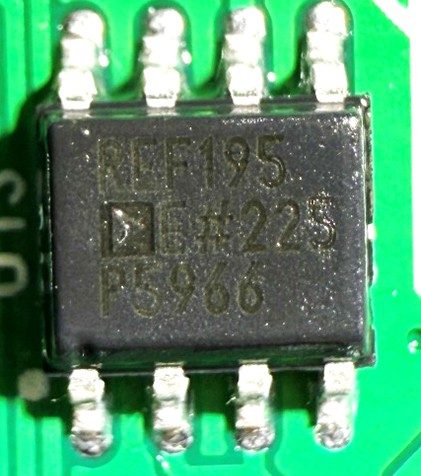

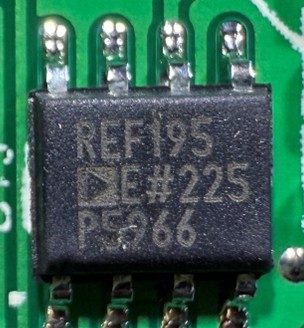

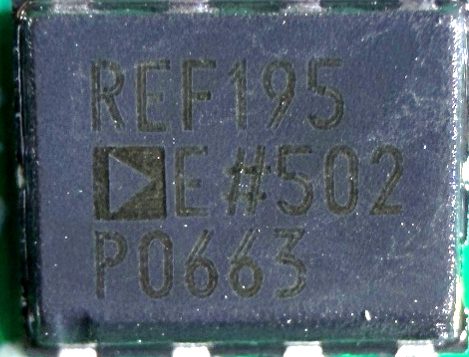

- REF195
E#502
PO663
Reference voltage source
The REF195 is a precision 5-volt reference from Analog Devices. It supplies a stable reference voltage for the analog-to-digital conversion of the pressure-sensor signal.record ↗

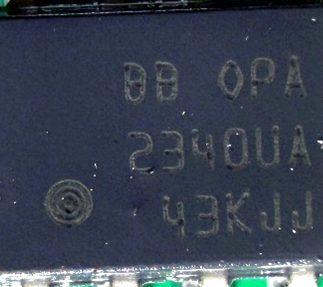

- BB OPA
2340UA
43KJJ
Operational amplifier
The OPA2340 is a dual precision operational amplifier from Texas Instruments. It amplifies and conditions the small analogue signal from the pressure sensor before it reaches the analog-to-digital converter.record ↗
- ADS122U
4CK G4
AEDS
Analogue-to-digital converter
The ADS122U04 is a 24-bit low-noise analog-to-digital converter from Texas Instruments. It reads the output of the pressure sensor and sends the digital measurement to the microcontroller over a UART link.record ↗

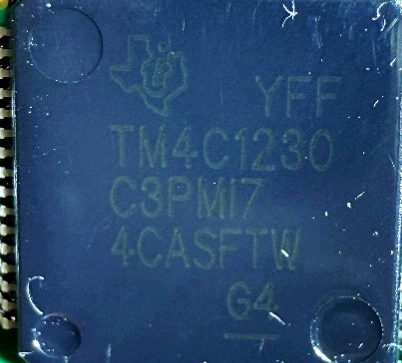

- YFF
TM4C1230
C3PMI7
4CASFTW
G4
Microcontroller
The TM4C1230 is an ARM Cortex-M4 microcontroller from Texas Instruments. It runs the firmware of the air-pressure measurement unit, reading the sensors and sending pressure data to the rest of the drone.record ↗
- ADM3232E
ARWZ
#2513
3066247.1
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗

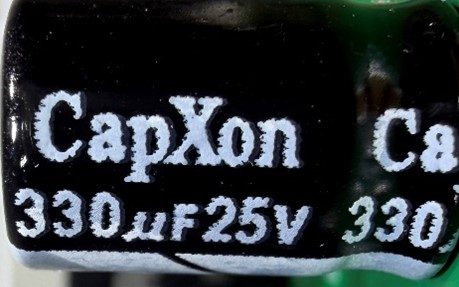

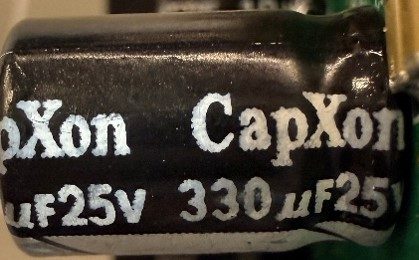

- 330uF25V
Capacitor
A 330 microfarad, 25 volt aluminium electrolytic capacitor from CapXon. It smooths the local power supply inside the air-pressure measurement unit.record ↗
Modem Mesh Network XK-F358
Модем Mesh Network XK-F358
A mesh-networking radio modem from Chinese maker Xingkay Tech, allowing the drone to exchange data with other nodes over a shared peer-to-peer radio link.
Part page: Xingkai XK-F358 mesh radio →
₽450,000 $5,700 $5,700 imported: market price applies CN¥19.5 million for 500 units, invoice or document, 2026 · The Insider (with Nordsint) ↗ · 3 more prices on the part page
1 / 2
Photo: HUR War & Sanctions

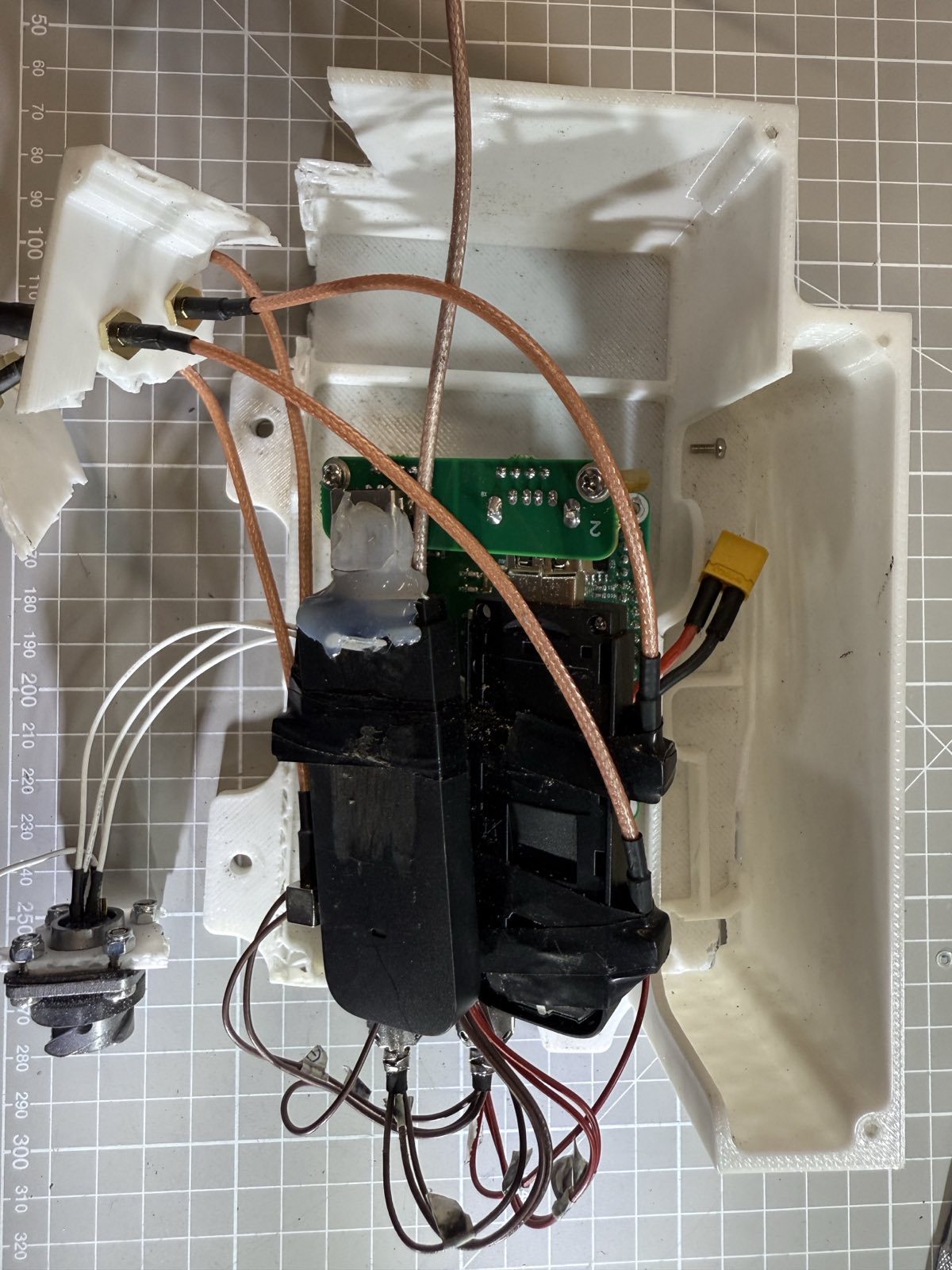

GSM modems
GSM-модеми
Cellular GSM modems that provide the drone with a data link over commercial mobile-phone networks.
Photo: HUR War & Sanctions
Engine
Двигун
The propulsion unit that drives the airframe through its flight.
Photo: HUR War & Sanctions
Jammer-proof satellite navigation system "Kometa"
Завадозахищена супутникова навігаційна система "Комета"
A satellite-navigation receiver with a multi-element antenna array designed to reject jamming by suppressing signals from directions other than the satellites, keeping the munition on its programmed GNSS course.
1 / 2
Photo: HUR War & Sanctions

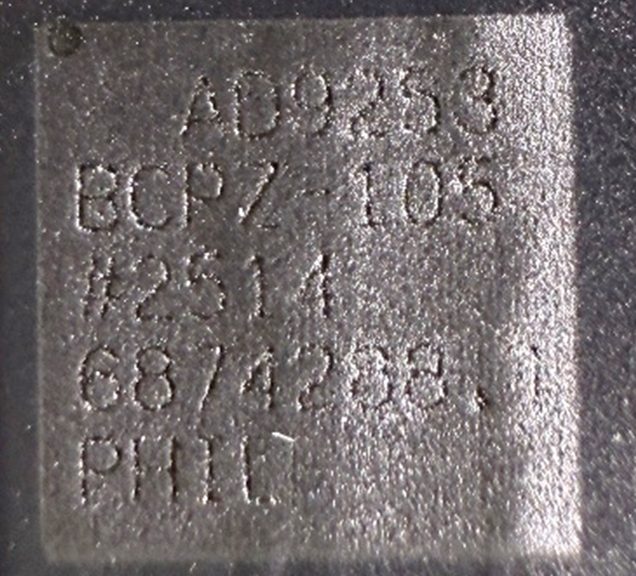

- AD9253
BCPZ 105
#2514
6874288.1
PHIL
Analog-to-Digital Converter
The AD9253 is a high-speed 14-bit analog-to-digital converter from Analog Devices. In the Kometa jam-resistant satellite-navigation unit it digitises incoming radio-frequency signals so they can be processed in software.record ↗
Air pressure receiver heating system
Система підігріву приймача повітряного тиску
A heating element that keeps the air-pressure sensor’s intake free of ice at altitude, so the pressure readings used to derive altitude stay accurate.
2-channel radio frequency power divider
2-канальний радіочастотний подільник потужності
A passive component that splits a single radio-frequency signal into two equal outputs, typically to feed one antenna signal into two receivers.
Photo: HUR War & Sanctions
RASPBERRY PI 4 MODEL microcomputer
Мікрокомп’ютер RASPBERRY PI 4 MODEL
A Raspberry Pi 4 Model single-board computer from Britain, a general-purpose Linux computer about the size of a credit card. It is used here as an onboard processor alongside the drone’s dedicated electronics.
Part page: Raspberry Pi 4 Model B →
₽2,700 $35 $35 imported: market price applies US$35, price list, 2026 · Raspberry Pi Ltd (product page) ↗ · 1 more price on the part page
Photo: HUR War & Sanctions
Shahed-136 (GERAN-2) MS001 record ↗

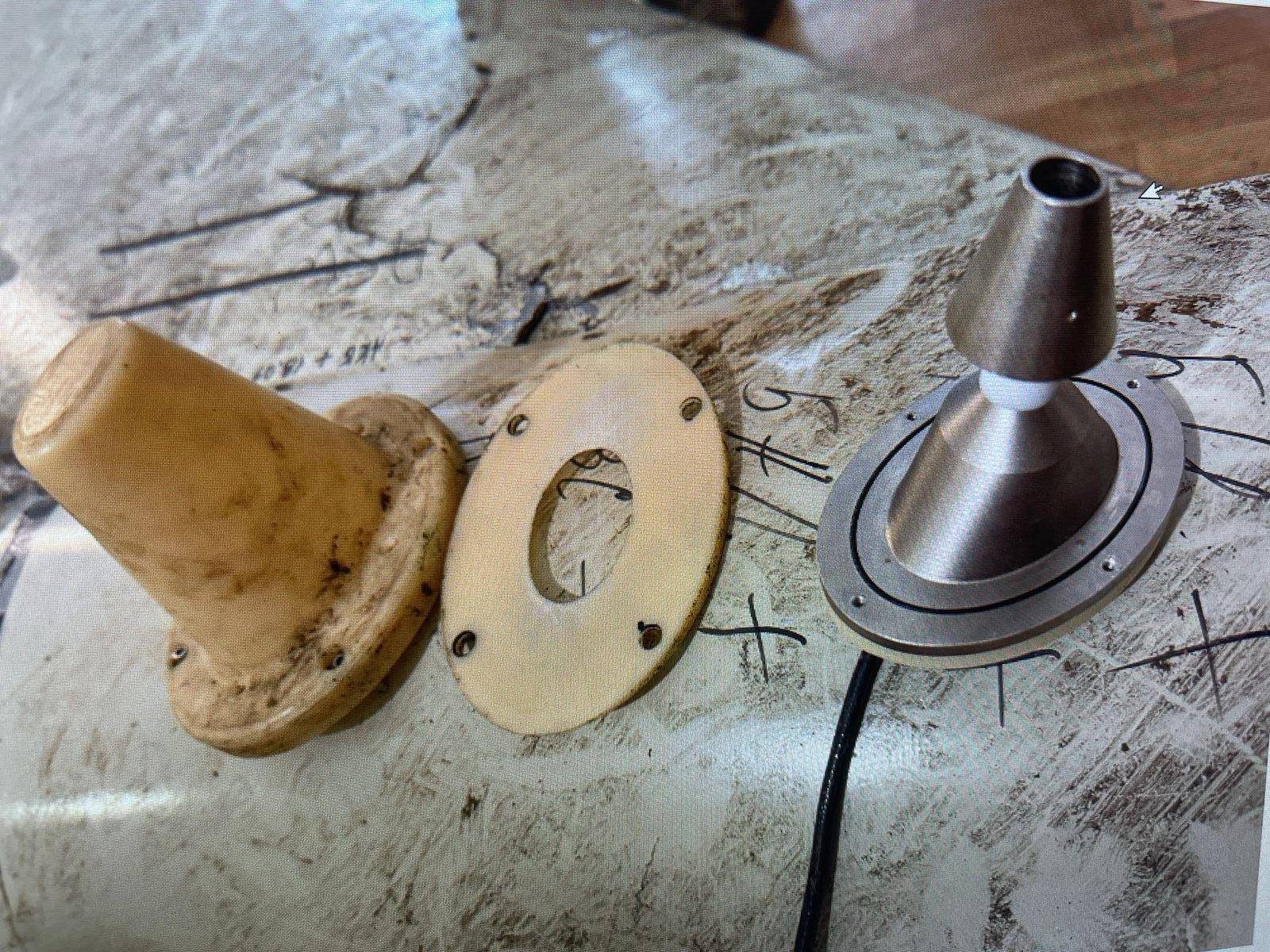

Antenna
Антена
The antenna, the metal element that radiates and receives radio signals for one of the drone’s links.
Photo: HUR War & Sanctions

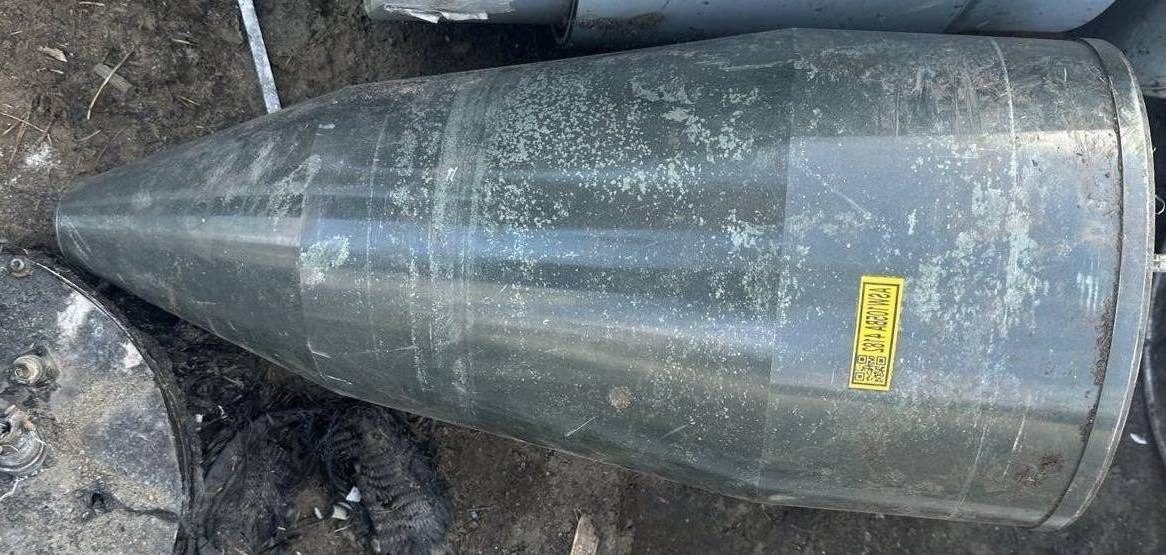

Warhead
Бойова частина
The warhead, the explosive payload the drone carries to its target. Of Iranian origin.
Photo: HUR War & Sanctions
Power Distribution Unit (PDU)
Блок розподілу потужності (PDU)
Routes electrical power from the battery to the munition’s subsystems and switches those feeds on and off.
Photo: HUR War & Sanctions
- Board

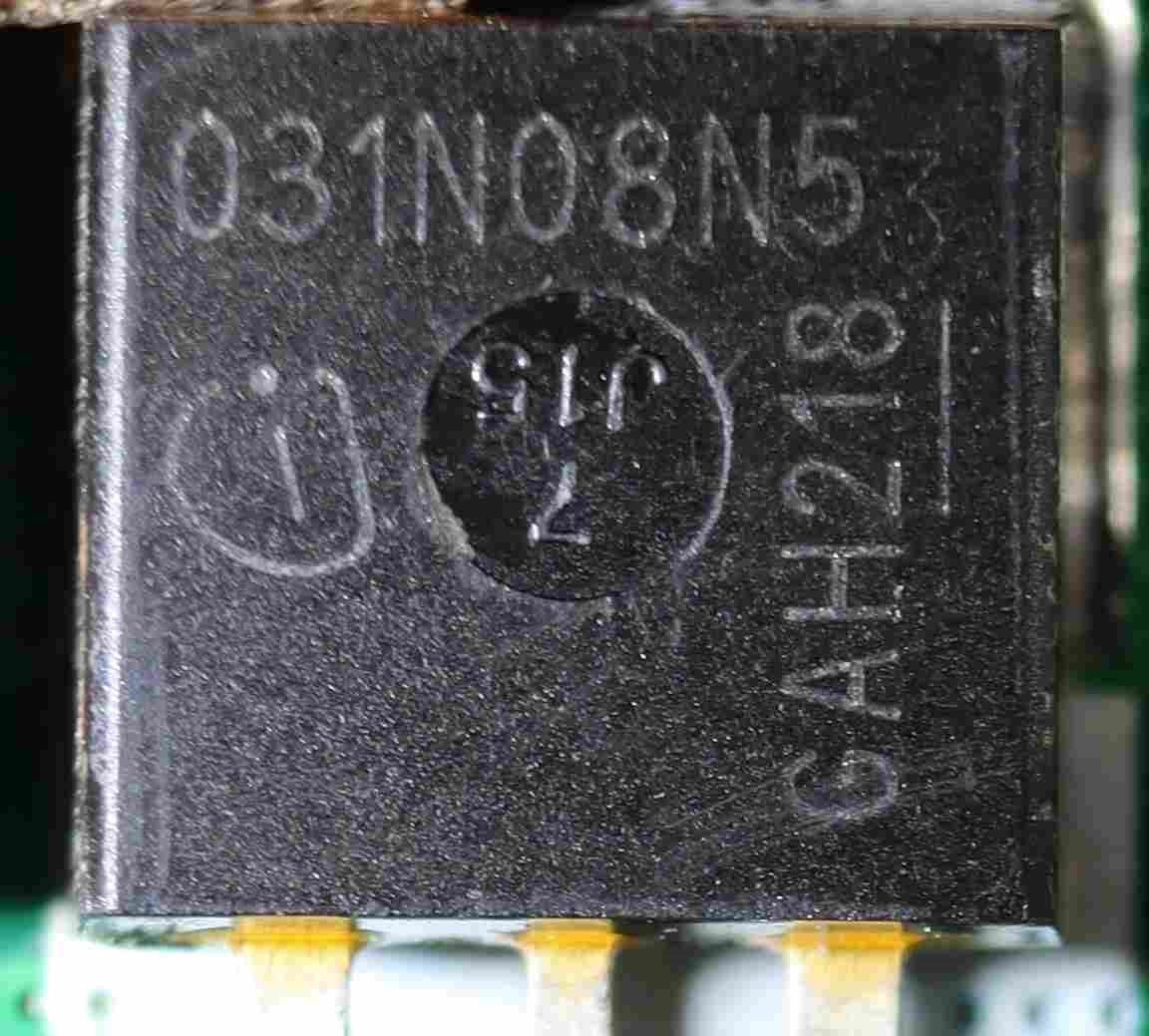

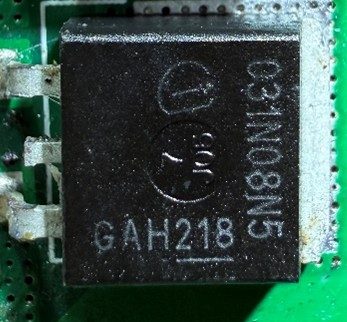

- 031N08N5
GAH218
Transistor
An Infineon OptiMOS power MOSFET on the power distribution board. It acts as an electronic switch for the currents going out to the drone’s subsystems.record ↗
Satellite receiver NASIR
Супутниковий приймач NASIR
NASIR, an Iranian satellite navigation receiver designed to resist jamming by using multiple antennas to reject interfering signals. It feeds the drone’s guidance.
1 / 2
Photo: HUR War & Sanctions
- Board

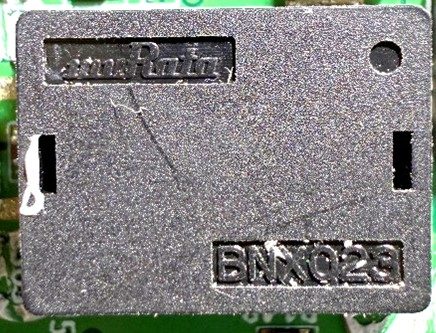

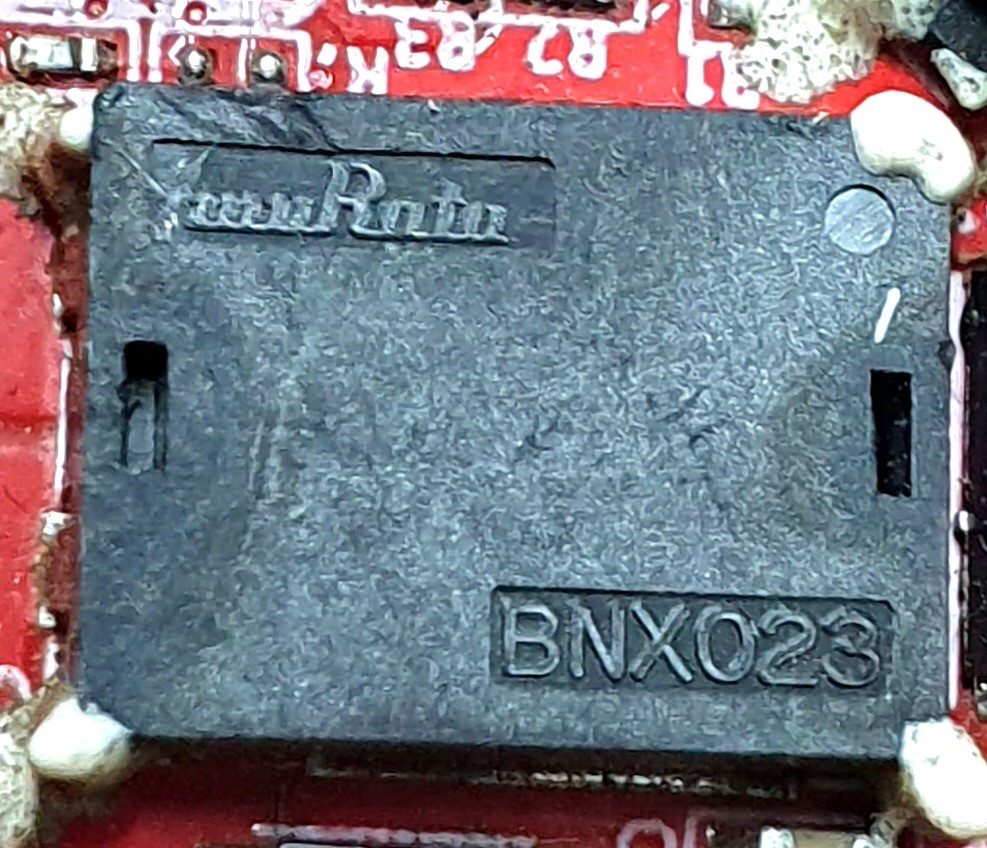

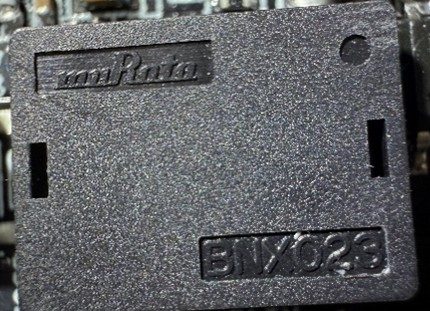

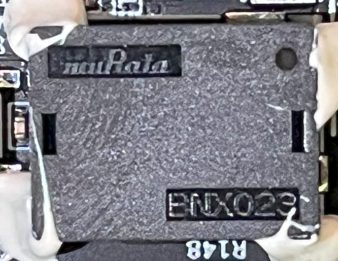

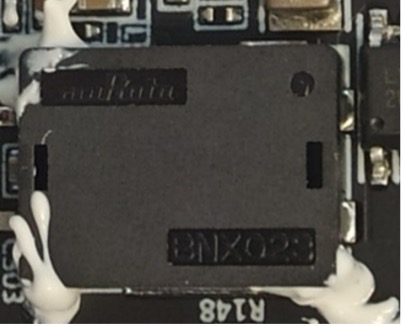

- BNX023

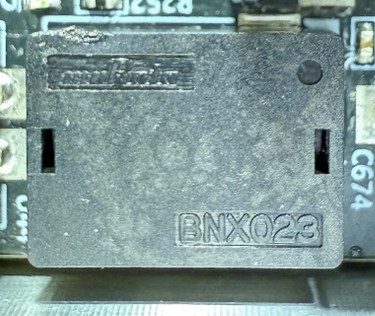

DC line filter
A Murata BNX023 block noise filter for DC power lines. It sits on the incoming supply of the NASIR satellite receiver board and suppresses electromagnetic interference in both directions.record ↗

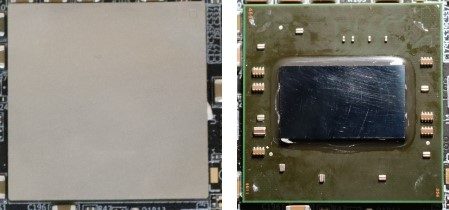

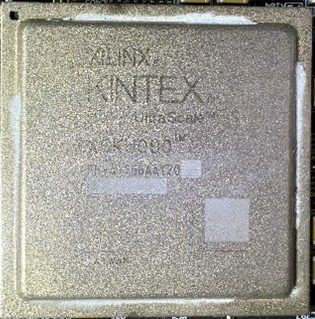

- XCKU060
FFVA1156AAY20
TAIWAN
PLD
A Xilinx Kintex UltraScale FPGA, a large reprogrammable logic chip produced in Taiwan. On the NASIR satellite receiver it does the high-speed signal processing that a general-purpose processor cannot keep up with.record ↗

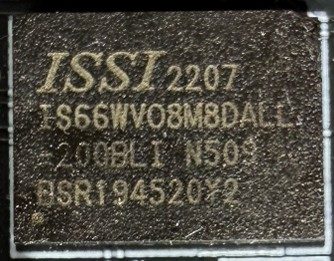

- ISSI 2207
IS66WV08M8DALL
200BLI N508
DSR194520Y2
Memory chip
An ISSI 64-megabit pseudo-static RAM chip. It gives the satellite receiver’s processor working memory to hold navigation data and intermediate results while the drone is in flight.record ↗

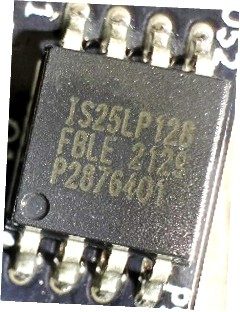

- IS25LP128
FBLE 2130
P2J27101
Memory chip
An ISSI IS25LP128 128-megabit serial NOR flash memory. It stores the firmware and configuration data that the satellite receiver’s processor loads at power-up.record ↗

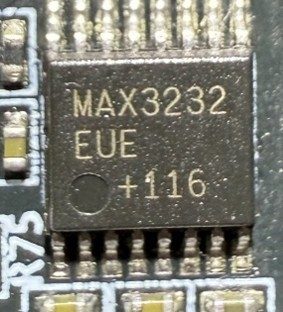

- MAX3232
EUE
+116
Multichannel RS-232 line driver and receiver
A Maxim MAX3232 dual RS-232 line driver and receiver. It converts logic-level serial signals from the satellite receiver’s processor to RS-232 voltages for an external port.record ↗

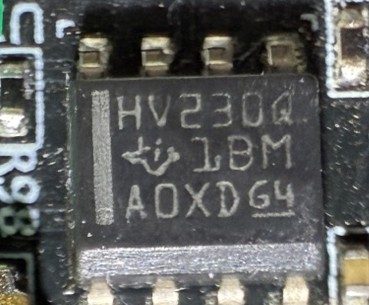

- HV230Q
1BM
AOXDG4
RS-485/RS-422 Transceiver
A Texas Instruments differential-bus transceiver for RS-485 and RS-422. It lets the satellite receiver exchange data with other units over a long twisted-pair cable that is resistant to electrical noise.record ↗

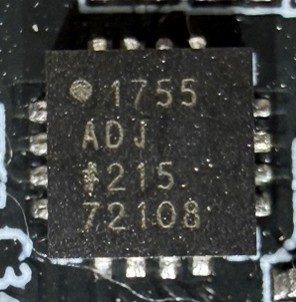

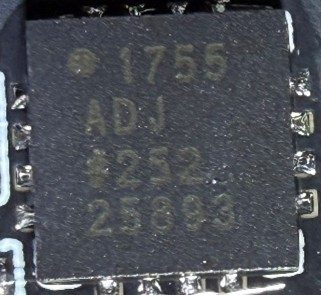

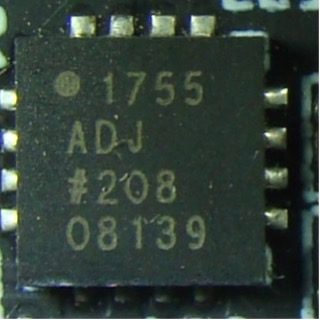

- 1755ADJ
#215
72108
Voltage regulator
An Analog Devices adjustable low-dropout voltage regulator. External resistors set the exact output voltage it supplies to a particular group of chips on the satellite receiver board.record ↗

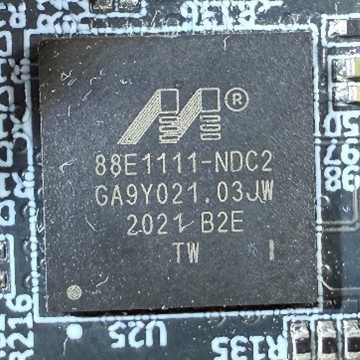

- 88E1111-NDC2
GA9Y021.03JW
2021 B2E
TW
Ethernet transceiver
A Marvell 88E1111 Gigabit Ethernet physical-layer transceiver. It links the satellite receiver’s processor to a standard Ethernet connector, so the unit can be wired into a network for testing or data transfer.record ↗

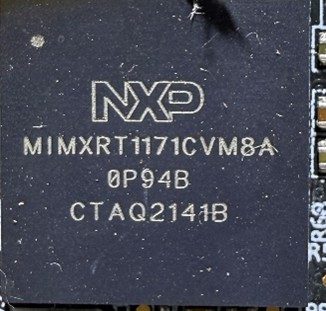

- MIMXRT1171CVM8A
0P94B
CTAQ2141B
Microcontroller
An NXP i.MX RT1170 crossover microcontroller, a 32-bit ARM Cortex-M7 running at up to 1 GHz. It is the main processor of the NASIR satellite receiver, controlling the FPGA and running the navigation software.record ↗
Inertial navigation system unit SADRA
Блок інерційно-навігаційної системи SADRA
An inertial measurement unit, combining gyroscopes and accelerometers, that keeps track of the munition’s motion when satellite navigation is degraded or lost.
1 / 3
Photo: HUR War & Sanctions
- Board

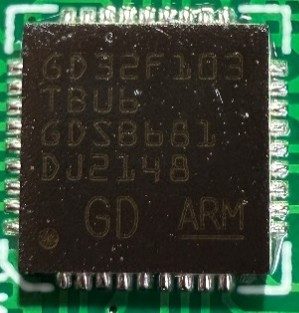

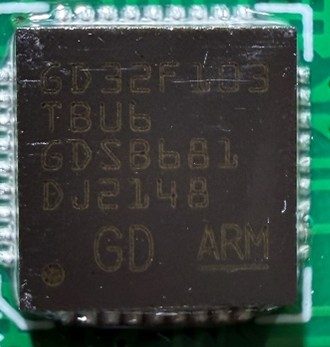

- GD32F103
TBU6
GDS8681
DJ2148
GD
Microcontroller 32-bit
A GigaDevice 32-bit ARM Cortex-M3 microcontroller, a close pin-compatible copy of the STMicroelectronics STM32F103. On this board of the SADRA inertial unit it handles housekeeping tasks and serial I/O.record ↗

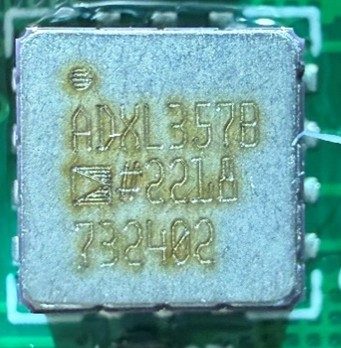

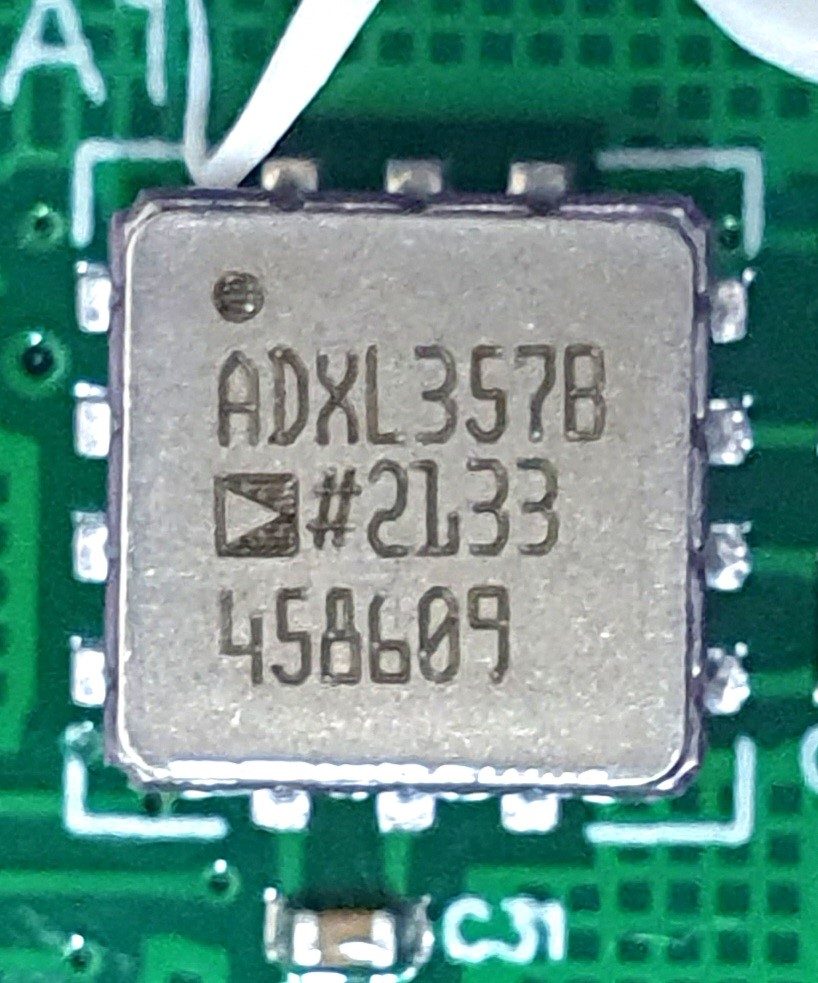

- ADXL3578
#2218
732402
Accelerometer
An Analog Devices low-noise three-axis MEMS accelerometer. It senses the drone’s acceleration along three axes; the navigation computer integrates these readings over time to estimate motion between GNSS fixes.record ↗
- Board 2

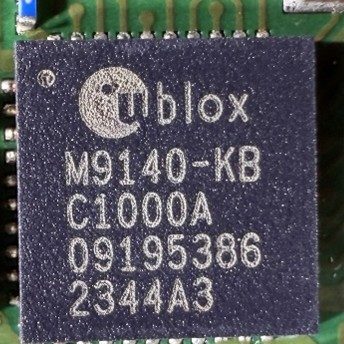

- M9140-KB
C1000A
09195386
2344A3
GNSS module
A u-blox M9 series GNSS receiver module from Switzerland. It tracks GPS, GLONASS, Galileo and BeiDou satellites simultaneously and reports position, velocity and time to the inertial navigation board.record ↗

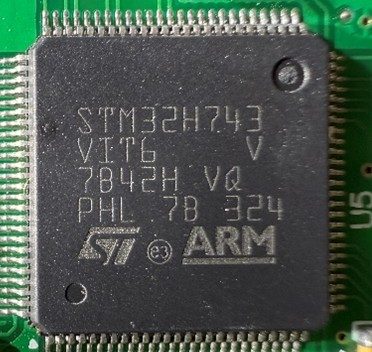

- STM32H743VIT6
7B42H VQ
PHL 7B 324
Microcontroller 32-bit
An STMicroelectronics STM32H743 microcontroller, a high-performance 32-bit ARM Cortex-M7 running at up to 480 MHz. It is the main processor on the second board of the SADRA navigation unit.record ↗
- Board 1

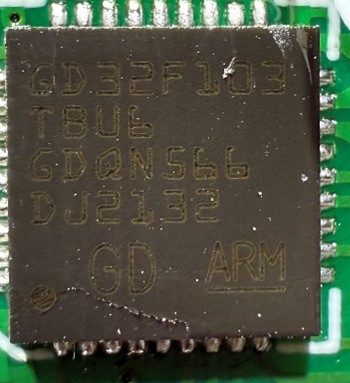

- GD32F103TBU6
GDQN566
DJ2132
GD
Microcontroller 32-bit
A GigaDevice 32-bit ARM Cortex-M3 microcontroller, a copy of the STMicroelectronics STM32F103. It handles I/O and housekeeping on the first board of the SADRA inertial navigation unit.record ↗

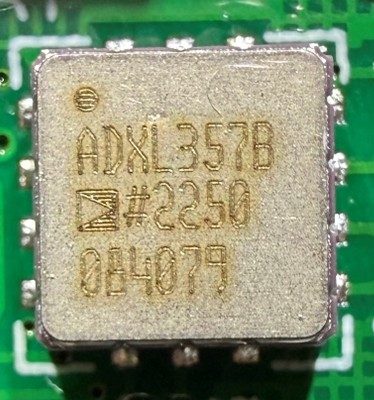

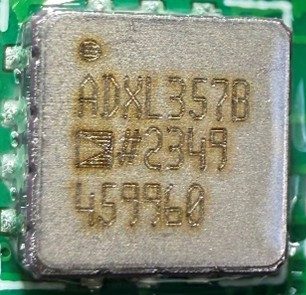

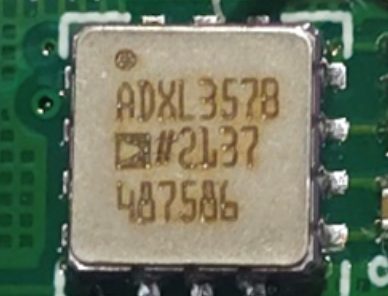

- ADXL357B
#2250
084079
Low noise 3-axis MEMS accelerometer
An Analog Devices ADXL357 low-noise three-axis MEMS accelerometer. It measures acceleration along three axes; the navigation processor integrates its output to estimate position when satellite signals are jammed or lost.record ↗

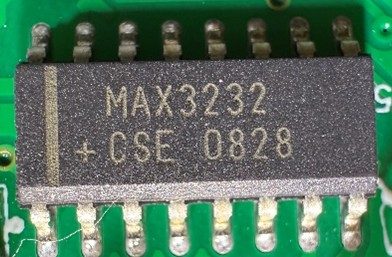

- MAX3232
+CSE 0828
Multichannel RS-232 line driver and receiver
A Maxim MAX3232 dual RS-232 line driver and receiver. It converts the microcontroller’s logic-level serial signals to the higher voltages used on an RS-232 port, letting the board talk to external equipment during ground testing or configuration.record ↗

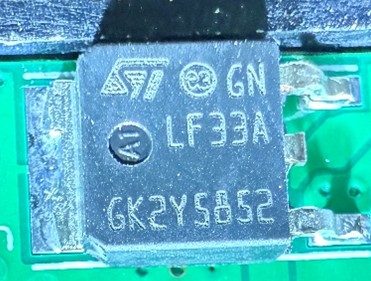

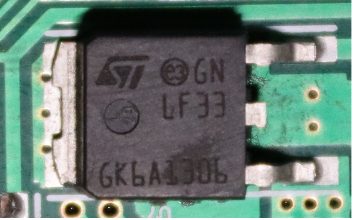

- GN
LF33A
GK2Y5852
Voltage regulator
An STMicroelectronics LF33 linear voltage regulator. It takes the board’s input supply and delivers a steady 3.3 V to the digital chips around it.record ↗
- M3000A
05875087
1933A3
GNSS module
A u-blox GNSS receiver module from Switzerland, dated week 33 of 2019. It tracks positioning satellites and reports position, velocity and time to the navigation board; a second, newer u-blox module is fitted on the companion board.record ↗

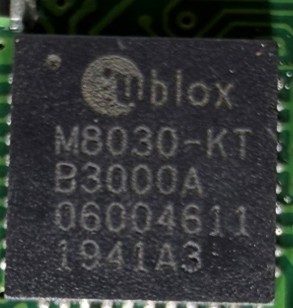

- M8030-KT
B3000A
06004611
1941A3
GNSS module
A U-blox M8030 multi-GNSS receiver module from Switzerland, able to use GPS, GLONASS, Galileo and BeiDou satellites. It provides the drone’s position and timing. Dated to the 9th week of 2025.record ↗

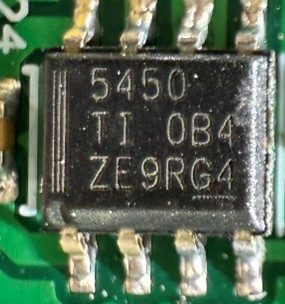

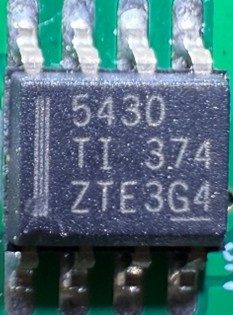

- 5430
TI 374
ZTE3G4
Step-down converter
The TPS5430 is a step-down (buck) switching regulator from Texas Instruments. It converts the main supply down to a lower voltage that powers the electronics inside the inertial navigation unit.record ↗

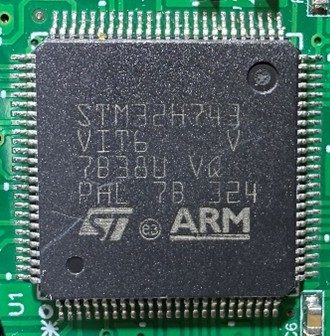

- STM32H743VIT6
7B38U VQ
PHL 7B 324
Microcontroller 32-bit
An STMicroelectronics STM32H743 microcontroller, a 32-bit ARM Cortex-M7 running at up to 480 MHz. It is the main processor on the first board of the SADRA inertial navigation unit.record ↗

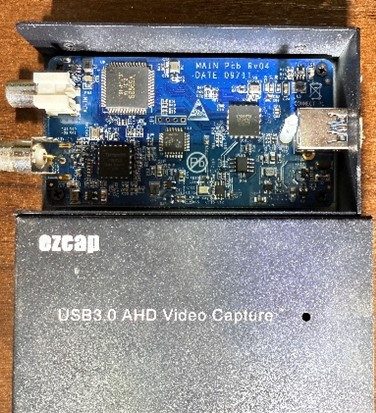

Video stream capture unit
Блок захоплення відеопотоку
EZCAP USB3.0 AHD Video Capture
An EZCAP USB 3.0 AHD video capture device from Chinese maker ForwardVideo. It takes an analogue high-definition camera feed and presents it to a computer as a USB video stream.
Photo: HUR War & Sanctions
- Board U-RSD-911A-U1

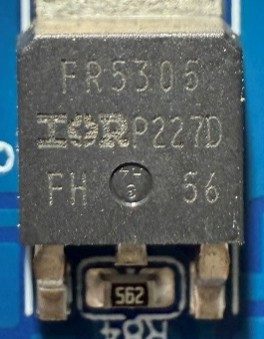

- FR5305
P227D
FH 56
Transistor
The International Rectifier IRFR5305 is a power MOSFET, a transistor used as an electronic switch. On the video-capture board it switches a power rail on and off under logic control.record ↗

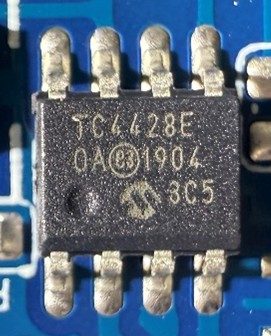

- TC4428E
0A 1904
3C5
MOSFET Driver
The Microchip TC4428 is a dual MOSFET gate driver. It converts weak logic signals into the strong, fast pulses needed to turn power transistors on and off cleanly on the video-capture board.record ↗
- ATMLH835

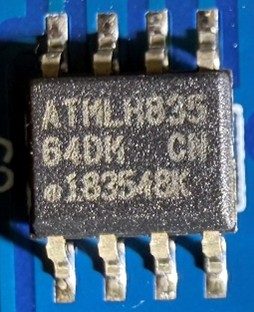

64DM CN
183548K
Memory chip
An Atmel serial EEPROM memory chip. It holds a small amount of configuration data for the video-capture board that must be preserved when the drone is powered off.record ↗

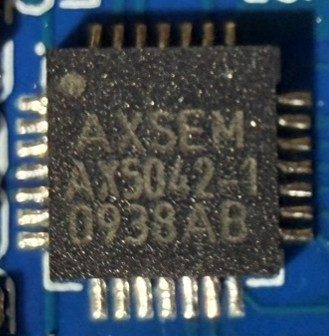

- AXSEM
AX5042-1
0938AB
Transceiver
The Axsem AX5042 is a low-power sub-gigahertz radio transceiver. It handles sending and receiving radio packets, giving the video-capture unit a wireless telemetry or control link.record ↗
- AMS1117
1.8 2128
Voltage stabilizer
The AMS1117-1.8 is a linear voltage regulator producing a fixed 1.8-volt output. It supplies that voltage to parts of the video-capture board that need it, such as processor cores.record ↗
- AMS1117
3.3 2220
Voltage stabilizer
The AMS1117-3.3 is a linear voltage regulator producing a fixed 3.3-volt output. It powers the 3.3-volt logic chips on the video-capture board.record ↗

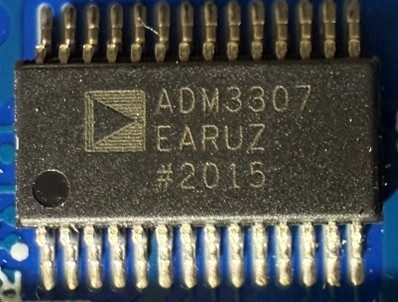

- ADM3307
EARUZ
#2015
Transceiver
The Analog Devices ADM3307 is an RS-232 serial-port transceiver. It converts the video-capture board’s logic-level signals to the voltages used by RS-232 cables, allowing a wired serial connection.record ↗
- Board U-RSD-950A-US
- 2605Y

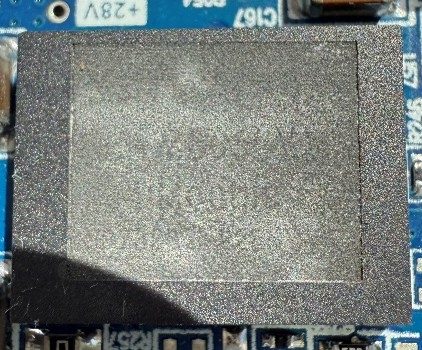

Umodule
№87323
2233
DC/DC module
A DC-to-DC converter module from Linear Technology, packaged as a single component. It steps one supply voltage up or down to another on the video-capture board; the marking on the recovered part was erased.record ↗
- B367
ARUZ
#017

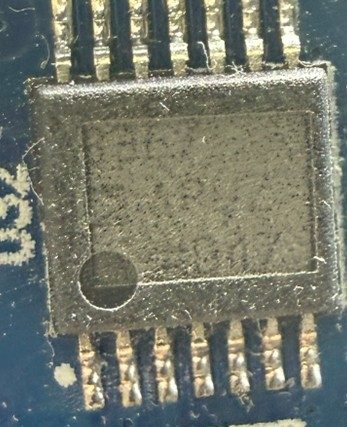

Linear driver
A linear driver chip made by Analog Devices. It is used on the video-capture board to buffer or amplify a signal, driving a load the preceding stage cannot drive on its own.record ↗

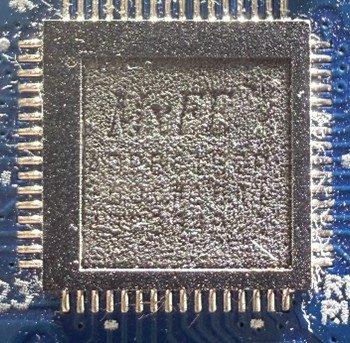

- MxFE
Microcircuit
Analog Devices markets its MxFE family as mixed-signal front-end chips combining high-speed analogue-to-digital and digital-to-analogue converters. On the video-capture board one of these handles the conversion between radio-frequency signals and digital data; the recovered marking was erased.record ↗
Unit TX-RSD-902-A3 (data transmission subsystem)
Блок TX-RSD-902-A3 (підсистема передачі даних)
TX-RSD-902-A3, an Iranian data transmission subsystem. It is the radio unit that carries telemetry and command traffic between the drone and its operators.
Photo: HUR War & Sanctions
- Board 2

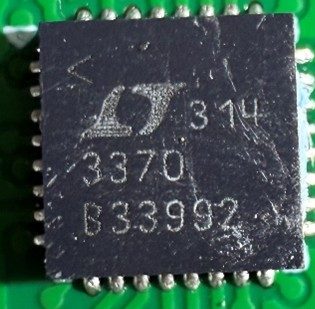

- 314
3370
B33992
Linear Regulator
A Linear Technology low-dropout linear regulator that produces a clean fixed voltage for the sensitive analogue circuits on the data-link board.record ↗

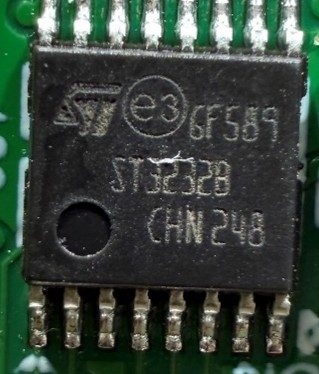

- GF589
ST3232B
CHN248
RS-232 driver
An STMicroelectronics RS-232 driver/receiver chip that lets the data-link board exchange serial data with another device over a standard serial port.record ↗

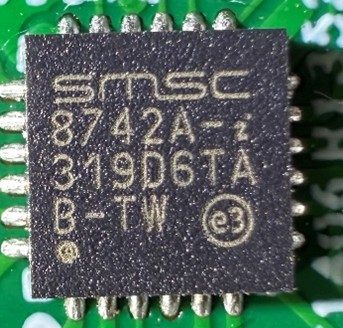

- LAN8742A
SMSC
8742A-i
319D6TA
B-TW
10/100 Ethernet Transceiver
The LAN8742A is a Microchip 10/100 Mbit/s Ethernet physical-layer transceiver. In this drone it connects the data-transmission board to a wired network link, converting digital signals into the electrical pulses carried over the Ethernet cable.record ↗

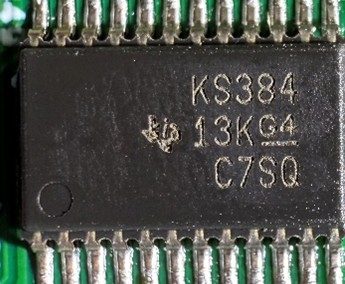

- SN74CB3T3384
KS384
13K G4
C7SQ
10-channel general-purpose FET bus switch
The Texas Instruments SN74CB3T3384 is a ten-bit bus switch built from field-effect transistors. It lets the data-transmission board route or isolate groups of digital signals between chips without the delay of a conventional logic buffer.record ↗
- Board 1

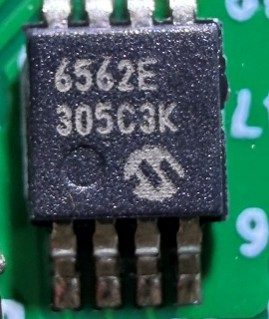

- 6562E
305C3K
Comparator
A comparator is a small analogue chip that reports which of two input voltages is higher. On this board it is used as a threshold detector, flipping its output when a monitored signal crosses a reference level.record ↗

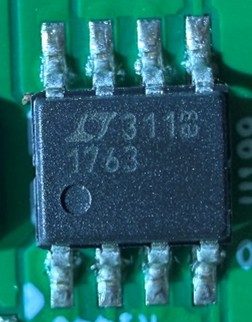

- 311
1763
Linear stabilizer
A linear voltage regulator produces a stable lower voltage from a higher input. It supplies clean power to sensitive parts of the data-transmission board, smoothing out noise from the drone’s main supply.record ↗

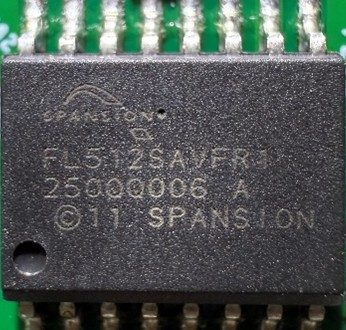

- FL512SAVFR1
2500006 A
11 SPANSION
Memory chip
The Spansion FL512S is a 512-megabit NOR flash memory chip. It stores the firmware the data-transmission board runs when the drone is powered up.record ↗

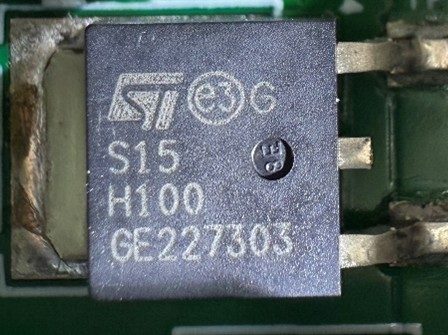

- S15
H100
GE227303
Linear Regulator
A linear regulator by STMicroelectronics providing a fixed lower voltage from the board’s input rail. It feeds a specific group of components on the data-transmission board at the voltage they are designed for.record ↗

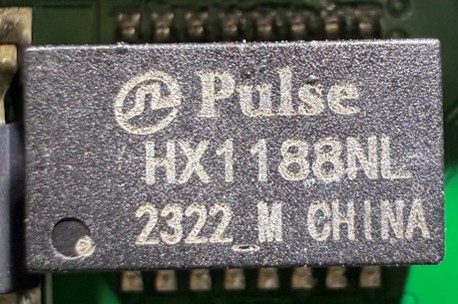

- HX1188NL
2322 M CHINA
10/100BASE-T with one port and different wrapping ratios
The Pulse Electronics HX1188NL is a magnetics module for a single 10/100BASE-T Ethernet port. It sits between the Ethernet transceiver and the cable, matching impedances and blocking stray direct current.record ↗
AV.Panel launch panel
Панель запуску AV.Panel
A launch control panel, the operator console used on the ground to set the mission and send the drone on its way.
Photo: HUR War & Sanctions

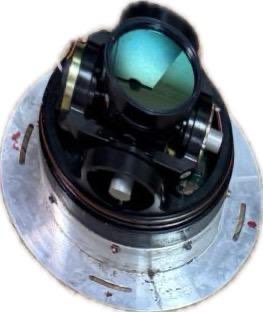

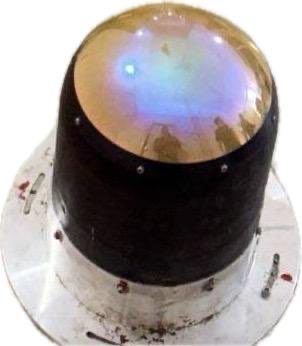

Analog infrared video camera
Аналогова інфрачервона відеокамера
SH.2.125.019
An infrared video camera that senses heat and outputs the picture as an analogue signal. On the Geran-2 it provides the vehicle’s imaging sensor payload.
1 / 2
Photo: HUR War & Sanctions
- Board 3

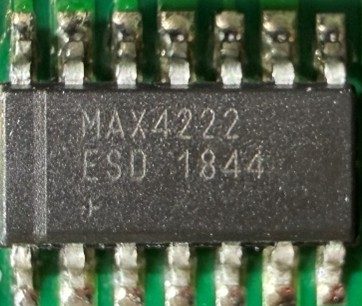

- MAX4222
ESD 1844
+
Rail-to-Rail Buffer
A rail-to-rail op-amp buffer from Maxim Integrated, used on the camera’s third board to pass analogue signals cleanly between stages without loading them.record ↗

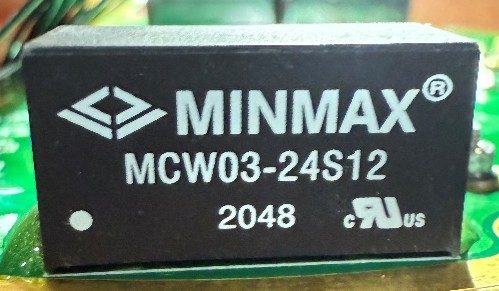

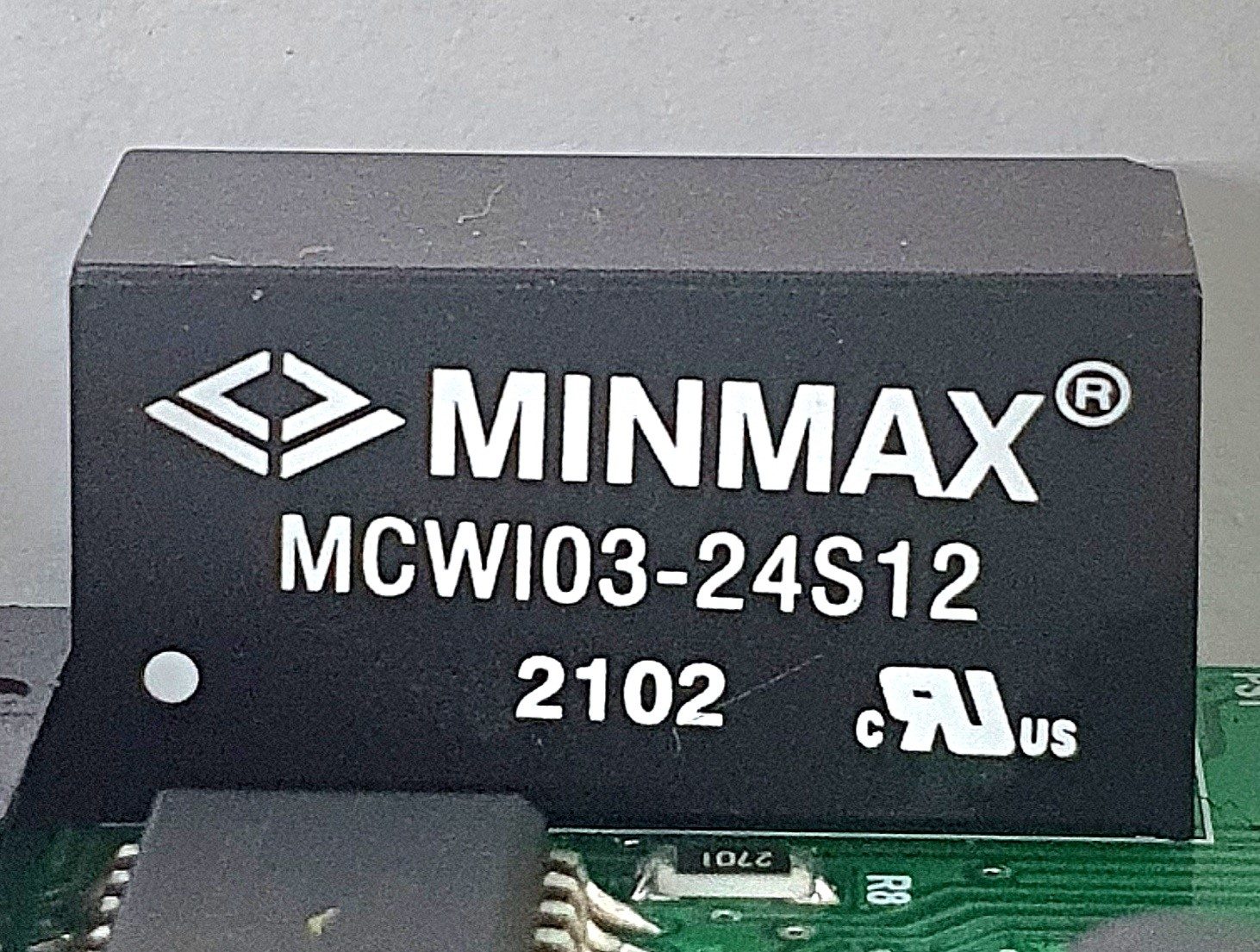

- MCW03-24S12
2048
DC/DC converter
A compact DC/DC converter module from Minmax that produces a regulated 12 V output from a 24 V input to power electronics on the camera’s third board.record ↗

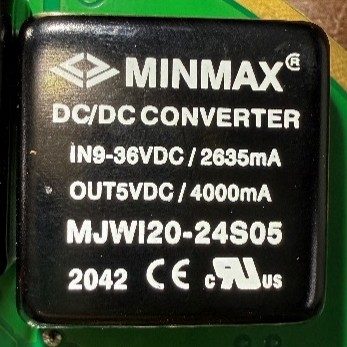

- IN9-36VDC/2635 mA
OUT5VDC/4000 Ma
MJWI20-24s05
2042
DC/DC converter
A Minmax DC/DC converter that takes a 9-36 V input and produces a regulated 5 V, 4 A output to feed the camera board’s low-voltage electronics.record ↗
- Board 2

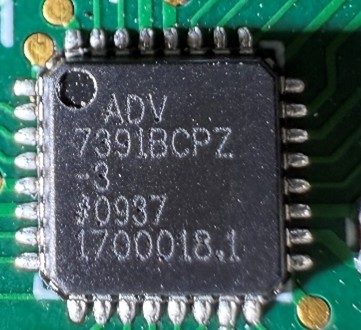

- SD/HD відеокодер
SD/HD video encoder
An Analog Devices video encoder chip that packages the camera’s digital pixel stream into a standard-definition or high-definition video signal.record ↗

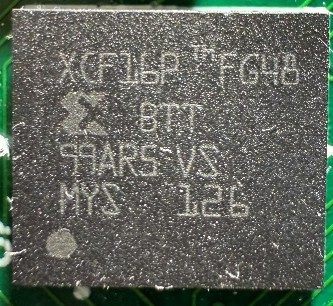

- XCF16P FG48
BTT
99ARS VS
MYS 126
Memory chip
A Xilinx platform-flash memory chip that stores the configuration bitstream used by an FPGA on the camera board at power-up.record ↗

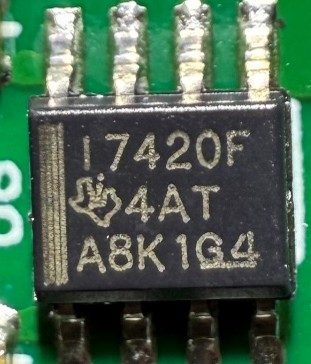

- I7420F
4AT
A8K1 G4
Digital isolator
A Texas Instruments digital isolator. It carries digital signals between two circuits while blocking electrical connection, protecting one side from voltages on the other.record ↗
- TMS320
F28335PGFA
G4A-06ACQPW
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- Board 1

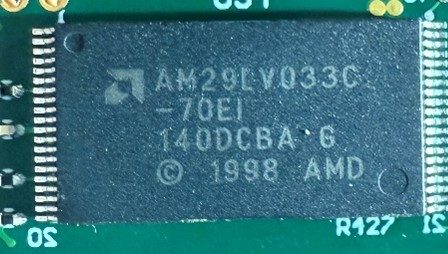

- AM29LV033C
-70E
140ODCBA 6
1998 AMD
Memory chip
A 32 Mbit AMD flash memory chip on the camera board, holding firmware or image data for the onboard processor.record ↗

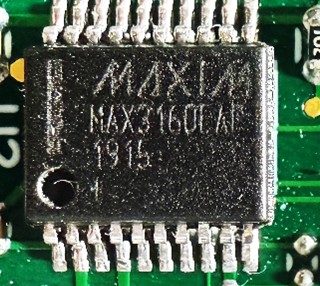

- MAX3160EAp
1915
+
RS-485/422 Multiprotocol Transceiver
A Maxim Integrated multiprotocol transceiver that lets the camera board send and receive data over RS-485 or RS-422 serial links.record ↗

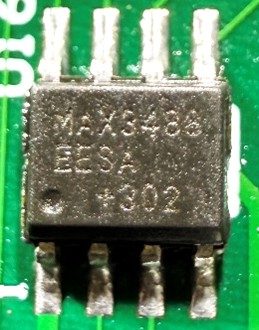

- MAX3486
EESA
+302
RS-485/RS-422 converter
A Maxim Integrated line driver that turns logic-level signals into the differential pairs used by RS-485 and RS-422 serial connections.record ↗

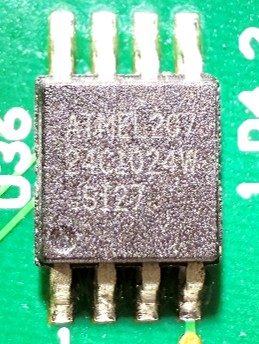

- ATMEL207
24C1024W
S127
Schmitt-trigger
An Atmel AT24C1024 serial EEPROM, a small non-volatile memory used on the camera board to hold calibration constants or other configuration data.record ↗
- XC6SLZ45
CSC484DIV2217
0670311A
21
TAIWAN

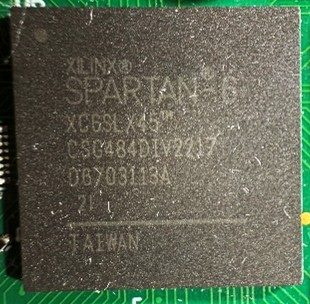

PLD
A Xilinx Spartan-6 family programmable logic device. On this camera board it carries the custom logic that handles the video signal.record ↗

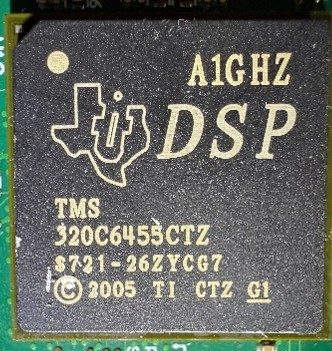

- A1GHZ
DSP
TMS
320C6455CTZ
S721-26ZYCG7
2005 TI CTZ G1
Digital signal processor
A Texas Instruments TMS320C6455, a 1 GHz digital signal processor that performs the heavy video and signal processing on the camera’s main board.record ↗
- IMH22
D9MDR

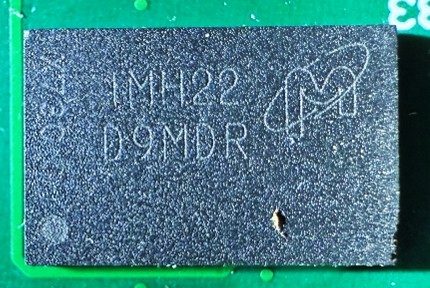

Memory chip
A Micron Technology DDR SDRAM chip, used as working memory for the digital signal processor on the camera’s main board.record ↗
Flight controller
Польотний контролер
The flight controller, the small onboard computer that reads the sensors and drives the control surfaces and engine to keep the drone on its programmed route.
Photo: HUR War & Sanctions
- G110 satellite receiver board

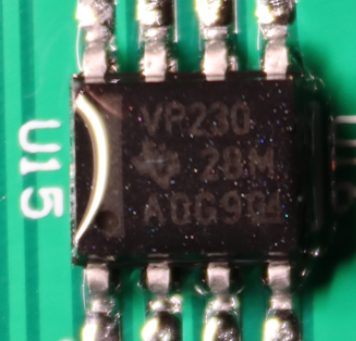

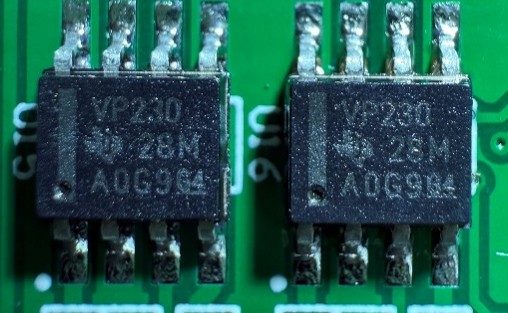

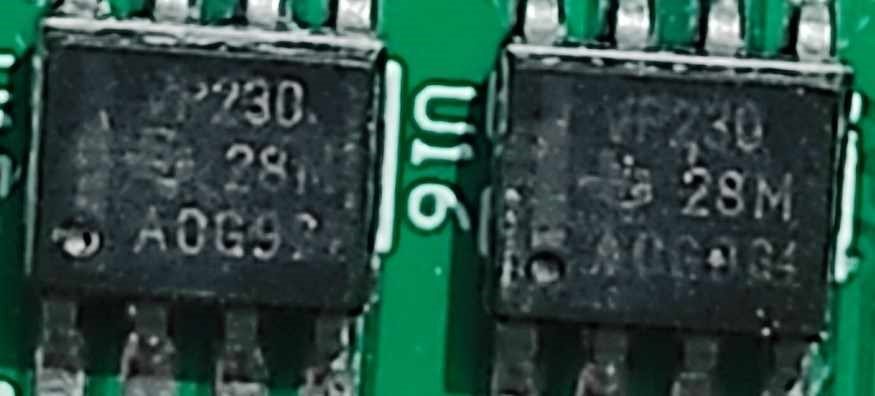

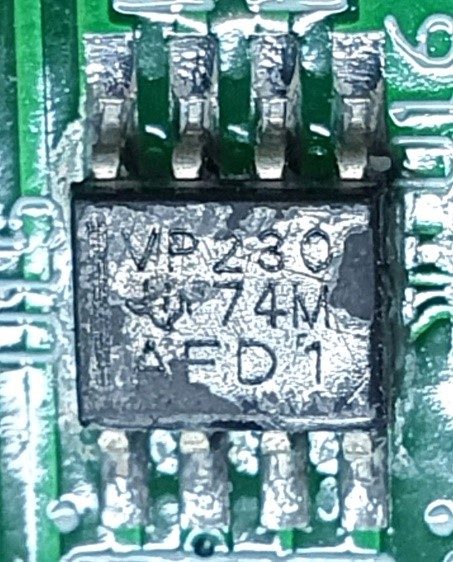

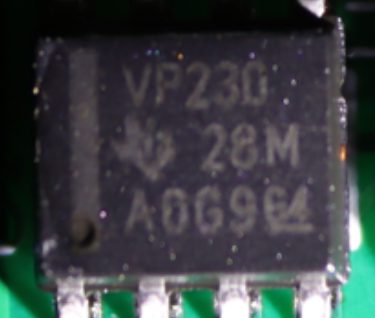

- VP230
28M
AOG9G4
CAN Bus Transceiver
The Texas Instruments SN65HVD230-family VP230 is a CAN-bus transceiver. On the flight controller it converts the microcontroller’s logic signals to the differential pair used by the satellite-receiver board to exchange navigation data.record ↗

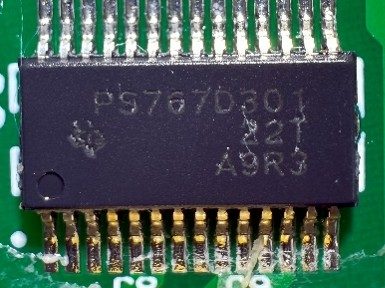

- PS767D301
22T
A9R3
Voltage regulator with two outputs
The Texas Instruments TPS767D301 is a dual-output low-dropout regulator. It supplies two separate stable voltages to the satellite-receiver board inside the flight controller.record ↗

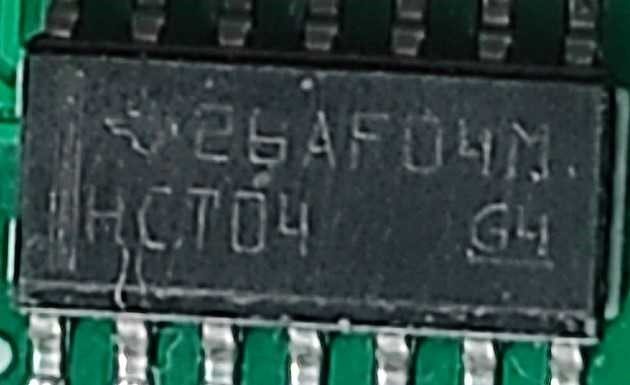

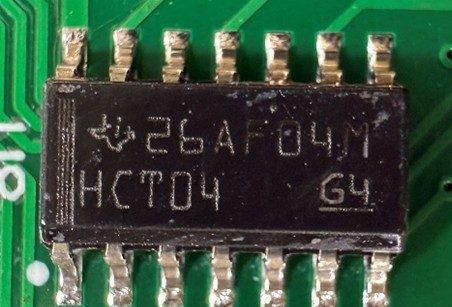

- 26AF04M
HCT04 G4
Assembly of inverters
The Texas Instruments SN74HCT04 is a chip containing six logic inverters. It flips digital signals from high to low and back, a common building block used on the satellite-receiver board.record ↗

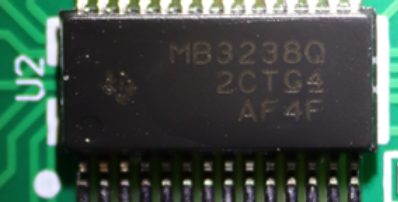

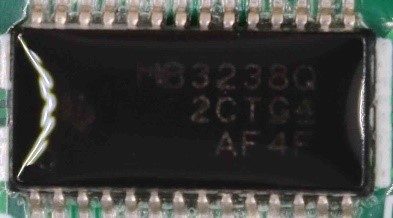

- MB3238Q
2CTG4
AF4F
Multi-channel RS-232 line driver/receiver
A multi-channel RS-232 line driver and receiver. It translates between the microcontroller’s low-voltage logic and the higher voltages of the RS-232 serial standard, letting the satellite-receiver board exchange data with external equipment.record ↗

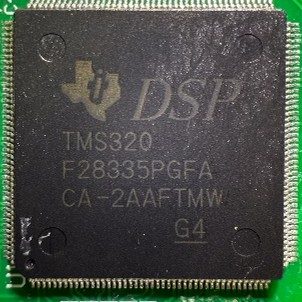

- TMS320
F28335PGFA
CA-2AAFTMW
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
Air pressure measuring unit AIRDATA COMPUTER (ADC)
Блок вимірювання повітряного тиску AIRDATA COMPUTER (ADC)
An air data computer. It measures static and dynamic air pressure and converts them into the airspeed and altitude values the flight controller uses.
Photo: HUR War & Sanctions
- Board
- ADS122U
87K G4
A8R8
Analog-to-Digital Converter 24 bit
A 24-bit precision analog-to-digital converter from Texas Instruments. On the air data computer board it digitises the small voltage changes from the pressure sensors so the flight computer can read altitude and airspeed.record ↗

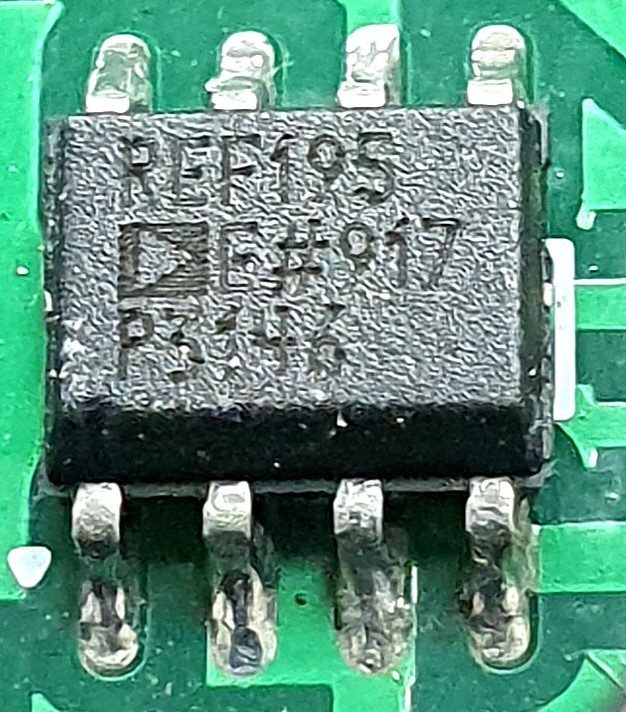

- REF195
E#225
P5699
Reference voltage source
The REF195 is a precision 5-volt reference from Analog Devices. It supplies a stable reference voltage for the analog-to-digital conversion of the pressure-sensor signal.record ↗

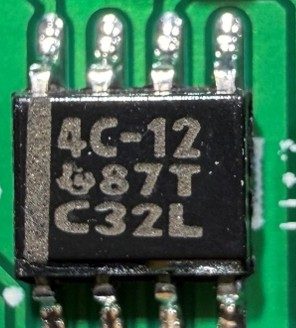

- 4C-12
87T
C32L
Reference voltage source
A precision voltage reference. It supplies a stable, known voltage against which the ADC on the same board compares its inputs, so a pressure reading does not drift as the supply voltage shifts.record ↗

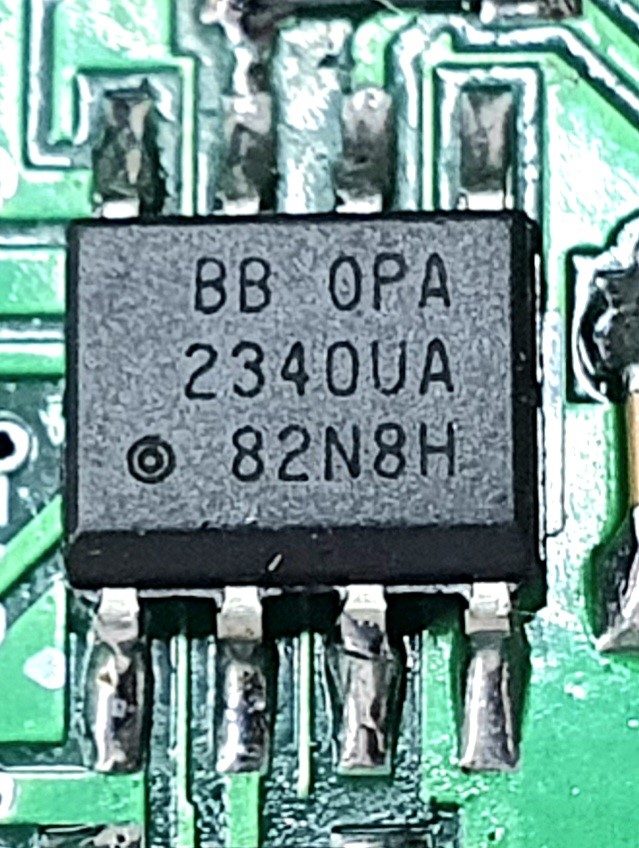

- BB OPA
234OUA
1B8FV
Operational amplifier
The OPA2340 is a dual precision operational amplifier from Texas Instruments. It amplifies and conditions the small analogue signal from the pressure sensor before it reaches the analog-to-digital converter.record ↗
- 980 YF
TM4C1230
C3PMI
83AP9RW
G4
Microcontroller
A Texas Instruments Tiva TM4C1230 microcontroller, a 32-bit ARM Cortex-M4 chip. It runs the air data computer’s own program: reading the ADC, calculating airspeed and altitude, and passing the result to the autopilot.record ↗

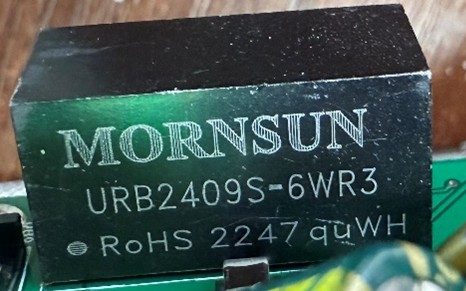

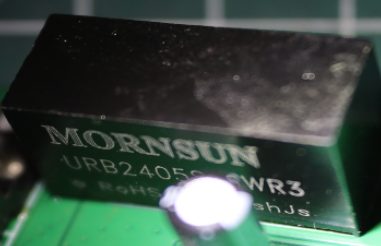

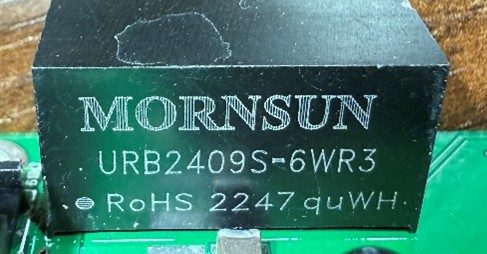

- URB2409S-6WR3
RoHS 2247 quWH
DC/DC converter
An isolated DC-DC converter from Chinese maker MORNSUN, taking a 24 V input and delivering a regulated 9 V output at up to 6 W. It powers the air data computer board and keeps its ground separate from the drone’s supply.record ↗
- ADM3232E
ARWZ
#2244
6033871.1
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗

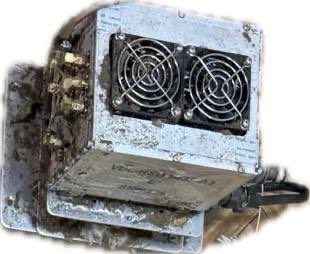

Unit VDL-RSD-943F-A3 (VHF data link, data transmission subsystem)
Блок VDL-RSD-943F-A3 (VHF data link, підсистема передачі даних)
The VHF data-link module, carrying telemetry and command traffic between the drone and a ground station or relay.
Photo: HUR War & Sanctions
- Board

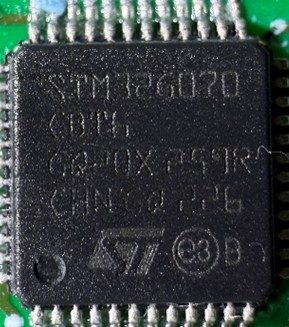

- STM32G070CBT6
GQ20X259R
CHN GQ 226
Microcontroller 32-bit
An STMicroelectronics STM32G070 32-bit microcontroller based on an ARM Cortex-M0+ core, running the control logic of the VHF data-link board.record ↗

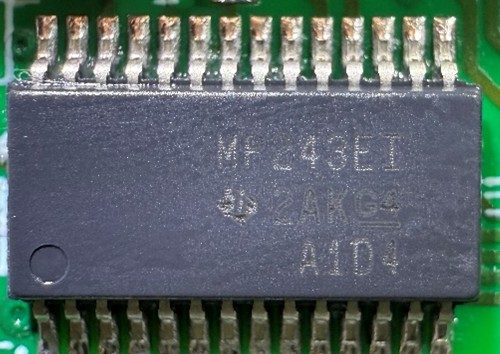

- MF243EI
2AK G4
A1D4
Microcircuit
A Texas Instruments integrated circuit found on the VHF data-link board. The record does not state its exact role.record ↗
Voltage regulator block
- Rubycon 35v1000mkF ZLH
Electrolytic capacitor
A Rubycon ZLH-series aluminium electrolytic capacitor rated 1000 microfarads at 35 volts. It smooths the output of the voltage-regulator block, absorbing current spikes and filtering ripple from the supply rail.record ↗
Transition board for Nvidia Jetson

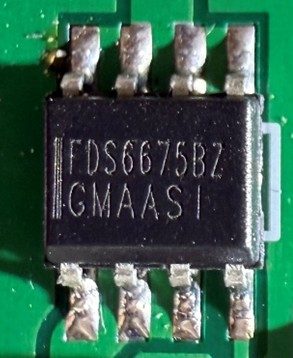

- FDS6675BZ
GMAASI
Transistor
The ON Semiconductor FDS6675B is a P-channel power MOSFET in a small surface-mount package. On the adapter board for the Nvidia Jetson it switches a power rail to the Jetson module on command.record ↗
- 5450
TI 0B4
ZE9RG4
Step-down converter
A Texas Instruments step-down (buck) switching converter. It takes the drone’s higher supply voltage and produces the lower, higher-current rail the Nvidia Jetson module needs to run.record ↗

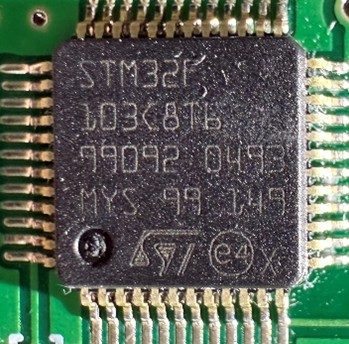

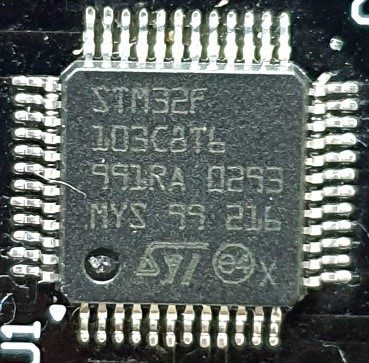

- STM32F103C8T6
99092 0493
MYS 99 149
Microcontroller 32-bit
The STMicroelectronics STM32F103C8T6 is a 32-bit ARM Cortex-M3 microcontroller with 64 kilobytes of flash. On the Jetson adapter board it handles housekeeping tasks around the Jetson, such as power sequencing and communication with the rest of the drone.record ↗
CRP antenna
CRP антена
An externally mounted antenna assembly used by the drone’s radio-navigation electronics. The record does not identify its maker.
Photo: HUR War & Sanctions
Engine
Двигун
MD550
The MADO MD-550, a two-stroke piston engine made in Iran and widely reported as a copy of Germany’s Limbach L550E. It drives the propeller that provides the drone’s thrust.
Photo: HUR War & Sanctions
Passive radar homing head for the ‘Geran-2’ UAV (PRGS-UAV) record ↗
PRGS monoblock
- Digital signal processing module
- 6N136
23098
Optocoupler
An ON Semiconductor 6N136 optocoupler. It passes a digital signal across a light gap inside the package, so the digital signal processing module can exchange control signals with other parts of the PRGS unit without a shared electrical ground.record ↗
- Power supply module
- 1R0
1265XT
Power inductor
A TDK power inductor of about one microhenry. It stores energy in its magnetic field inside a switching power supply, helping convert the drone’s bus voltage to the lower voltages the PRGS electronics need.record ↗

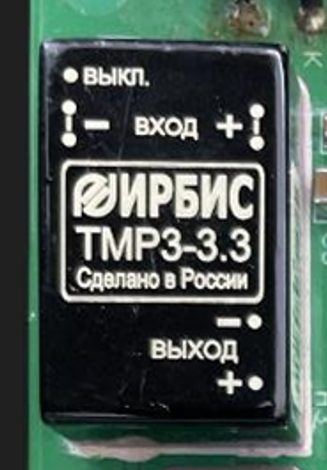

- ТМР3-3.3
DC/DC converter
A DC/DC converter made by Russian firm MMP-IRBIS, part of the power supply module inside the PRGS monoblock. It steps an input voltage up or down to produce the 3.3 V rail that the surrounding electronics need.record ↗

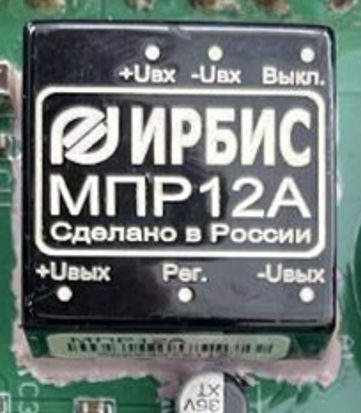

- МПР12А
DC/DC converter
A DC/DC converter made by Russian firm MMP-IRBIS, sitting in the power supply module of the PRGS monoblock. It converts the drone’s battery voltage into a regulated supply for the boards around it.record ↗
- Digital signal processing module

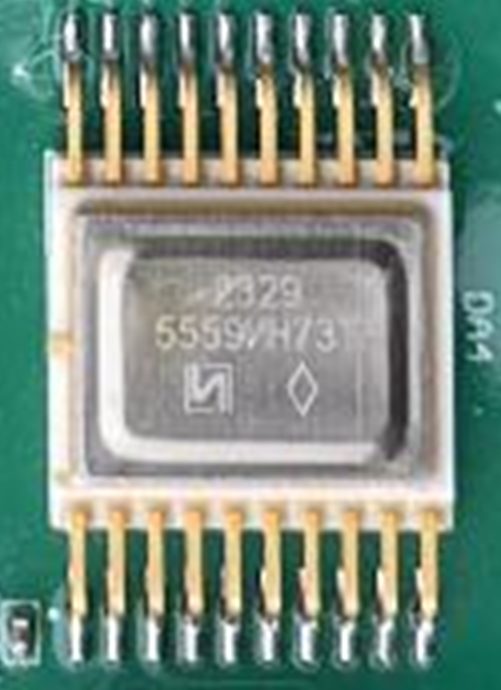

- 2329
5559ИН73Т
Dual manchester code transceiver
A dual Manchester-code transceiver made by Belarusian chipmaker Integral, in the digital signal processing module of the PRGS monoblock. It encodes and decodes two serial data channels used to pass signals between boards.record ↗

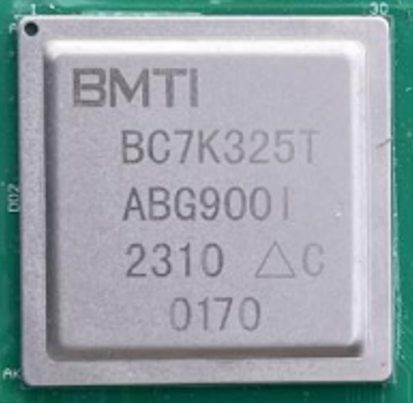

- BC7K325T
ABG900I
2310 C
0170
CPLD
A complex programmable logic device (CPLD) from China’s Beijing Microelectronics Technology Institute, inside the PRGS monoblock’s digital signal processing module. It carries user-programmed digital logic that glues the module’s other chips together.record ↗
Geran-2 UAV record ↗
Flight controller
- Board

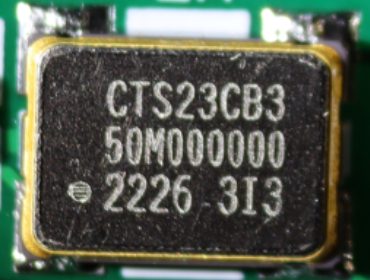

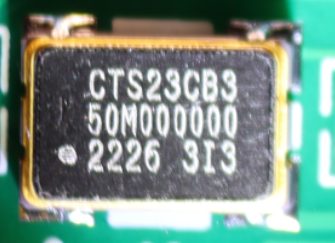

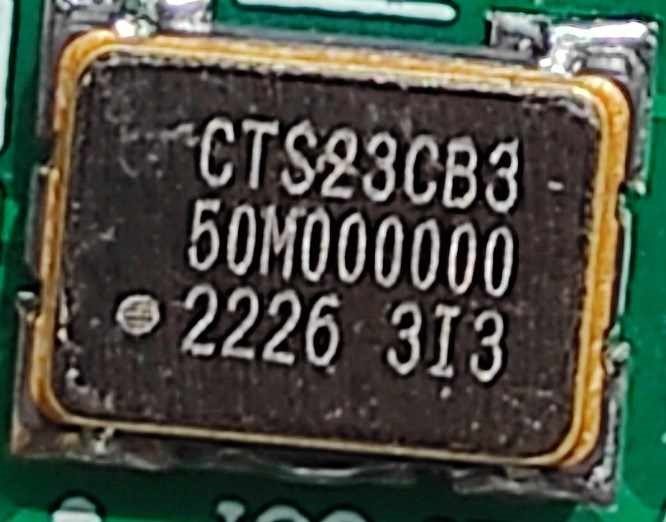

- CTS39CB3
50M000000
2226 3I3
Clock oscillator 50MHz
A 50 MHz clock oscillator made by US company CTS Corporation, on the flight controller board. It provides the stable timing reference that the board’s digital circuits run on.record ↗

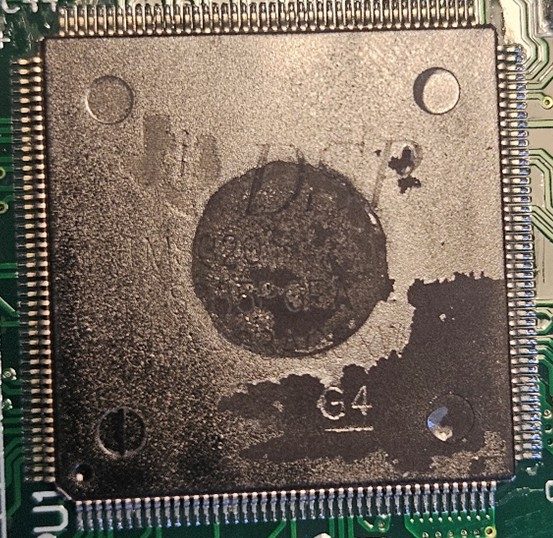

- TMS320
Digital signal processor
A Texas Instruments TMS320 digital signal processor, the main compute chip on the flight controller board. It runs the control-loop maths that keeps the drone flying and follows its programmed route.record ↗
- VP230
TI48M
A4YD
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It is the physical-layer interface that lets the processor exchange messages with other units over a CAN data bus.record ↗
- MB3238I
44K G4
C4NQ
Multi-channel RS-232 line driver/receiver
A Texas Instruments multi-channel RS-232 line driver/receiver on the flight controller board. It converts the processor’s logic-level serial signals to and from the RS-232 voltages used on an external serial link.record ↗
- PS767D301
21T
ALRC
Voltage regulator with two outputs
A Texas Instruments dual-output voltage regulator on the flight controller board. It produces two regulated supply rails for the processor and surrounding circuitry.record ↗

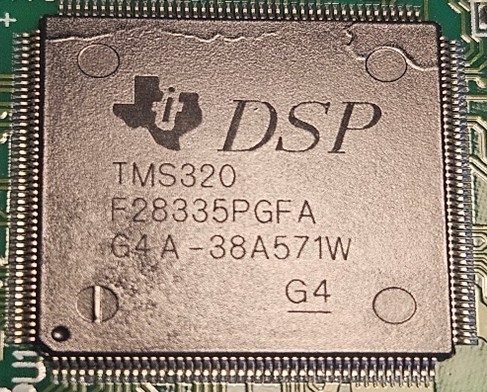

- TMS320F28335PGFA
G4A -38A571W
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- 4AT
AC250V
Fuse
A 4-amp time-lag fuse that tolerates brief current surges but opens on a sustained overload, protecting the satellite-navigation receiver board from short-circuit damage.record ↗

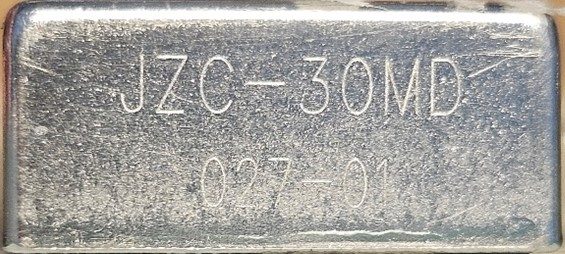

- JZC-30MD
027-01
Electromagnetic relay
A small electromagnetic relay made by Chinese manufacturer Yueli Electronic, mounted on the flight controller board. It uses a low-current coil to switch a separate electrical circuit on or off.record ↗
- VP230
TI48M
A4Y8
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It handles the electrical signalling for one of the board’s CAN data links.record ↗

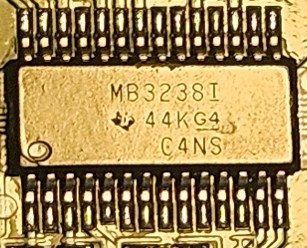

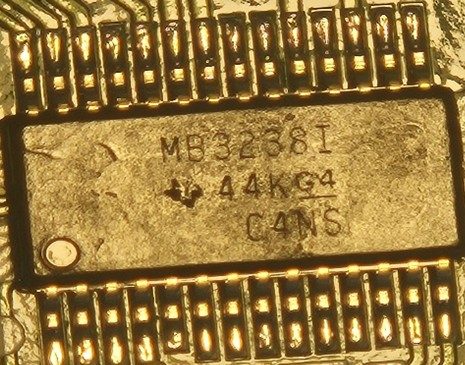

- MB3238I
44KG4
C4NS
Multi-channel RS-232 line driver/receiver
A Texas Instruments multi-channel RS-232 line driver/receiver on the flight controller board. It translates between the processor’s logic levels and the voltages used on an RS-232 serial port.record ↗
- CTS39CB3
50M000000
2402 3I3
Clock oscillator 50MHz
A 50 MHz clock oscillator from US company CTS Corporation, dated to the second week of January 2024, on the flight controller board. It supplies the timing reference for the board’s digital logic.record ↗

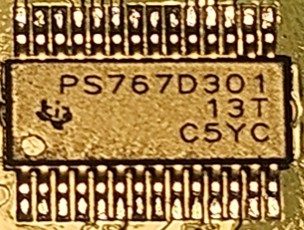

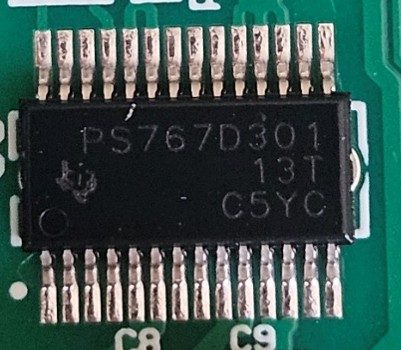

- PS767D301
13T
C5YC
Voltage regulator with two outputs
A Texas Instruments dual-output voltage regulator on the flight controller board. It generates two regulated supply rails for the chips around it.record ↗

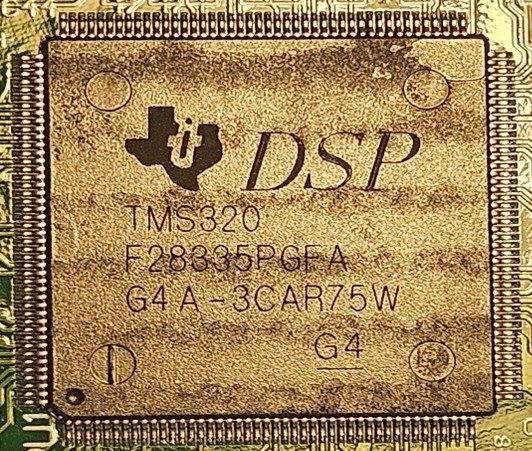

- TMS320F28335PGFA
G4A -3CAR75W
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- VP230
TI48M
A4Y8
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It drives and receives the differential signals of a CAN data bus on behalf of the processor.record ↗
- MB3238I
44KG4
C4NS
Multi-channel RS-232 line driver/receiver
A Texas Instruments multi-channel RS-232 line driver/receiver on the flight controller board. It converts between logic-level and RS-232 signals for a serial communications port.record ↗
- CTS39CB3
50M000000
2411 3I3
Clock oscillator 50MHz
A 50 MHz clock oscillator from US company CTS Corporation, dated to the eleventh week of March 2024, on the flight controller board. It provides the stable clock the board’s digital circuits run on.record ↗
- TMS320F28335PGFA
G4A -3CASJ3W
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- PS767D301
13T
A6D3
Voltage regulator with two outputs
A Texas Instruments dual-output voltage regulator on the flight controller board. It supplies two regulated voltage rails to parts of the board.record ↗
- LM258
08K
CVK2 G4
Operational amplifier
A Texas Instruments LM258 dual general-purpose operational amplifier. In the power distribution unit it is used in small analogue conditioning circuits, typically to buffer or compare sensing voltages.record ↗

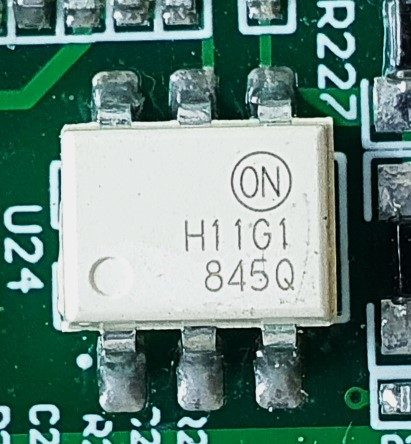

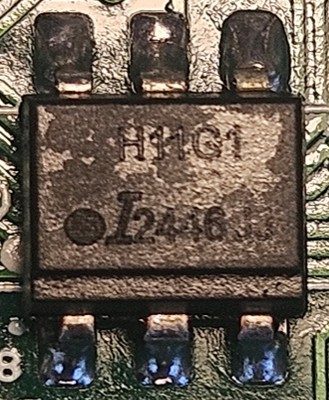

- H11G1
I2446 JJ
Optocoupler
An optocoupler made by UK firm Isocom Components, on the flight controller board. It passes a signal from one circuit to another through an internal LED and photosensor, keeping the two sides electrically isolated.record ↗

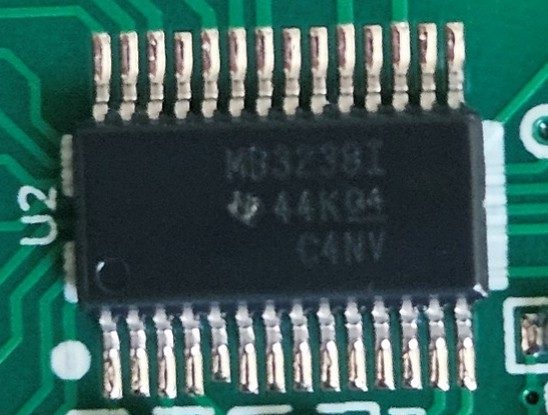

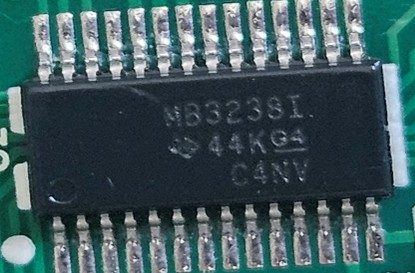

- MB3238I
44K G4
C4NV
Multi-channel RS-232 line driver/receiver
A Texas Instruments multi-channel RS-232 line driver/receiver on the flight controller board. It handles the voltage conversion needed for an RS-232 serial link.record ↗

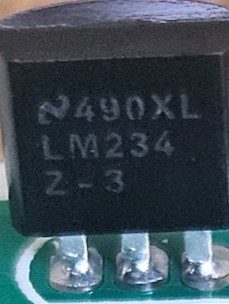

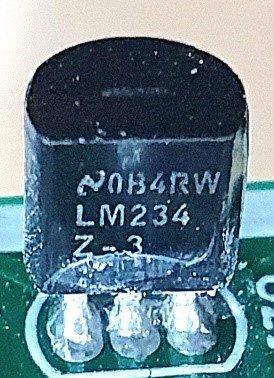

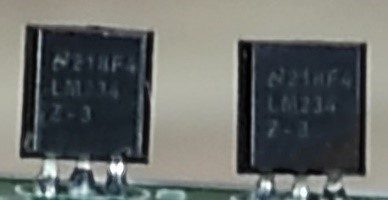

- 490XL
LM234
Z-3
Adjustable current source
An adjustable current source from National Semiconductor, now part of Texas Instruments, on the flight controller board. It delivers a programmed, steady current to a small part of the circuit regardless of modest changes in voltage.record ↗

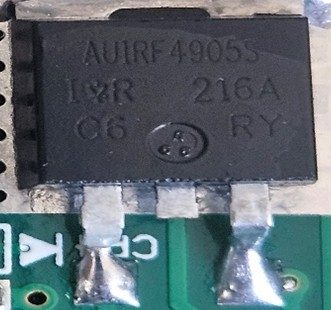

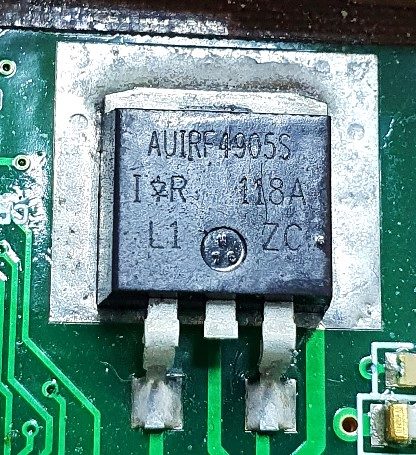

- AUIRF4905S
216A
C6 RY
P-channel MOSFET
An Infineon P-channel power MOSFET on the flight controller board. It acts as an electronic switch, used on the high side of a circuit to turn a load on and off under logic control.record ↗
- LM258
D8K
A9S0 G4
Operational amplifier
A Texas Instruments LM258 dual general-purpose operational amplifier. In the power distribution unit it is used in small analogue conditioning circuits, typically to buffer or compare sensing voltages.record ↗

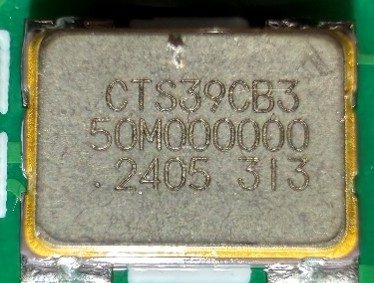

- CTS39CB3
50M000000
2405 3I3
Clock oscillator 50MHz
A 50 MHz clock oscillator from US company CTS Corporation, on the flight controller board. It supplies the timing reference for the digital logic around it.record ↗

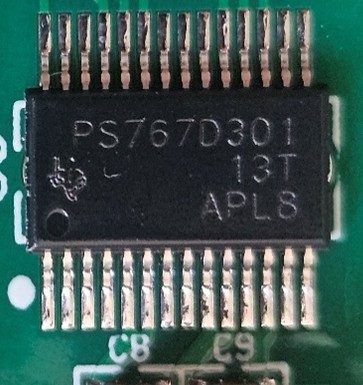

- PS767D301
13T
APL8
Voltage regulator with two outputs
A Texas Instruments dual-output voltage regulator on the flight controller board. It produces two regulated supply rails for the surrounding electronics.record ↗

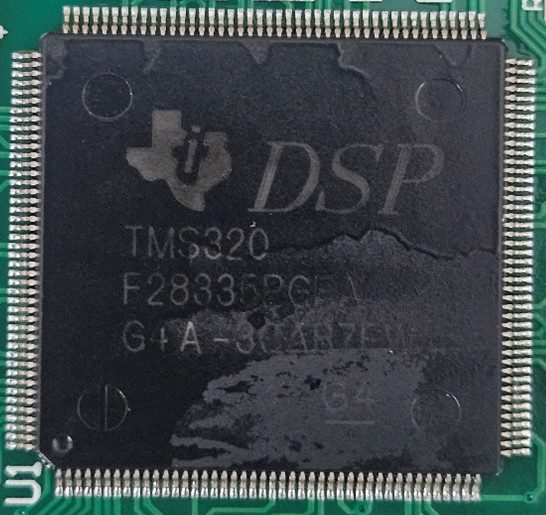

- TMS320F28335PGFA
G4A -3CAB7FW
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- VP230
TI47M
OA7P4
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It is the line driver and receiver that connects the processor to a CAN data bus.record ↗
- MB3238I
44K G4
C4NV
Multi-channel RS-232 line driver/receiver
A line driver and receiver that converts between the low-voltage logic levels inside the flight controller and the higher RS-232 voltages used on serial links to peripherals, letting the autopilot talk to external units over a standard wired interface.record ↗
- CTS39CB3
50M000000
2405 3I3
Clock oscillator 50MHz
A quartz-based oscillator that produces a steady 50 MHz square-wave clock signal, used as a timing reference for the digital circuits on the flight controller board.record ↗
- PS767D301
13T
APL8
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that takes a single input rail and produces two separate regulated supplies for the flight controller’s electronics.record ↗
- TMS320F28335PGFA
G4A -3CAR7EW
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- Quantum III
CAW137W871
GNSS Chip
The Quantum III is a multi-constellation satellite navigation receiver chip from Chinese maker ComNav (SinoGNSS). It is the drone’s GNSS receiver, computing position and time from GPS, GLONASS, BeiDou and Galileo signals.record ↗
- CH343G
210205E15
USB to UART Converter
A USB-to-UART bridge chip. When a computer is plugged into the board for configuration or diagnostics, this chip translates between the laptop’s USB port and the processor’s serial interface.record ↗Part page →
₽96
$1.22
$1.22 imported: market price applies
US$1.22, price list, 2026 · LCSC Electronics ↗
- MPM38222
MPSS33
M38222
88345C
M
Step-Down Converter
A compact step-down (buck) DC/DC converter module that reduces a higher input voltage to a lower regulated rail for powering circuits on the flight controller board.record ↗
- 9001-15321C00A
Connector
A board connector from Taiwanese manufacturer Oupiin. It is the mechanical and electrical interface between the satellite-navigation receiver board and the drone’s wiring.record ↗
- 46700CJ G3
HCT04
Assembly of inverters
A hex-inverter logic chip (74HCT04 family) that contains six NOT gates in one package, used to buffer or invert digital signals between parts of the flight controller.record ↗
- MB3238I
43K G4
CHC4
Multi-channel RS-232 line driver/receiver
A line driver and receiver that converts between the flight controller’s internal logic levels and standard RS-232 voltages, so the autopilot can communicate with external units over a serial cable.record ↗
- CTS39CB3
50M000000
2402 3I3
Clock oscillator 50MHz
A quartz-based oscillator that outputs a 50 MHz clock signal, providing the master timing reference for the digital electronics on the flight controller board.record ↗
- PS767D301
13T
C5YC
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗
- TMS320
F28335PGFA
G4A -3CAR75W G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
UAV "Shahed-136" №13678 record ↗
Air pressure measuring unit
- Board

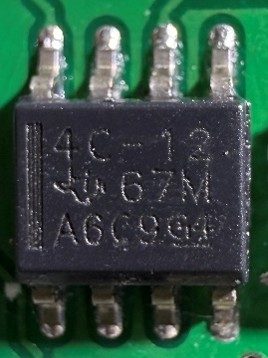

- LT1004-1.2
4C-12
67M
A6C9 G4
Reference voltage source
The LT1004-1.2 is a micropower precision voltage reference that outputs a stable 1.235 V. It gives the air pressure measuring circuit a known reference voltage so that pressure readings stay accurate.record ↗

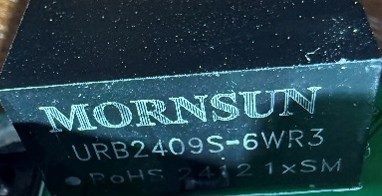

- URB2409S-6WR3
DC/DC converter
An isolated 6-watt DC/DC converter that takes a nominal 24 V input and produces a regulated 9 V output, powering the air pressure measuring board while electrically isolating it from the input supply.record ↗

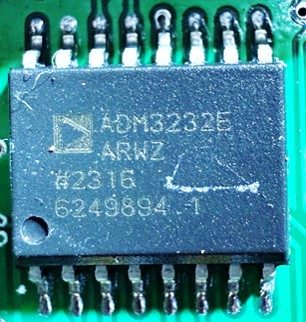

- ADM3232E
ARWZ
#2316
6249894.1
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗
- ADS122U
33KG4
CD0F
Analog-to-Digital Converter 24 bit
The ADS122U is a 24-bit analog-to-digital converter with a UART serial interface. It digitises the very small analog signal from the pressure sensor so the flight electronics can read altitude and airspeed information.record ↗
Power supply voltage regulator unit
- Board

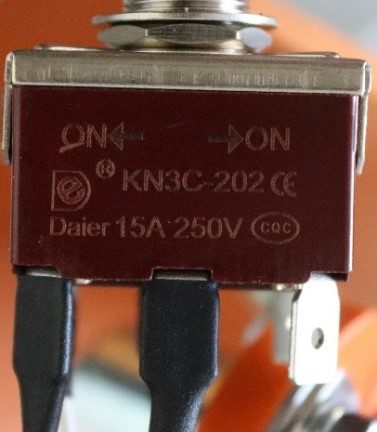

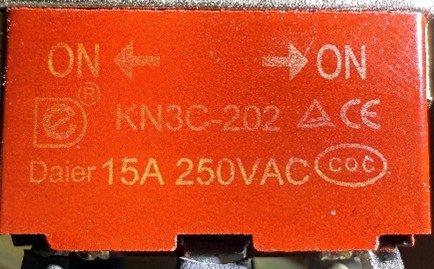

- KN3C-202
Daier 15A 250VAC
Switch
A rocker switch rated 15 amps at 250 V AC, used to manually make or break the power supply circuit inside the voltage regulator unit.record ↗
- PEC 4406
MBR30150PT
Schottky diode
The MBR30150PT is a dual Schottky rectifier diode rated at 30 A and 150 V. It is used for low-loss rectification inside the drone’s power supply voltage regulator unit.record ↗
- ISL8843
8843
AABZ
K218AP4
PWM controller
A current-mode PWM controller chip that generates the switching signal for the power supply’s regulator, controlling how long the power transistors are turned on each cycle to keep the output voltage stable.record ↗
- NCP51530B
PCWX
Gate Driver
The NCP51530B is a high- and low-side MOSFET gate driver. It takes the low-power PWM signal from the controller and drives the gates of the power transistors in the DC/DC converter.record ↗

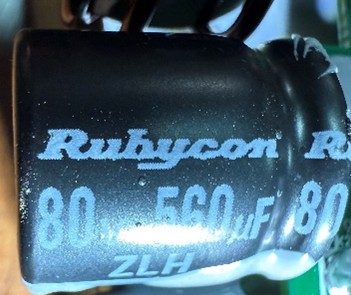

- 560uF 80V
ZLH
Electrolytic capacitor
An aluminium electrolytic capacitor from the Rubycon ZLH series, rated 560 microfarads at 80 volts, used to smooth voltage ripple on the power supply board.record ↗

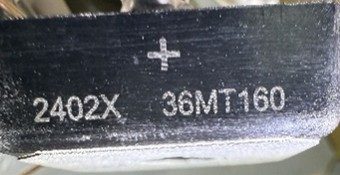

- 2402X
36MT160
E300359
INDIA
Bridge rectifier
The 36MT160 is a three-phase bridge rectifier module rated at 160 V, which converts an AC input into DC inside the drone’s power supply voltage regulator unit.record ↗

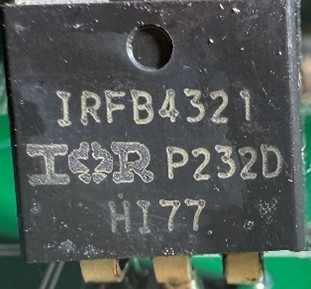

- IRFB4321
P232D
HI77
N-channel MOSFET
An Infineon (International Rectifier) 150 V N-channel power MOSFET. It is the switching element in the step-down regulator that chops the input voltage under control of the PWM controller.record ↗
- PHD
13005
PJd2421 C1
3192
NPN power transistor with an integrated diode
A high-voltage NPN power transistor with an integrated damper diode, from WeEn Semiconductors in China. It is used as a switching element in the drone’s power-supply electronics.record ↗
CRPA navigation module
- Board
- BNX023
Filter for direct current lines
The BNX023 is a compact three-terminal EMI filter from Murata that is wired in series with a DC power line to suppress high-frequency noise, keeping interference out of the CRPA anti-jamming navigation module.record ↗
- MAX3232
EUE
+410
Multichannel RS-232 line driver and receiver
The MAX3232 is a dual RS-232 line driver and receiver that operates from a single low-voltage supply. It handles serial communication between the CRPA navigation module and other units on the drone.record ↗

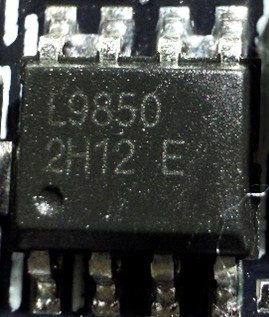

- L9850
2H12 E
Double N-channel MOSFET
A dual N-channel MOSFET package containing two power transistors that act as fast electronic switches, used to route or chop power on the navigation module’s circuit board.record ↗

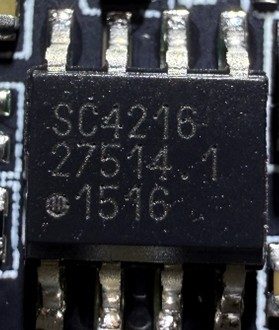

- SC4216
27514.1
1516
Voltage regulator with low input/low dropout
A low-dropout linear voltage regulator that produces a stable low-voltage supply from a slightly higher input, powering sensitive sections of the navigation module.record ↗

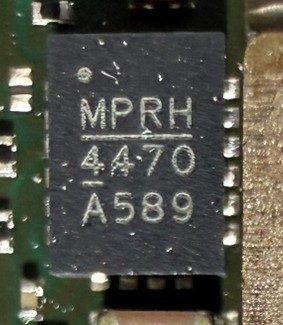

- MPQ4470
MPRH
4470
A589
Step-Down Converter
A step-down (buck) DC-DC converter that efficiently reduces an input voltage to a lower regulated level for other chips on the navigation module board.record ↗

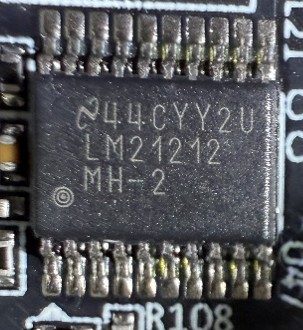

- 44CYY2U
LM21212
MH-2
Synchronous Buck Regulator
A synchronous buck regulator, a step-down DC-DC converter that supplies a lower regulated voltage to the navigation module’s electronics.record ↗

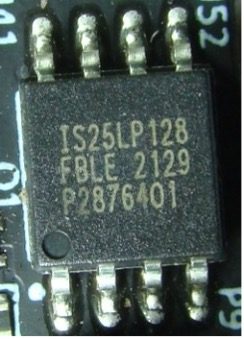

- IS25LP128
FBLE 2129
P2876401
Memory chip
An ISSI IS25LP128 128-megabit serial NOR flash memory. It stores the firmware and configuration data that the satellite receiver’s processor loads at power-up.record ↗

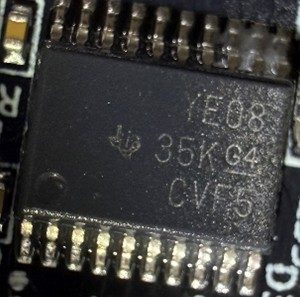

- YE08
35K G4
CVF5
8-Bit bidirectional voltage-level translator
An 8-bit bidirectional level translator that lets chips running at different logic voltages exchange signals in either direction on the navigation module board.record ↗

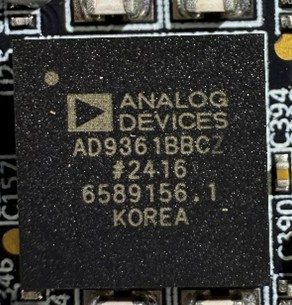

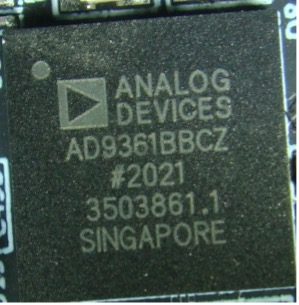

- AD9361BBCZ
#2416
6589156.1
KOREA
RF transceiver
A wideband RF transceiver (a software-defined radio front end) that digitises radio signals; in the controlled-reception-pattern-antenna module it digitises the GNSS signal from each antenna element so processing can null jammers.record ↗
- 1755
ADJ
252
23303
Linear Voltage Regulator
A linear voltage regulator that produces a steady, low-noise supply voltage for the navigation module.record ↗

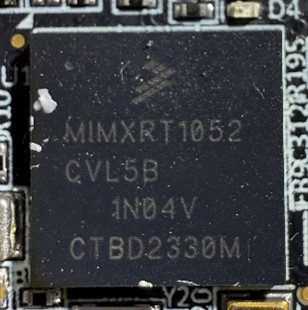

- MIMXRT1052
CVL5B
1N04V
CTBD2330M
Microcontroller
An NXP i.MX RT1050 crossover microcontroller based on an ARM Cortex-M7 core; it runs the firmware of the CRPA navigation module, processing the sampled satellite signals.record ↗
Inertial navigation system unit
- Board 3
- ADM3232E
ARNZ
#1922
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗

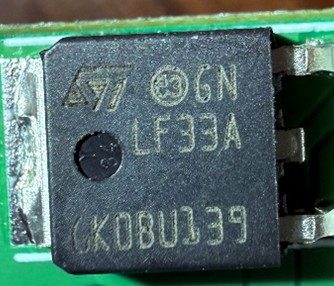

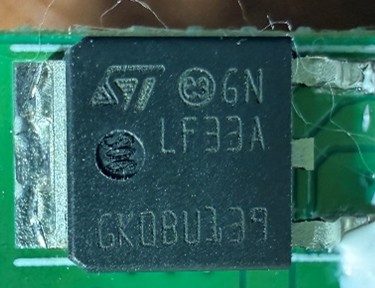

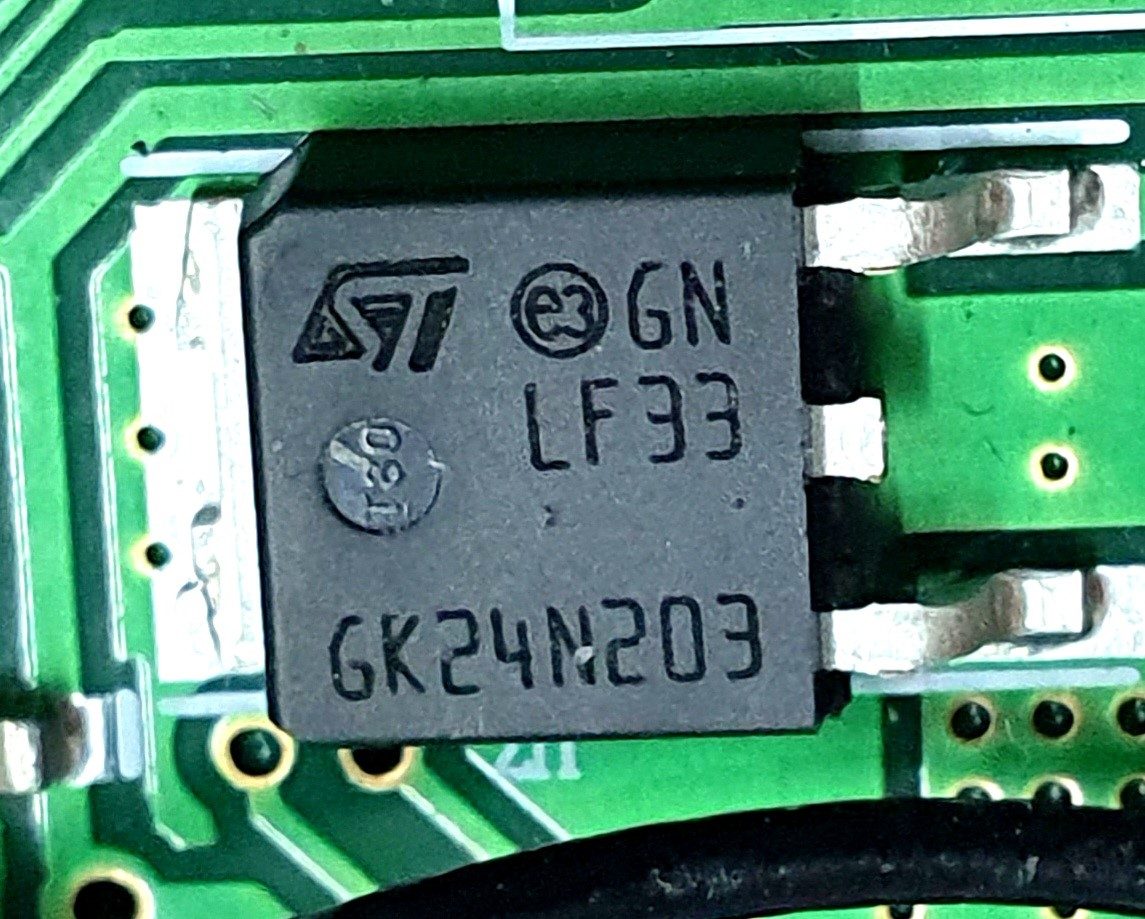

- GN
LF33A
GK0BU139
Voltage regulator
An STMicroelectronics LF33 linear voltage regulator. It takes the board’s input supply and delivers a steady 3.3 V to the digital chips around it.record ↗
- Board 2

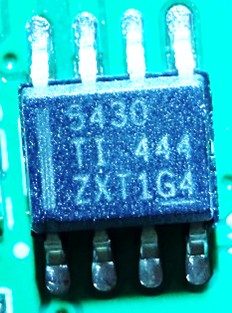

- TPS5430
5430
TI 444
ZXT1G4
Step-down converter
A step-down (buck) DC-DC converter that produces a lower regulated voltage from the vehicle supply for the inertial navigation unit.record ↗

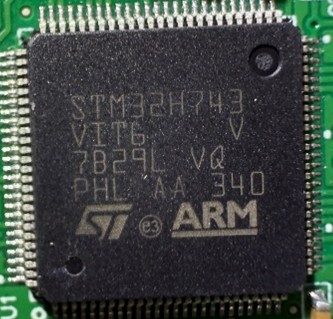

- STM32H743VIT6
7B29L VQ
PHL AA 340
A 32-bit microcontroller
An STM32H7 series 32-bit microcontroller based on an ARM Cortex-M7 core; it runs the firmware of the inertial navigation unit, reading its sensors and computing attitude and position.record ↗
- Board 1
- ADXL357B
#2318
254480
Low noise 3-axis MEMS accelerometer
An Analog Devices ADXL357 low-noise three-axis MEMS accelerometer. It measures acceleration along three axes; the navigation processor integrates its output to estimate position when satellite signals are jammed or lost.record ↗
Power distribution unit
- Board

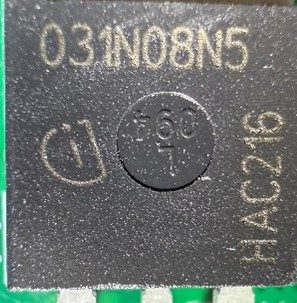

- 031N08N5
HAC216
N-channel MOSFET
A power N-channel MOSFET used as a high-current electronic switch on the drone’s power distribution board.record ↗

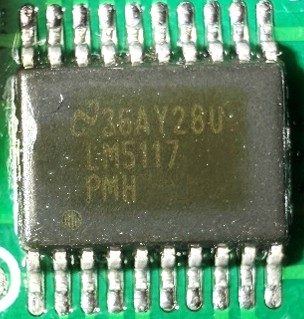

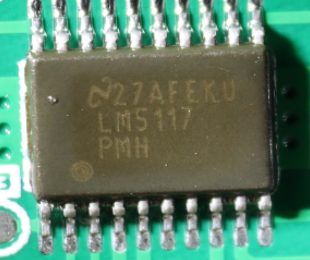

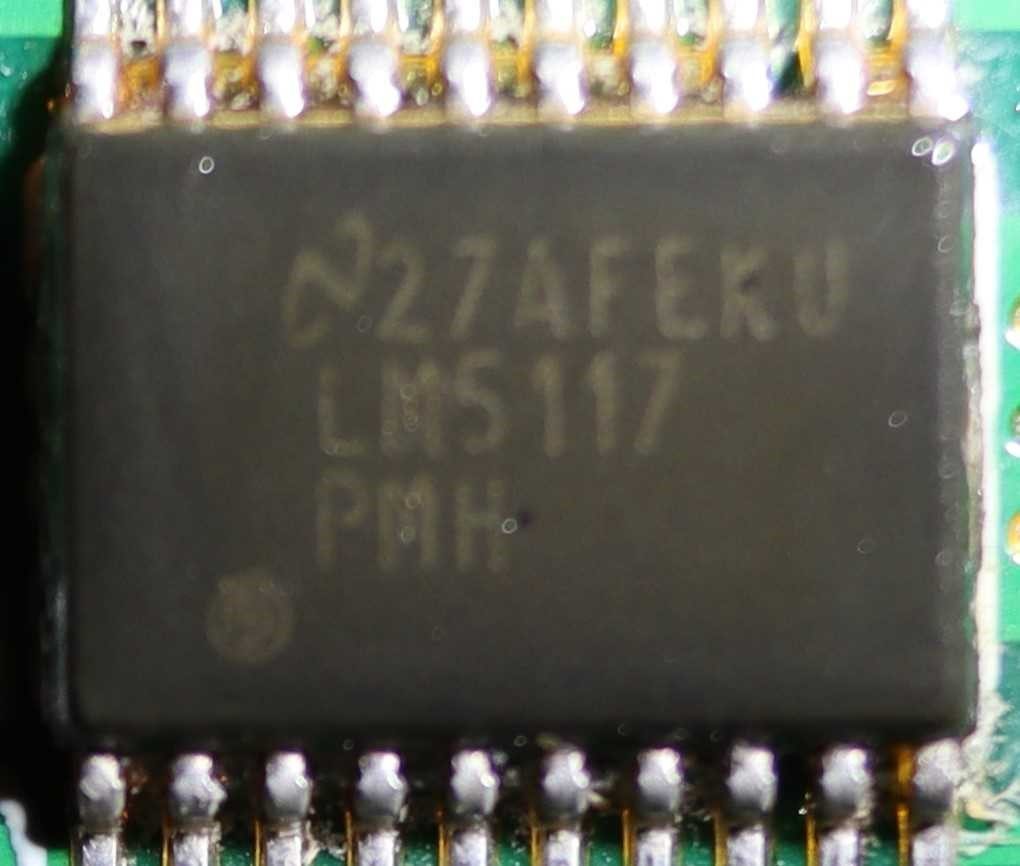

- 36AY28U
LM5117
PMH
Step-down voltage converter
A wide-input synchronous buck controller for a step-down DC-DC converter, generating a regulated voltage on the power distribution board.record ↗
- LM258
09K
CVK2G4
Operational amplifier
A Texas Instruments LM258 dual general-purpose operational amplifier. In the power distribution unit it is used in small analogue conditioning circuits, typically to buffer or compare sensing voltages.record ↗
- MB3238I
41KG4
C8HD
Multi-channel RS-232 line driver/receiver
A line driver and receiver that converts between the flight controller’s internal logic levels and standard RS-232 voltages, so the autopilot can communicate with external units over a serial cable.record ↗
- CTS39CB3
50M000000
2405 3I3
Clock oscillator 50MHz
A quartz-based oscillator that outputs a 50 MHz clock signal, providing the master timing reference for the digital electronics on the flight controller board.record ↗

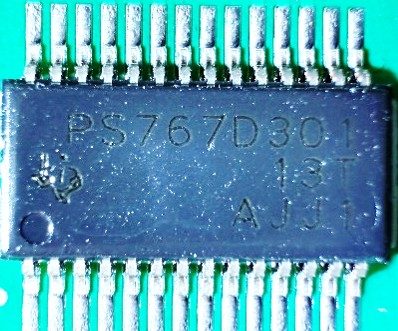

- PS767D301
13T
AJJ1
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗
- 014N06NS
HAC434
N-channel MOSFET
A power N-channel MOSFET that switches high currents on the power distribution board, for example to turn individual loads on and off.record ↗

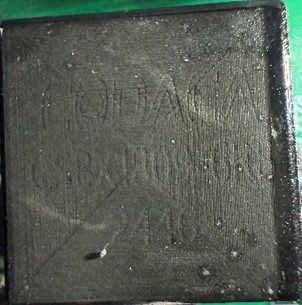

- CSRX1809-6R8
2446
Power inductor
A power inductor that stores energy in a magnetic field; it is a filtering component in a switching DC-DC converter on the power distribution board.record ↗

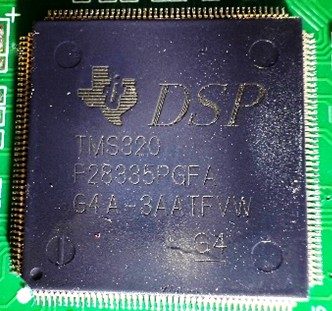

- TMS320
F28335PGFA
G4A-3AATFVW
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
UAV "Shahed-136" №13084 record ↗
Air pressure measuring unit
- Board

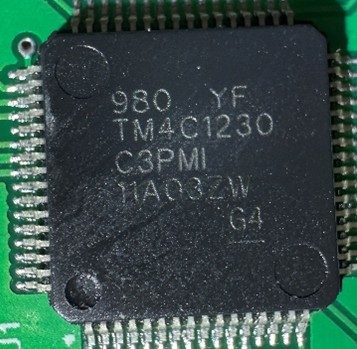

- 980 YF
TM4C1230
C3PPMI
11A03ZW
G4
Microcontroller
A Texas Instruments Tiva TM4C1230 microcontroller, a 32-bit ARM Cortex-M4 chip. It runs the air data computer’s own program: reading the ADC, calculating airspeed and altitude, and passing the result to the autopilot.record ↗
-
Connector
A board-to-board or wire-to-board connector from Chinese maker Connfly. It carries power and signals between the tracker board and the modules it plugs into.record ↗

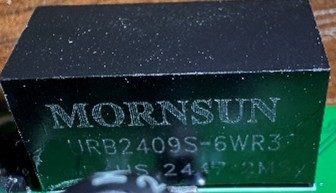

- URB2409S-6WR3
DC/DC converter
An isolated 6-watt DC/DC converter that takes a nominal 24 V input and produces a regulated 9 V output, powering the air pressure measuring board while electrically isolating it from the input supply.record ↗

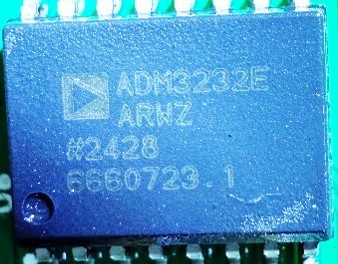

- ADM3232E
ARWZ
#2428
6660723.1
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗
- REF195
5#225
P5966
Reference voltage source
The REF195 is a precision 5-volt reference from Analog Devices. It supplies a stable reference voltage for the analog-to-digital conversion of the pressure-sensor signal.record ↗
- BB 0PA
234OUA
4797D
Operational Amplifier
A precision operational amplifier used to condition and amplify the small analogue signal from the pressure sensor so it can be read by the control electronics.record ↗
- ADS122U
3CKG4
CKOV
Analog-to-Digital Converter 24 bit
The ADS122U is a 24-bit analog-to-digital converter with a UART serial interface. It digitises the very small analog signal from the pressure sensor so the flight electronics can read altitude and airspeed information.record ↗

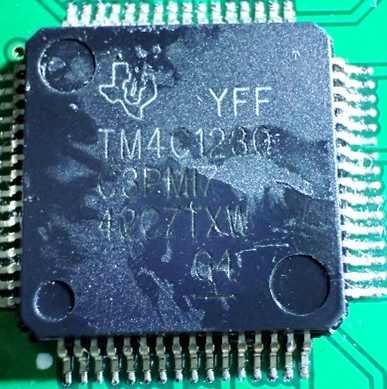

- YFF
TM4C1230
C3PPMI
4207TXW
G4
Microcontroller
The TM4C1230 is an ARM Cortex-M4 microcontroller from Texas Instruments. It runs the firmware of the air-pressure measurement unit, reading the sensors and sending pressure data to the rest of the drone.record ↗
Power supply voltage regulator unit
- Board

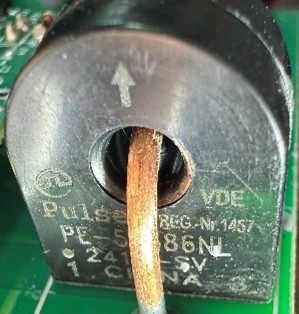

- PE-54586NL
Current Transformer
A current-sense transformer that measures alternating current flowing through a wire without direct electrical contact, feeding the reading to the voltage-regulator control circuit.record ↗
- NCP51530
NCP51530B
PTTD
Gate Driver
A high-voltage half-bridge gate driver that drives the gates of the power MOSFETs in the switching power supply, controlling when they turn on and off.record ↗
- PEC 4426
MBR30150PT
Schottky diode
A dual Schottky rectifier diode with low forward voltage drop, used to rectify or steer current efficiently in the switching power supply.record ↗
- ISL8843
8843
AABZ
K218AP4
PWM controller
A current-mode PWM controller chip that generates the switching signal for the power supply’s regulator, controlling how long the power transistors are turned on each cycle to keep the output voltage stable.record ↗
- 1000uF 35V
Electrolytic capacitor
A 1000 microfarad, 35 volt aluminium electrolytic capacitor that smooths the voltage on the power supply board, reducing ripple on the DC output.record ↗
- 1200uF 63V
Electrolytic capacitor
A 1200 microfarad, 63 volt aluminium electrolytic capacitor used to smooth the output of the power supply and store charge for load transients.record ↗

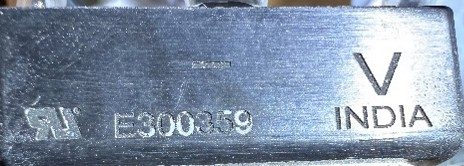

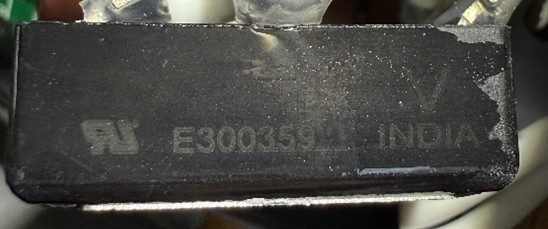

- VS-26MT / VS-36MT Series
E300359
INDIA
Bridge rectifier
A three-phase bridge rectifier that converts an alternating-current input into direct current for the power supply board.record ↗
- IRFB4321
P216D
BU33
N-channel MOSFET
An Infineon (International Rectifier) 150 V N-channel power MOSFET. It is the switching element in the step-down regulator that chops the input voltage under control of the PWM controller.record ↗
- PHD
13005
PJd2415B6
0118
NPN power transistor with an integrated diode
A high-voltage NPN power transistor with an integrated damper diode, from WeEn Semiconductors in China. It is used as a switching element in the drone’s power-supply electronics.record ↗
CRPA navigation module
- Board
- MPS 2312
MPM3550E
PA837128B
DC/DC power module with integrated inductor
An integrated step-down DC-DC power module containing a controller and an inductor in one package, providing a regulated low voltage to the navigation module.record ↗
- MAX3232
EUE
+432
Multichannel RS-232 line driver and receiver
The MAX3232 is a dual RS-232 line driver and receiver that operates from a single low-voltage supply. It handles serial communication between the CRPA navigation module and other units on the drone.record ↗
- SC4216
27514.1
1516
Voltage regulator with low input/low dropout
A low-dropout linear voltage regulator that produces a stable low-voltage supply from a slightly higher input, powering sensitive sections of the navigation module.record ↗

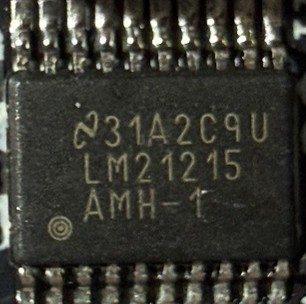

- 31A2C9U
LM21215
AMH-1
Voltage-Mode Synchronous Buck Regulator
A synchronous buck regulator, a step-down DC-DC converter that supplies a regulated voltage to the navigation module board.record ↗

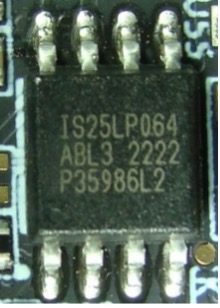

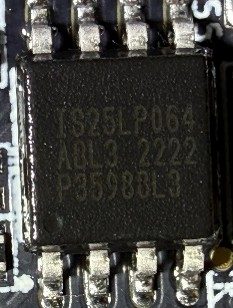

- IS25LP064
ABL3 2222
P2876401
Flash memory
A 64-megabit serial NOR flash memory chip; in the navigation module it holds firmware and configuration data read by the microcontroller at boot.record ↗

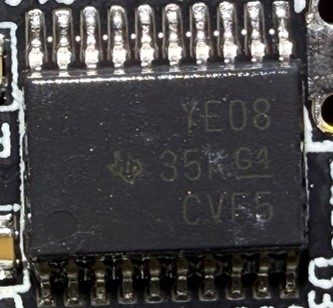

- YE08
35K G4
CVF5
TXB0108 8-Bit bidirectional voltage-level translator
A Texas Instruments TXB0108 bidirectional voltage-level translator. It lets chips running on different supply voltages exchange eight digital signals without damaging each other.record ↗
- AD9361BBCZ
#2433
6690211.1
KOREA
RF transceiver
An Analog Devices AD9361 wideband radio-frequency transceiver, the configurable radio front-end at the heart of the controlled-reception-pattern antenna module that receives and processes the satellite-navigation signals.record ↗
- 1755
ADJ
252
25893
Linear Voltage Regulator
An Analog Devices adjustable linear voltage regulator. It supplies a stable, low-noise DC rail to sensitive analogue parts of the navigation board.record ↗

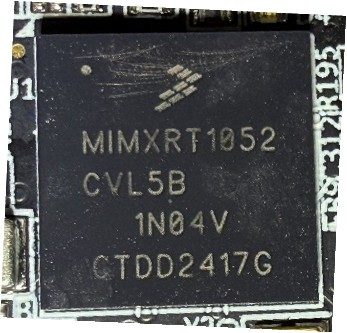

- MIMXRT1052
CVL5B
1N04V
CTBD2417M
Microcontroller
An NXP i.MX RT1052 crossover microcontroller, built around an Arm Cortex-M7 core. It is the main processor of the controlled-reception-pattern navigation module and runs its signal-processing software.record ↗
Inertial navigation system unit
- Board 2
- GD32F103
TBU6
GDSB681
DJ2148
GD
Microcontroller 32-bit
A GigaDevice 32-bit ARM Cortex-M3 microcontroller, a close pin-compatible copy of the STMicroelectronics STM32F103. On this board of the SADRA inertial unit it handles housekeeping tasks and serial I/O.record ↗

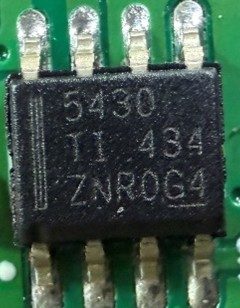

- TPS5430
5430
TI 434
ZNR0G4
Step-down converter
A Texas Instruments TPS5430 step-down converter. It converts the board’s input voltage down to a lower, regulated DC rail that powers other chips on the inertial-navigation board.record ↗
- ADM3232E
ARNZ
#2101
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗
- GN
LF33A
GK0BU139
Voltage regulator
An STMicroelectronics LF33 linear voltage regulator. It takes the board’s input supply and delivers a steady 3.3 V to the digital chips around it.record ↗
- M8030-KT
B3000A
09611538
2433A3
GNSS module
A U-blox M8030 multi-GNSS receiver module from Switzerland, able to use GPS, GLONASS, Galileo and BeiDou satellites. It provides the drone’s position and timing. Dated to the 9th week of 2025.record ↗

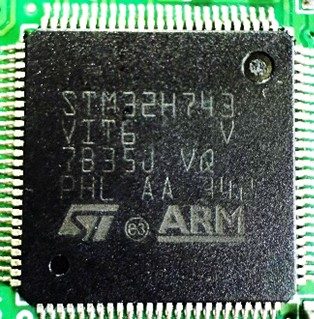

- STM32H743VIT6
7B35J VQ
PHL AA 342
A 32-bit microcontroller
An STMicroelectronics STM32H743 32-bit microcontroller with an Arm Cortex-M7 core. It is the main processor on this inertial-navigation board, reading the motion sensors and running the navigation calculations.record ↗
- Board 1
- ADXL357B
#2318
254480
Low noise 3-axis MEMS accelerometer
An Analog Devices ADXL357 low-noise three-axis MEMS accelerometer. It measures acceleration along three axes; the navigation processor integrates its output to estimate position when satellite signals are jammed or lost.record ↗
UAV "Shahed-136" (use in 2025) record ↗
On-board satellite navigation system
- CRP antenna
- CPL46.52M20.460
2445
Programmable Oscillators 52MHz
A programmable 52 MHz oscillator. It produces a stable 52 MHz reference clock that paces the receiver circuits around it.record ↗
- U5
1W
n/a
An unidentified component. The record does not say what kind of part it is or what it does in this module.record ↗
- 4222
2414
C7497
Wideband radio frequency limiter
An AngelWave wideband radio-frequency limiter. It clips excessively strong incoming signals so that the antenna’s sensitive front-end electronics are not damaged by jamming or nearby transmitters.record ↗
- CA-RF1947X
ТНС02142А
Transiver
A Shanghai Chuantu Microelectronics radio-frequency transceiver. It transmits and receives radio signals in the on-board satellite-navigation antenna module.record ↗

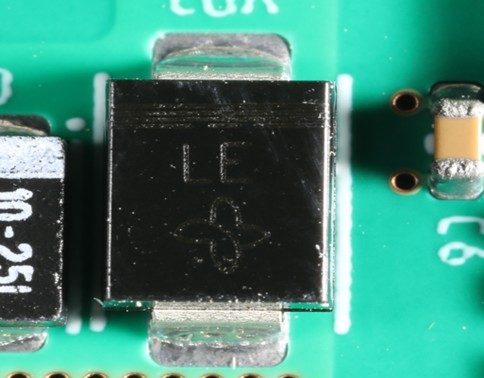

- SMBJ33CA
SMBJ
33CA
Transient Voltage Suppressors
A Yangzhou Yangjie SMBJ33CA transient-voltage suppressor diode. It clamps brief voltage spikes on a power or signal line to protect nearby chips from electrical surges.record ↗
- LTM4613Y
N44735 e1 2426 MY
DC/DC converter
A Linear Technology (now Analog Devices) LTM4613 micromodule DC-to-DC step-down converter. It delivers a regulated low-voltage power rail to the antenna module.record ↗
- BL13232E
RS-232 Transceiver
A Shanghai Belling BL13232E RS-232 transceiver. It converts logic-level signals to the voltages used on a standard serial link, letting the module talk to another device over RS-232.record ↗
- TPS548B28
T548B8A
TI 221
0E6G
Buck voltage converter
A Texas Instruments TPS548B28 synchronous buck voltage converter. It supplies a regulated low-voltage DC rail to chips on the antenna board.record ↗
- JFVNY
XO75??QUC
62.00000MHz
Quartz Crystal Oscillator 62MHz
A Beijing Jingyuxing 62 MHz quartz crystal oscillator. It provides a precise 62 MHz reference clock that times receiver circuits on the antenna board.record ↗
- 25Q256DYIG
Memory chip
A GigaDevice GD25Q256 serial flash memory, roughly 256 megabits in size. It stores firmware and configuration data for the navigation module so that they survive power-off.record ↗
- AU5426A
ADG2242
KA7CC
A000004
e4 CN
Clock buffer
An Aura Semiconductor clock buffer. It takes one clock signal and produces several matched copies to drive multiple chips without degrading timing.record ↗
- MXT2401
2215
16-Bit ADC
A 16-bit analogue-to-digital converter made by Beijing Microelectronics Technology Institute. It samples an analogue signal and turns it into 16-bit digital values for further processing.record ↗
- SIT3490E
I960120
RS485/RS422 Transceiver
A Hunan Silicon Internet-of-Things SIT3490 RS-485/RS-422 transceiver. It drives and receives signals on a differential serial bus used to communicate with other modules on the aircraft.record ↗
- MXT2144
2232
14-Bit DAC
A 14-bit digital-to-analogue converter made by Beijing Microelectronics Technology Institute. It turns 14-bit digital values back into an analogue voltage.record ↗
- BMTI
BC7K410T
BG9001
2314
CPLD
A Beijing Microelectronics Technology Institute BC7K410T complex programmable logic device. It is a user-configurable logic chip, used here to implement custom glue logic and interface signals between other chips on the antenna board.record ↗
GERAN-2 (Shahed-136) ЬІ-8465 record ↗
Inertial navigation system unit
- Board 2

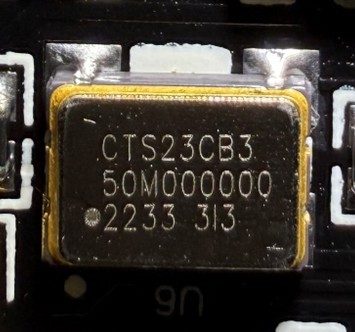

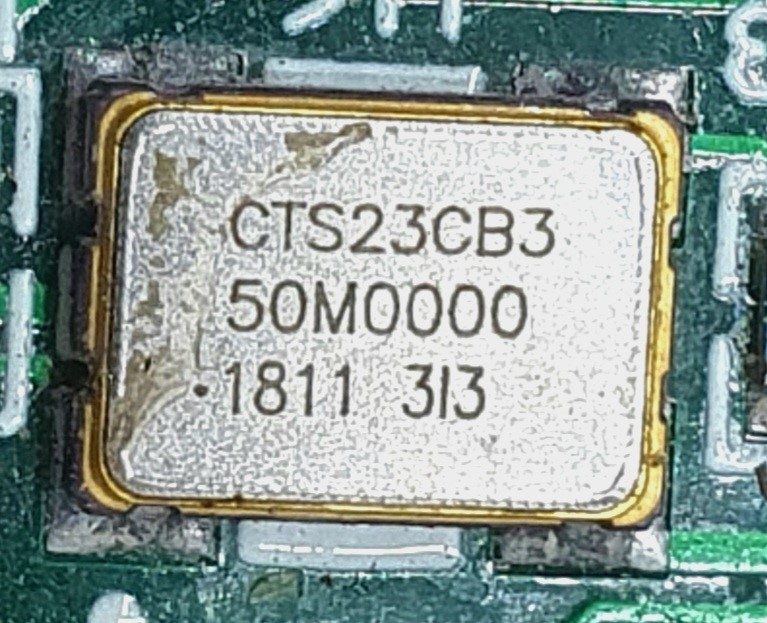

- CTS23CB3
50M000000
2233 313
Clock oscillator 50MHz
A CTS Corporation 50 MHz clock oscillator. It provides a stable 50 MHz reference clock to time the inertial-navigation board’s digital circuits.record ↗

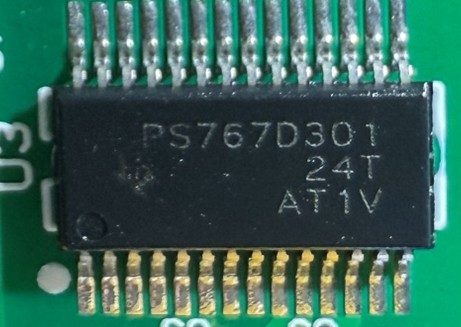

- PS767D301
24T
AT1V
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗

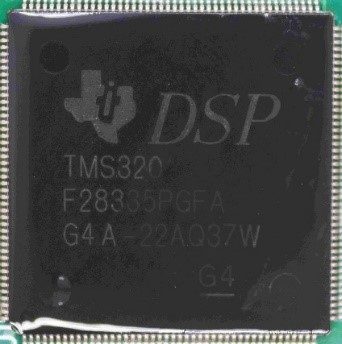

- TMS320
F28335PGFA
G4A-3APHTW
G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗

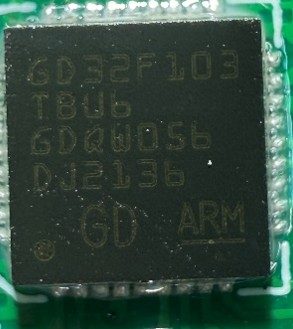

- GD32F103TBU6
GDQW056
DJ2136
GD
Microcontroller
A GigaDevice GD32F103 32-bit microcontroller with an Arm Cortex-M3 core. It is a general-purpose microcontroller handling auxiliary tasks on this inertial-navigation board.record ↗
- ADXL357B
#2349
459960
Low noise 3-axis MEMS accelerometer
An Analog Devices ADXL357 low-noise three-axis MEMS accelerometer. It measures acceleration along three axes; the navigation processor integrates its output to estimate position when satellite signals are jammed or lost.record ↗
- Board 1
- ADM3232E
ARNZ
#2125
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗

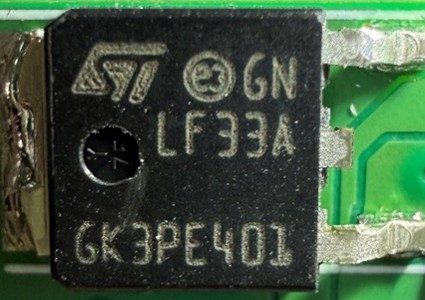

- GN
LF33A
GK3PE401
Voltage regulator
An STMicroelectronics LF33 linear voltage regulator. It takes the board’s input supply and delivers a steady 3.3 V to the digital chips around it.record ↗
- NEO-M8M-0-10
7240197457
2105
0800 05
GNSS module
A u-blox NEO-M8M satellite-navigation receiver module. It is a compact GNSS receiver that reports position, velocity and time by tracking signals from navigation satellites.record ↗

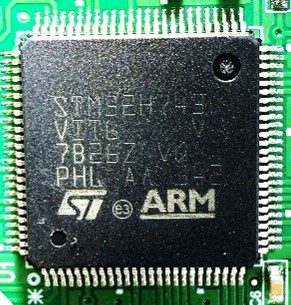

- STM32H743
VIT6
7B26Z VQ
PHL AA 342
A 32-bit microcontroller
An STMicroelectronics STM32H743 32-bit microcontroller with an Arm Cortex-M7 core. It is the main processor on this inertial-navigation board, reading sensors and running navigation calculations.record ↗
Air pressure measuring unit
- Board 1

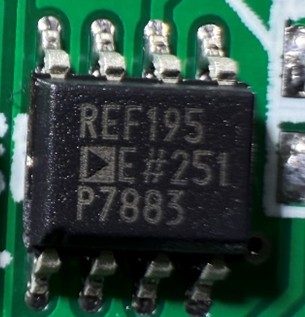

- REF195
E#251
P7883
Reference voltage source
The REF195 is a precision 5-volt reference from Analog Devices. It supplies a stable reference voltage for the analog-to-digital conversion of the pressure-sensor signal.record ↗

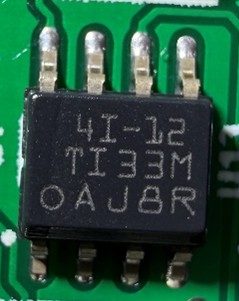

- 4I-12
TI33M
OAJBR
Voltage stabilizer
A voltage stabiliser from Texas Instruments. Inside the air pressure measuring unit, it holds the supply voltage steady so the sensor and microcontroller on the same board see a clean, constant rail.record ↗

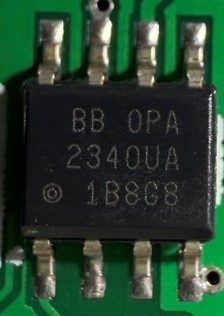

- BB OPA
2340UA
188G8
Operational amplifier
The OPA2340 is a dual precision operational amplifier from Texas Instruments. It amplifies and conditions the small analogue signal from the pressure sensor before it reaches the analog-to-digital converter.record ↗

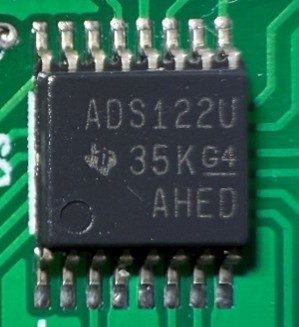

- ADS122U
35K g4
AHED
Analog-to-Digital Converter 24 bit
The ADS122U is a 24-bit analog-to-digital converter with a UART serial interface. It digitises the very small analog signal from the pressure sensor so the flight electronics can read altitude and airspeed information.record ↗
- 980 YF
TM4C1230
C3PMI
56ANE4W
G4
32-bit 80 MHz microcontroller based on ARM Cortex M4F
A Texas Instruments TM4C1230 microcontroller, built around a 32-bit ARM Cortex-M4F core running at 80 MHz. In this weapon it is the processor of the air pressure measuring unit, reading the pressure sensor and converting it to altitude and airspeed.record ↗
- URB2409S-6WR3
2247 quWH
DC/DC converter
An isolated 6-watt DC/DC converter that takes a nominal 24 V input and produces a regulated 9 V output, powering the air pressure measuring board while electrically isolating it from the input supply.record ↗
- ADM3232E
ARWZ
#2316
6249894.1
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗
Voltage regulator block
- Board 1

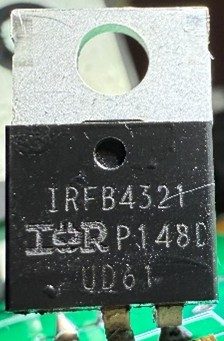

- IRFB4321
P148D
UQ61
N-channel MOSFET
An Infineon (International Rectifier) 150 V N-channel power MOSFET. It is the switching element in the step-down regulator that chops the input voltage under control of the PWM controller.record ↗

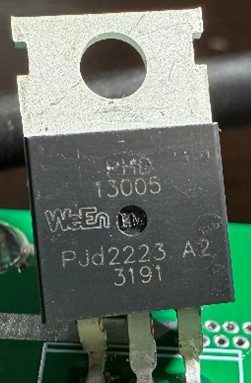

- PHD
13005
PJD2223 A2
3191
NPN power transistor with an integrated diode
A high-voltage NPN power transistor with an integrated damper diode, from WeEn Semiconductors in China. It is used as a switching element in the drone’s power-supply electronics.record ↗
- 4036
MBR30150PT
Schottky diode
A PANJIT MBR30150PT Schottky rectifier diode. In the voltage regulator block it lets current flow one way with a low voltage drop, which is what a switching regulator needs for its output stage.record ↗
- 1200uF
63V
Electrolytic capacitor
A Nichicon aluminium electrolytic capacitor rated 1200 microfarads at 63 volts. It smooths the voltage on the regulator board, buffering current spikes so the downstream rail stays steady.record ↗

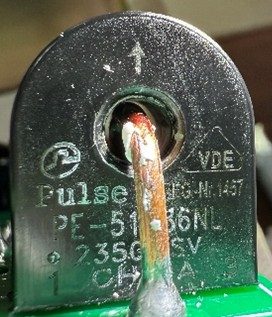

- PE-51686NL
Current Transformer
A Pulse Electronics PE-51686NL current-sense transformer. It measures the current flowing through the switching regulator and reports it as a small, isolated signal the controller uses to protect the circuit.record ↗

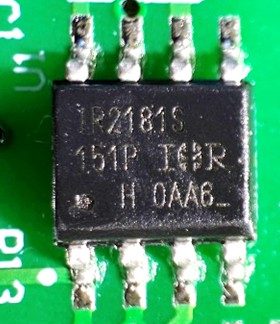

- IRS2181
IP2181S
151P
H 0AA6
High voltage MOSFET and IGBT drivers
An International Rectifier (now Infineon) IRS2181 high-voltage half-bridge driver. It takes the low-voltage control signals from the PWM controller and uses them to switch the power MOSFETs or IGBTs that convert the main supply voltage.record ↗
- 6643
ABZ
P540B2X
PWM controller
A Renesas pulse-width-modulation controller. It is the brain of the voltage regulator block: it sets how fast and how long the power transistors switch, which is how a switching regulator produces its output voltage.record ↗
CRPA navigation module
- Board 1
- BNX028
Filter for direct current lines
A Murata BNX028 EMI filter for a DC power line. It sits at the power input of the anti-jam GPS module and blocks electrical noise travelling along the supply wires, so the sensitive radio receiver is not swamped.record ↗

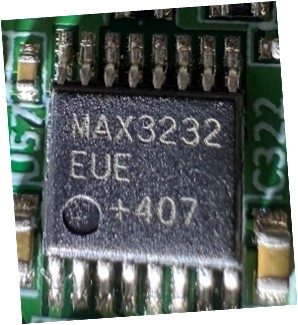

- MAX3232
EUE
+407
RS232 Transceiver
A Maxim (now Analog Devices) MAX3232 RS-232 transceiver. It converts the microcontroller’s low-voltage serial signals to the higher voltages of the RS-232 standard, letting the anti-jam GPS module talk to another device over a serial cable.record ↗
- SC4216
G417280
1006
Voltage regulator with low input/low dropout
A Semtech SC4216 low-dropout voltage regulator. It produces a precise lower voltage from the module’s input rail, with little voltage lost in the regulator itself.record ↗
- MPS 2250
MPM3550E
P1833488X
DC/DC power module with integrated inductor
A Monolithic Power Systems MPM3550 DC-to-DC power module with an inductor already built in. It converts the module’s supply voltage down to one of the lower rails used by the circuits on the board.record ↗

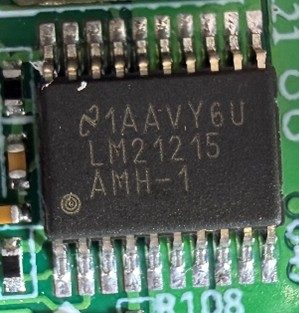

- 1AAVY6U
LM2 12 15
AMH-1
Synchronous buck regulator
A synchronous step-down regulator originally designed by National Semiconductor, now part of Texas Instruments. It converts a higher input voltage down to a lower one for the circuits on the anti-jam GPS board, using two switching transistors for efficiency.record ↗
- YE08
5KG4
CKLK
8-Bit bidirectional voltage-level translator
A Texas Instruments 8-bit bidirectional voltage-level translator. It lets chips running on different supply voltages talk to each other on an 8-line digital bus, in either direction.record ↗

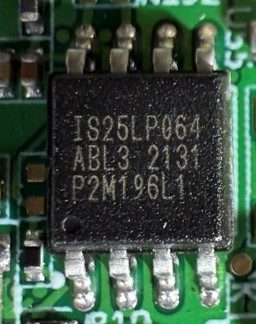

- IS25LP064
ABL3 2131
P2M196L1
Flash memory
An ISSI IS25LP064 serial flash memory chip holding 64 megabits. On the anti-jam GPS board it stores the firmware and configuration the module loads at power-up.record ↗
- 1755
ADJ
#621
91980
Linear Voltage Regulator
An Analog Devices ADP1755 linear voltage regulator. It takes a slightly higher input voltage and delivers a clean, lower one with low noise, which the sensitive radio-frequency parts of the GPS module need.record ↗
Power distribution unit
- Board 1
- LM258
TI43M
A503
Dual operational amplifier
A Texas Instruments LM258 dual operational amplifier. Each half is a general-purpose amplifier used on the power distribution board for small signal tasks such as measuring voltages or shaping sensor readings.record ↗

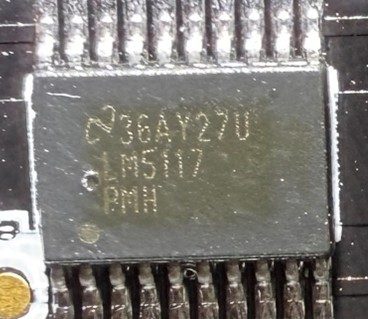

- 36AY27U
LM5117
PMH
Step-down voltage converter
A Texas Instruments LM5117 synchronous step-down controller, originally a National Semiconductor part. It drives external power transistors to convert the drone’s main supply voltage down to a lower rail used elsewhere on the board.record ↗
- CTS23CB3
50M000000
2233 313
Clock oscillator 50MHz
A CTS 50 MHz clock oscillator. It generates a precise 50-million-cycle-per-second square wave that acts as the heartbeat for the digital circuits on the power distribution board.record ↗
- PS767D301
131
C15H
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗

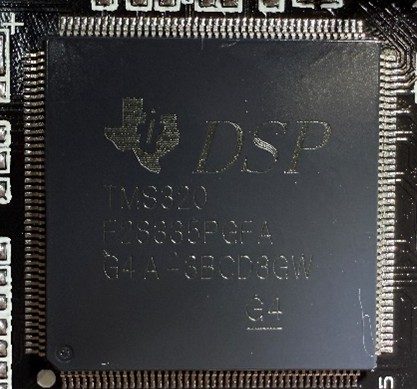

- TMS320
F28335PGFA
G4A-3BCD3GW
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- 014N06NS
HAM928
N-channel MOSFET
An Infineon OptiMOS N-channel power MOSFET. It is a fast electronic switch used in the power distribution unit to turn current on and off at high speed.record ↗

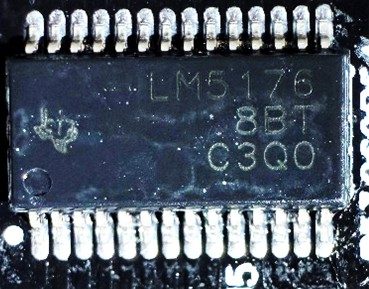

- LM5176
8BT
C3Q0
A wide-range step-up/step-down voltage converter
A Texas Instruments LM5176 wide-range buck-boost controller. It can produce the same output voltage whether the input is higher or lower than it, so the board keeps delivering a steady rail as the battery or main supply voltage sags.record ↗
- 031N085N5
HAA413
N-channel MOSFET
An Infineon OptiMOS N-channel power MOSFET. Like the other MOSFET on this board it works as an electronic switch, handling the current the power distribution unit routes to the drone’s subsystems.record ↗
CRP-antenna of UAV "Shahed-136" record ↗
14-Bit DAC
14-розрядний ЦАП
MXT2144 2232
A 14-bit digital-to-analogue converter made by Beijing Times Minxin Technology. It takes a 14-bit digital number from a controller and produces a matching analogue voltage, used to drive something that expects a continuous signal.
Photo: HUR War & Sanctions
RS485/RS422 Transceiver
Трансивер RS-485/RS-422
SIT3490E I962010
A Hunan Silicon SIT3490E RS-485/RS-422 transceiver. It sends and receives digital data over the long, two-wire differential buses that are standard for linking sensors and controllers inside vehicles.
Photo: HUR War & Sanctions
Microcircuit
Мікросхема
CPL46.52M20.46C
An integrated circuit of unidentified type and maker. The marking does not match a known catalogue part, so its role in this weapon cannot be stated.
Photo: HUR War & Sanctions

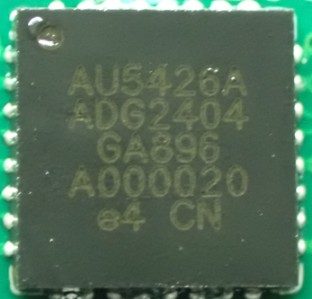

Switch
Перемикач
AU5426A ADG2404 GA896 A000020 e4 CN
An Aura Semiconductor AU5426A, equivalent to the ADG2404 analog switch. It routes one of four analogue signals through to a single output under digital control, like a four-way selector.
Photo: HUR War & Sanctions
RAM chip
Мікросхема оперативної пам’яті
DRAM 4MA15 RW161 RN3D
A dynamic random-access memory chip from Micron Technology. It provides fast working memory for a processor on the board.
Photo: HUR War & Sanctions
High-performance four-channel wideband radio frequency receiver
Високопродуктивний чотириканальний широкосмуговий радіочастотний приймач
CA-RF1947X THC02142A
A four-channel wideband radio-frequency receiver from Sichuan Tu Microelectronics. It picks up and digitises radio signals across a wide frequency range for onboard processing.
Photo: HUR War & Sanctions
Quartz oscillator
Кварцовий генератор
JFVNY 1908 XO75NAQUC 62.00000MHz
A 62 MHz quartz crystal oscillator from Beijing Jingyuxing. It supplies a stable clock reference that other chips on the board use to keep time.
Photo: HUR War & Sanctions
DC/DC converter
DC/DC перетворювач
LTM4613Y N44735 e1 2426 MY
An LTM4613 step-down DC/DC converter module from Linear Technology (Analog Devices). It takes a higher input voltage and delivers a regulated lower voltage to the electronics it powers.
Photo: HUR War & Sanctions
CPLD
ПЛІС
BMTI BC7K410TBG900I 2436 ΔС 2342
A complex programmable logic device from Beijing Microelectronics Technology Institute. It carries custom digital logic that glues the surrounding chips together and routes signals between them.
Photo: HUR War & Sanctions
UAV "GERAN-2" (Shahed-136) Ы-12686 record ↗

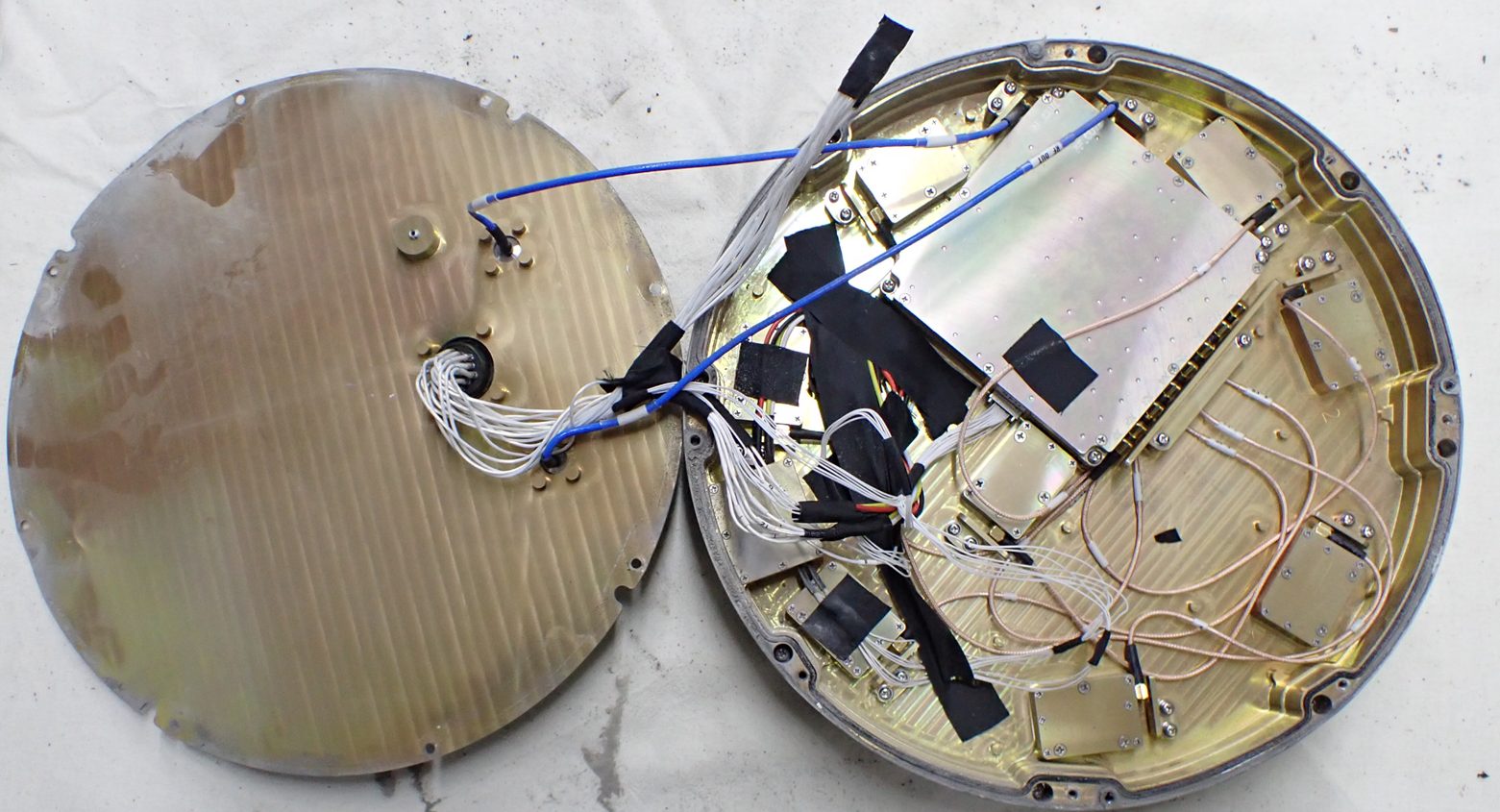

Eight-channel GNSS jamming system
- Satellite navigation system receiver with anti-jamming protection

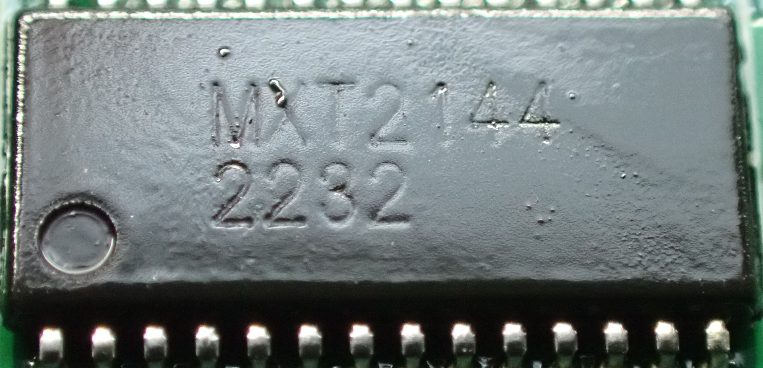

- MXT2144
2232
12/14-Bit DAC
A 12/14-bit digital-to-analog converter from Beijing Times Minxin, inside the GNSS jammer. It turns digital waveforms produced by the controller into the analog signal that the jammer then transmits.record ↗

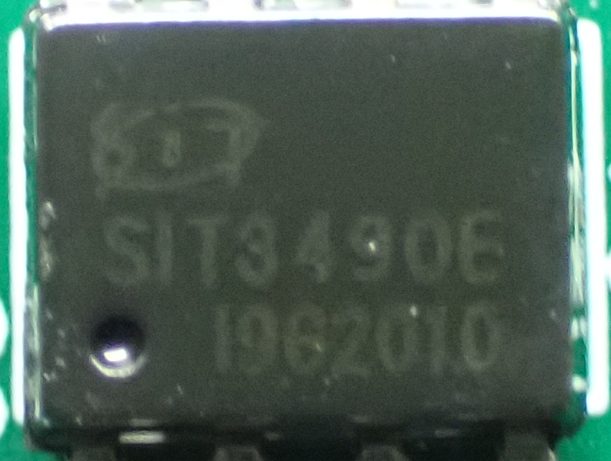

- SIT3490E
I962010
RS-485/RS-422 Transceiver
An RS-485/RS-422 serial transceiver from Hunan Silicon, inside the GNSS jammer. It handles wired serial communication between the jammer’s boards over a noise-tolerant differential link.record ↗

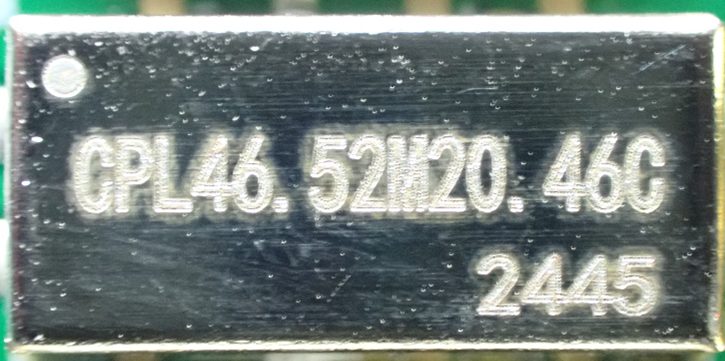

- CPL46.52M20.46C
2445
Microcircuit
An unidentified integrated circuit on the jammer’s anti-jamming receiver board. Its role in this unit cannot be stated from the markings alone.record ↗
- AU5426A
ADG2404
GA896
A000020
CN
Switch
An analog switch (ADG2404 type) marketed by Aura Semiconductor, inside the GNSS jammer. It electronically routes one of several input signals through to a single output under digital control.record ↗

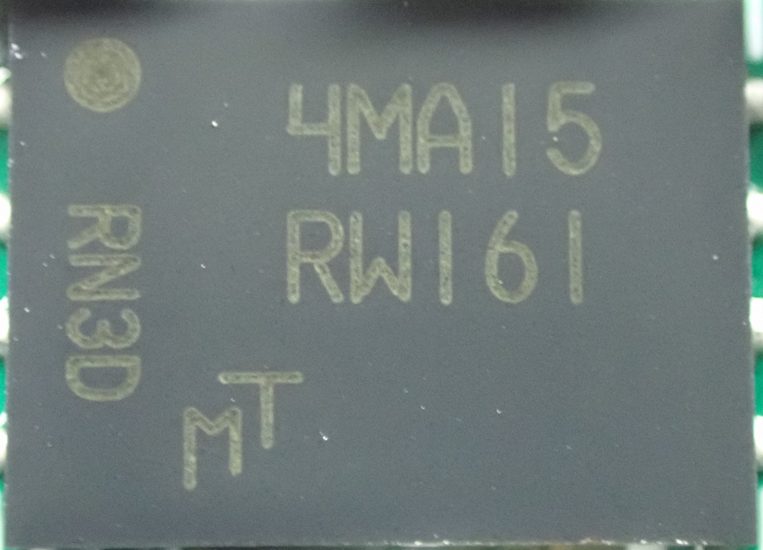

- DRAM
4MA15
RW161
RN3D
RAM chip
A Micron dynamic RAM chip in the GNSS jammer’s anti-jamming receiver. It provides fast working memory for the receiver’s processor.record ↗
- CA-RF1947X
ТНС02142А
High-performance four-channel wideband radio frequency receiver
A four-channel wideband RF receiver from Sichuan Tu Microelectronics, in the jammer’s anti-jamming GNSS receiver. It captures satellite-navigation signals across several bands for digital processing.record ↗
- JFVNY 1908
XO75NAQUC
62.00000MHz
Quartz oscillator
A 62 MHz quartz oscillator from Beijing Jingyuxing, in the jammer’s anti-jamming receiver. It provides the stable clock reference the receiver’s radio and digital stages run on.record ↗
- LINEAR
LTM4613Y
µModule
N44735 2426M
DC/DC converter
An LTM4613 DC/DC converter module from Linear Technology, in the jammer’s anti-jamming receiver. It regulates the receiver’s supply voltage down from the drone’s internal power bus.record ↗
- BMTI
BC7K410T
BG9001
2436 ΔC
0342
Microchip
A programmable logic chip from Beijing Microelectronics Technology Institute, in the jammer’s anti-jamming receiver. It carries custom digital logic that controls and connects the surrounding chips.record ↗
Eight-channel GNSS jamming system
Восьмиканальна система придушення перешкод GNSS
TGTX5050A 2024C045
The eight-channel GNSS jamming system itself. It is designed to transmit interfering signals on satellite-navigation frequencies so that nearby GPS and similar receivers cannot lock on.
1 / 3
Photo: HUR War & Sanctions
UAV "GERAN-2" (Shahed-136) Ы-954 record ↗
Power distribution unit
- 031N08N5
GAH218
N-channel MOSFET 80V 120A
An Infineon 80-volt, 120-amp N-channel power MOSFET in the power distribution unit. It acts as a fast electronic switch for high-current supply rails inside the drone.record ↗
- LM5176
26T
A6Z8
A wide-range step-up/step-down voltage converter
A Texas Instruments LM5176 wide-range buck-boost controller in the power distribution unit. It drives a converter that holds the output voltage steady whether the input is higher or lower than the target.record ↗
- 2SC6097
0L
NPN bipolar transistor
An ONSEMI 2SC6097 NPN bipolar transistor in the power distribution unit. It is a general-purpose amplifying and switching transistor used in support circuitry.record ↗
- VBT3045CBP
2225E
Diode
A dual Schottky rectifier that passes current with very low voltage loss and blocks it in the reverse direction. On the power distribution board it steers supply current and guards against reverse polarity.record ↗
- 27AFEKU
LM5117
PMH
Step-down voltage converter
A Texas Instruments LM5117 step-down converter controller in the power distribution unit. It steps a higher input voltage down to a lower regulated rail for other circuits.record ↗
- SiR180DP
R180
SAE∆
W24C
N-channel MOSFET
A Vishay SiR180DP N-channel MOSFET in the power distribution unit. It serves as a low-resistance electronic switch for the unit’s power rails.record ↗

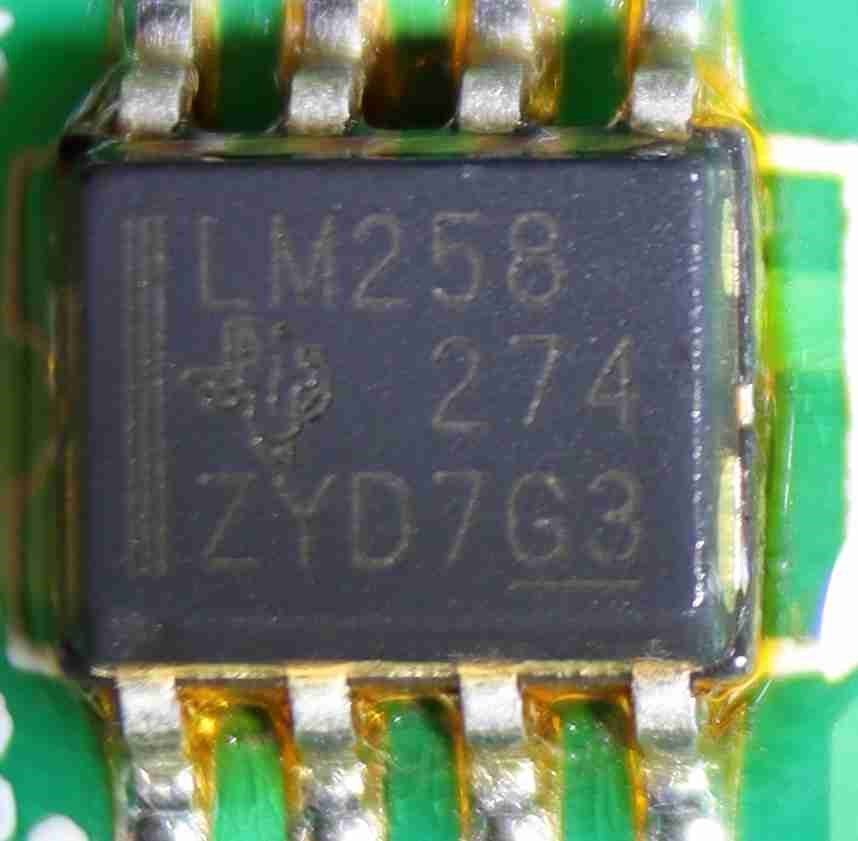

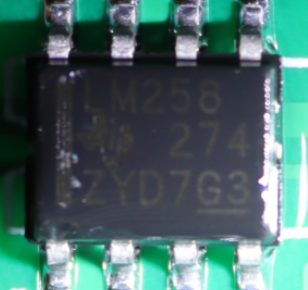

- LM258
274
ZYD7G3
Dual operational amplifier
A Texas Instruments LM258 dual operational amplifier in the power distribution unit. It is used in analog signal conditioning and feedback loops around the converters.record ↗

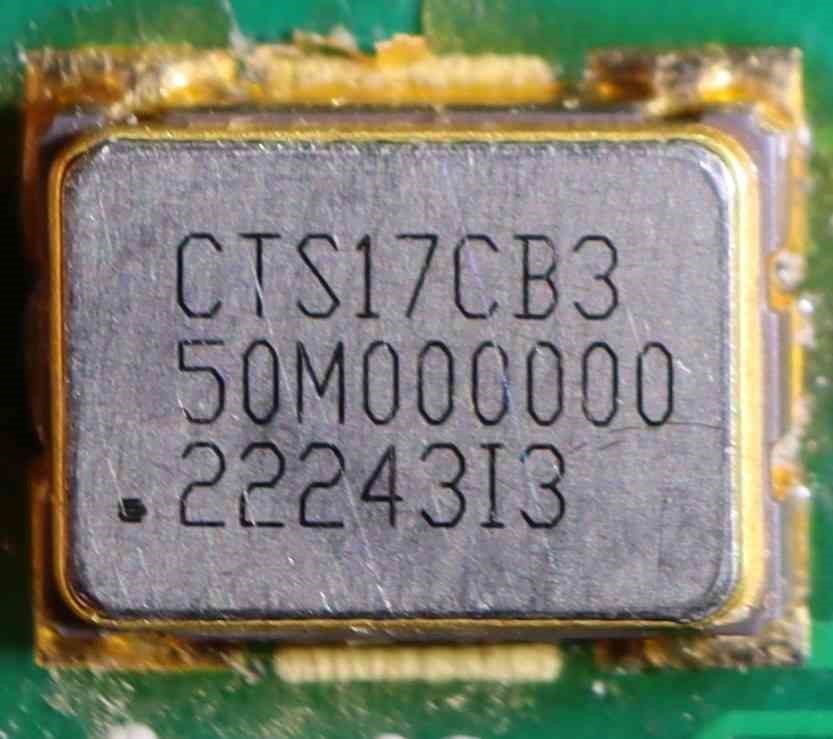

- CTS17CB3
50M000000
22243I3
Quartz generator 50MHz
A CTS Corporation 50 MHz quartz oscillator in the power distribution unit. It supplies a stable clock for the digital control electronics on the board.record ↗
- PS767D301
22T
AK36
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗
Air pressure measuring unit
- ADS122U
31K G4
ALYT
Analog-to-Digital Converter 24 bit
The ADS122U is a 24-bit analog-to-digital converter with a UART serial interface. It digitises the very small analog signal from the pressure sensor so the flight electronics can read altitude and airspeed information.record ↗

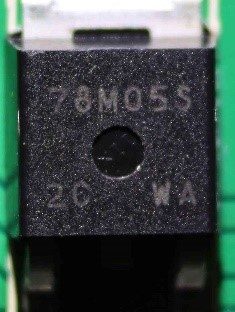

- 78M05S
2C WA
Linear voltage stabilizer
A Toshiba 78M05 linear voltage regulator in the air-pressure measuring unit. It takes an unregulated input and delivers a steady 5-volt supply to the unit’s electronics.record ↗
- REF195
E#247
P7784
Reference voltage source
The REF195 is a precision 5-volt reference from Analog Devices. It supplies a stable reference voltage for the analog-to-digital conversion of the pressure-sensor signal.record ↗
- BB OPA
234OUA
25N3X
Operational Amplifier
The OPA2340 is a dual precision operational amplifier from Texas Instruments. It amplifies and conditions the small analogue signal from the pressure sensor before it reaches the analog-to-digital converter.record ↗
- 980 YF
TM4C1230
C3PMI
56ANE5W
G4
32-bit 80 MHz microcontroller based on ARM Cortex M4F
A Texas Instruments TM4C1230 microcontroller, a 32-bit ARM Cortex-M4F running at 80 MHz, in the air-pressure measuring unit. It reads the pressure sensor and sends the measurement to the rest of the drone.record ↗
- URB2409S-6WR3
RoHS 2247 quWH
DC/DC converter
An isolated 6-watt DC/DC converter that takes a nominal 24 V input and produces a regulated 9 V output, powering the air pressure measuring board while electrically isolating it from the input supply.record ↗
- TL431
AILP
704
Precision Programmable Reference
A Texas Instruments TL431 adjustable precision voltage reference in the air-pressure measuring unit. It gives the circuit a stable reference voltage for regulation and accurate measurement.record ↗

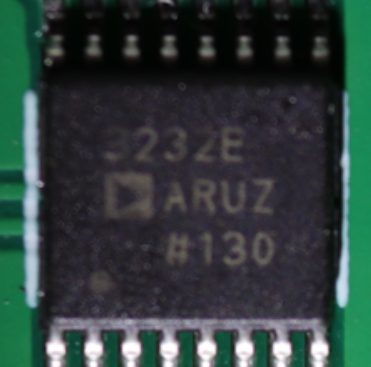

- ADM3232E
ARWZ
#2217
2829397
RS-232 Line Driver
The ADM3232E is an RS-232 line driver from Analog Devices. It translates logic-level signals to the voltages used on an RS-232 serial link so the pressure unit can talk to another board.record ↗
Flight controller
- Switching board

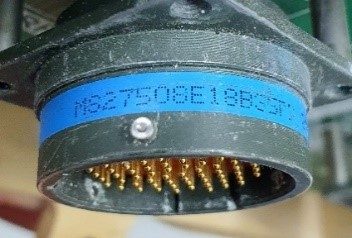

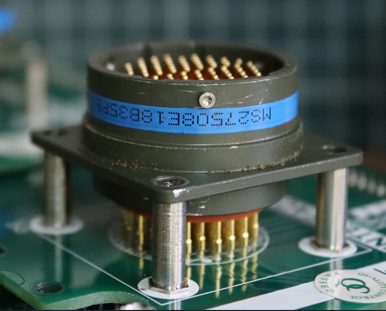

- MS27508E18B35P
Plug connector
A military-standard circular plug connector that joins a wiring harness to the switching board inside the flight controller, carrying signals and power between the drone’s modules.record ↗
- Board
- VP230
26M
APET
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It is the line driver and receiver that connects the processor to a CAN data bus.record ↗
- TMS320
F28335PGFA
G4A-35AR24W
G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- PS767D301
22T
AKZT
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗
- 218F4
LM234
Z-3
Adjustable current source
A three-terminal adjustable current source chip that holds the current through an attached load at a set value, used on the flight controller board to bias other analog circuits.record ↗

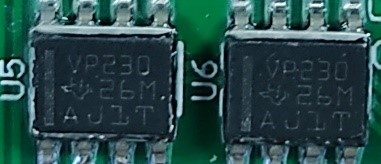

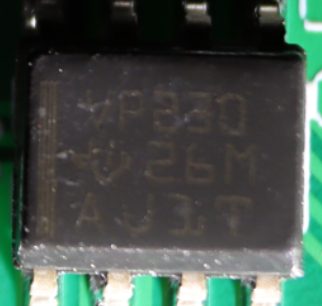

- VP230
26M
AJ1T
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It is the line driver and receiver that connects the processor to a CAN data bus.record ↗

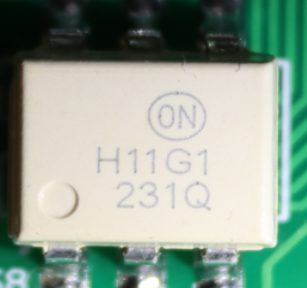

- H11G1
231Q
Optocoupler
An optocoupler made by UK firm Isocom Components, on the flight controller board. It passes a signal from one circuit to another through an internal LED and photosensor, keeping the two sides electrically isolated.record ↗
- LM258
274
ZD0XG3
Dual operational amplifier
A dual operational amplifier containing two general-purpose analog amplifiers, used on the flight controller board to condition sensor signals and in simple filter or comparator circuits.record ↗
- AUIRF4905S
235P
FP R2
P-channel MOSFET
An Infineon P-channel power MOSFET on the flight controller board. It acts as an electronic switch, used on the high side of a circuit to turn a load on and off under logic control.record ↗
- TMS320
F28335PGFA
G4A-22AXTHW
G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- 476 V
61A02
Tantalum Capacitor
A tantalum electrolytic capacitor on the flight controller board, used to smooth the power supply and filter noise on signal lines.record ↗
- MB3238I
33K G4
D027
Multi-channel RS-232 line driver/receiver
A line driver and receiver that converts between the flight controller’s internal logic levels and standard RS-232 voltages, so the autopilot can communicate with external units over a serial cable.record ↗
- TMS320
F28335PGFA
G4A-2AAT64W
G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CTS39CB3
50M000000
2235 3I3
Quartz generator 50MHz
A packaged quartz oscillator that generates a stable 50 MHz clock signal for digital circuits on the flight controller board.record ↗
- TMS320
F28335PGFA
G4A-22AQ37W
G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- MB3238Q
2CT
G4
AF4F
Multi-channel RS-232 line driver/receiver
A multi-channel RS-232 line driver and receiver. It translates between the microcontroller’s low-voltage logic and the higher voltages of the RS-232 serial standard, letting the satellite-receiver board exchange data with external equipment.record ↗
- PS767D301
22T
A9R3
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗
- 226D
98AC3
Tantalum Capacitor
A tantalum electrolytic capacitor on the flight controller board, used to smooth the power supply and filter noise.record ↗
- 4AT
AC250V
Fuse Series 443 NANO2
A small surface-mount fuse rated at four amps that interrupts the circuit if the current rises too high, protecting the flight controller board from short circuits.record ↗
- VP230
26M
AJLX
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It is the line driver and receiver that connects the processor to a CAN data bus.record ↗
- TMS320
F28335PGFA
G4A-33A0SHW
G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- MB3238Q
14TG4
CGKT
Multi-channel RS-232 line driver/receiver
A multi-channel RS-232 line driver and receiver. It translates between the microcontroller’s low-voltage logic and the higher voltages of the RS-232 serial standard, letting the satellite-receiver board exchange data with external equipment.record ↗

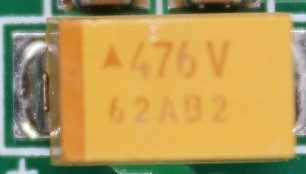

- 476 V
63AB2
Tantalum Capacitor
A tantalum electrolytic capacitor on the flight controller board, used to smooth the power supply and filter noise on signal lines.record ↗
- VP230
27M
APP2
G4
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It is the line driver and receiver that connects the processor to a CAN data bus.record ↗

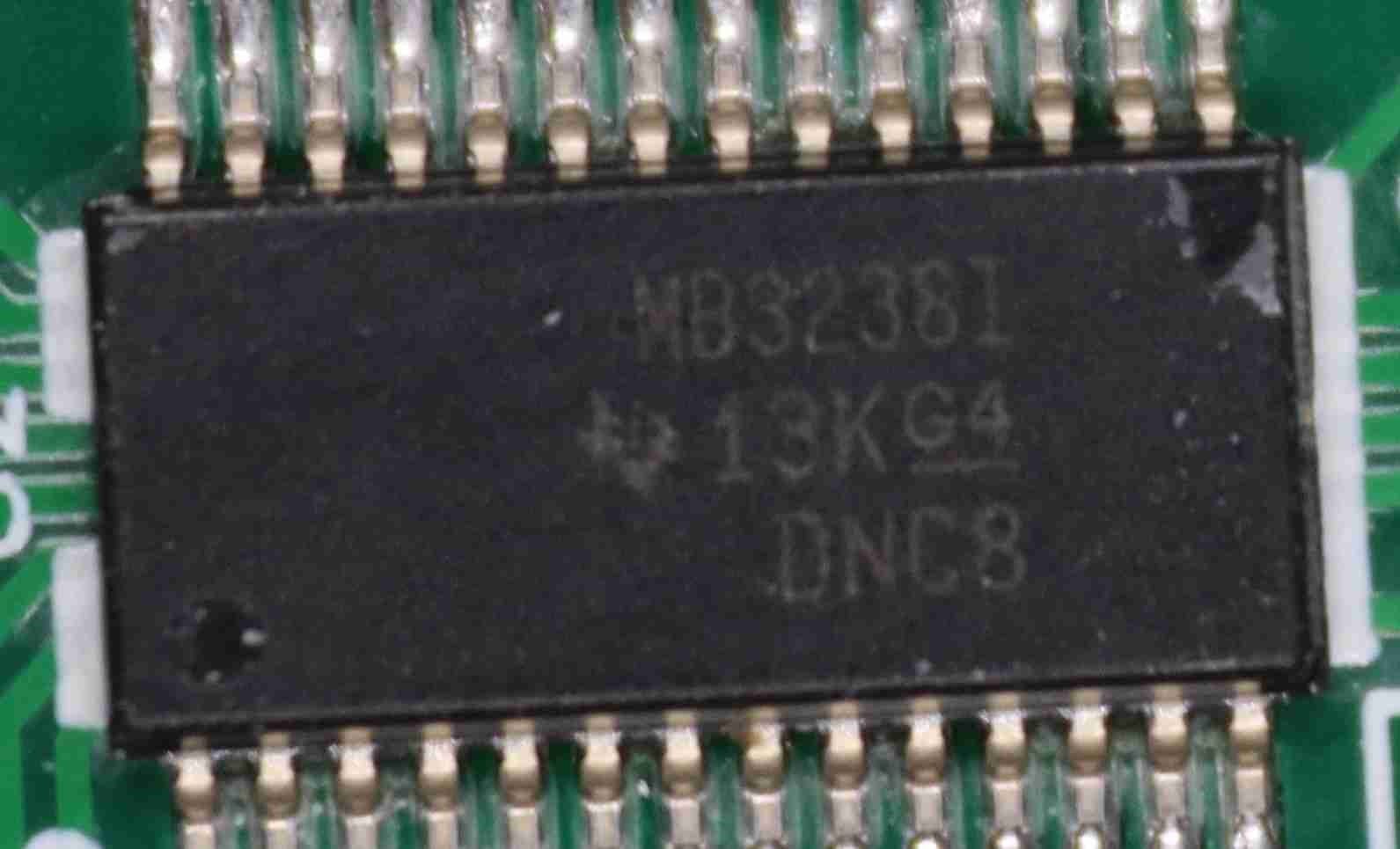

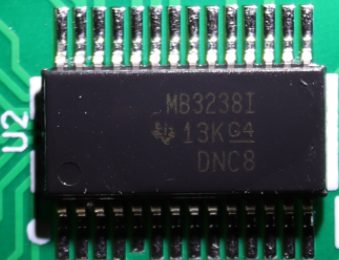

- MB3238l
13KG4
DNC8
Multi-channel RS-232 line driver/receiver
A multi-channel line driver and receiver chip that converts between the microcontroller’s logic levels and RS-232 serial voltages, letting the flight controller exchange data with external serial devices.record ↗

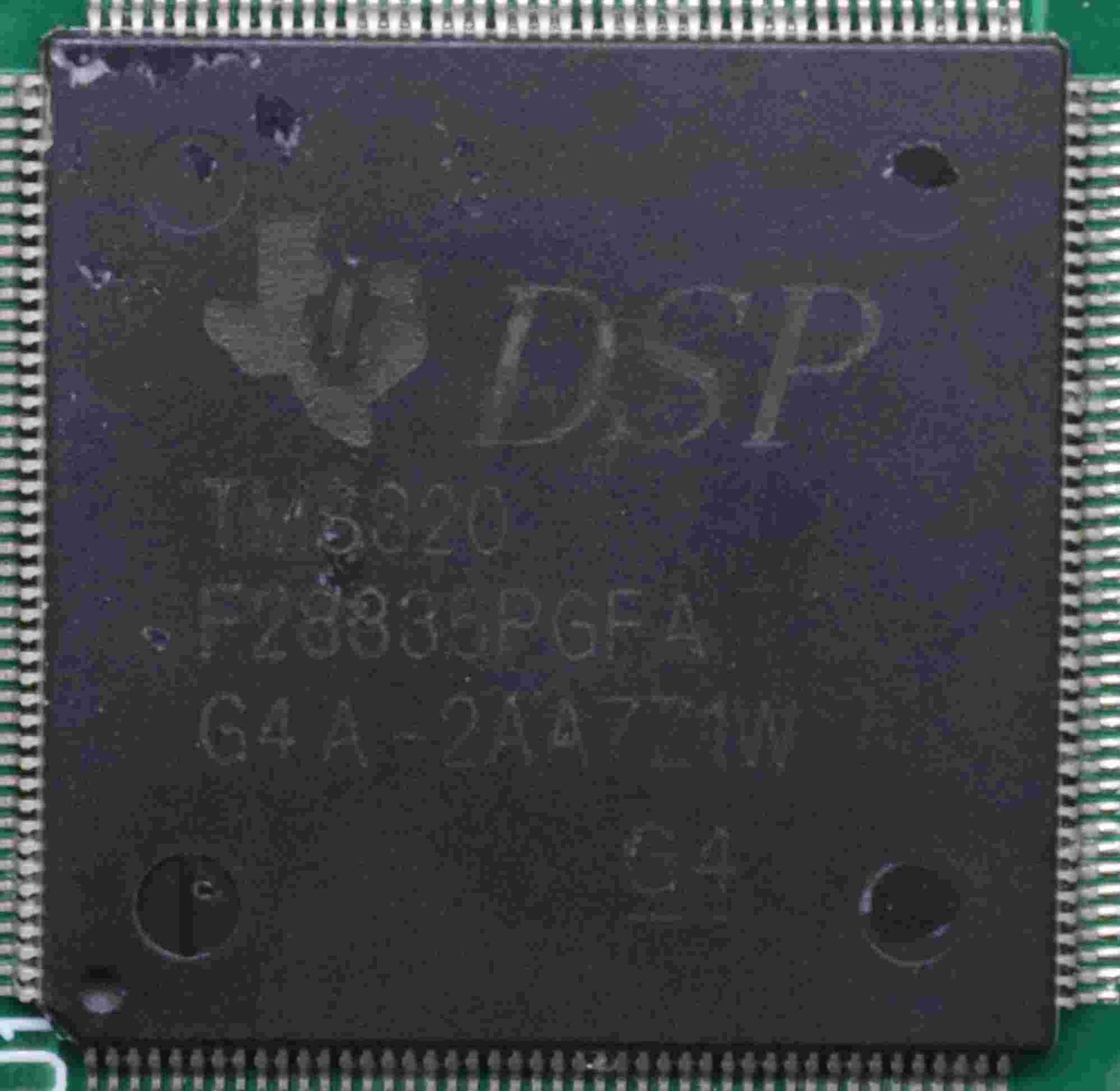

- TMS320
F28335PGFA
G4A-22AA7Z1W G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗

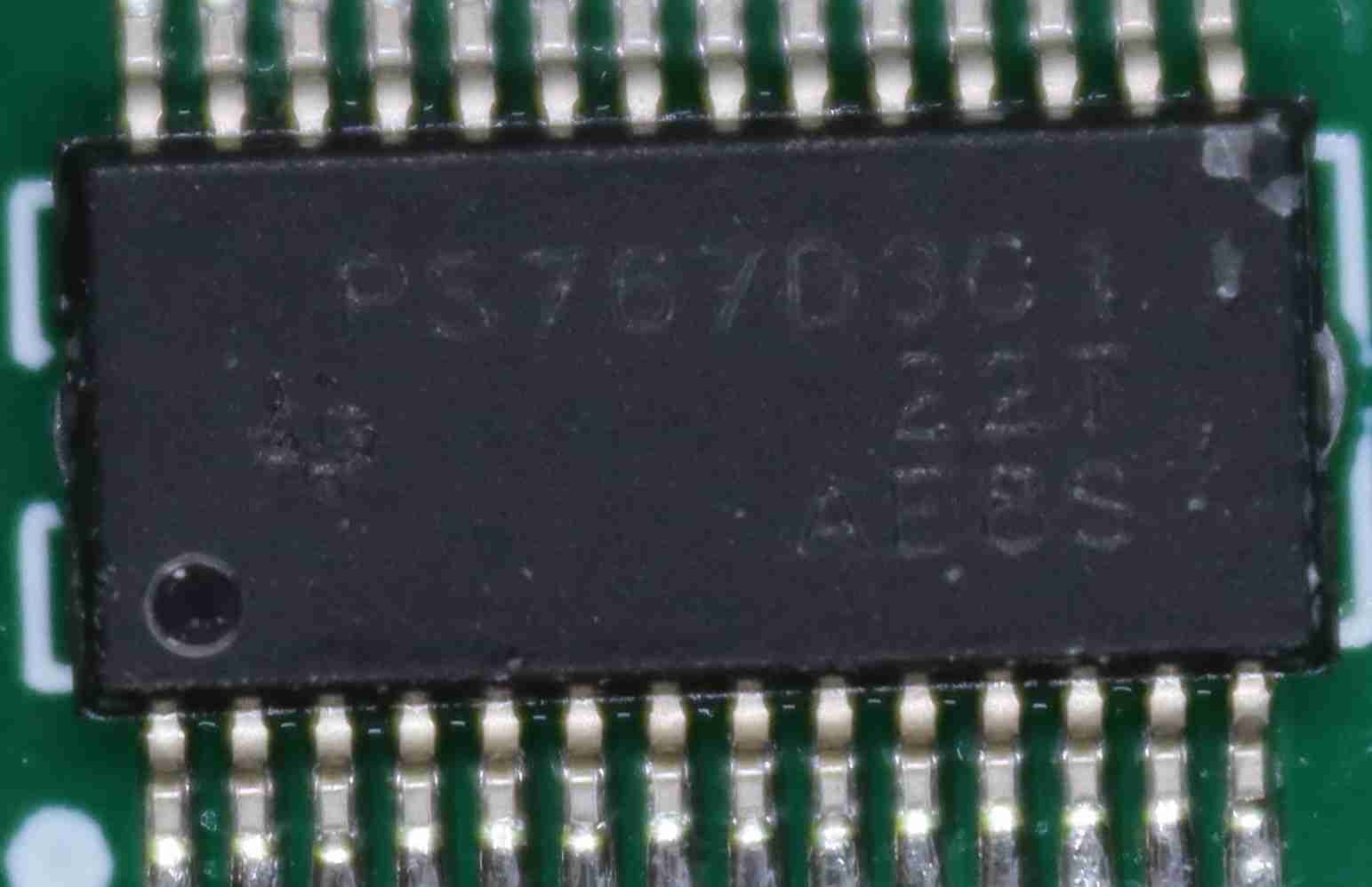

- PS767D301
22T
AE8S
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗

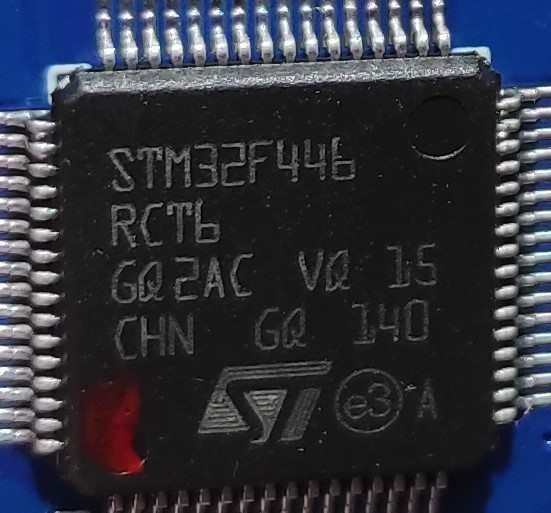

- STM32F446RCT6
GQ2AC VQ 15
CHN GQ 140
Microcontroller based on the ARM Cortex-M4 core
An ARM Cortex-M4 microcontroller from STMicroelectronics that runs the flight-control software, reading sensors, computing the navigation solution and driving the drone’s actuators and peripherals.record ↗

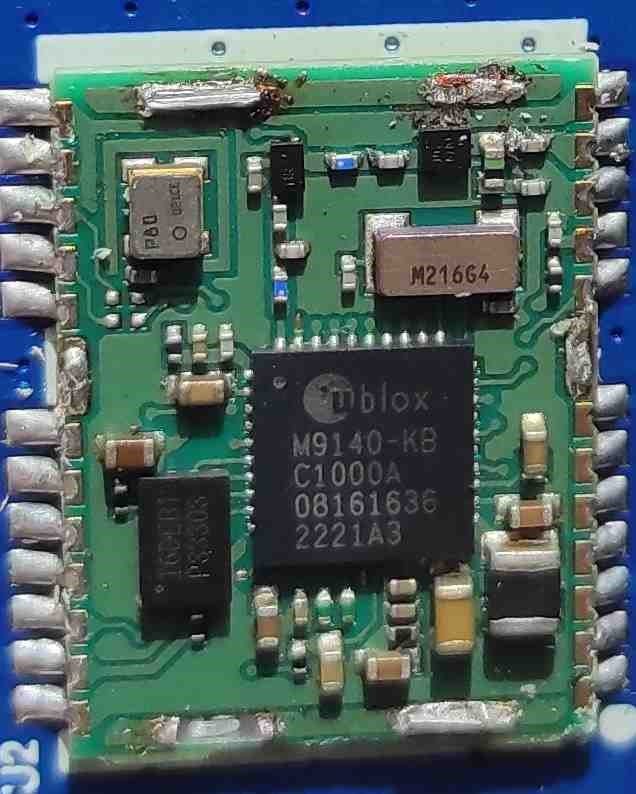

- Ublox
M9140-KB
C1000A
08161636
2221A3
GNSS module NEO-M9N based on the receiver M9140-KB
A u-blox satellite-navigation receiver module that fixes the drone’s position from GPS, GLONASS, Galileo and BeiDou signals and feeds coordinates to the flight controller.record ↗

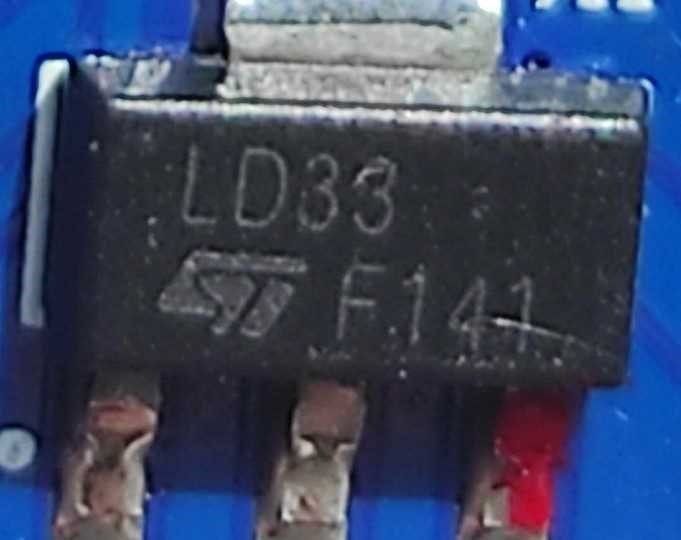

- LD1117AS33TR
LD33
F141
Voltage regulator
A linear voltage regulator that drops the input supply to a steady 3.3 volts for the digital chips on the flight controller board.record ↗
- CTS23CB3
50M000000
2226 3I3
Quartz generator 50MHz
A packaged quartz oscillator that generates a stable 50 MHz clock signal for digital circuits on the flight controller board.record ↗
- VP230
28M
A0G9 G4
CAN Bus Transceiver
A Texas Instruments CAN bus transceiver on the flight controller board. It is the line driver and receiver that connects the processor to a CAN data bus.record ↗
- TMS320
F28335PGFA
G4A-2AAN9DTW G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗

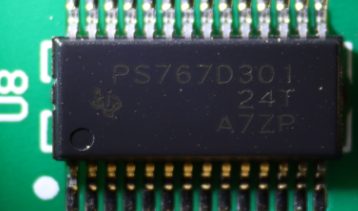

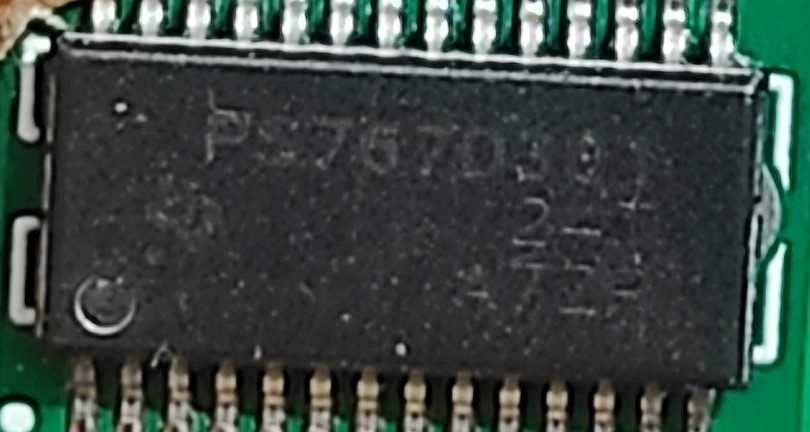

- PS767D301
24T
A7ZP
Voltage regulator with two outputs
A dual-output low-dropout voltage regulator that produces two separate regulated supply rails from one input, powering different sections of the flight controller.record ↗
- 26AF04M
HCT04
G4
Assembly of inverters
The Texas Instruments SN74HCT04 is a chip containing six logic inverters. It flips digital signals from high to low and back, a common building block used on the satellite-receiver board.record ↗
- M83238Q
14TG4
C6H3
Multi-channel RS-232 line driver/receiver
record ↗
Servo drive
- TLP2361
022
P2361
High-speed optocoupler
A high-speed optocoupler that passes digital signals across an electrical isolation barrier using an internal LED and photodetector, keeping the servo drive’s logic side separated from motor-side voltages.record ↗

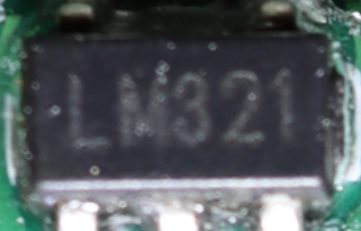

- LM321
Operational Amplifier
A single-channel operational amplifier used in the servo drive to condition analog signals, for example a current-sense or position-feedback voltage.record ↗

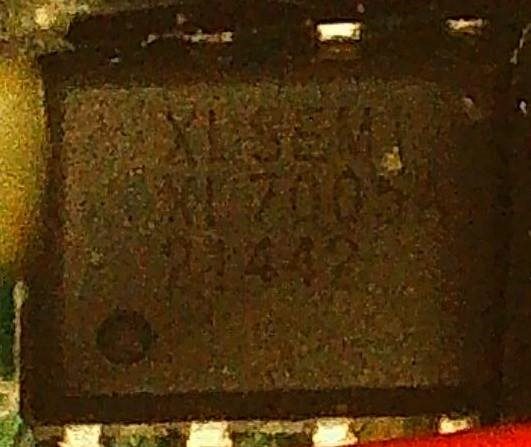

- XL SEMI
XL7005A
21442
DC to DC converter
A step-down DC-to-DC converter chip from XLSEMI that produces a lower regulated voltage for the servo drive’s electronics from the main input supply.record ↗
- SE10070GG
210507
N-channel MOSFET
An N-channel power MOSFET used as an electronic switch in the servo drive, carrying motor current under the control of the gate-driver chip.record ↗
- EG2134
CSFF07
CDFF18
Motor Driver
A gate-driver chip from EGmicro that takes low-power logic signals from the microcontroller and switches the power MOSFETs that run the servo motor.record ↗
- STM32F030K6T6
GQ246 9C
CHN 23914
Microcontroller
A small ARM Cortex-M0 microcontroller from STMicroelectronics that runs the servo drive’s local control loop, interpreting commands from the flight controller and driving the motor accordingly.record ↗

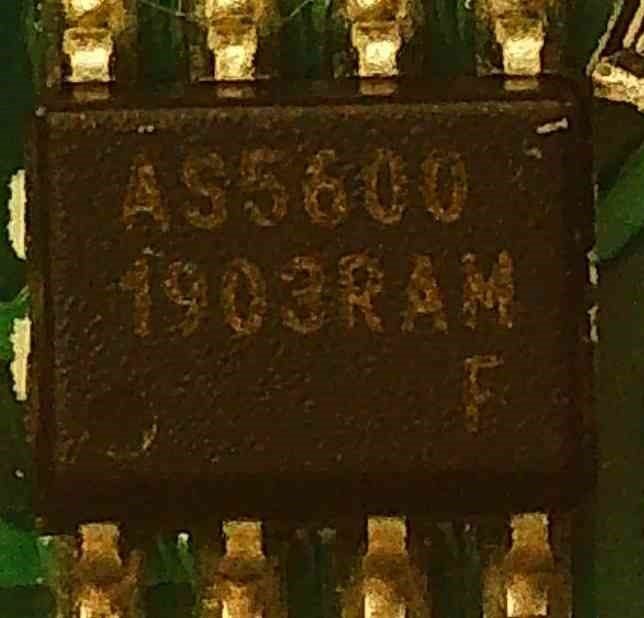

- AS5600
1903RAM
F
Non-contact magnetic angle sensor with I2C interface
record ↗
Voltage regulator block
- NCP51530B
P8PQ
Control driver
record ↗
- ISL8843A
MBZ
L519FNJ
PWM controller
record ↗

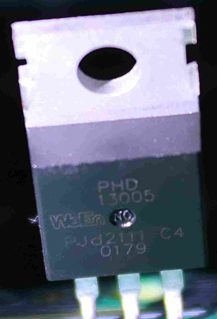

- PHD
13005
PJd2111 C4
0179
NPN power transistor with an integrated diode
A high-voltage NPN power transistor with an integrated damper diode, from WeEn Semiconductors in China. It is used as a switching element in the drone’s power-supply electronics.record ↗
- 1506
MBR30150PT
Schottky diode
record ↗
Control panel unit
- KN(3)С-202
ON-ON (6 PIN)
Switch
record ↗
Inertial navigation system unit
- 107J
00A33
Tantalum Capacitor
A tantalum capacitor from AVX, fitted in the control and monitoring unit. It smooths a supply rail and stores a small reserve of charge for nearby circuits.record ↗
- ТЕ
561101BA03
227240110
Digital pressure and altitude sensor
record ↗
- MGZ2067HC1
2242105B
3BT750
MEMS gyroscope
record ↗
- ADXL 357B
#2137
487586
Low noise 3-axis MEMS accelerometer
An Analog Devices ADXL357 low-noise three-axis MEMS accelerometer. It measures acceleration along three axes; the navigation processor integrates its output to estimate position when satellite signals are jammed or lost.record ↗
- LMR23610А
F10A
TI 23A
P05PG
Step-down converter
record ↗
- 25016JVIQ
2311
6223
AM900ZZ
Serial flash memory
record ↗
- NEO-M8N
M8030-KT
B3000A
05788244
1927A3
GNSS module
record ↗
- MAX3221
EAE 2310
Transceiver
record ↗
- GD32F103
TBU6
GDQN566
DJ2132
GD ARM
Microcontroller
record ↗
- GN LF33A
GK06S213
Voltage regulator
record ↗
- STM32F405 RGT6
78637 VQ
PHL 7B 206
Microcontroller
record ↗
Antenna array type CRPA
GNSS radio signal processing unit
- MPM3550EGLE
MPS 2250
MPM3550E
P1833488X
DC/DC converter
record ↗
- BNX023
Filter for direct current lines
The BNX023 is a compact three-terminal EMI filter from Murata that is wired in series with a DC power line to suppress high-frequency noise, keeping interference out of the CRPA anti-jamming navigation module.record ↗
- L9850
2W00 T
Double N-channel MOSFET
record ↗
-

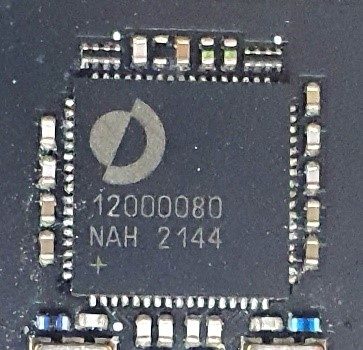

not identified
record ↗
-
not identified
record ↗
- SM712
Asymmetric protection diode
record ↗
- Si53361
3361
B253
251
CMOS Clock Buffer
record ↗
- SC4216
396069
2205
Voltage regulator with low input/low dropout
record ↗
- MAX3232
EUE
+243
RS232 Transceiver
record ↗
- TXB0108PW
YE08 1CKG4 A5DR
8-bit bidirectional voltage translator
record ↗
- SKY16602-632LF
SKY
6602
5177
Low-Threshold PIN Diode Limiter
record ↗
- LTC6362
LTGTD
e3
Low-noise differential amplifier
record ↗
- MIMXRT1052
CVL5B
1N04V
CTDQ2138L
Processor
record ↗
- MP1495
IACEP
Step Down DC-DC Converter
record ↗
- INA180
1A9D
Current Sense Amplifier
record ↗
- 23A6T9U
LM21212
MH-2
Synchronous Buck Regulator
record ↗
- 1755
ADJ
#032
07134
Linear Voltage Regulator
record ↗
- IS25LP128
FBLE 2138
P2L72201
Memory chip
An ISSI IS25LP128 128-megabit serial NOR flash memory. It stores the firmware and configuration data that the satellite receiver’s processor loads at power-up.record ↗

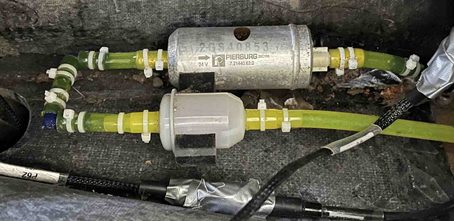

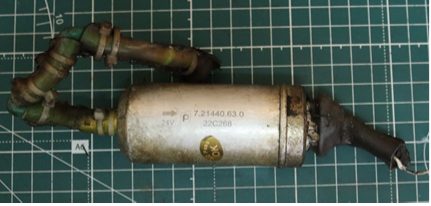

Fuel pump
Паливний насос
PIERBURG 7.21440.63.0 20С196
A compact electric fuel pump from German automotive supplier Pierburg, moving fuel from the tank to the engine of the drone.
Photo: HUR War & Sanctions
UAV "Shahed-136" record ↗
Voltage normalization unit
CRPA navigation module
- IS25LP064
ABL3 2222
P35986L2
Flash memory
record ↗

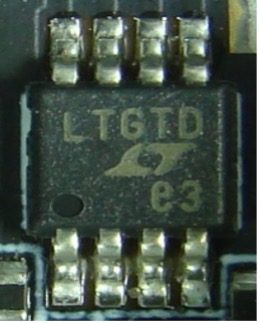

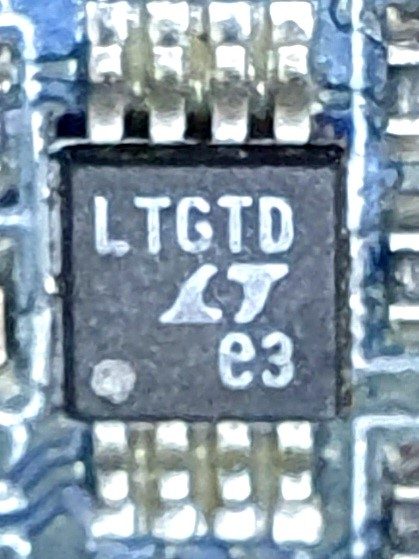

- LTGTD
e3
Undervoltage and reverse supply protection controller LTC4367
record ↗

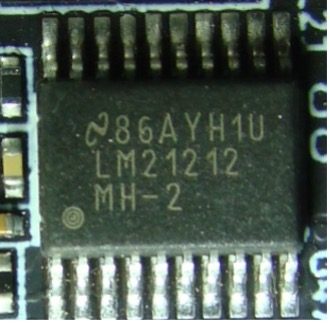

- 86AYH1U
LM2 12 12
MH–2
Synchronous buck regulator
record ↗
- YE08
15K G4
CKJN
8-Bit bidirectional voltage-level translator TXB0108
record ↗
- 1755
ADJ
#208
08139
Linear regulator
record ↗
- IS25LP128
FBLE 2129
P2876401
Flash memory
record ↗
- AD9361BBCZ
#2021
3503861.1
SINGAPORE
RF Agile transceiver
record ↗

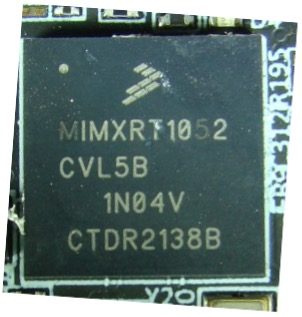

- MIMXRT1052
CVL5B
1N04V
CTDR2138B
Microcontroller
record ↗
Barometric information unit
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
UAV "GERAN-2" (Shahed-136) Ы-1311 record ↗
Inertial navigation system unit
- 107 J
11B12
Tantalum SMD capacitor
record ↗
- F10A
TI 27A
P1C5G4
Synchronous step-down converter LMR23610А
record ↗

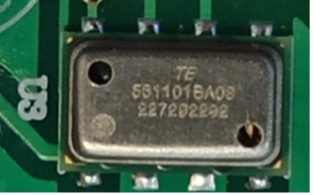

- 561101BA03
227202292
Barometric pressure sensor MS561101BA03
record ↗
- 25Q16JVIQ
2239
6216
AB0AA
Flash memory
record ↗
- M8030-KT
B3000A
09434210
2203A3
NEO-M8N GNSS module
record ↗
- MAX3221
EAE 2102
RS-232 line driver and receiver
record ↗
- MGZ2067HC1
2242109B
3BT700
MEMS gyroscope
record ↗
- ADXL 357B
#2217
729861
3-axis MEMS accelerometer
record ↗
- GN
LF33A
GK1AA214
Low drop voltage regulator
record ↗
- STM32F405
RGT6 GQ205 9R 12
CHN GQ 313
Microcontroller
record ↗
Antenna array type CRPA
GNSS radio signal processing unit

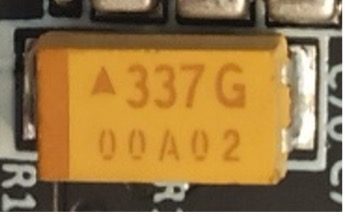

- 337 G
00A02
Tantalum SMD capacitor
record ↗
- BNX023
EMI Suppression Filter
record ↗
- L9850
2W00 T
Dual N-Channel MOSFET PJL9850
record ↗
- AD9361BBCZ
#2132
4280105.1
SINGAPORE
RF Agile transceiver
record ↗
- 712
TVS diode SM712
record ↗
- Si53361
3361
B253
251
CMOS Clock Buffer
record ↗
- SC4216
191352
1822
Voltage regulator
record ↗
- MAX3232
EUE
+243
Multichannel RS-232 line driver and receiver
The MAX3232 is a dual RS-232 line driver and receiver that operates from a single low-voltage supply. It handles serial communication between the CRPA navigation module and other units on the drone.record ↗
- YE08
13KG4
C8PJ
8-Bit bidirectional voltage-level translator TXB0108
record ↗
- SKY16602-632LF
SKY
6602
5177
Low-Threshold PIN Diode Limiter
record ↗
- LTGTD
e3
Undervoltage and reverse supply protection controller LTC4367
record ↗
- MIMXRT1052
CVL5B
1N04V
CTEP2212H
Processor
record ↗
- IACEP
Synchronous Step-Down Converter MP1495
record ↗
- INAx180
1A9D
Current-Sense Amplifiers
record ↗
- 86AYH1U
LM21212
MH-2
Synchronous buck regulator
record ↗
- 1755
ADJ
#208
08139
Low voltage linear regulator
record ↗
- IS25LP128
FBLE 2129
P2876401
Flash memory
record ↗
UAV "GERAN-2" (Shahed-136) Ы-1276 record ↗
Power distribution unit

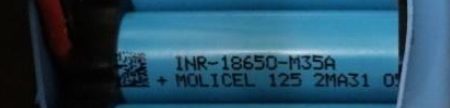

- INR-18650-M35A
MOLICEL 125 2MA31 05
Li-Ion cell: INR-18650-M35A type 18650
record ↗
- 031N08N5 GAH218
N-channel MOSFET 80V 120A Case type: D²PAK
record ↗
- LM5176 26T A6Z8
A wide-range step-up/step-down voltage converter
record ↗

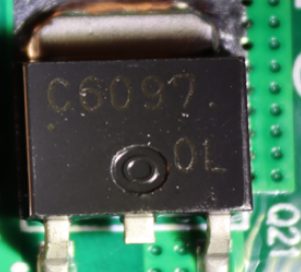

- 2SC6097
C6097 01
NPN bipolar transistor 60V 3A
record ↗
- VBT3045CBP 2225E
Diode
record ↗
- 27AFEKU LM5117 PMH
LM5117 Step-down voltage converter
record ↗

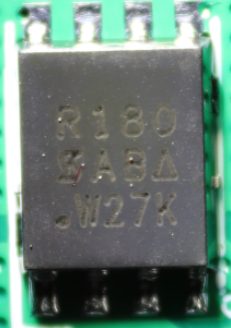

- R180 SABA W27K
SiR180DP N-channel MOSFET
record ↗
- LM258 274 ZYD7 G3
Dual operational amplifier
record ↗
- MB3238I 36K G4 D2NX
Multi-channel RS-232 line driver/receiver
record ↗

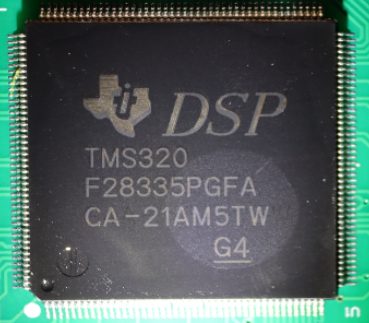

- DSP TMS320 F28335PGFA CA-21AM5TW G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CTS23CB3 50M000000 2226 3I3
Quartz generator 50MHz
record ↗
- PS767D301 24T A7ZN
Voltage regulator with two outputs
record ↗
Air pressure measuring unit
Flight controller
- PN board: G108
- VP230 26M AJ1T
3.3V CAN bus transceiver
record ↗
- H11G1 231Q
Optocoupler
record ↗
- LM258 274 ZD0XG3
Secondary operational supporter
record ↗

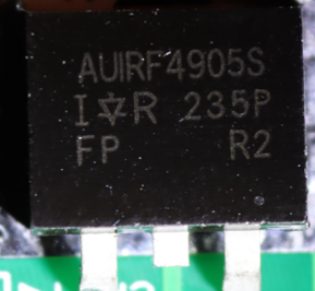

- AUIRF4905S 235P FP R2
P-channel MOSFET
record ↗
- MB3238Q 14T G4 C6H3
Multichannel driver/receiver of RS-232 line
record ↗

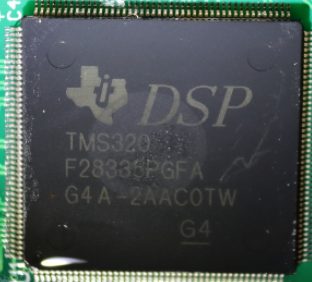

- DSP TMS320 F28335PGFA G4A-2AACOTW G4
Microcontroller 32 bit real clock for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CTS23CB3 50M000000 2226 3I3
Crystal oscillator 50MHz
record ↗
- PS767D301 22T AK3F
Voltage regulator with two outputs
record ↗
- Board PN: G103 SR4442
- CTS23CB3 50M000000 2226 3I3
Crystal oscillator 50MHz
record ↗
- VP230 28M A0G9 G4
3.3V CAN bus transceiver
record ↗
- DSP TMS320 F28335PGFA G4A-2AACOTW G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- MB3238I 33K G4 D027
Multi-channel RS-232 line driver/receiver
record ↗
- PS767D301 24T A7ZP
Voltage regulator with two outputs
record ↗
- Board PN: G107 SR4195

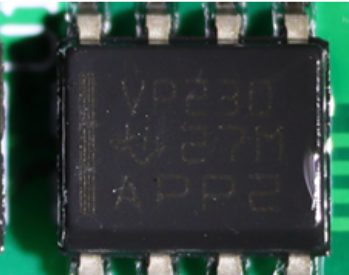

- VP230 27M APP2
3.3V CAN bus transceiver
record ↗
- DSP TMS320 F28335PGFA G4A-2AACOTW G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- M83238I 14T G4 C6H3
Multi-channel RS-232 line driver/receiver
record ↗
- CTS23CB3 50M000000 2226 3I3
Quartz generator 50MHz
record ↗
- PS767D301 22T AE8S
Voltage regulator with two outputs
record ↗
- Board PN: G105 SR4100
- VP230 28M AOG9 G4
3.3V CAN bus transceiver
record ↗
- MB3238Q 2CT G4 AF4F
Multi-channel RS-232 line driver/receiver
record ↗
- DSP TMS320 F28335PGFA G4A-22AXTXW G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CTS23CB3 50M000000 2226 3I3
Quartz generator 50MHz
record ↗
- PS767D301 22T AK3F
Voltage regulator with two outputs
record ↗
- Navigation system board PN: G110

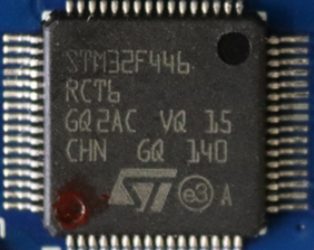

- STM32F446 RCT6 GQ2AC VQ 15 CHN GQ 140
Microcontroller based on the ARM Cortex-M4 core with a frequency of 180 MHz
record ↗
- Ublox M9140-KB C1000A 08161636 2221A3
GNSS module NEO-M9N based on the receiver M9140-KB
record ↗
- LD33 F141
LD1117AS33TR Voltage regulator 3.3V
record ↗
- CTS23CB3 50M000000 2226 3I3
Quartz generator 50 MHz
record ↗
- VP230 28M AOG9 G4
3.3V CAN bus transceiver
record ↗
- DSP TMS320 F28335PGFA G4A-2AACOTW G4
A 32-bit real-time microcontroller for signal processing
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- PS767D301 22T AE8S
Voltage regulator with two outputs
record ↗

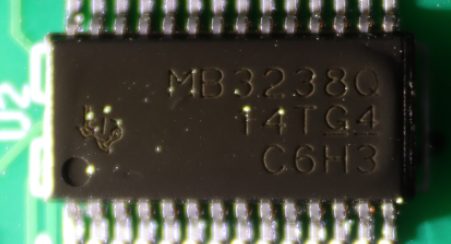

- M83238Q 14T G4 C6H3
Multi-channel RS-232 line driver/receiver
record ↗
- 26AF04M HCT04 G4
HCT04 Assembly of inverters
record ↗
Servo drive

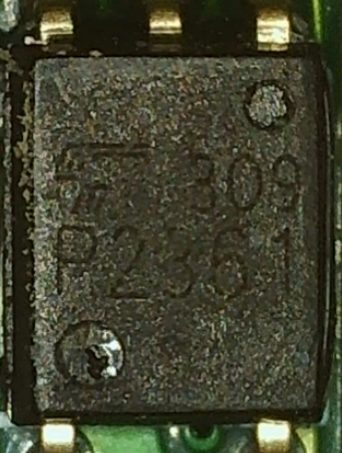

- 309 P2361
TLP2361 High-speed optocoupler
record ↗
- LM321
Operational amplifier
record ↗

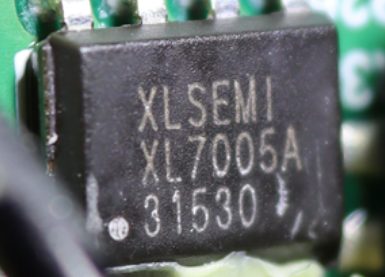

- XL SEMI XL7005A 31530
DC converter
record ↗
- SE10070GG 230718
N-channel MOSFET transistor
record ↗

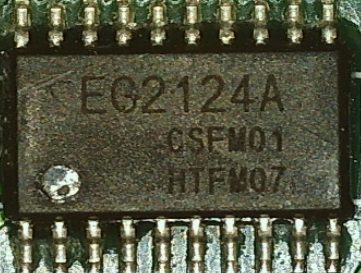

- 7-20В
EG2124 CSFM01 HTFM07
Engine driver
record ↗

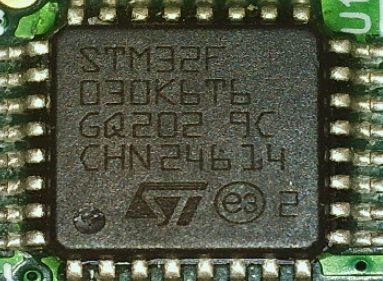

- STM32F030K6T6 GQ2029C CHN 24614
32-bit microcontroller based on the ARM Cortex-M0 core
record ↗
- AS5600 1908RAE D
Non-contact magnetic angle sensor with I2C interface
record ↗
Block of the inertial navigation system
- M8030-KT 83000A 08109973 2118A3
GNSS module NEO-M8N based on the receiver M8030-KT
record ↗
- MAXIM MAX3221 EAE 2102
Line transceiver RS-232
record ↗
- GD32F103
GD32F103 TBU6 GDQN566 DJ2132 GD ARM
Microcontroller
record ↗
- MGZ2067HC1 2242105B 3BT159
MEMS gyroscope Frequency: 250 Hz
record ↗
- ADXL 357B #2137 487586
Low-noise 3-axis MEMS accelerometer
record ↗

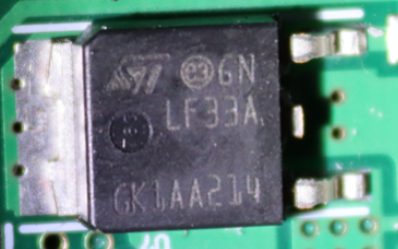

- GN LF33A GK1AA214
3.3V voltage regulator
record ↗

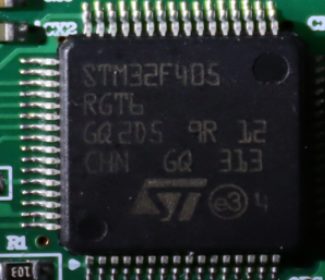

- STM32F405 RGT6 GQ205 9R 12 CHN GQ 313
Microcontroller based on the processor ARM Cortex-M4 32
record ↗
Voltage regulator block
- NCP515308 P8PQ
Control driver
record ↗

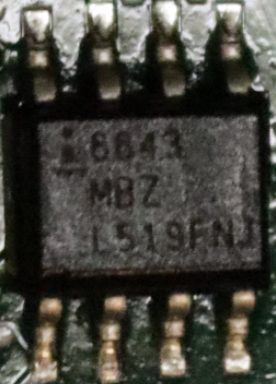

- 8843 MBZ L519FNJ
PWM controller
record ↗

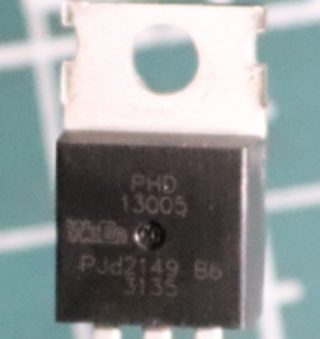

- PHD 13005 PJd2149 B6 3135
NPN power transistor with an integrated diode
record ↗
- 2386 MBR30150PT
Schottky diode
record ↗
- IRFB4321 P239D 1W43
Power transistor MOSFET
record ↗
- Nichicon 1200mkF 63v
Electrolytic capacitor
record ↗
UAV "GERAN-2" (Shahed-136) Ы-391 record ↗
Servomotor
- 8591
GS859X operational amplifier
record ↗
- XL SEMI XL7005A 31530
DC to DC converter
record ↗
- SE10070GG 210507
N-channel MOSFET transistor
record ↗

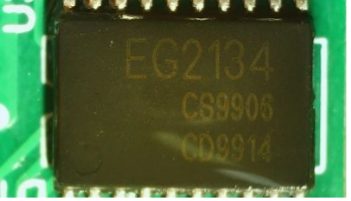

- EG2134 CS9906 CD9914
Motor driver
record ↗
- STM32F030K6T6 GQ2BL9C HN 23912
32-bit microcontroller based on the ARM Cortex-M0 core
record ↗

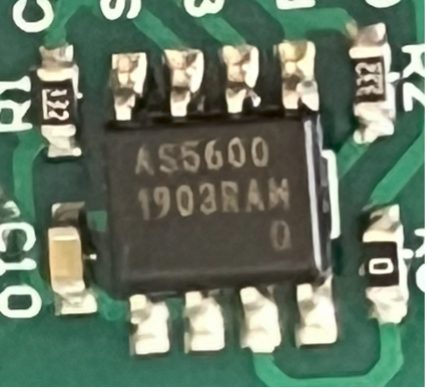

- AS5600 1903RAM
Non-contact magnetic angle sensor with interface
record ↗
Control panel unit
- KN(3)С-202
Switch
record ↗
Inertial system unit
- GD32F103 TBU6 GDQN566 DJ2132 GD ARM
Microcontroller
record ↗
- MGZ2067HC1 2240126B 3BT049
Gyroscope board
record ↗
- ADXL 357B #2207 663753
Low noise 3-axis MEMS accelerometer
record ↗
- GN LF33 GK6A1306
LF33
3.3V voltage regulator
record ↗

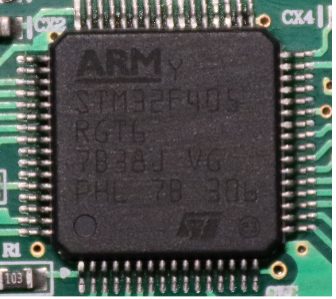

- ARM STM32F405 RGT6 7B38J V6 PHL 7B 306
Microcontroller based on the ARM Cortex-M4 processor
record ↗
Antenna array type CRPA
Radio signal processing unit
- Murata BNX023
Filter for direct current lines
record ↗
- PJL9850 6W00 E
Double N-channel MOSFET
record ↗
-
Transceiver
record ↗
-
FPGA
record ↗
- SM712
Asymmetric protection diode
record ↗
- 3361 B064 248
Low jitter LVCMOS clock buffer, up to 12 outputs
record ↗
- SC4216 396069 2205
Voltage regulator with low input/low dropout
record ↗
- RS-232
MAX3232 EUE +243
Transceiver
record ↗
- YE08 15KG4 CKJN
Назва: TXB0108PW
8-bit bidirectional voltage translator
record ↗
- SKY16602-632LF
SKY
6602
5177
Protective diode with low threshold
record ↗
- LTGTD e3
LTC6362 i.MX RT1052 CVL5B
на базі ядра Arm Cortex®-M7
MIMXRT1052 CVL5B 1N04V CTAK2235D
Low-noise differential amplifier
record ↗
- MIMXRT1052 CVL5B 1N04V CTAK2235D
Processor
record ↗
- IACEP
Назва: MP1495
Step-down voltage converter
record ↗
- 1A9D
Назва: INA180
Current monitoring sensor amplifier
record ↗
- MPPK 4470 A348
MPQ4470
Step-down voltage converter
record ↗
- 23A6T9U LM21212 MH-2
Voltage regulator with frequency synchronisation
record ↗
- 1755 ADJ #032 07134
Low voltage linear voltage regulator
record ↗
- IS25LP128 FBLE 2130 P2J27101
Flash memory 128 MB
record ↗
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Navigation system of the russian-made Shahed-136 UAV record ↗
Navigation unit B-105
- Digital receiver board of the Kometa-M navigation module

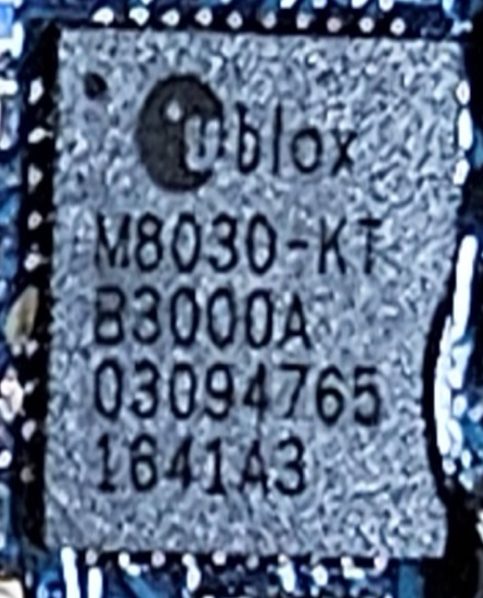

- Ublox M8030-K1 B3000A 03094765 1641A3
Chip 72 channel navigation receiver
record ↗
- Board B-307 (part no. 00105) with Unistrong Phantom P34 navigation module

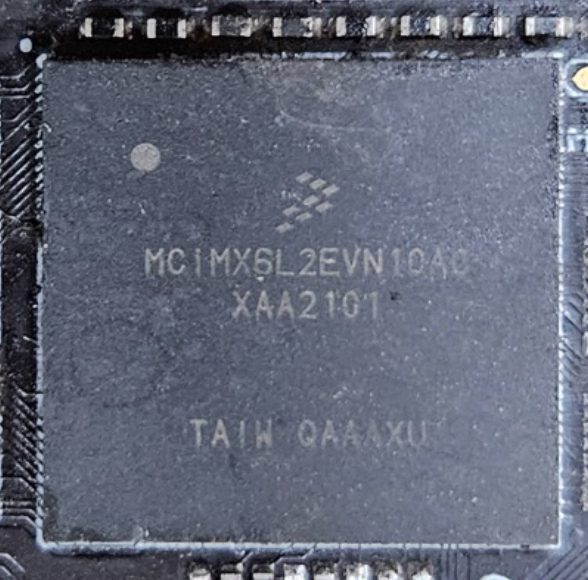

- MCIMX6L2EVN10AC XAA2101 TAIW QAAAXU
ARM processor
record ↗

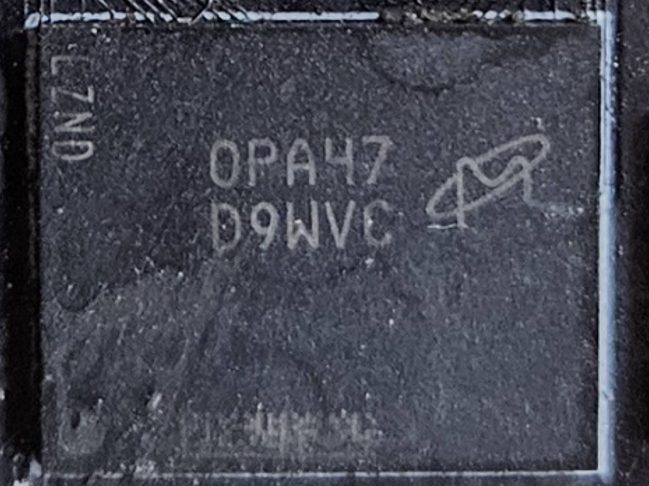

- Taiwan
D9WVC memory chip
record ↗

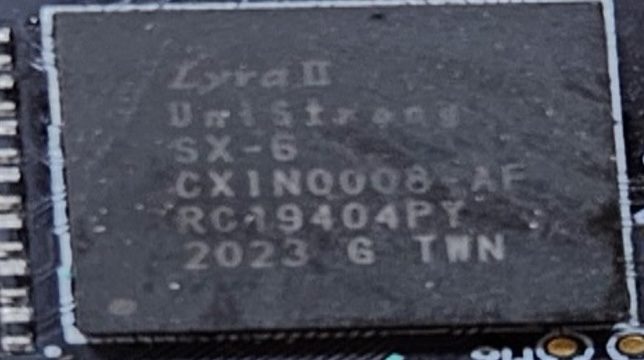

- Lyra II UniStrong SX-6 CXIN0008-AF RC19404PY 2023 G TWN
Satellite signal processing processor BeiDou-3
record ↗
-

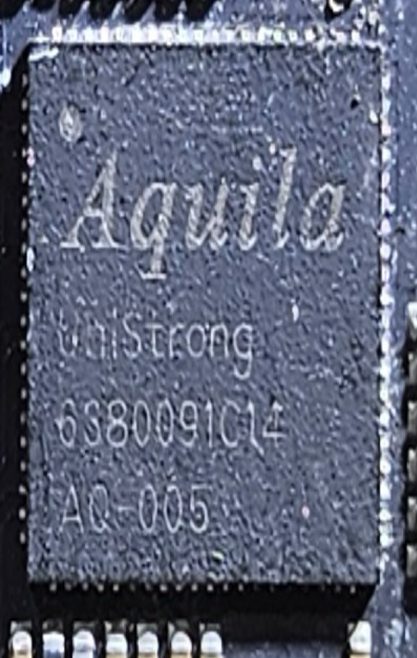

Aquila Unistrong 638009C14 AQ-005 chip
record ↗
-
Unistrong Phantom P34 navigation module (part no. 21602824)
record ↗
UAV "GERAN-2" (Shahed-136) black record ↗

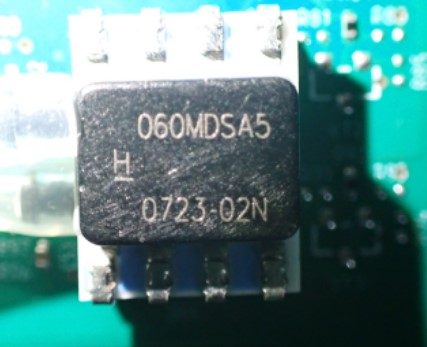

Pressure sensor for installation on the board
Датчик тиску для монтажу на платі
060MDSA5 H 0723-02N
Photo: HUR War & Sanctions
1 / 2
Photo: HUR War & Sanctions
1 / 2
Photo: HUR War & Sanctions

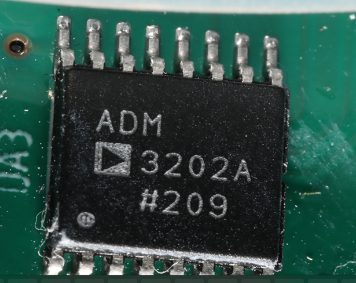

Low-power RS-232 receiver/transmitter
Мало-споживаючий приймач/передавач RS-232
ADM 3202A #209
Photo: HUR War & Sanctions
1 / 2
Photo: HUR War & Sanctions

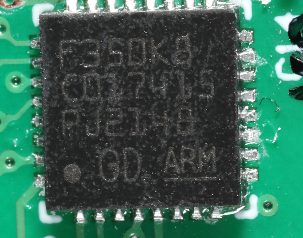

32-bit microcontroller with ARM architecture on the Cortex-M4 core
32-бітний мікроконтролер с архітектурою ARM на ядрі Cortex-M4
F350K8 C017415 PJ2148
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
32-bit microcontroller
32-бітний мікроконтролер
STM32F 411CCU6 GQ26F15VQ CHN GQ 232
Photo: HUR War & Sanctions
Shahed-136 UAV (157 components) record ↗
Антено-навігаційне обладнання БПЛА-камікадзе "Герань-2" ("SHAHED-136")

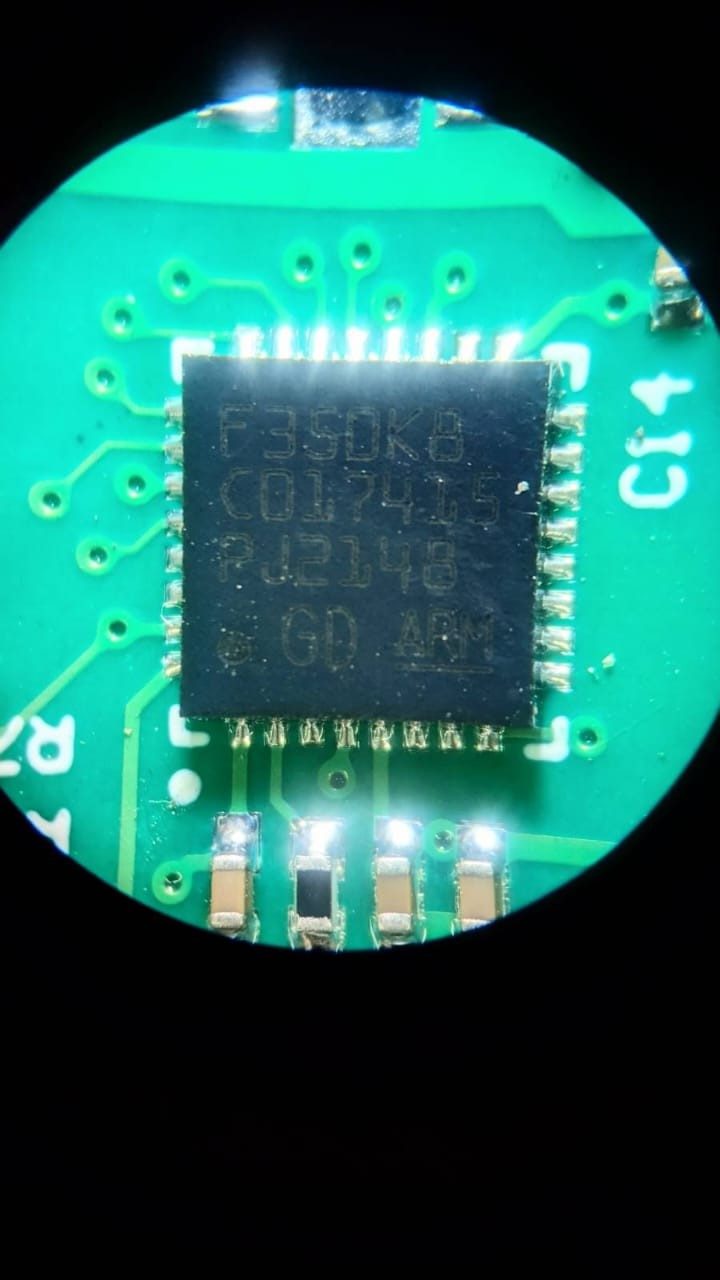

- RM F350K8
C017415
PJ2148
GD ARM
32-bit microcontroller with ARM architecture on the Cortex-M4 core (F3xx series)
record ↗

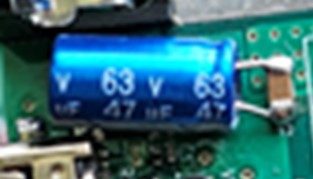

- JRB1J470M02500630120000B
Radial aluminum electrolytic capacitor with lead - JRB
record ↗

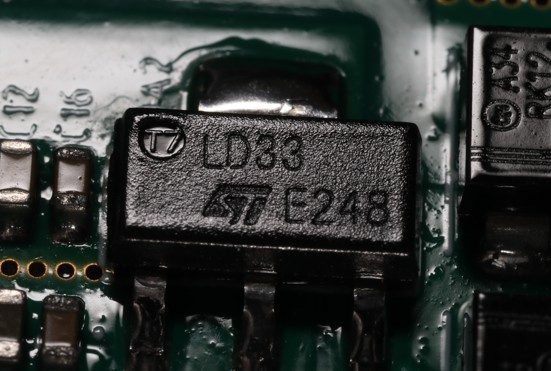

- LD1117
Fixed and adjustable low-drop positive voltage stabilizers
record ↗

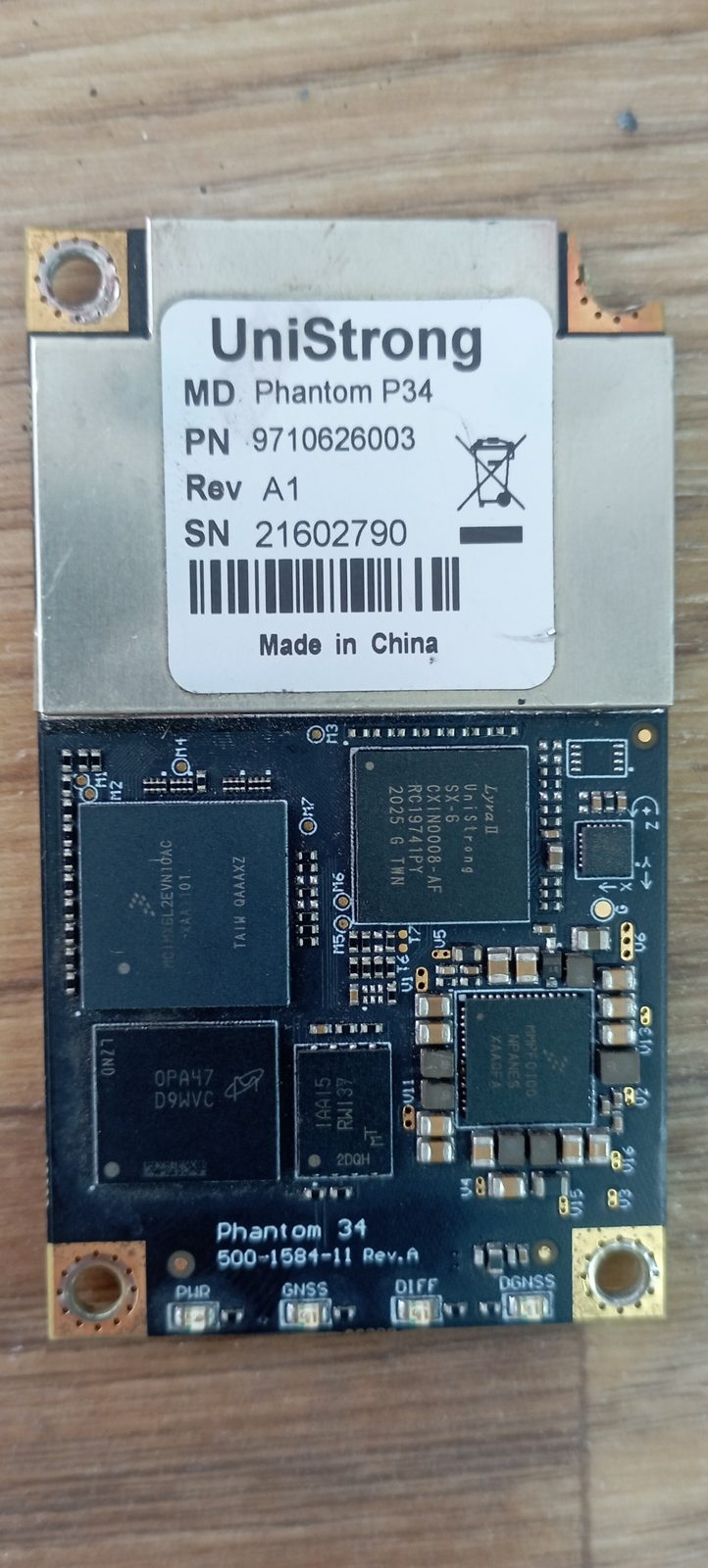

- L1 L2 L5 BDs Glonass Galileo Unistrong
Hemisphere Phantom P34 OEM 10Hz RTK board. High-precision GNSS board module GPS receiver
record ↗
Інерціальний вимірювальний блок (IMU) Ampro Computers INS (США)

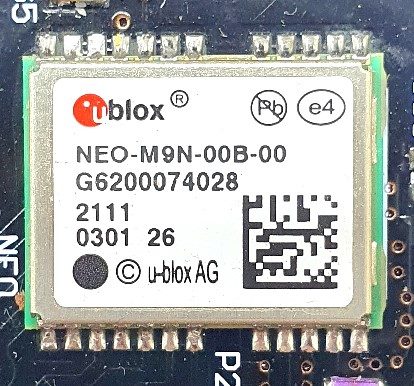

- GNSS
u-blox UBX-M9140-KB
Microcircuit
record ↗
- 11-0020-8
GPS/GLONASS ceramic antenna
record ↗

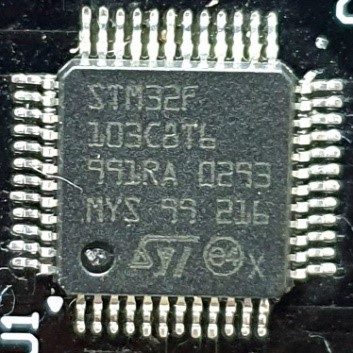

- STM32F
103C8T6
991RA 0293
MYS 99 216
Microcontroller
record ↗
-

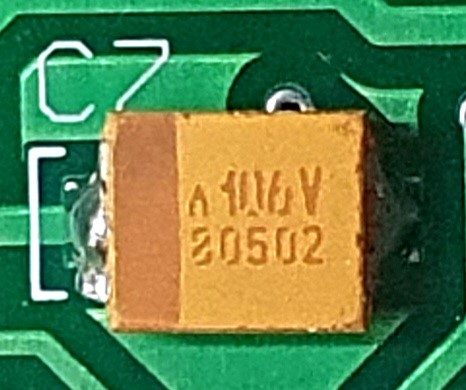

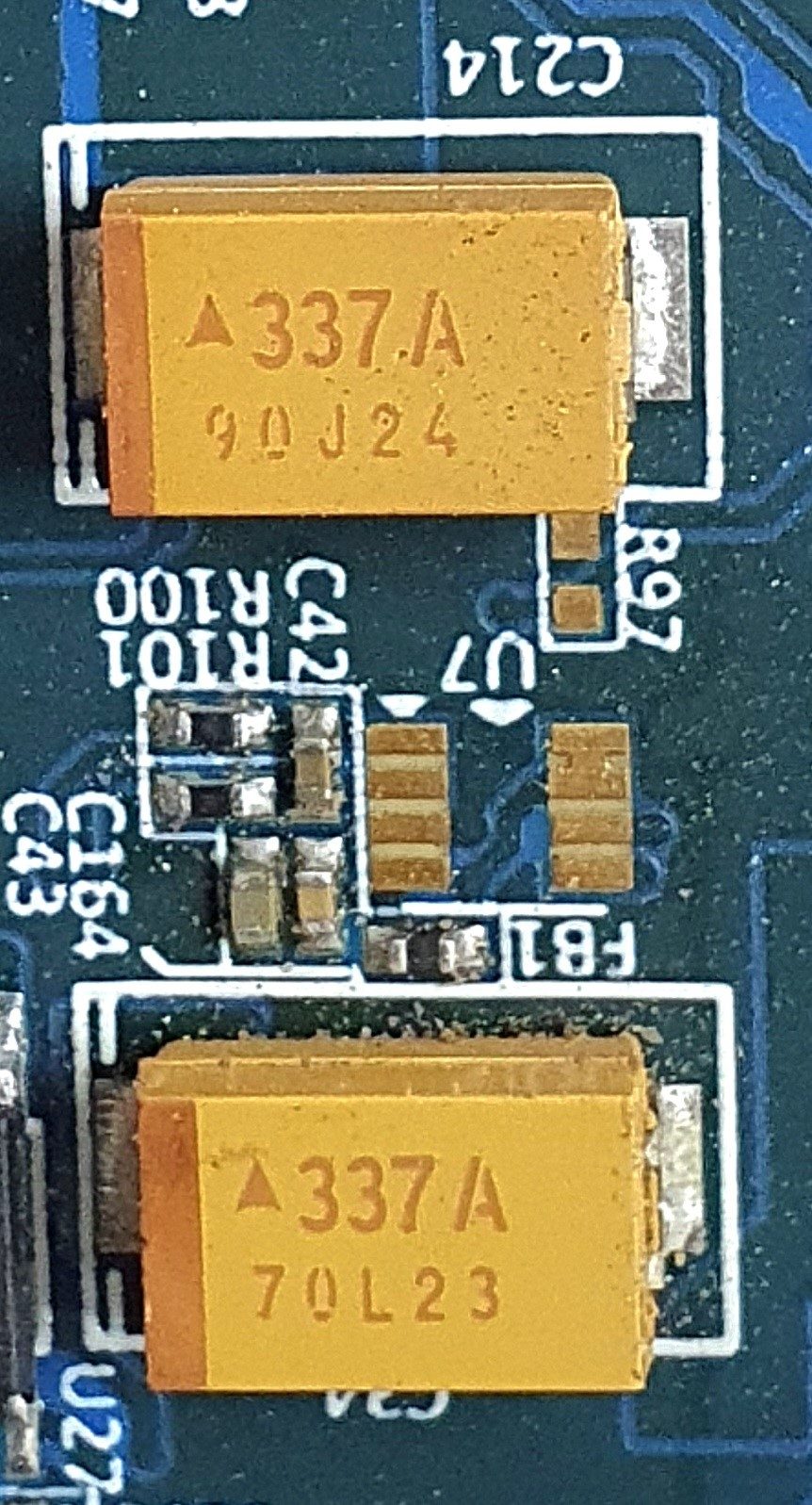

Tantalum capacitors
record ↗
- GH17P
Voltage regulator
record ↗

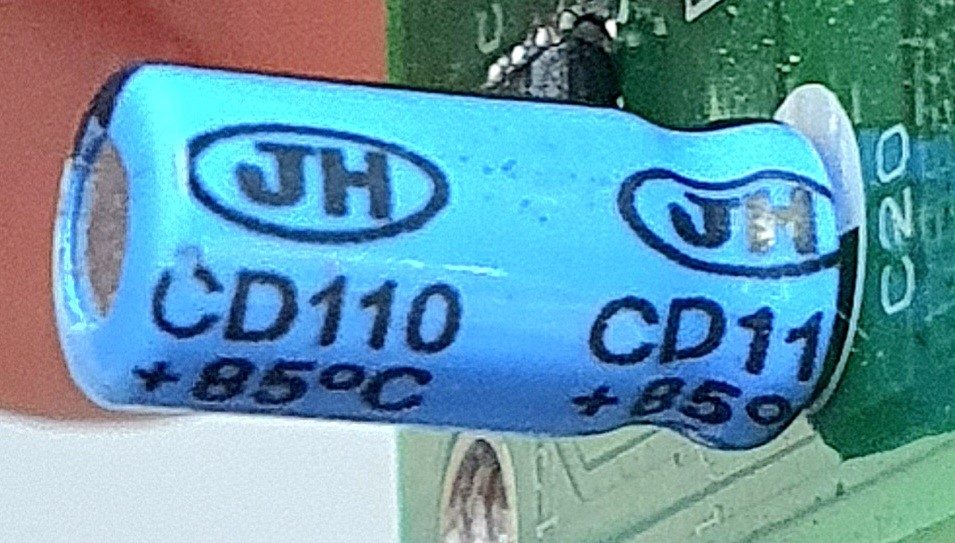

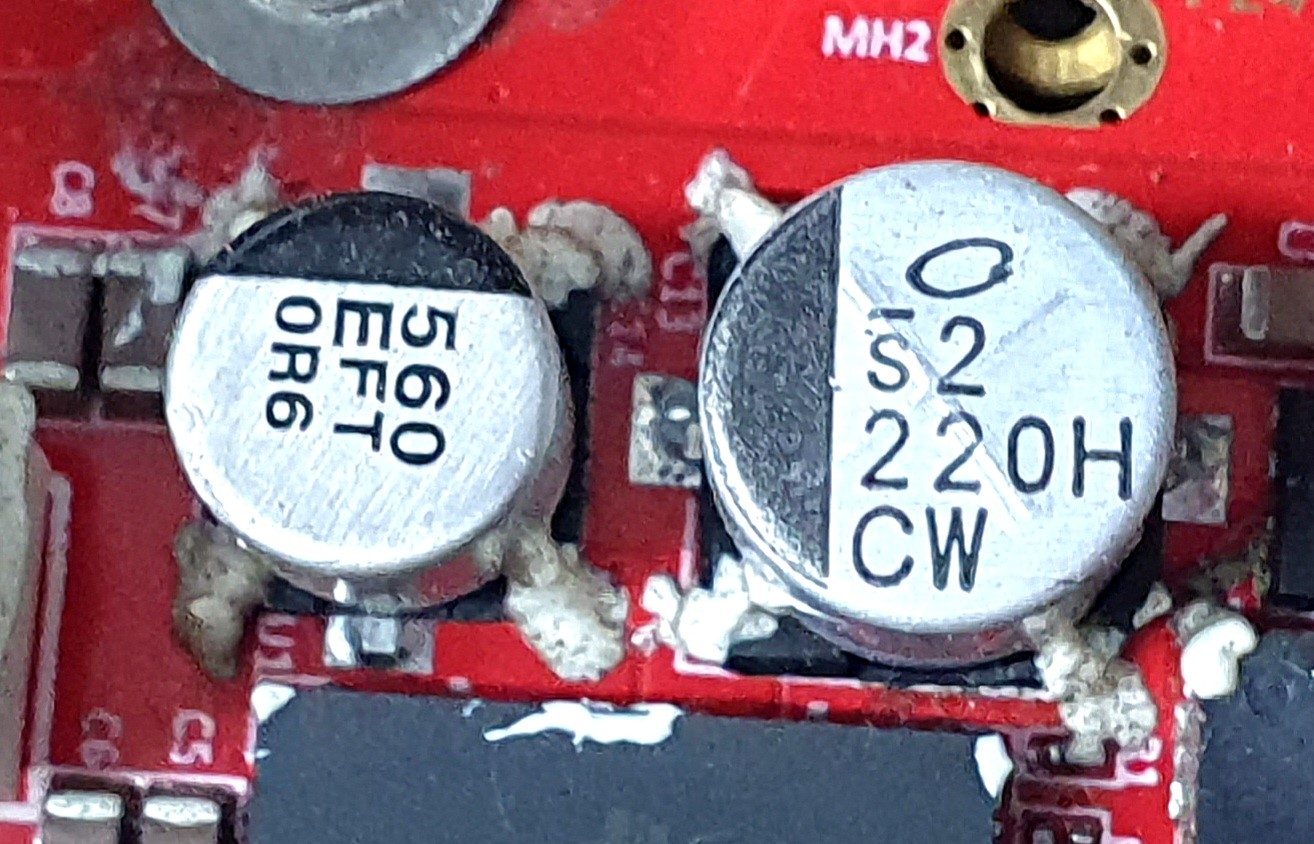

- 50V 1µF
Electrolytic capacitor
record ↗
- 16V 470µF
Electrolytic capacitor
record ↗
- 16V 10µF
Electrolytic capacitor
record ↗

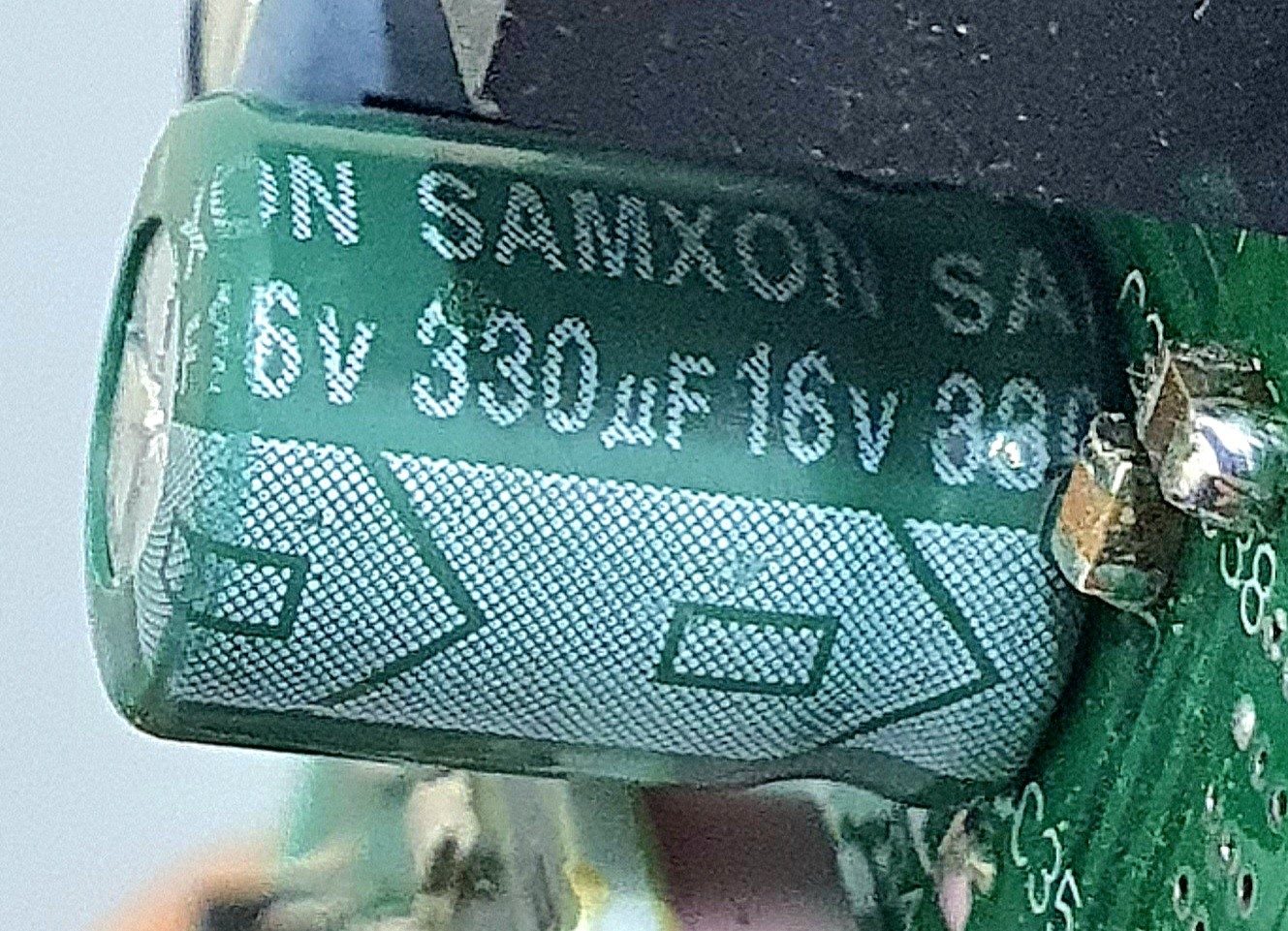

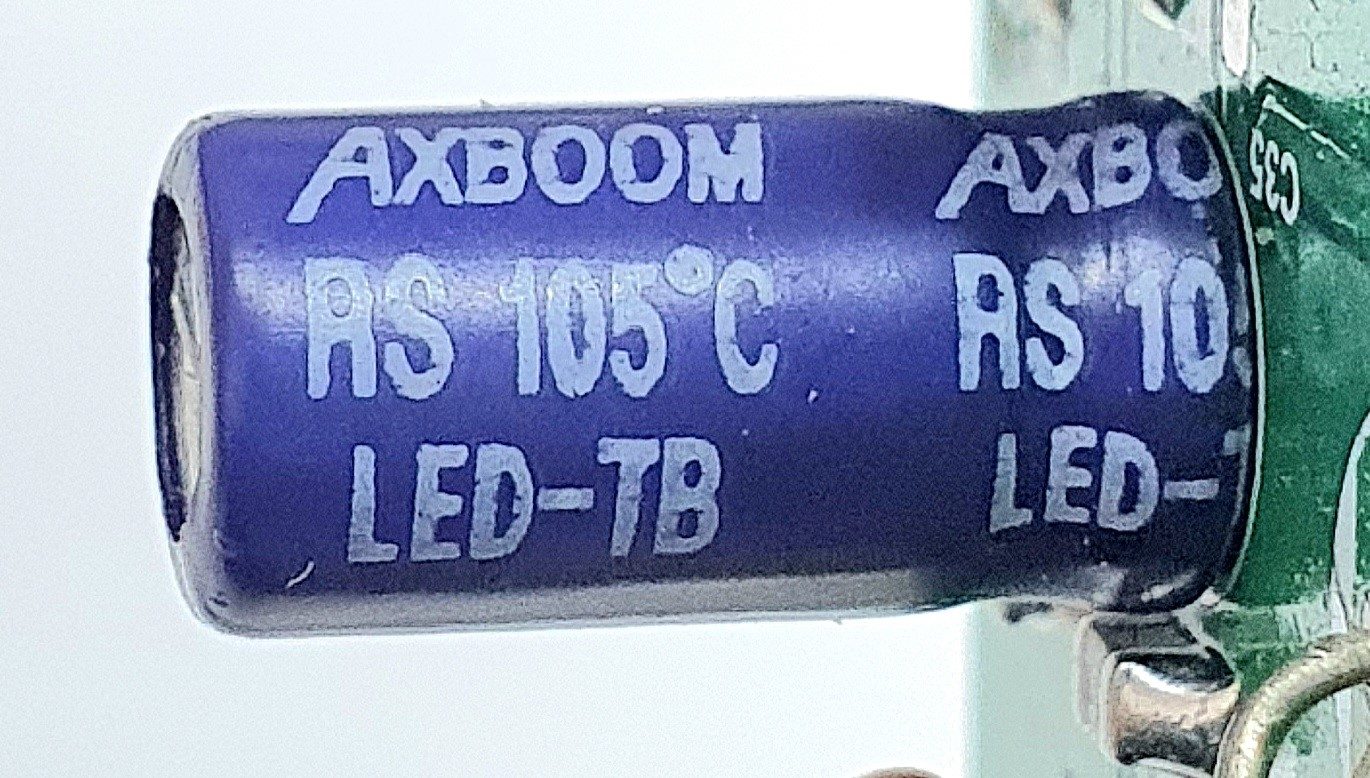

- 16V 330µF
Electrolytic capacitor
record ↗
-
Airspeed sensor
record ↗

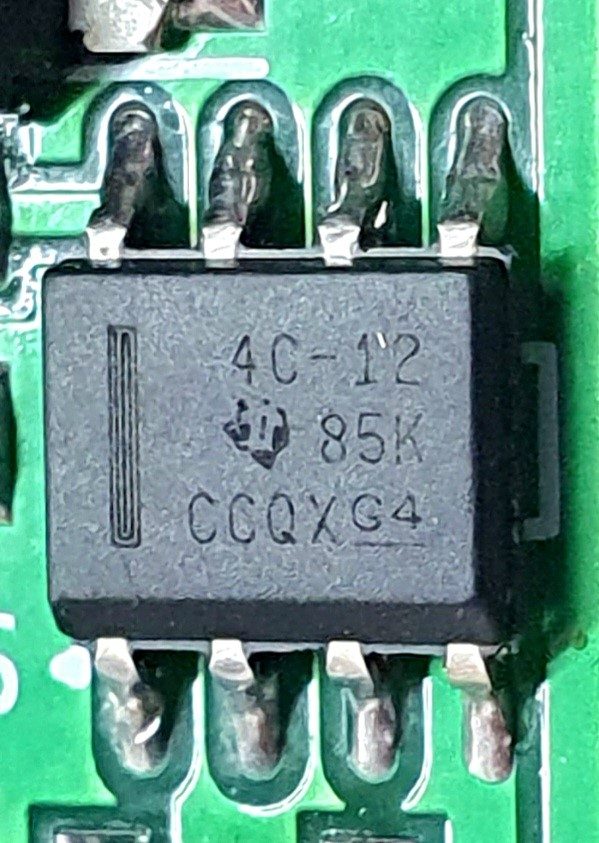

- 4С-12
85К
ССQX
Microcircuit
record ↗

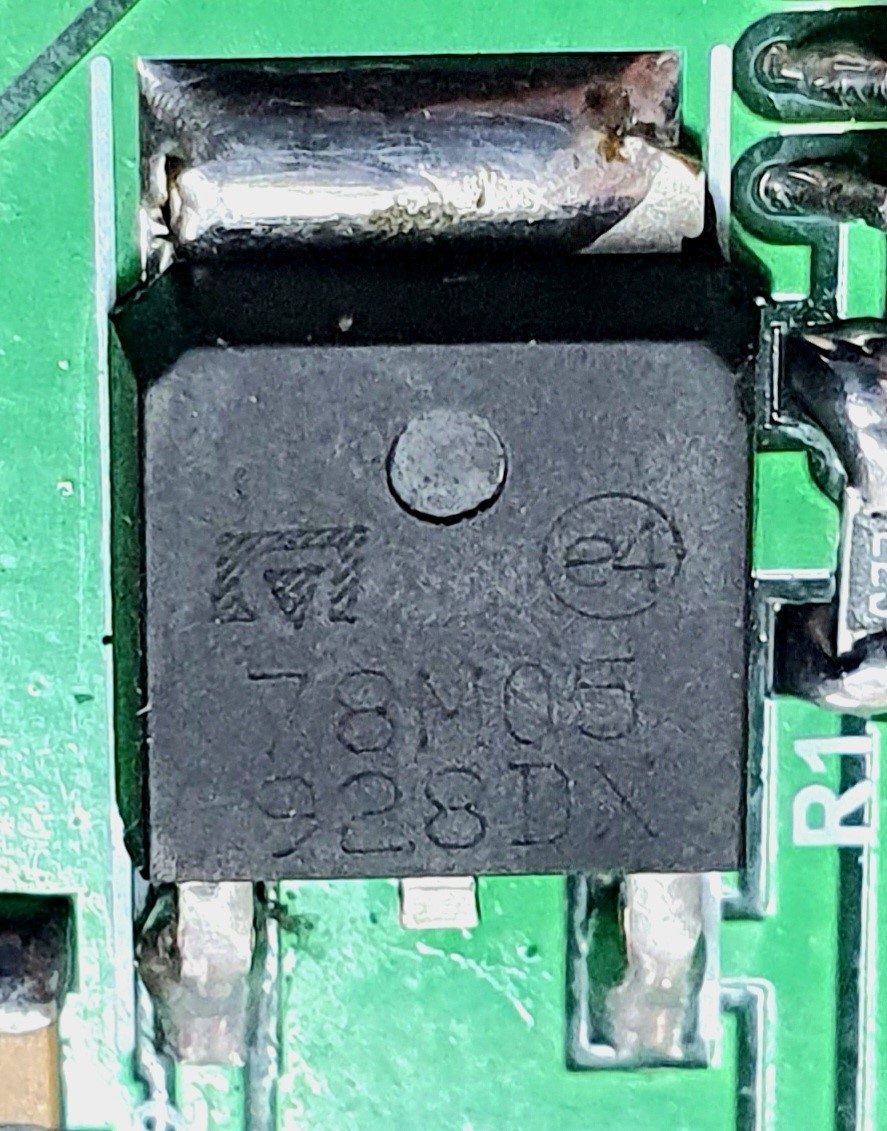

- 78М05
928BX
Voltage stabilizer
record ↗

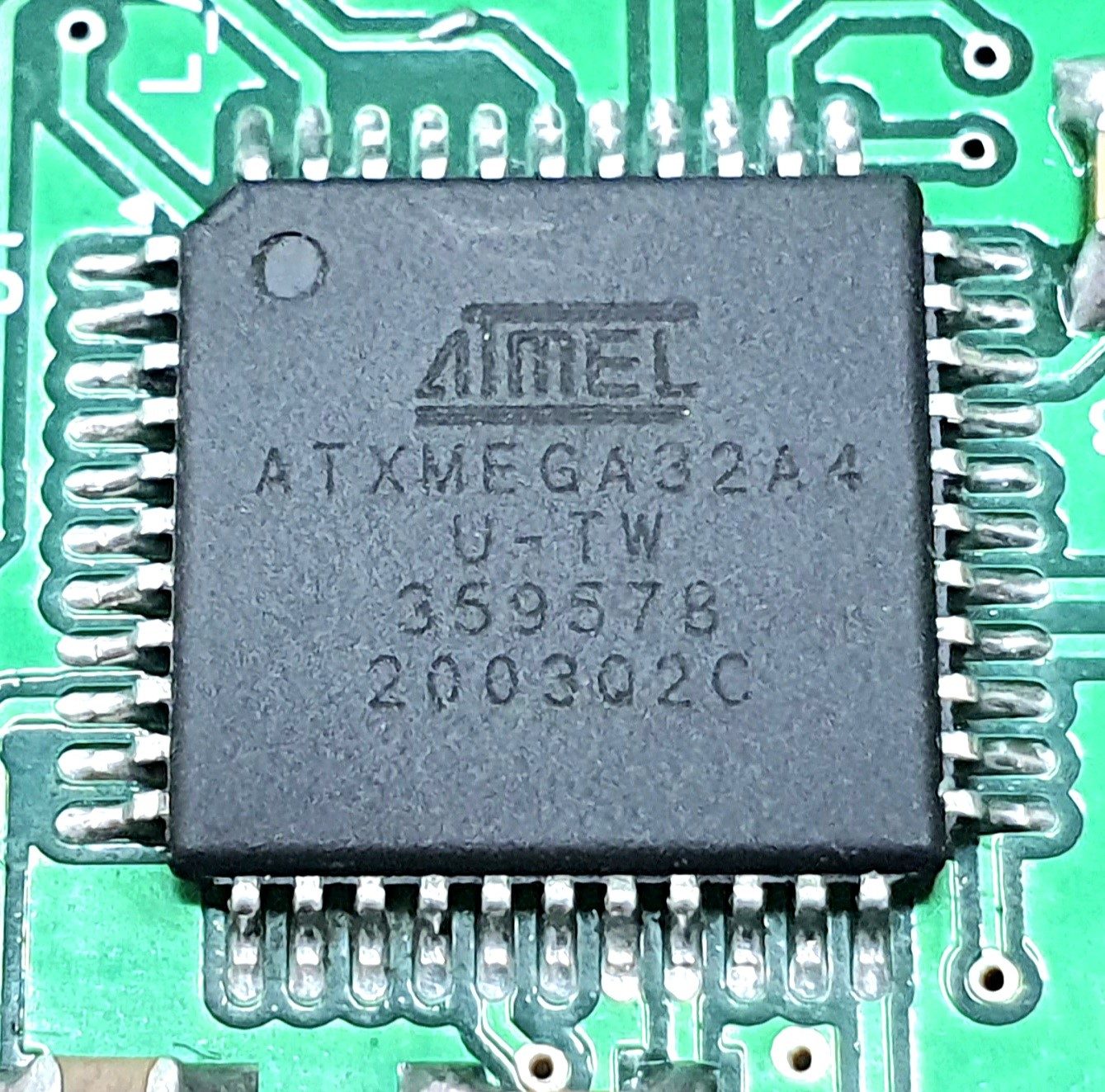

- ATXMEGA32A4
U-ТW
359578
Microcontroller
record ↗
- BB ОРА 234UA
82N8H
Operational amplifier
record ↗

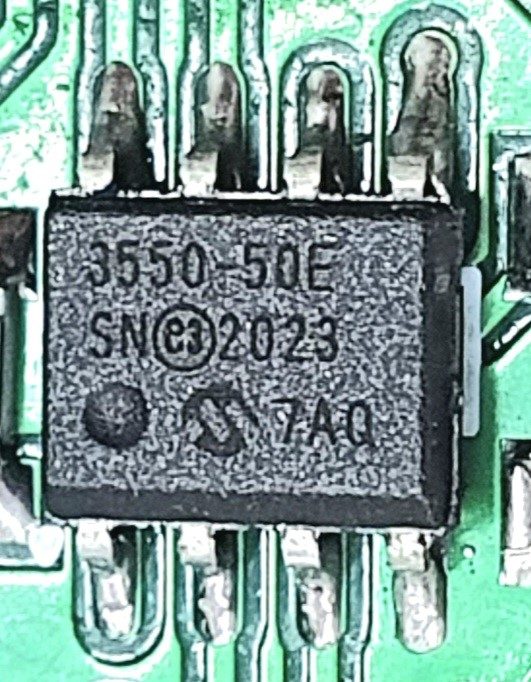

- MCP3550-50E
SN 2023
ADC
record ↗
- MCWI03-24S12
Unipolar DC/DC power converter
record ↗

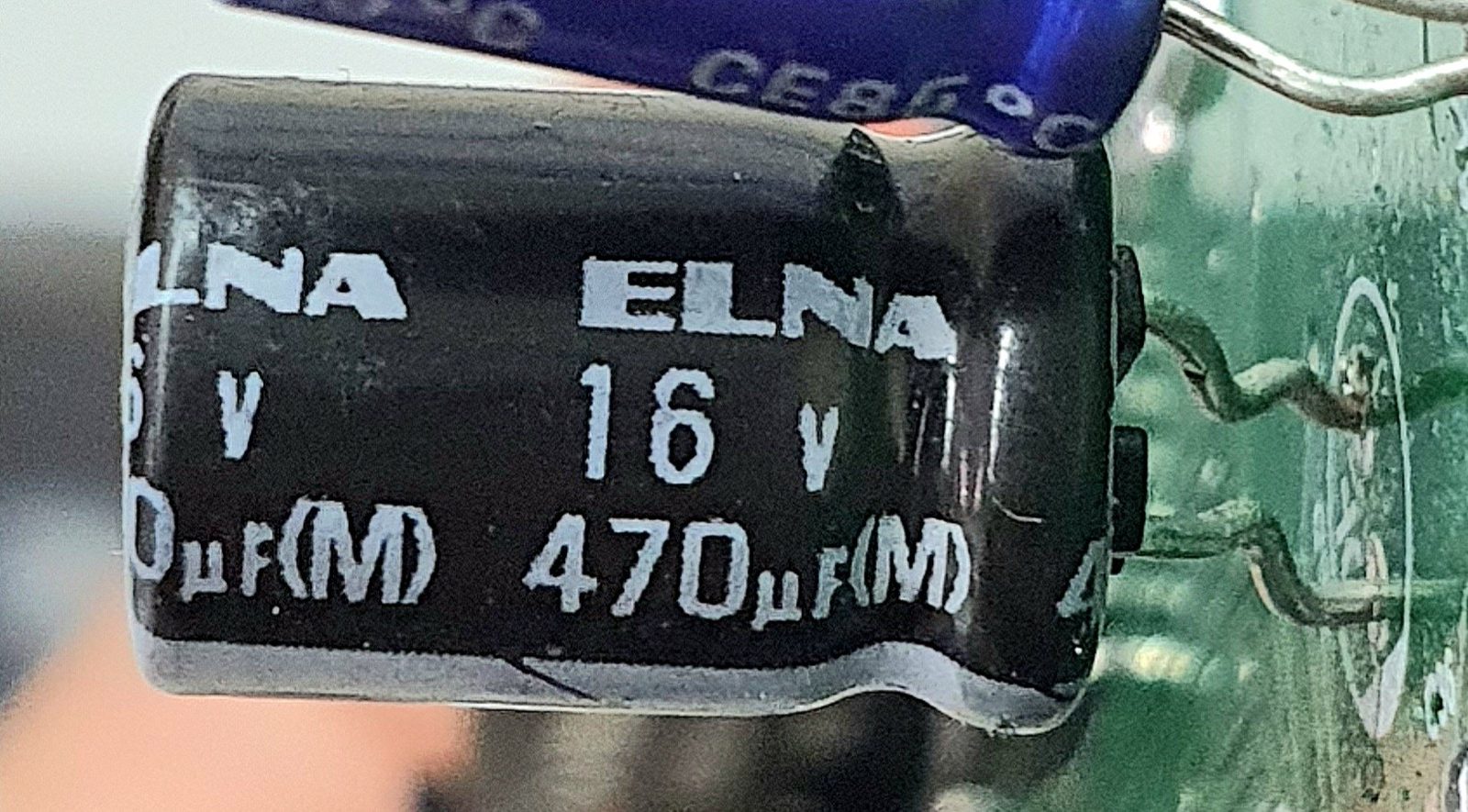

- 16V 470µF (M)
Electrolytic capacitor:
record ↗

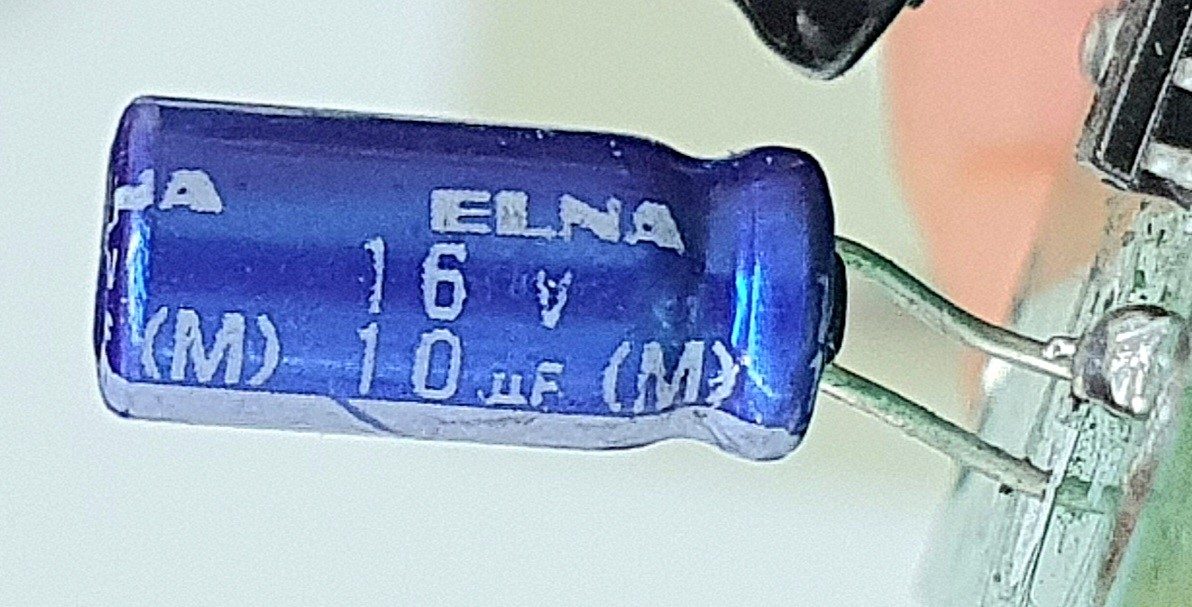

- 16V 10µF (M)
Electrolytic capacitor
record ↗
- 16V 470чний:
µF (M)
Electrolyte capacitor
record ↗
-

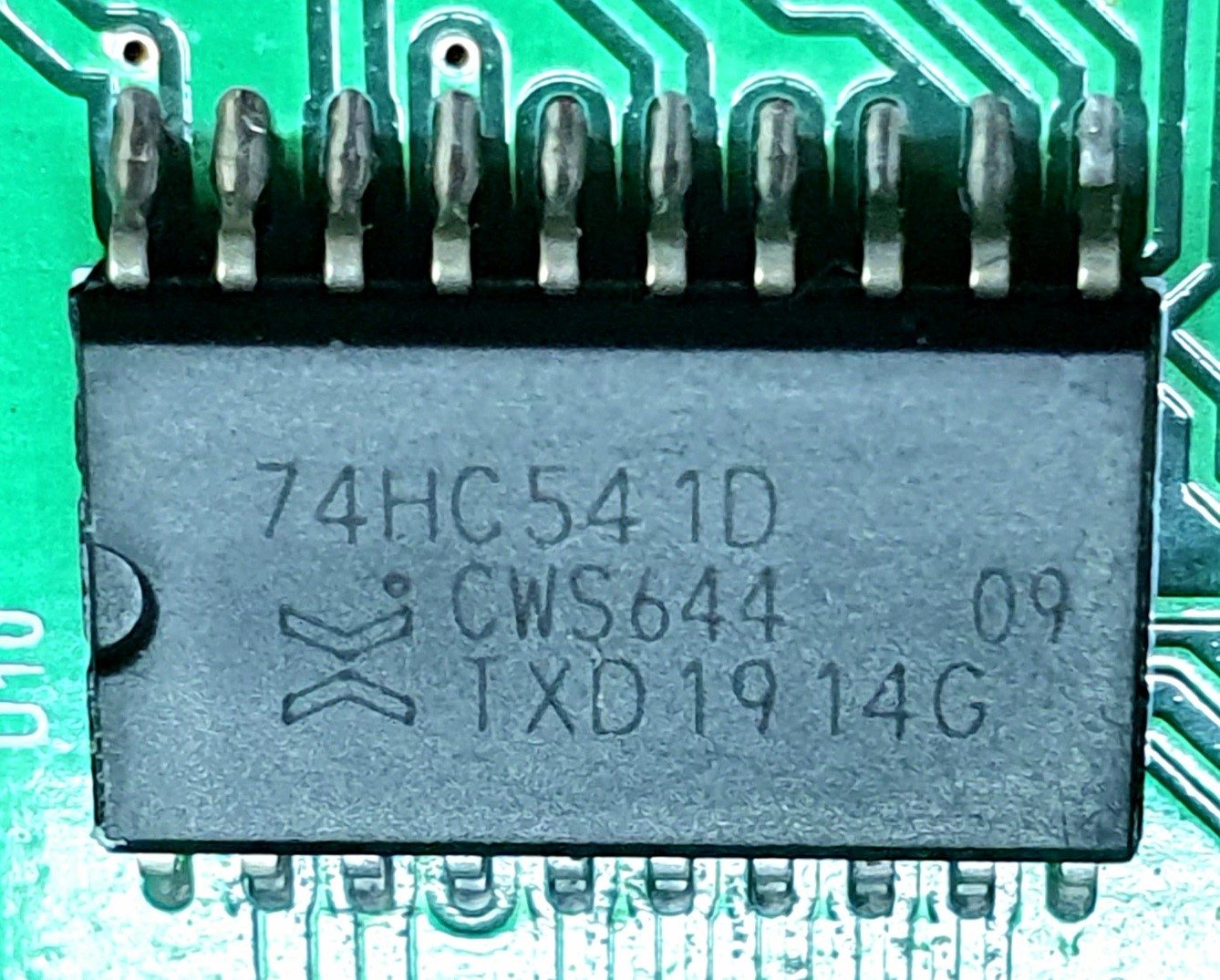

74НС54 1D
record ↗

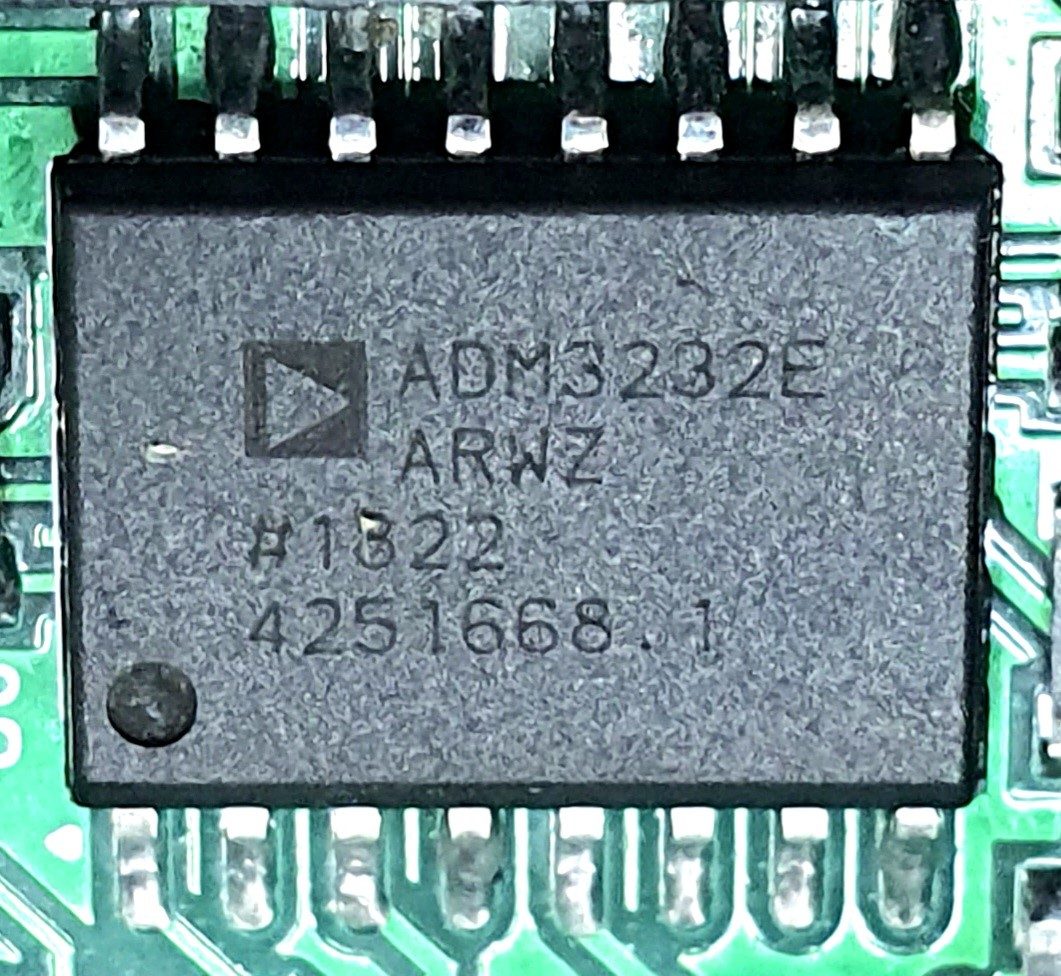

- ADM3232EARWZ
#1822 4251668.1
Microcircuits:
record ↗
- REF195E
Micropower precision reference voltage source
record ↗
- 16V 330µF
Electrolytic capacitor
record ↗

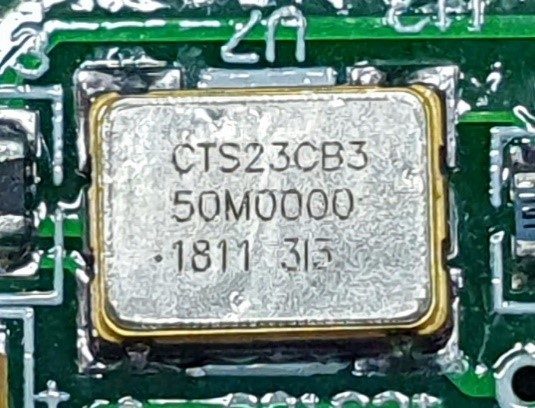

- CTS23CB3
50M0000
1811 313
Clock oscillator
record ↗
-
Antenna cable
record ↗
- ADXL3578
#2133 458609
Accelerometer
An Analog Devices low-noise three-axis MEMS accelerometer. It senses the drone’s acceleration along three axes; the navigation computer integrates these readings over time to estimate motion between GNSS fixes.record ↗

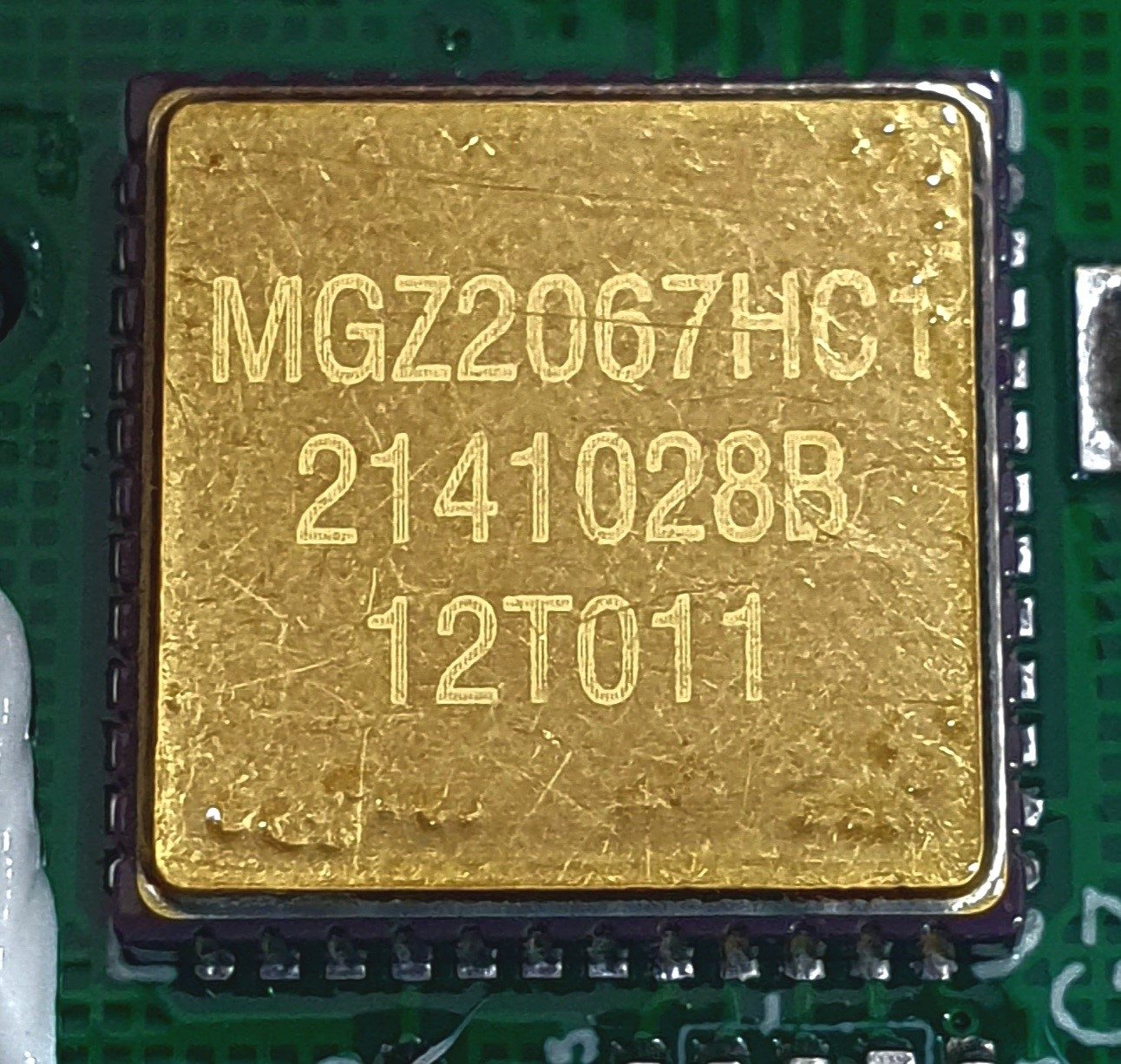

- ER-MGZ-2067
MEMS gyroscope
record ↗
- STM32F405RGT6
Microcontroller
record ↗
- LF33
Voltage regulator
record ↗
- М8030-КТ
GPS tracker chip
record ↗

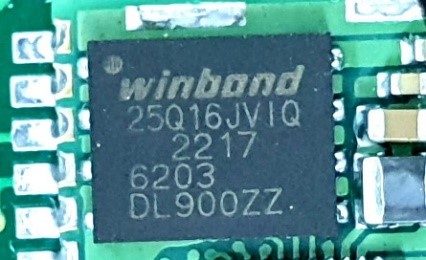

- Winbond 25Q16JVIQ 2217 6203 DL900ZZ
Flash memory
record ↗

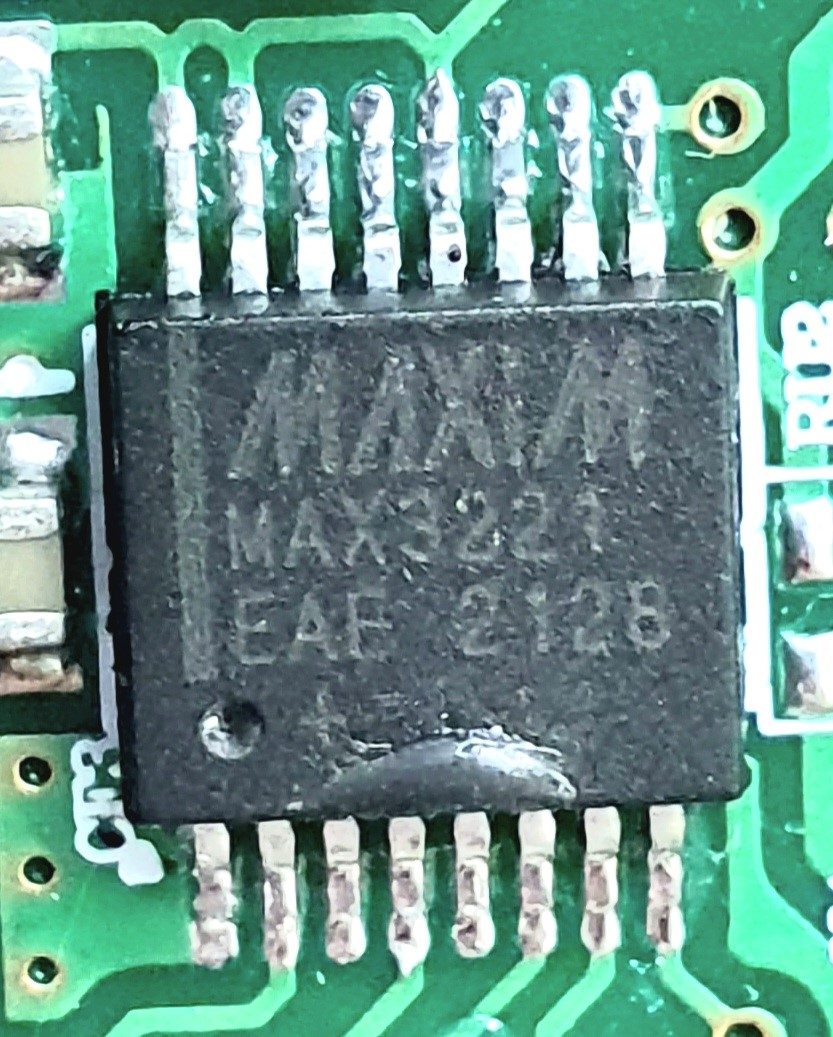

- Maxim MAX3221 EAE 2128
Transceiver
record ↗
Блок системи керування польотом (FCU)
- G 109 printed circuit board

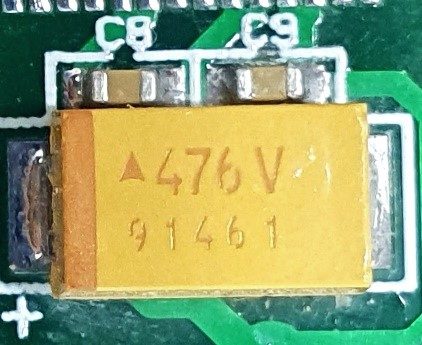

- 476V
91461
Tantalum capacitor
record ↗
- CTS23CB3
50M0000
1811 313
Clock oscillator
record ↗

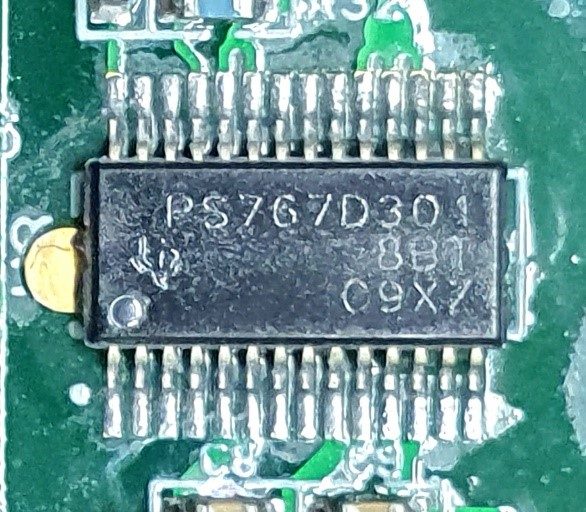

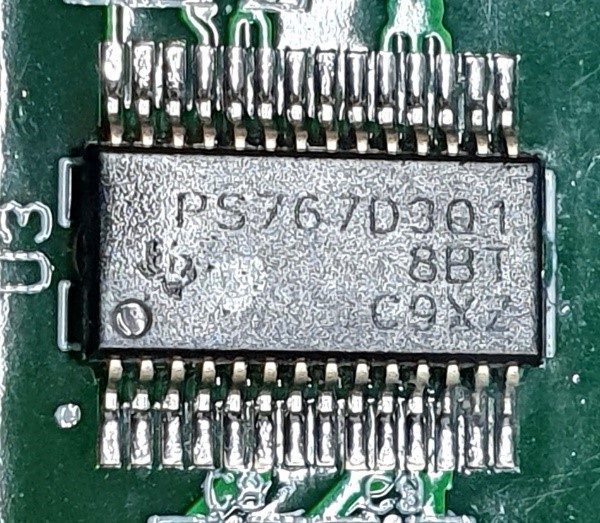

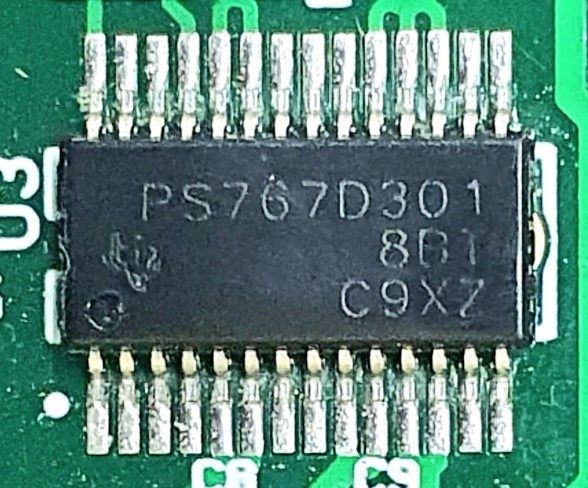

- PS767D301
8BT
C9XZ
Voltage regulator
A Texas Instruments PS767D301 dual voltage regulator. It produces two of the fixed low-voltage supplies the power distribution unit hands out to downstream electronics.record ↗

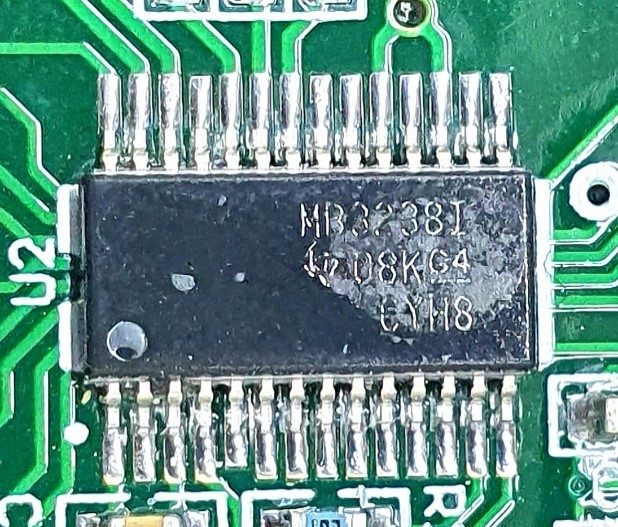

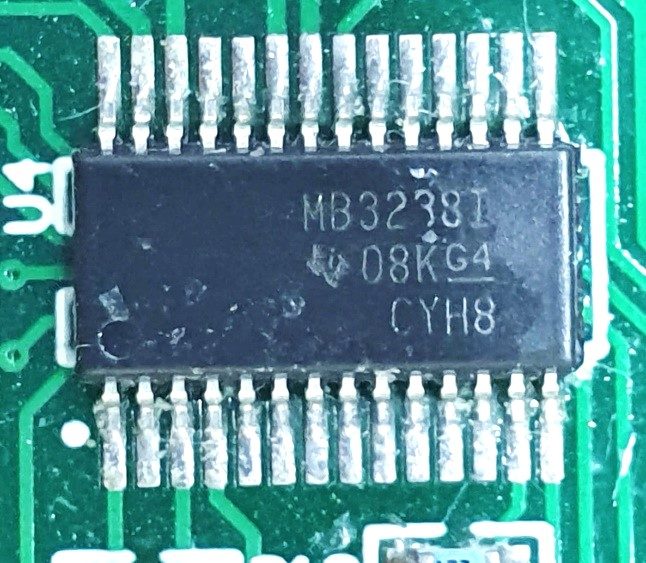

- MB3238I
08K G4
CYH8
Multi-channel linear driver/receiver
record ↗
- DSP
TMS320
F28335PGFA
G4A-17C3T7W
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗

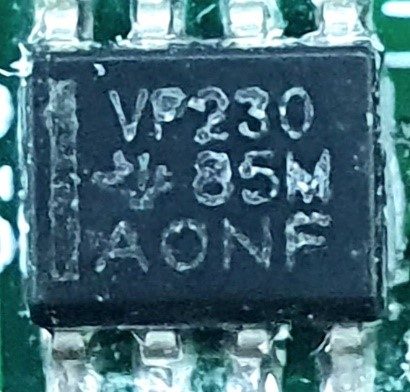

- CAN
VP230
85M
AONF
Transceiver
record ↗
- G 108 printed circuit board

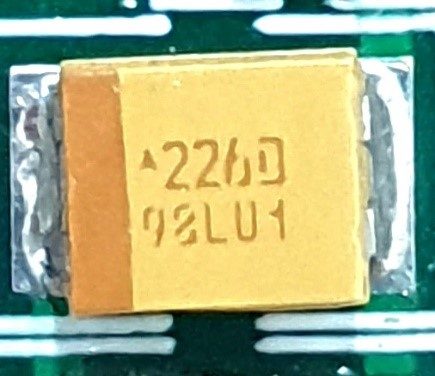

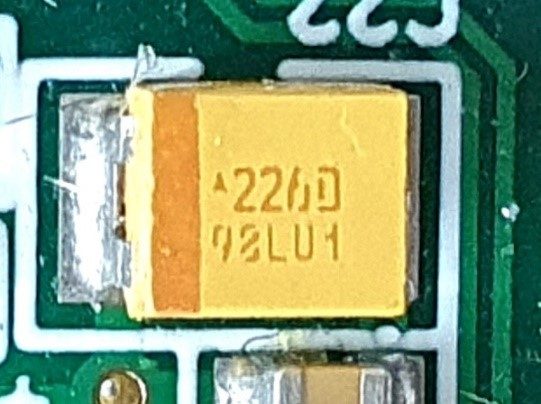

- 226D
98LU1
Tantalum capacitor
record ↗
- CTS23CB3
50M0000
1811 313
Clock oscillator
record ↗
- 0B4RW
LM234
Z-3
3-pin adjustable current source
record ↗
- H11G1
845Q
Optocoupler (optocouple) of high voltage
record ↗
- AUIRF4905S
118A
L1 ZC
Power MDN transistor
record ↗

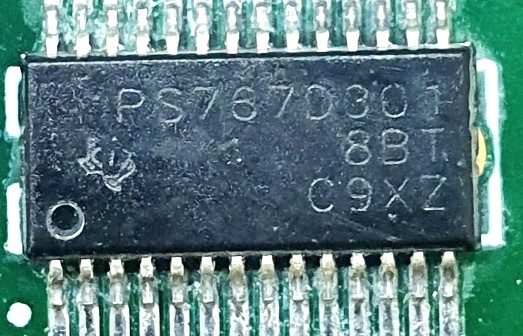

- PS767D301
8BT
C9XZ
Voltage regulator
A Texas Instruments PS767D301 dual voltage regulator. It produces two of the fixed low-voltage supplies the power distribution unit hands out to downstream electronics.record ↗

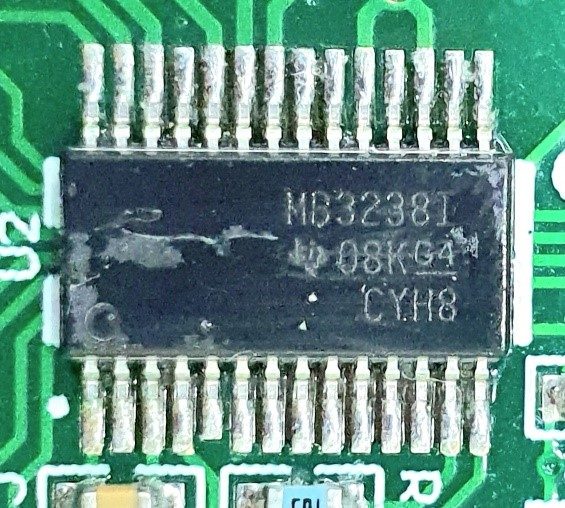

- MB3238I
08K G4
CYH8
Multi-channel linear driver/receiver
record ↗

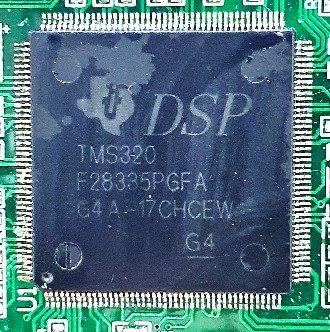

- DSP
TMS320
F28335PGFA
G4A-17CHCEW
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CAN
VP230
85M
AONF
Transceiver
record ↗
- G 107 printed circuit board

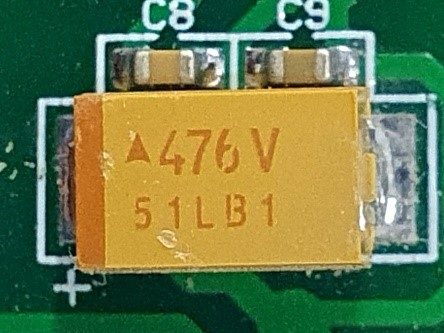

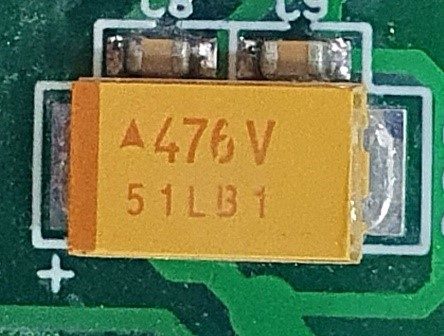

- 476V
51LB1
Tantalum capacitor
record ↗

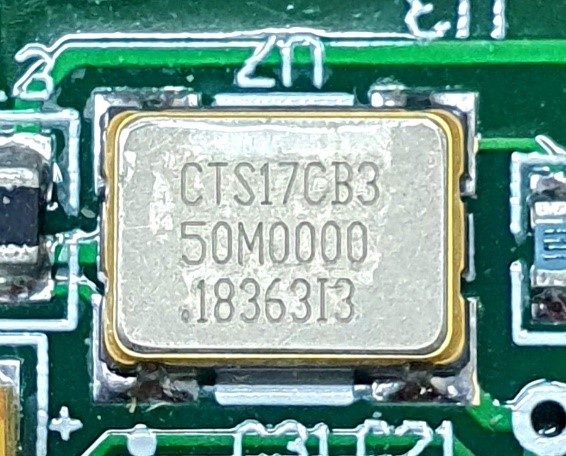

- CTS17CB3
50M0000
1836 313
Clock oscillator
record ↗
- PS767D301
8BT
C9XZ
Voltage regulator
A Texas Instruments PS767D301 dual voltage regulator. It produces two of the fixed low-voltage supplies the power distribution unit hands out to downstream electronics.record ↗
- MB3238I
08K G4
CYH8
Multi-channel linear driver/receiver
record ↗
- DSP TMS320
F28335PGFA
G4A-8AC0VZW
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗

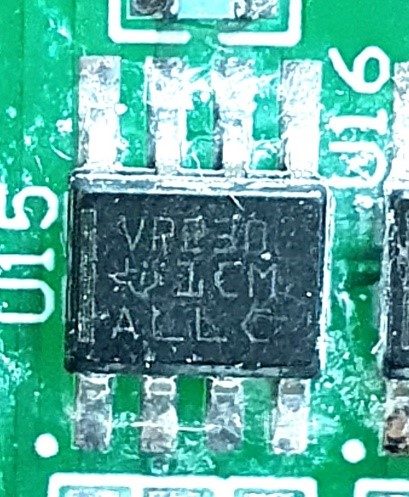

- CAN
VP230
1CM
ALLC
Transceiver
record ↗
- G 106 printed circuit board

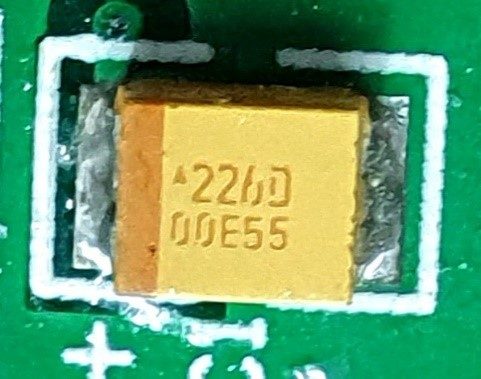

- 226D
00E55
Tantalum capacitor
record ↗
- G 105 printed circuit board

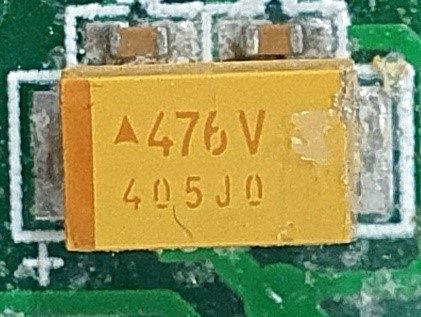

- 476V
405J0
Tantalum capacitor
record ↗

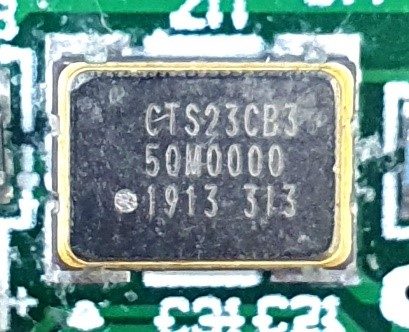

- CTS23CB3
50M0000
1913 313
Clock oscillator
record ↗

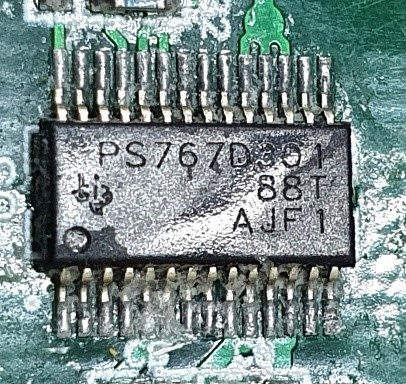

- PS767D301
8BT
AJF1
Voltage regulator
A Texas Instruments PS767D301 dual voltage regulator. It produces two of the fixed low-voltage supplies the power distribution unit hands out to downstream electronics.record ↗
- MB3238I
93K G4
C71V
Multi-channel linear driver/receiver
record ↗

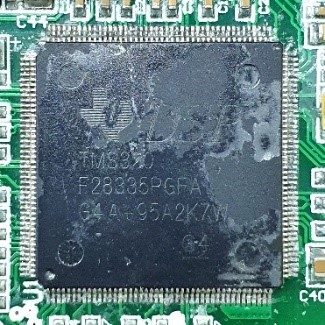

- DSP
TMS320
F28335PGFA
G4A-95A2K7W
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CAN
VP230
97M
A8DS
Transceiver
record ↗
- G 104 printed circuit board
- 476V
51LB1
Tantalum capacitor
record ↗
- CTS17CB3
50M0000
1836 313
Clock oscillator
record ↗
- PS767D301
8BT
C9XZ
Voltage regulator
A Texas Instruments PS767D301 dual voltage regulator. It produces two of the fixed low-voltage supplies the power distribution unit hands out to downstream electronics.record ↗
- MB3238I
08K G4
CYH8
Multi-channel linear driver/receiver
record ↗
- DSP
TMS320
F28335PGFA
G4A-8AC0XNW
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CAN
VP230
74M
AFD1
Transceiver
record ↗
- G 103 printed circuit board
- 226D
98LU1
Tantalum capacitor
record ↗
- CTS23CB3
50M0000
1811 313
Clock oscillator
record ↗
- PS767D301
8BT
C9XZ
Voltage regulator
A Texas Instruments PS767D301 dual voltage regulator. It produces two of the fixed low-voltage supplies the power distribution unit hands out to downstream electronics.record ↗
- MB3238I
08K G4
CYH8
Multi-channel linear driver/receiver
record ↗

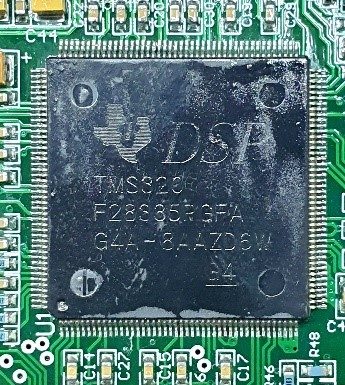

- DSP
TMS320
F28335PGFA
G4A-8AAZD6W
G4
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CAN
VP230
74M
AFD1
Transceiver
record ↗
- G 110 printed circuit board
- 226D
98LU1
Tantalum capacitor
record ↗
- CTS23CB3 50M0000 1811 313
Clock oscillator
record ↗

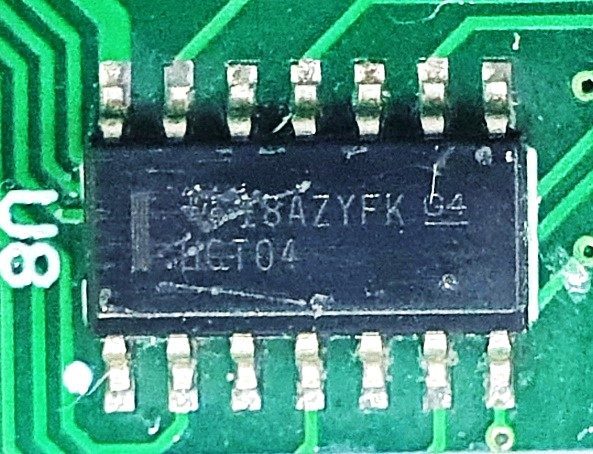

- 18AZYFK G4
HCT04
Inverter
record ↗
- PS767D301
8BT
C9XZ
Voltage converter
record ↗
- MB3238I
08K G4
CYH8
Multi-channel linear driver/receiver
record ↗
- TMS320F28335PGFA G4A-17CHCHW
Digital signal processor
The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page →
₽1,600
$20.69
$20.69 imported: market price applies
US$20.69, price list, 2026 · Texas Instruments product page ↗
- CAN
VP230 85M AONF
Transceiver
record ↗
- GNSS PCB
- STM32F
103C8T6
991RA 0293
MYS 99 216
Microcontroller
record ↗
- NEO-M9N-00B-00
G6200074028
2111
0301 26
GNSS receiver (receiver)
record ↗
- GNSS boards

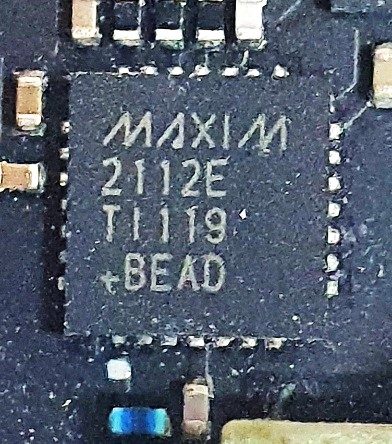

- MAXIM
2112E
TI119
+BEAD
Satellite signal conversion tuner
record ↗

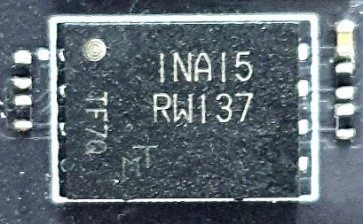

- INA15
RWI37
Differential amplifier
record ↗
- OPA47
D9WVC
LZND
Memory chip
record ↗
- MCIMX6L2EVN10AC
XAA2138
TAIW RLAAXN
Processor
record ↗

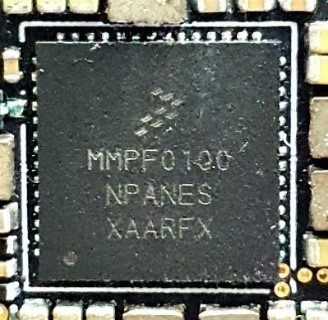

- MMPF0100
NPANES
XAARFX
Integrated power management circuit
record ↗
- 12000080
NAH 2144 +
Not identified
record ↗
- S2737E-01
R77705PY
1950 N TWN
(БпЛА «М…»)
Intelligent module of the 5th generation SX-5
record ↗
- MS27508E18B35P
G0022A07
Plug connector
record ↗
- MS27508E18B35P5
202107
Plug connector
record ↗
Блок передачі телеметричної інформації PWR LAN (GSM трансивер стандартів 3G, 4G)
- 005 06ERS N0309003
Non-isolated DC/DC converter
record ↗
- 744314047
D4Y30K
Power Inductor (CMD)
record ↗

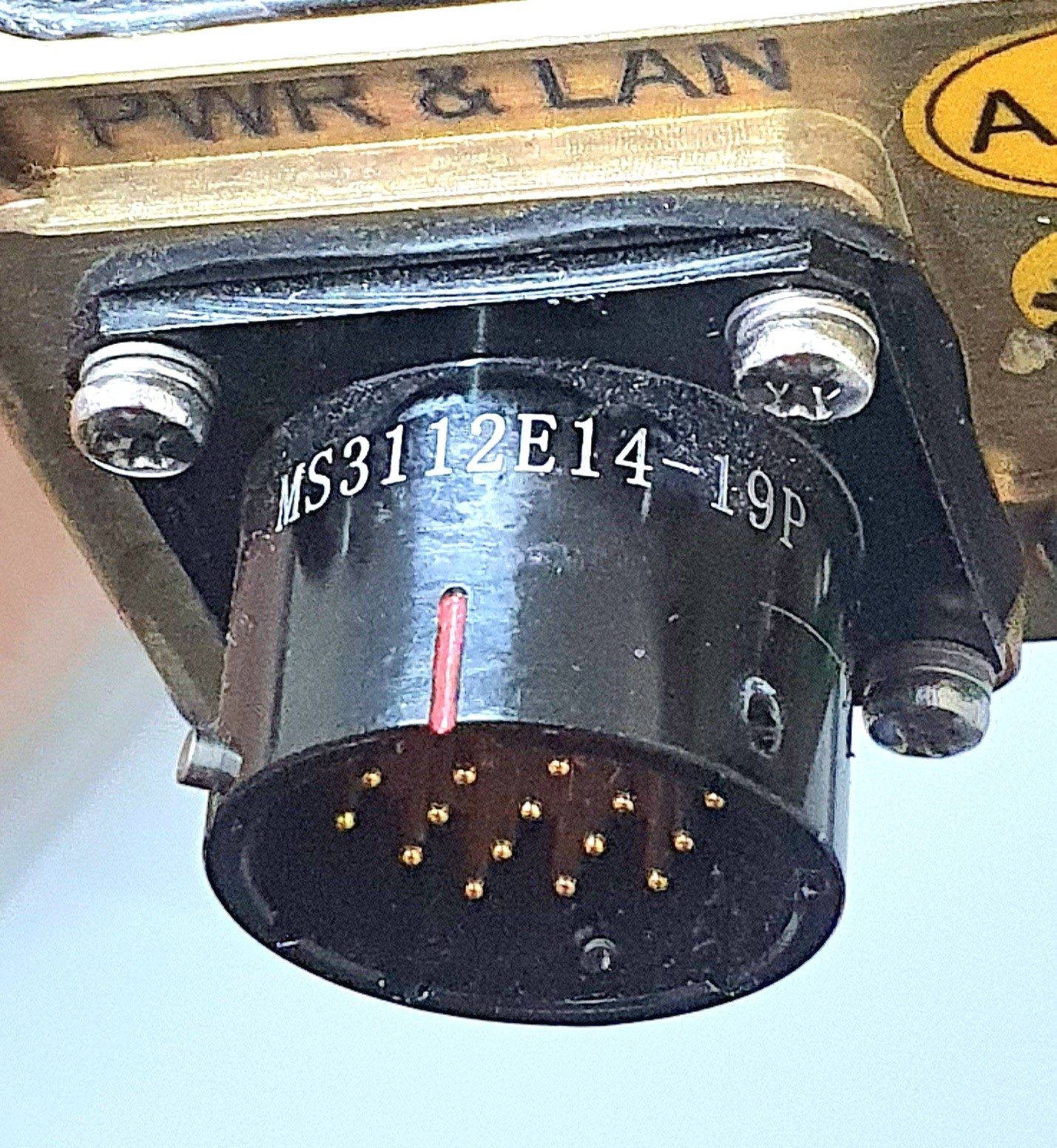

- МS3112Е14-19Р
Plug connector
record ↗

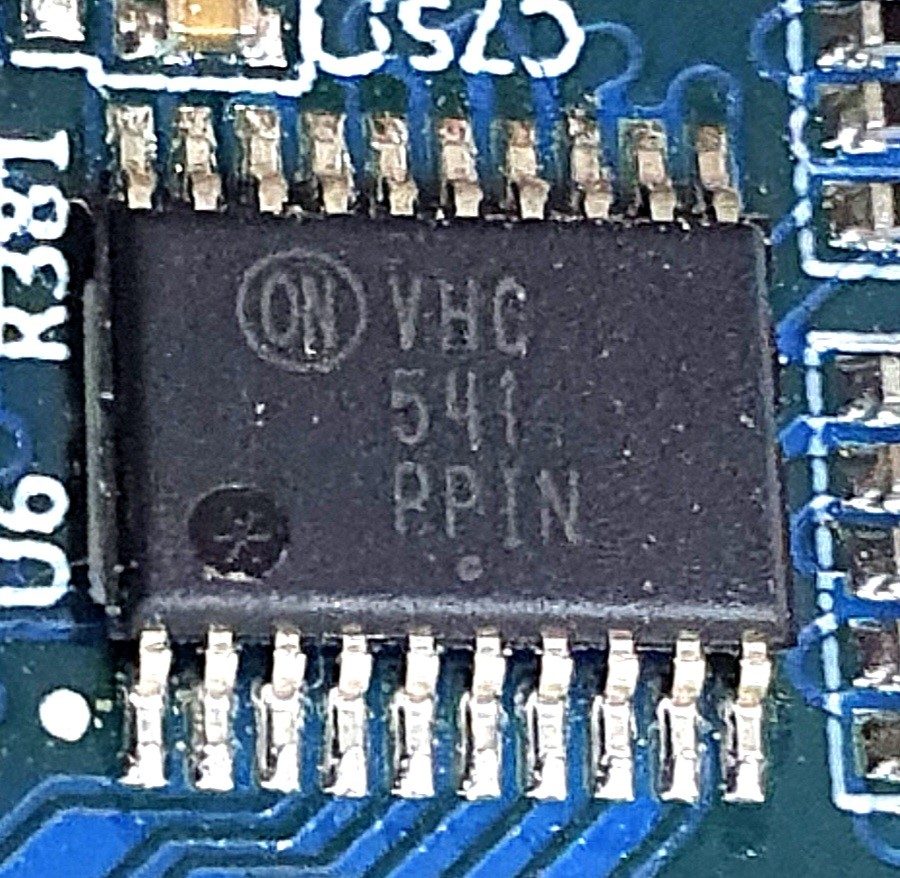

- VHC (541 PPIN)
Octal buffer/line driver
record ↗

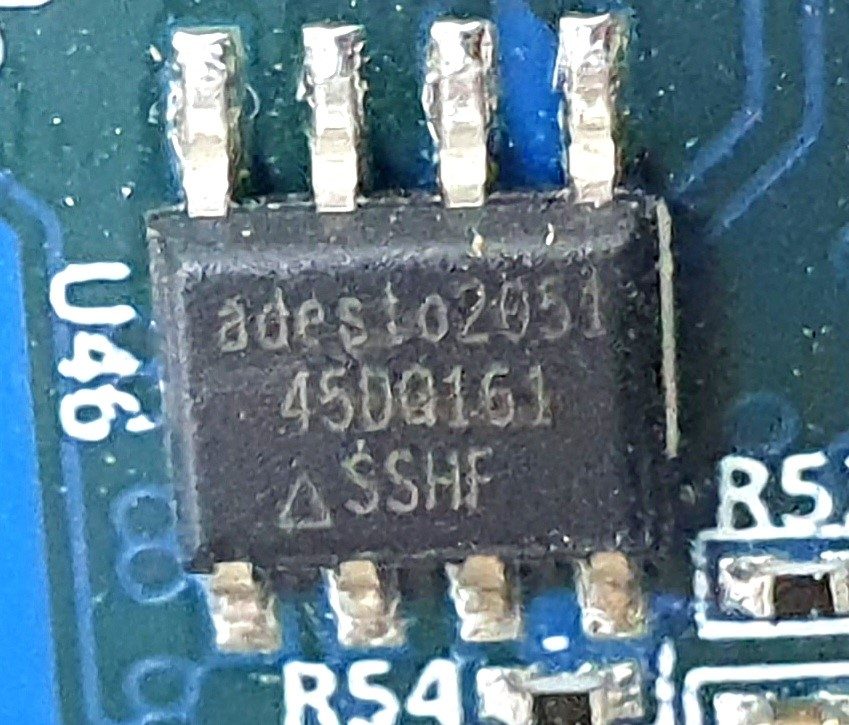

- 45DQ161 SSHF
FLASH memory
record ↗
- 337 А
40J24/70L23
Tantalum capacitors
record ↗

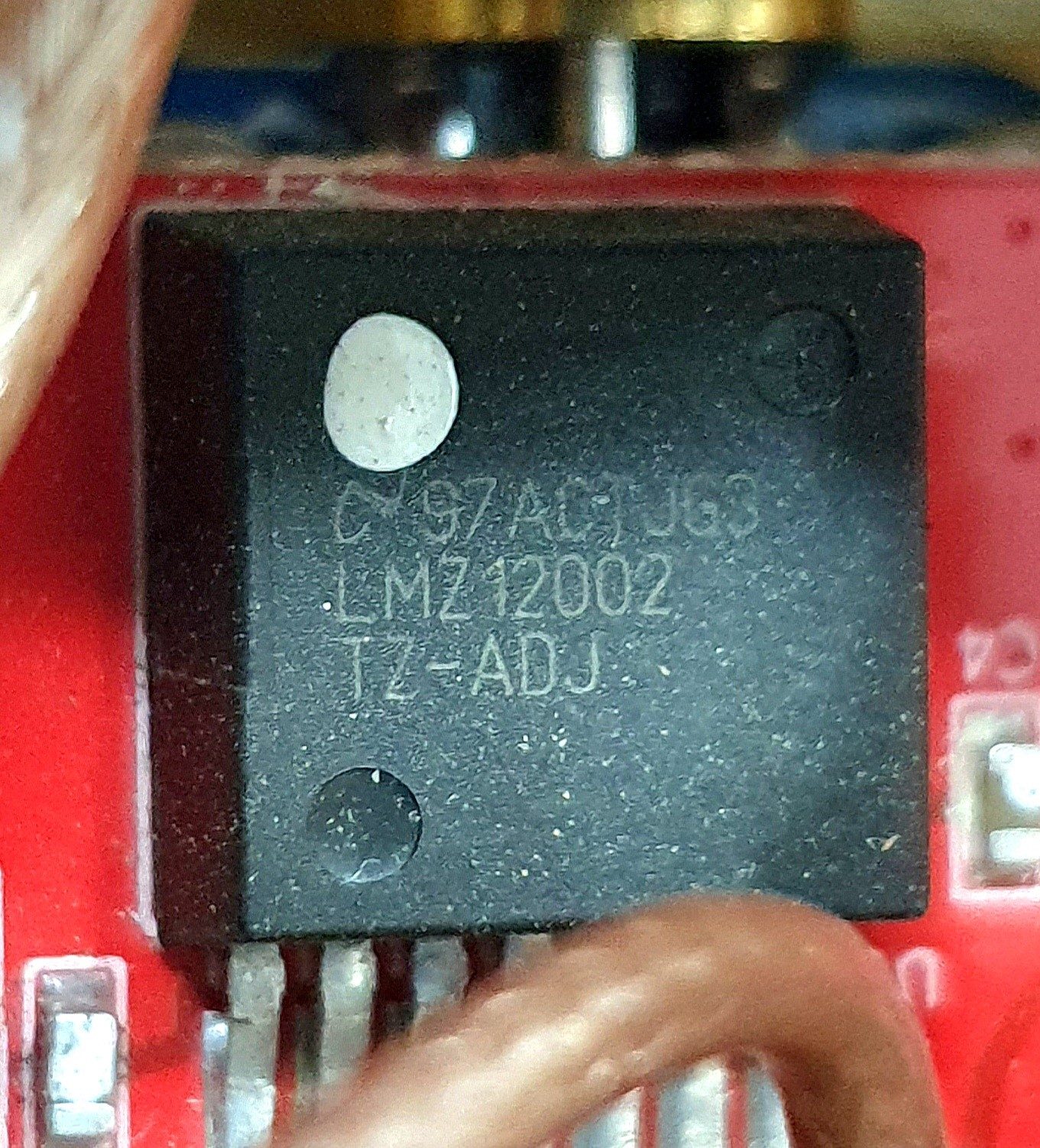

- 97ACTJG3 LMZ12002
(TZ-ADJ)
Power module
record ↗
-
Electrolytic capacitors
record ↗
- LTGTD E3 (мікроконтролер)
Integrated circuit
record ↗
- типу SMD BNX023
Ultra-high-efficiency noise filter
record ↗

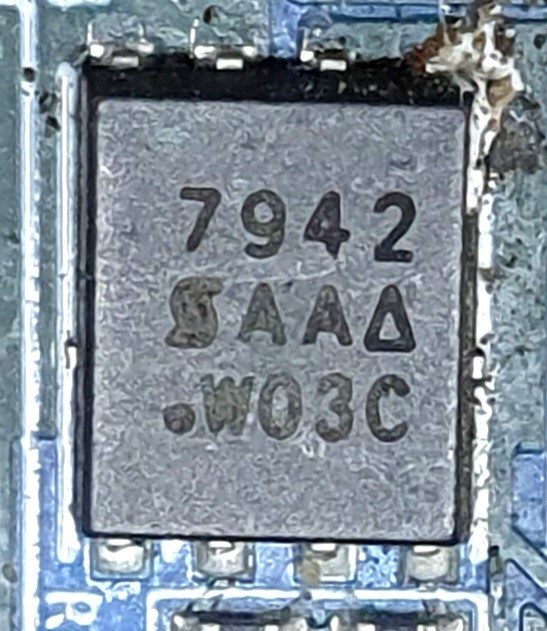

- 7942 (5AA W03C)
Integrated circuit
record ↗
- MAX3232
(EUE +116)
Transceivers
record ↗

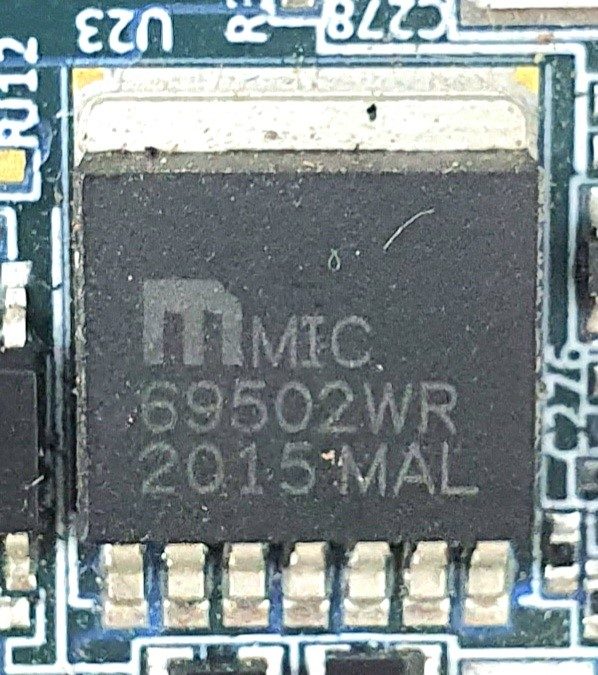

- MIC69502WR
(2015 MAL)
Linear stabilizer for 5A
record ↗

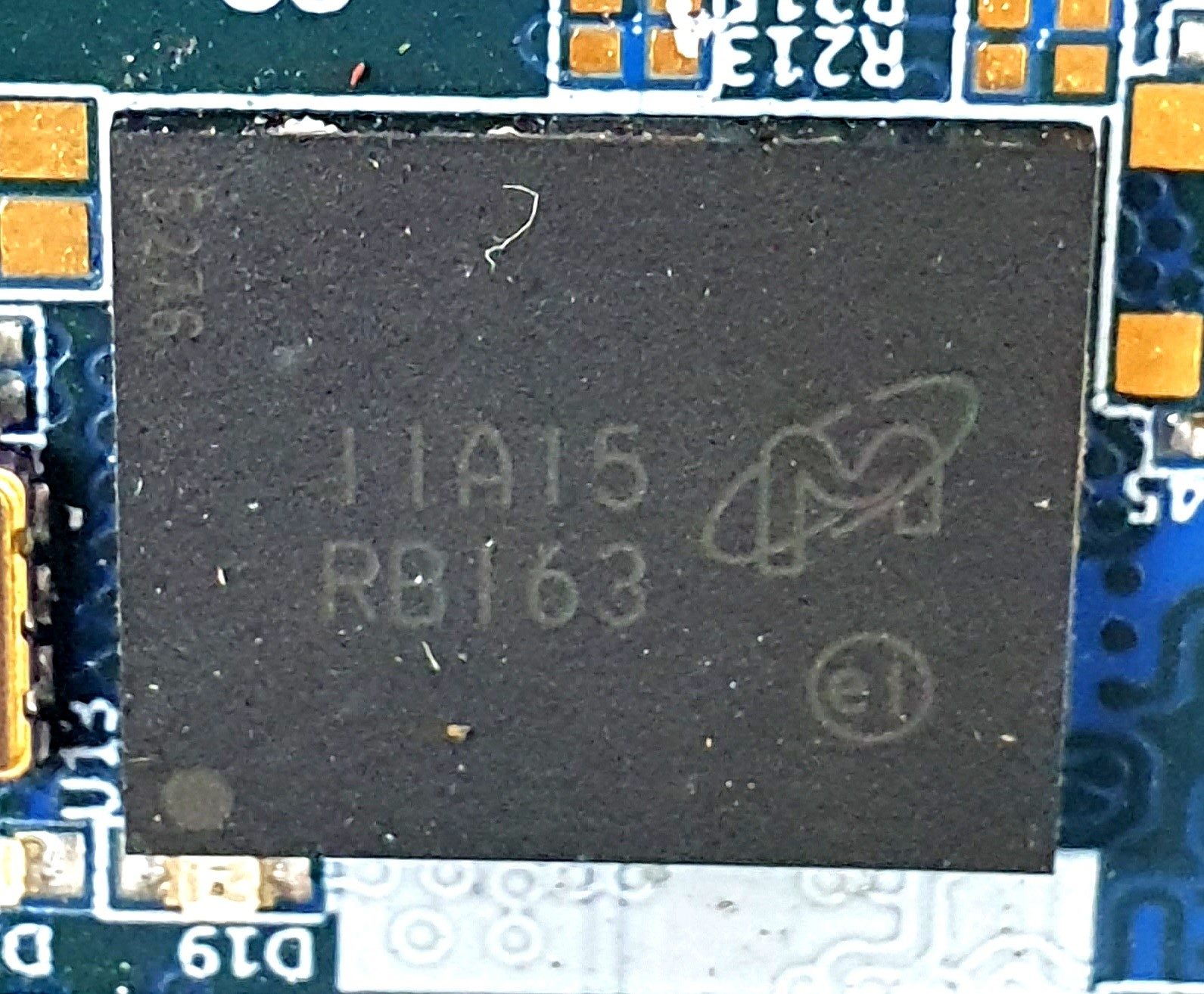

- ІІА15 RB163
Memory chip
record ↗

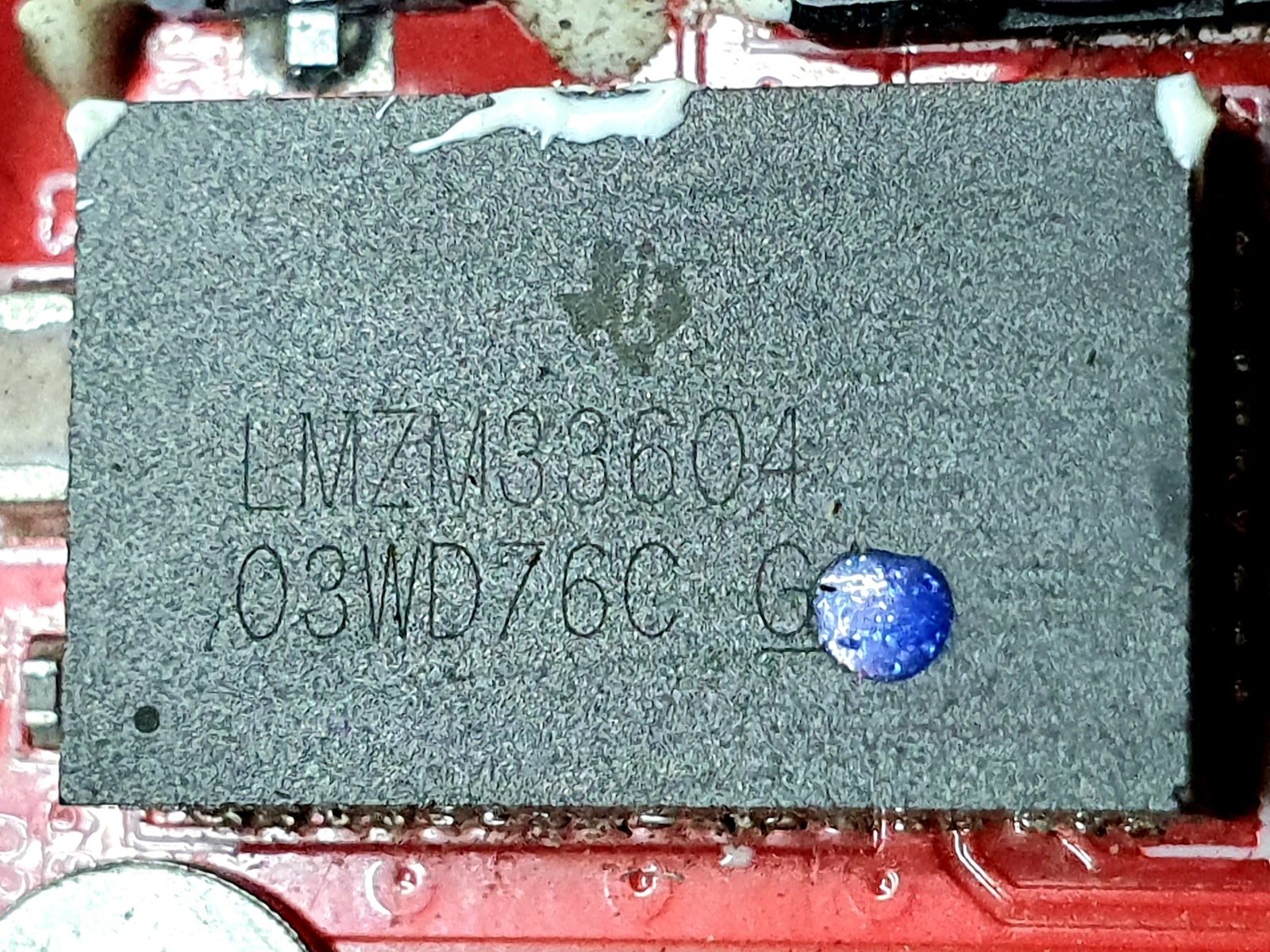

- LMZM33604 (03WD76C)
Power module
record ↗
- серії TIVA TM4C1230 (E6PMI7 89C9R9W)
Microcontroller
record ↗

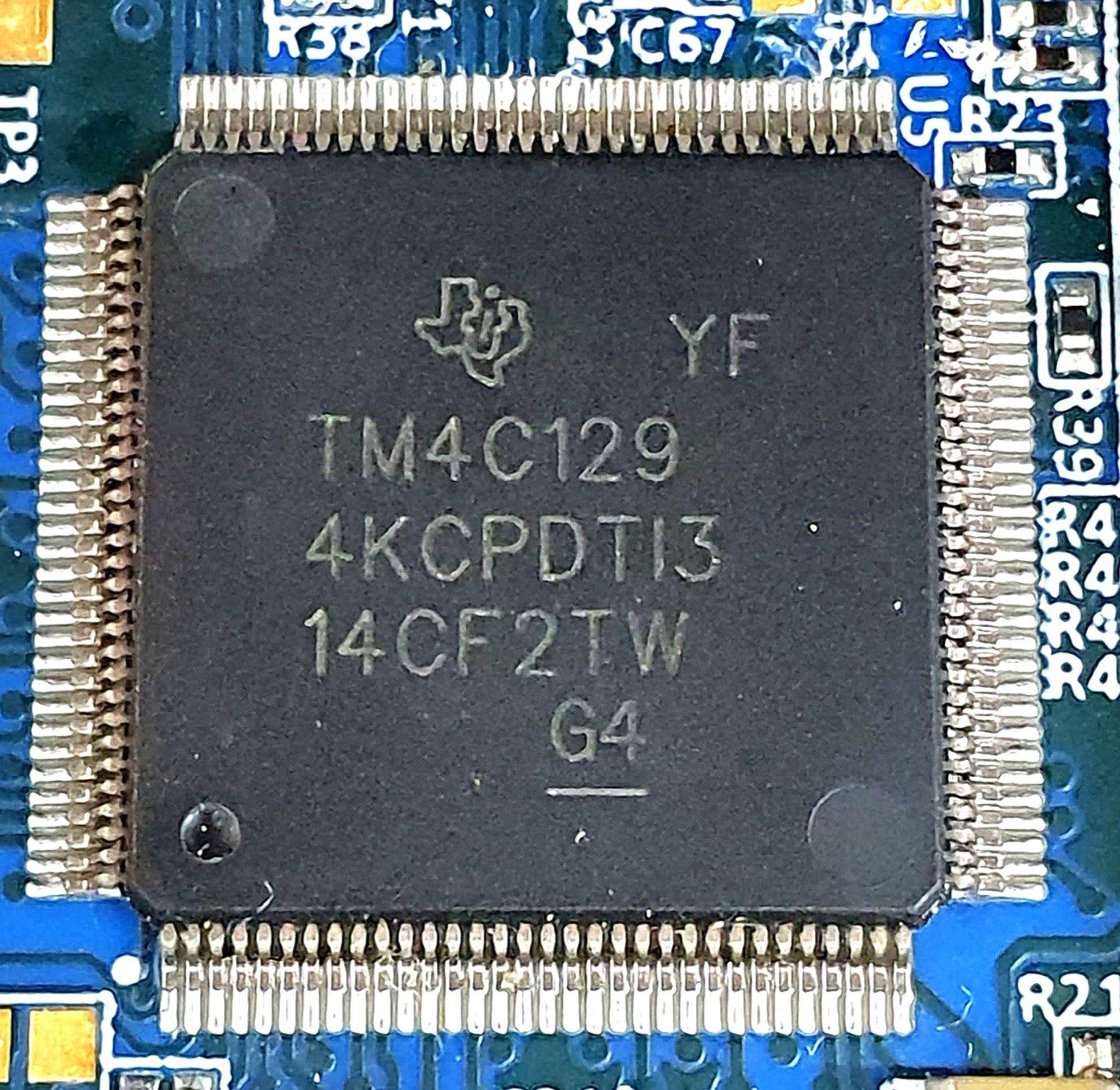

- ARM Cortex-M4F
(4KCPDTI3 14CF2TW), серії TIVA TM4C129:
architecture
record ↗

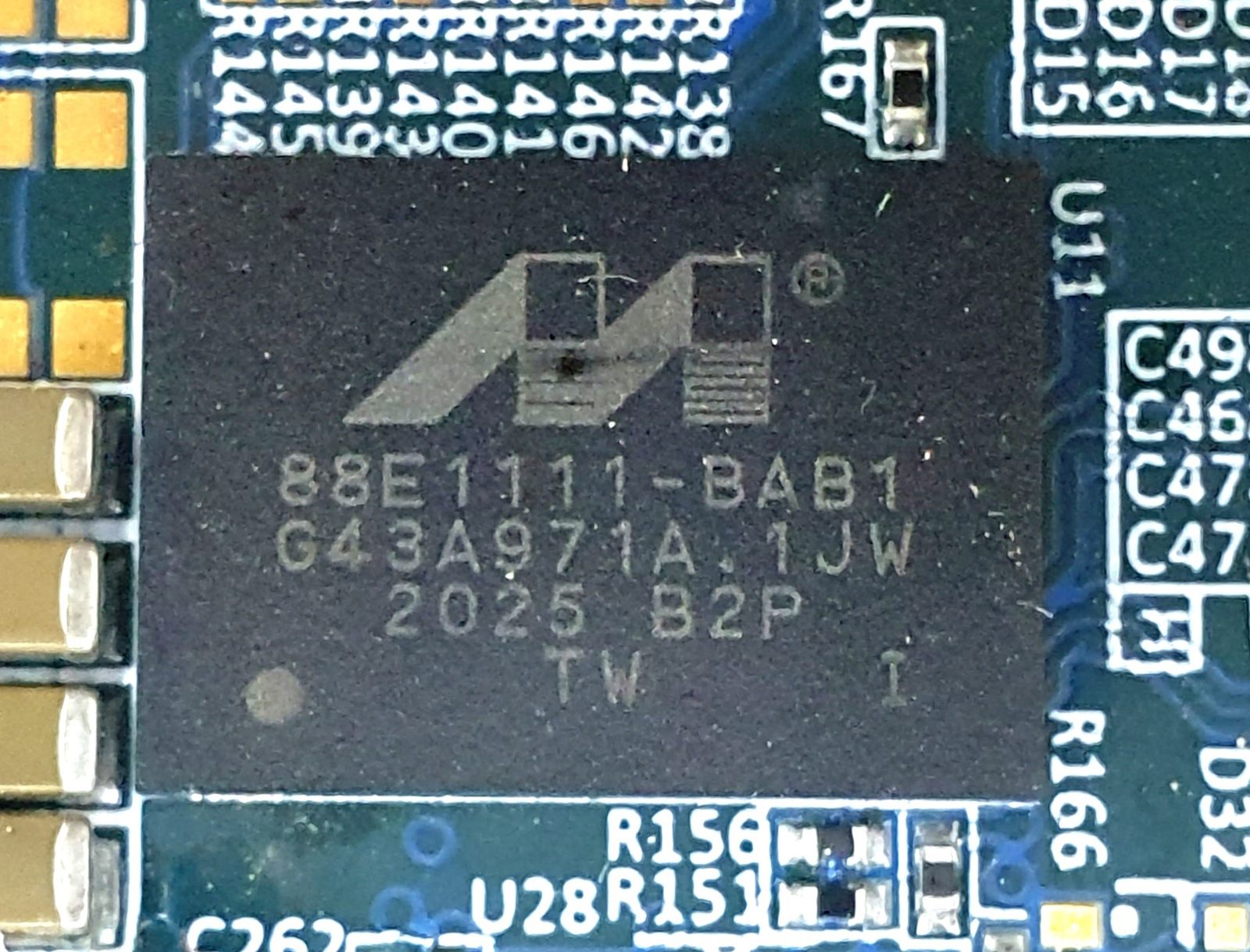

- 88E1111-BAB1 G43A971A.1JW 2025 B2P
Solid state relay
record ↗

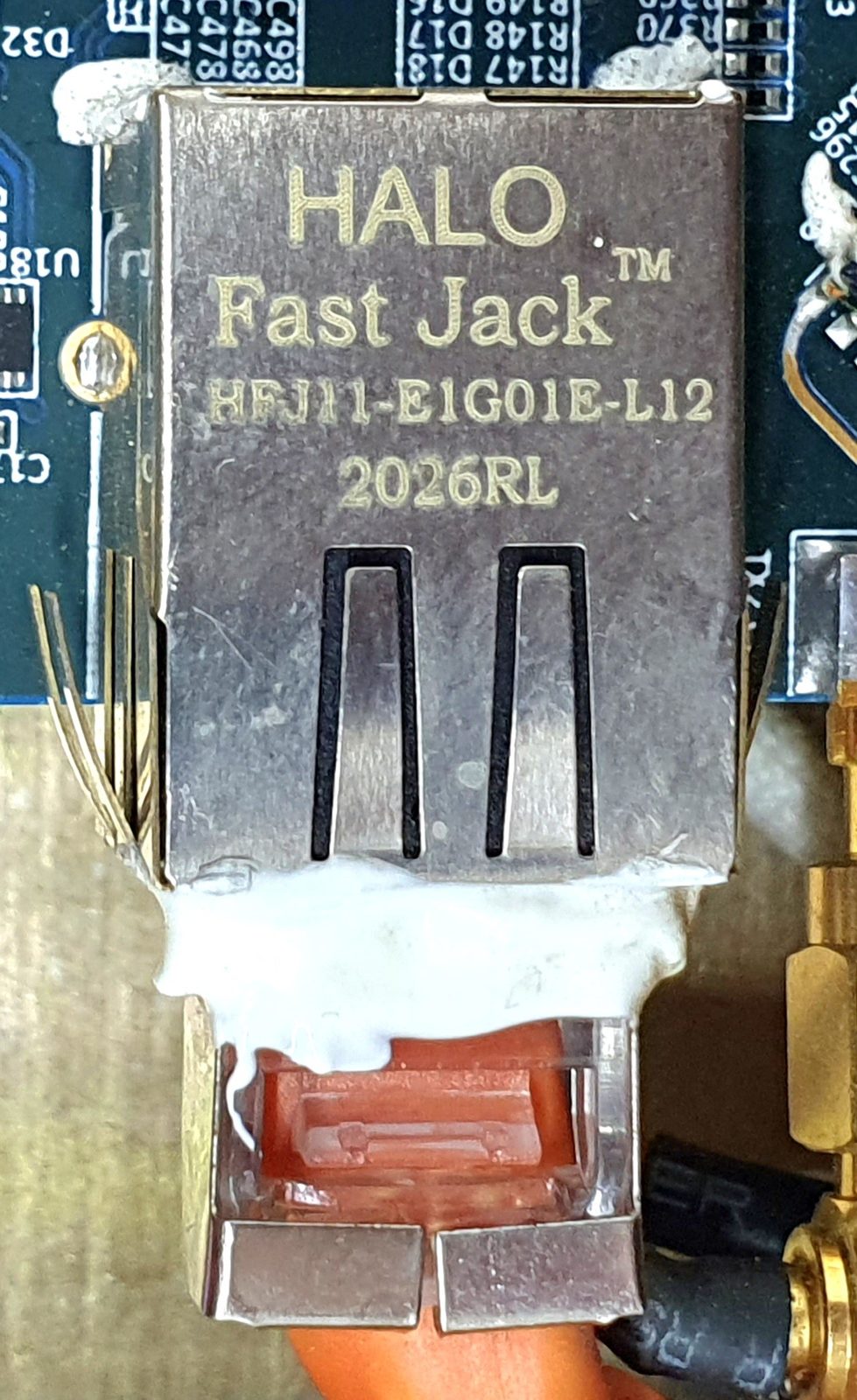

- HFJ11-E1G01E-L12
2026RL
Modular connector
record ↗
- 39WF1601 70-41-B3KE 1Mx16 бит, 70нс FLASH memory record ↗
- AD9361BBCZ #2121 5357097.1 2×2 RF transceiver with built-in 12-bit DAC and ADC record ↗
- VCO 2,0 ГГц AD9517-3 (ABCPZ #2046 5111540.1) Clock frequency generator with 12 outputs and built-in record ↗
- SC4216 G545990 1231 Voltage regulator record ↗
Перетворювач напруги (випрямляч)
Блок акумуляторів
Блок розподілу живлення (РDU)
- тип SMD N3 Electrolytic capacitor record ↗
- FFB9025BVHE Fan record ↗
- 82CNQ100ASM Schottky rectifier module record ↗
- TS63Y Potentiometer (variable resistor) record ↗
- CTS23CB3 50M0000 1811 313 Clock oscillator record ↗
- 226D 98LU1 record ↗
- 476V 91461 Tantalum capacitors record ↗
- 476V 51LB1 Tantalum capacitors record ↗
- 4B3238I 87K Multi-channel linear driver record ↗
- DSP MS320 F28335PGFA G4A 17CHDW G4 Digital signal processor The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page → ₽1,600 $20.69 $20.69 imported: market price applies US$20.69, price list, 2026 · Texas Instruments product page ↗
- PS767D361 8DT 09XZ Voltage stabilizer record ↗
Пристрій системи живлення/переводу у бойовий режим
Бортова електрична мережа
Чотирьох циліндровий двотактний поршневий двигун
Сервоприводи механізму відхилення аеродинамічних рульових поверхонь та двигунів
UAV "GERAN-2" (Shahed-136) (K series) record ↗
Antennas and navigation equipment
- SCM3425ASA High-speed transceiver record ↗
- Unistrong Phantom P34 Navigation module record ↗
- EPCQ64A Memory card with 67,108, 864 bits record ↗
- IHLP Chokes with shielded wire record ↗
- AD 9755 14-bit high-speed digital-to-analog converter TxDAC+ record ↗
- LTM4613V Modular DC regulator record ↗
- AD9517-4ABCPZ Clock generator with 12 outputs and 1.6 GHz injected VCO record ↗
- STIEC45-XXAS Diode record ↗
- ADT7310 Accurate 16 digit digital SPI temperature sensor record ↗
- 2018 LTC2174 UKG-14 BT30267 14-bit analog-to-digital converter record ↗
- u-blox M10Q Receiver of increased accuracy record ↗
- Altera Cyclone V 5CEFA7F23I7N FBBGAU2231A Programmable valve matrix record ↗
- STM32F405RGT6 record ↗
- CGGBP.18.4.A.02 Taoglas GPS signal receiver record ↗
- ANN-MB-00-00 Multi-band high-frequency GNSS antenna record ↗
Flight control system unit
- Function module P/N B306 00067
- LD33 E148 Regulator record ↗
- HF115F 012-2Z4B F01212M Miniature relay of high power record ↗

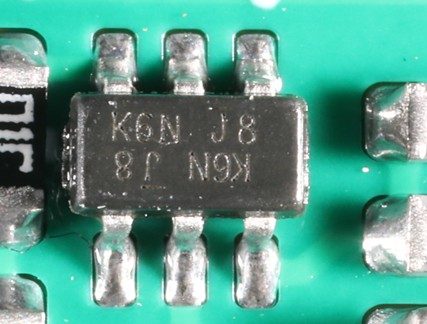

- Wayon B60P03A 3003 AQK Transistor record ↗
- 2207 MBR3045CTS Schottky diode record ↗
- NCR NRP15-C12D Electromechanical relay record ↗
- Function module P/N B302 00065
- ARM4 STM32F405 RGTL AA078 9R TWN AA 045 Microcontroller record ↗
- MEX GP 109 Capacitor for suppression of electromagnetic interference record ↗
- Wayon WMM028N10HGD 0901 LYK Transistor record ↗
- JRB Capacitor record ↗
- TEAPO 220µF 160V Capacitor record ↗
- EPCOS B7153 A027 21502/С Power inductor coil record ↗
- CONNFLY 48MabcR Mm08 Electrical connector record ↗
- Function module P/N B303 00068
- 12AN4HU LM25116 MH Wide range synchronous controller record ↗
- Wayon 060N10HS 4802 TYJ Transistor record ↗
- ARMY STM32F405 RGT6 AA078 9R TWN AA 045 Microcontroller record ↗
- Function module P/N B304 00070

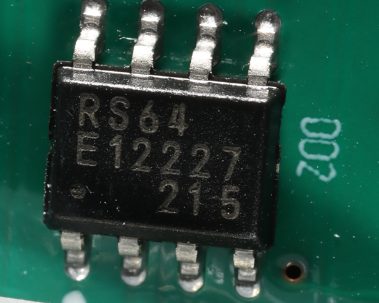

- RS64 E12129 SDH Microcircuit record ↗
- Wayon B60P03A 3003 AQK Transistor record ↗

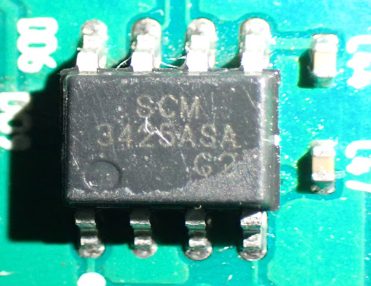

- CAN SCM 3425ASA F0 High-speed bus interface record ↗
- 74HC0BD C1T535B5 TXXD2222E Inverter microcircuit record ↗
- 74HC04D CZE20404 TnВ2105E Inverter microcircuit record ↗
- ARMY STM32F405 RGT6 7B37M VG PHL 7B 245 Microcontroller record ↗
- APboard function module P/N B301 00071
- CAN SCM 3425ASA F8 High-speed bus interface record ↗
- RS-232 ADM 3202A #217 Low-power receiver/transmitter record ↗
- FCI SD Card P113421B01-V3 Card reader for installing an SD card record ↗
- PowerStor 5.5V 1.5F 5.5V Capacitor record ↗
- CONNFLY 48MabcR Mm08 Electrical connector record ↗
- 060MDSA5 1406 03N Airspeed sensor record ↗
- STM32F765 VIT6 Z 7B259 VQ PHL 7B 217 Microcontroller record ↗
Servomotor
Сервопривід
KST Brushless Motor X30-12-165
Operating voltage (nominal):DC12V Operating voltage range: DC8.4-12V Torque of the motor 115 kg. cm 8.4 V 165 kg. cm 12 V Speed: 0.20 sec/60 degrees 8.4 V 0.16 sec/60 degrees 12 V Stroke angle: ± 45 degrees at 1000-2000us Operating temperature range: -20 ℃ ...... + 65 ° C Body dimensions: 70*33*77.6 mm Weight: 445 g
Shahed-136 UAV № М214 record ↗
Product
- Board - navigation platform Navigation board ver. 2.9.5
- 8231 ACPZ #1748 67812 Output voltage/current driver with output signal range record ↗
- BDGJP 7507 Integrated circuit record ↗
- 2709 (1043L KQSAJ Triple balanced general purpose mixer that can be used as a frequency converter record ↗
- (АЦП) 7689 (BCPZ #1727 8025) 16-bit analog-to-digital converter record ↗
- B3000A 07078768 2109A3 M8030-KT GPS tracker chip record ↗
- 2023 6004 5J700ZZ Serial flash memory (16 Mbit) 25Q16JVIQ record ↗
- F10AQ P185 G4 Synchronous step-down regulator record ↗
Transmission unit and PWR LAN
- Board
- 6KOEX322 Very low voltage drop regulator with lf33a inhibit record ↗
- AA159-98 Microcontroller with built-in flash memory STM32FH05 RGT6 record ↗
- (ADJ #117 330290 1755 Low Dropout Linear CMOS Regulators record ↗
- (541 PPIN) Octal buffer/line driver designed for use as memory and address drivers, clock drivers, and bus-oriented VHC transceiver record ↗
- 450Q161 SSHF 800-1000MHz GaAs InGaP HBT Medium Power MMIC Amplifier adesio1517 record ↗
- 99Z15HV 75933 Current converter record ↗
- (EUE +116) MAX3232 transceiver record ↗
- (5AA W03C) Integrated circuit 7942 record ↗
- BNX023 Ultra-high-efficiency noise filter of the SMD type record ↗
- LMZM33604 (98WD76C) A module that combines a 3-A DC-DC converter, shielded inductor, and passives in a low-profile package. record ↗
- TM4C1230 (E6PMI7 89C9R9W) TIVA YEF series microcontroller record ↗
- TM4C129 (4KCPDTI3 14CF2TW) TIVA TM4C129x series microcontroller; Architecture: ARM Cortex-M4F; Number of bits: 32 bits; Processor frequency: 120 MHz; Program memory size: 512 KB; RAM size: 256 KB record ↗
- 69502WR (2015 MAL) 5A low-drop linear regulator that provides low voltage and high current MIC record ↗
- 005 (06ERS #0306001) A rare miniature non-isolated point-of-load DC converter for embedded applications. record ↗
FCU control system unit
- Board connectors
- 88E1111-BAB1 G43A971A.1JW 2025 B2P Solid state relay record ↗
- Functional module
- AD9517-3 9 (ABCPZ #2046 5111540.1) Clock generator with 12 outputs and built-in 2.0 GHz VCO record ↗
- AD9361BBCZ (#2121 5387097.1) 2 × 2 RF transceiver with built-in 12-bit DAC and ADC record ↗
- TMS320 (F28335PGFA G4A-14C2GKW G4) DSP digital signal controller The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page → ₽1,600 $20.69 $20.69 imported: market price applies US$20.69, price list, 2026 · Texas Instruments product page ↗
- VP230 (OBM A5F) MOH transistor record ↗
- (MB3238I 04KG4 C2TZ) Line driver/receiver with ESR protection record ↗
- PS767D301 (OCT AP5L) A linear regulator with two outputs and a small drop record ↗
- (TMS320 F28335PGFA G4A-17C76FW G4) DSP digital signal controller The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page → ₽1,600 $20.69 $20.69 imported: market price applies US$20.69, price list, 2026 · Texas Instruments product page ↗
- VP230 (OBM A HV) MOH transistor record ↗
- PS767D301 (54T CGOH) A linear regulator with two outputs and a small drop record ↗
- Function module (Rear side of the AS1893 board)
- MB3238I (04KG4 C2TZ) Line driver/receiver with ESR protection record ↗
- TMS320 (F28335PGFA G4A-4C2GKW G4) DSP digital signal controller The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page → ₽1,600 $20.69 $20.69 imported: market price applies US$20.69, price list, 2026 · Texas Instruments product page ↗
- PS767D301 (O9T A34N) A linear regulator with two outputs and a small drop record ↗
- (MB3238I) 04KG4 AZCC Line driver/receiver with ESR protection record ↗
- DSP (TMS320) F28335PGFA G4A-9BC7ZGW G4 Digital signal controller The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page → ₽1,600 $20.69 $20.69 imported: market price applies US$20.69, price list, 2026 · Texas Instruments product page ↗
- VP230 (18M) A 77R MOH transistor record ↗
- AK1U9 Pulse voltage regulator LM256 record ↗
- MB3238I 04KG4 AZCC Line driver/receiver with ESR protection record ↗
- AUIRI 4905S IYR 835A OT 1M Integrated circuit of the buffer network driver record ↗
- DSP TMS320 F28335PGFA G4A-17AJJJW G4 Digital signal controller The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page → ₽1,600 $20.69 $20.69 imported: market price applies US$20.69, price list, 2026 · Texas Instruments product page ↗
- MB3266 6CKG4 A4H8 Diode rectifier bridge record ↗
- PS767D301 (OAT CE3P) A linear regulator with two outputs and a small drop record ↗
- F28335PGFA G4A-17AJJJW G4 DSP TMS320 digital signal controller The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page → ₽1,600 $20.69 $20.69 imported: market price applies US$20.69, price list, 2026 · Texas Instruments product page ↗
- Function module (Back of module: AS1893 board)
- 12000080 NAH 2144+ Unidentified record ↗
- MCIMX6L2EVN10AC XAA2138 TA1W RLAAXN Microprocessor record ↗
- INAI5 RWI37 TF7Q Differential amplifier with unipolar power supply record ↗
- 02A47 D9WV LZND Multilayer ceramic chip capacitor record ↗
- SX-5 S2737E 01 R77705PY 1950 N TWN 5th generation intelligent module record ↗
- MB3238I 6GK6G4 A4H9 Line driver/receiver with ESR protection record ↗
- IMS320 F28335PGFA G4A-17C76EW Real-time microcontroller with DSP connection manager The TMS320F28335 is a C2000 series digital signal processor from Texas Instruments. It performs the heavy signal-processing of GNSS satellite signals on the receiver board.record ↗Part page → ₽1,600 $20.69 $20.69 imported: market price applies US$20.69, price list, 2026 · Texas Instruments product page ↗
Open questions
What has not been published about the Geran-2, and where the available evidence points: measurements from published photos, the physics, the parts its relatives carry, and the trade in the parts themselves. An indication is not a confirmation. Each one shows how it was reached; last reviewed 2026-10-23.
Also not yet established
- Power supply voltage regulator unit of the Geran-2: what type is it, and who makes it? — A photo or teardown record of the power supply voltage regulator unit showing a marking, a maker's label or a model name.
- Air pressure receiver (winter) of the Geran-2: what type is it, and who makes it? — A photo or teardown record of the air pressure receiver (winter) showing a marking, a maker's label or a model name.
- Battery unit of the Geran-2: what type is it, and who makes it? — A photo or teardown record of the battery unit showing a marking, a maker's label or a model name.
- Engine of the Geran-2: what type is it, and who makes it? — A photo or teardown record of the engine showing a marking, a maker's label or a model name.
- Servo drive of the Geran-2: what type is it, and who makes it? — A photo or teardown record of the servo drive showing a marking, a maker's label or a model name.
- 3G/4G USB modem of the Geran-2: what type is it, and who makes it? — A photo or teardown record of the 3G/4G USB modem showing a marking, a maker's label or a model name.
What it runs
Firmware, navigation and link software reported for the Geran-2 and the modules it carries, each with its source.
Flight-control firmware (proprietary, not identified)
No firmware dump, version string or open-source autopilot (ArduPilot, PX4) has been published for any Geran. HUR records show flight controllers built on Texas Instruments TMS320F28335 DSPs; the K series adds an 'APboard' function module with an STM32F765 and further STM32F405 modules, and a Ы-1276 board carries an STM32F446. Code running on them is undocumented.
Pre-programmed route and target
Leaked Alabuga documents assessed by the Institute for Science and International Security (August 2023) describe the Geran-2, like the Shahed-136, as flying a route and target loaded before launch, and say 'Russification' was to cover software as well as design.
Borscht tracker (Raspberry Pi 4)
Telemetry tracker HUR lists on the 'Э' series: a Raspberry Pi 4 with its own u-blox M8030 GNSS chip, an STM32F103 microcontroller, flash memory and two GSM modems. Serhii Beskrestnov says such trackers send position, altitude and speed through Telegram bots over SIM cards and do not allow remote control (May 2025). Operating system and code not published.
Strike-video relay via Telegram bots
HUR said in February 2025 that some Shaheds film the moment of impact with a webcam, a Raspberry Pi and 3G/LTE modems, and send the footage through disposable Telegram bots.
Kometa anti-jam receiver processing (FPGA-based)
The CRPA's signal processing runs on programmable logic: HUR lists an Altera Cyclone V FPGA in K-series navigation equipment, a Xilinx FPGA plus NXP i.MX RT1052 processor in a Ы-391 radio-signal unit, and says a Xilinx Kintex-7 in the 8-channel Kometa was replaced by a Beijing Microelectronics Technology Institute chip (February 2025). Firmware not published.
Onboard image matching on NVIDIA Jetson (MS001)
HUR's MS001 record lists an NVIDIA Jetson Orin Nano Developer Kit, an analog infrared camera fed through an EZCAP USB 3.0 video-capture unit, an STM32F103 'transition board for Nvidia Jetson' and a VHF data-link unit. HUR says it compares camera imagery with pre-loaded models to pick targets (June 2025); it judged the airframe Iranian. The software itself has not been identified.
Seeker automatic target recognition (claimed)
Serhii Beskrestnov says the 'Seeker' kit, which can be fitted to Geran-2 to Geran-4, does target recognition, lock-on and homing on a Raspberry Pi with machine-vision algorithms (June 2026). Not confirmed by HUR.
Telegram channel:source ↗
Mesh radio firmware (Xingkay XK-F358)
Vendor firmware of a Chinese COFDM mesh modem: every drone relays for the others and the network re-routes when one is lost. Beskrestnov puts the first modems at 1,300-1,500 MHz and later finds at 2,700-2,900 and 3,200-3,400 MHz, and says they can be switched on just before the strike.
Gimbal camera video processing
A teardown of a gimbal camera from a Shahed-136 shot down in Ukraine (Le labo de Michel, reported by Hackaday, May 2026) found an off-the-shelf HiSilicon Hi3519 video SoC, two Xilinx Artix-7 FPGA boards, a thermal camera and a rangefinder.

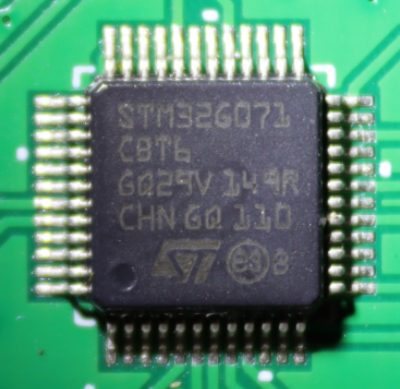

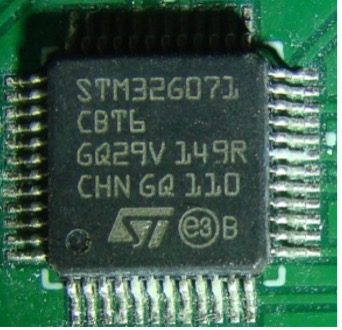

Air data computer firmware
An STM32G071 reads two pressure sensors and streams computed values as ASCII text over RS-232 to the flight computer, observed by applying pressure to a recovered unit; no firmware was extracted (Le labo de Michel, via Hackaday, July 2024).
Also reported
- Engine — Iranian-made engine of the original Shahed-136 design source
- Satellite navigation (CRPA) — 12-channel unit, standard across current Geran variants. CAR found Kometa modules with January–February 2023 serials in early Russian-built airframes source
- CRPA antenna electronics — Newer CRP antennas contain only two US-origin chips (Texas Instruments, Linear Technology); transceivers, signal generators and converters are Chinese, and the main signal-processing chip is from the Beijing Microelectronics Technology Institute (HUR, April 2025) source
- Inertial measurement unit — Murata SCH1633-D0I six-axis inertial module (Japan), an automotive ADAS part introduced late 2024, first found in a Geran in January 2026 source
- Mesh modem — Antenna in the wingtip; serial use from about July–September 2025 source
- Camera — Honpho TS130C-01 optical camera (China) in the nose cone; earlier versions used low-grade surveillance-type network cameras source
- Cellular modems — Two GSM/3G/4G modems for telemetry; early versions carried 4G modems with Ukrainian operators' SIM cards source
- Satellite datalink (variant) — Starlink terminal found on a Geran-2 shot down on 25 September 2024 source
- Onboard computer (MS series) — NVIDIA Jetson Orin module with an infrared camera, assessed by HUR as able to compare imagery with loaded models for automatic target selection; airframe judged Iranian-built source
- Airframe — Russian-built fuselages of fibreglass over woven carbon fibre rather than the honeycomb core of earlier examples (Conflict Armament Research, July 2023) source
- Airburst rangefinder (Izhevsk-built airframes) — Wing-mounted rangefinder, often mistaken for a camera, that triggers detonation in the air near the target, per Ukrainian channel Victory Drones Telegram channel:source
Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
