What the S8000 Banderol is made of
31 documented parts and 40 photos, from recovered wreckage and the reporting on it. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: S8000 Banderol.
Where the parts were made
- United States of America 10
- Maxim Integrated Products (Analog Devices), Silicon Laboratories, InvenSense (TDK), Texas Instruments, National Semiconductor (Texas Instruments), ECS Inc. International, MaxLinear Inc, Cypress Semiconductor (Infineon Technologies), Analog Devices
- People's Republic of China 5
- Swiwin, Ningbo Connfly Electronic Co., Ltd., JB Capacitors, Helishun, XLSEMI
- Russian Federation 3
- VNIIR-PROGRESS JSC
- Japan 2
- Murata, Toshiba
- Republic of Korea 2
- Dynamixel (Robotis), HTC Korea (TAEJIN Technology)
- Switzerland 2
- STMicroelectronics
- Australia 1
- RF Design
- Ukraine 1
- Радіореле
Sources
- HUR War & Sanctions: S8000 Banderol cruise missile · українською
- Open Source Munitions Portal — search its munition identification records
Ukrainian pages read alongside the English: same items, markings and text.
Specifications (HUR)
- Cruise speed
- 520 - 560 km/h
- Housing diameter
- 30 cm
- Length
- about 5 m
- Maximum speed
- 620 - 650 km/h

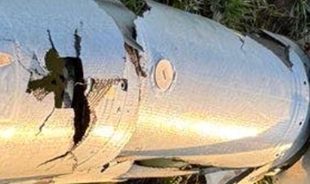

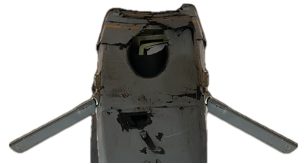

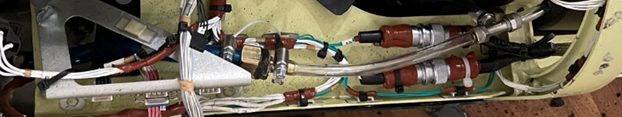

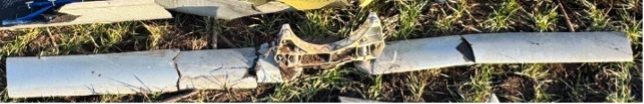

S8000 Banderol cruise missile
Photo: HUR War & Sanctions

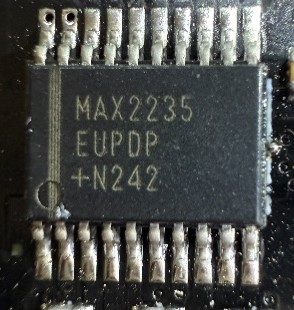

- Printed circuit board 3

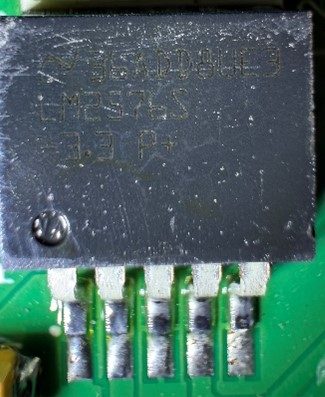

- 36ADD8UE3
LM2576S
-3/3 P+
Step-down voltage regulator
record ↗

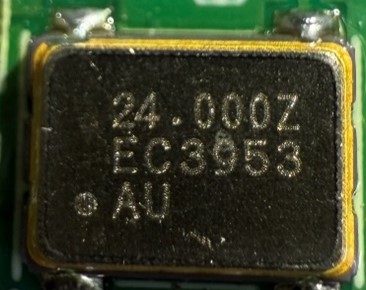

- Printed circuit board 2
- 24.000
EC3953
AU
Clock oscillator
record ↗

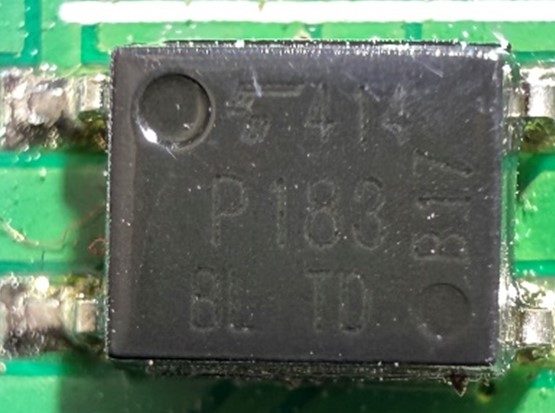

- 414
P183
BL TD
Phototransistor coupler
record ↗

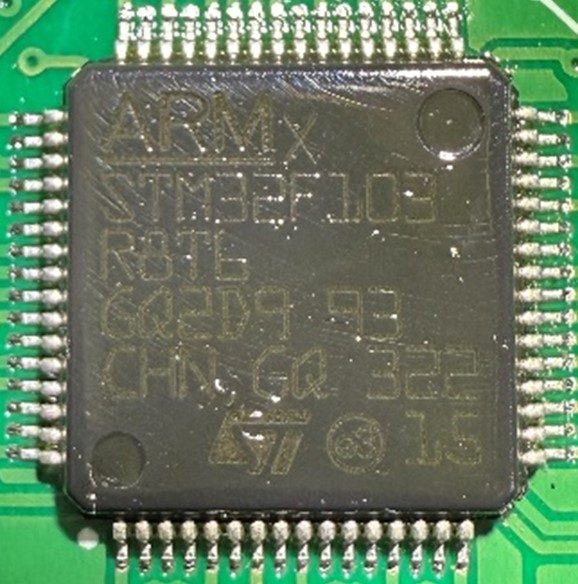

- STM32F103
R8T6
CQ2D9 93
CHN GQ 322
Microcontroller
record ↗

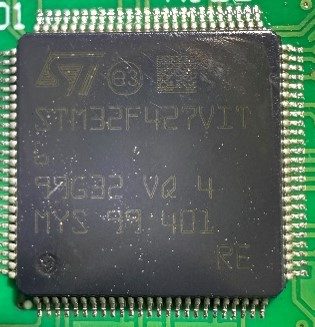

- STM32F427VIT
6
99G32 VQ 4
MYS 99 401
Microcontroller
record ↗

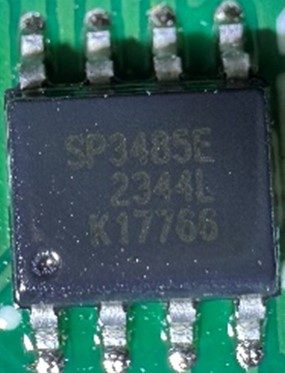

- SP3485E
2344L
K17765
Transceiver
record ↗

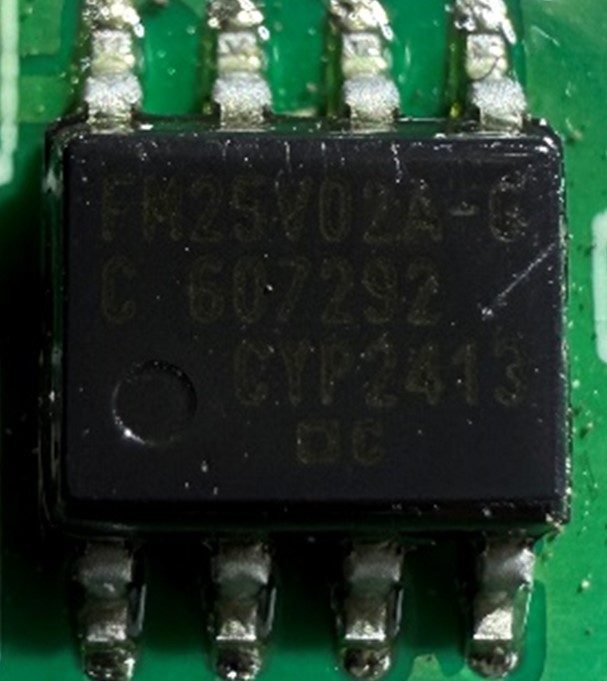

- FM25V02A-G
C 607292
CYP2413
C
FRAM Module
record ↗
- Printed circuit board 1

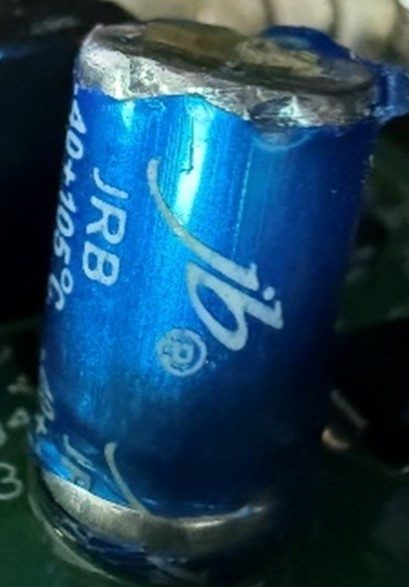

- JRB
-40 +105 °C
Capacitor
record ↗

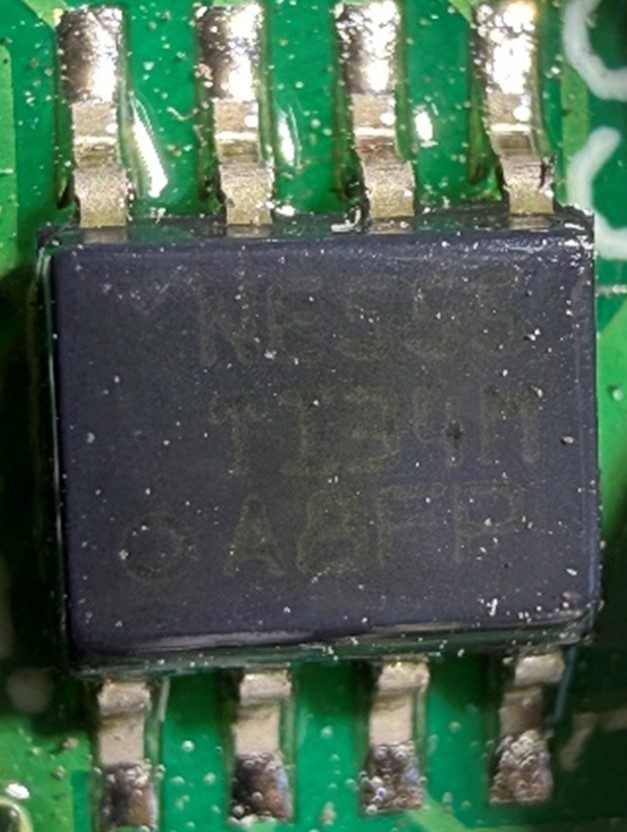

- NE555
TI34M
A8FP
Timer
record ↗

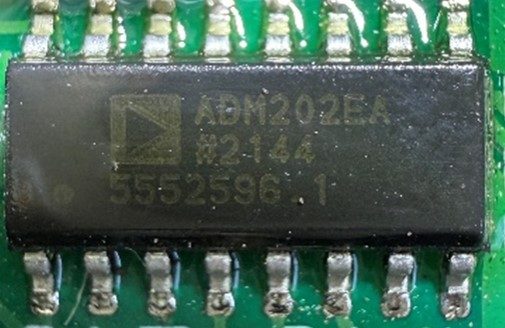

- ADM202EA
#2144
5552596/1
RS-232 Driver/Receiver
record ↗

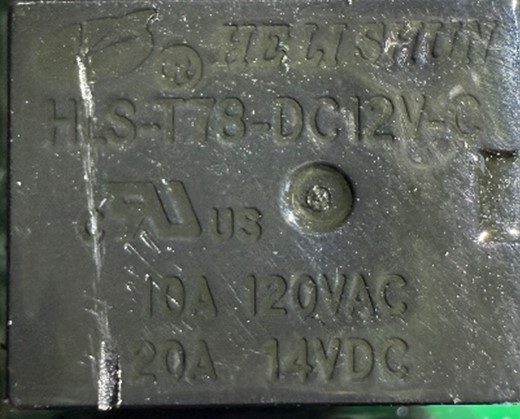

- HLS-T78-DC12V-C
10A 120VAC
20A 14VDC
Relay
record ↗

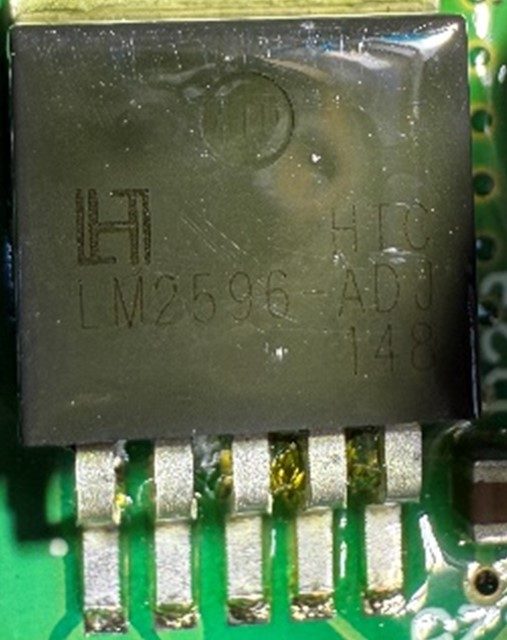

- LM2596
HTC
ADJ
148
Step-down regulator
record ↗

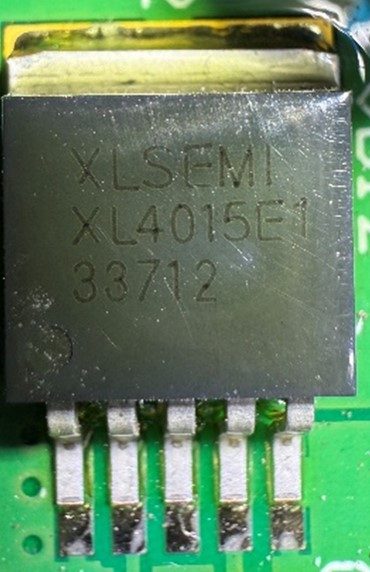

- XLSEMI
XL4015E1
33712
DC/DC converter
record ↗

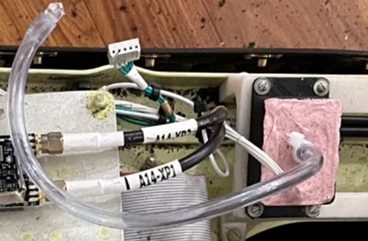

Inertial navigation system module
Модуль інерціальної навігаційної системи
Photo: HUR War & Sanctions

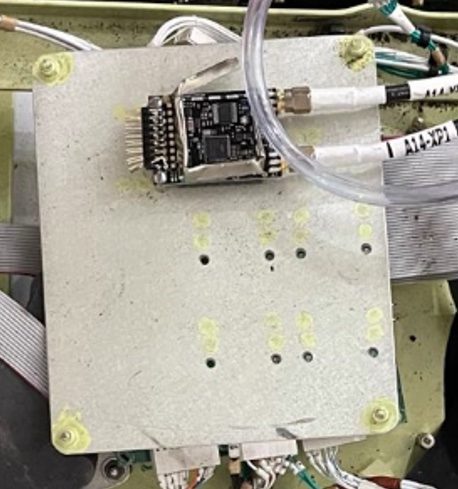

RF Design RFD900x telemetry information exchange module
Модуль обміну телеметричною інформацією RF Design RFD900x
The module can also be manufactured by the Chinese company Shenzhen Huaxunneng Technology Co.
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

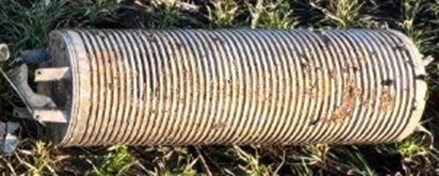

Warhead
Бойова частина
ОФБЧ-150
In the HUR record: Weight - 114.30 kg, weight of explosive - 49.5 kg, type of explosive used: octogen with aluminium powder; plasticiser - cyclotetramethylene tetranitramine
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Block NPS-95 E95M.773008.000 No. 711
- РЕН-34
Low-current, electromagnetic hermetic relays
record ↗
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

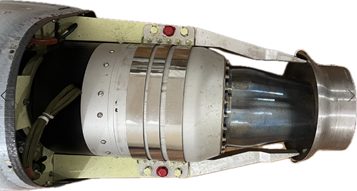

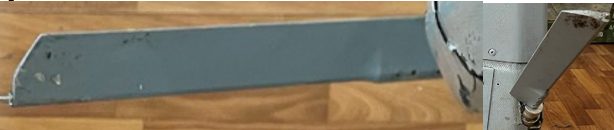

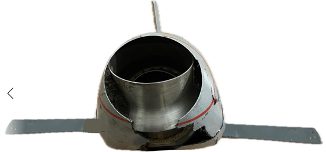

Turbojet engine
Турбореактивний двигун

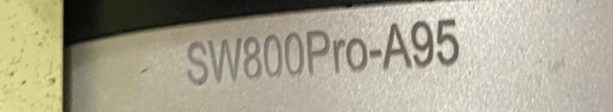

SW800Pro-A95
In the HUR record: Engine length - 455 mm Motor diameter - 208 mm Engine width with mounts - 275 mm Engine weight - 8.5 kg Maximum engine thrust (at 65000 rpm) - 81.6 kgf Fuel consumption at maximum thrust - 1.85 kg/min Engine thrust in a probable cruising speed mode (60,000 rpm) - 65 kgf Fuel consumption in the probable cruising mode - 1.5 kg/min
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Also reported
- Engine — Swiwin SW800Pro jet engine (China), sold online for model aircraft at around $16,000 source
- Telemetry datalink — RFD900x telemetry module (Australia, or a Chinese copy) source
- Inertial navigation — INS assessed as probably Chinese source

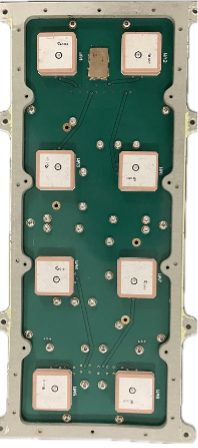

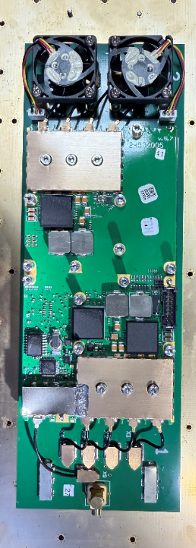

- Satellite navigation antenna — Kometa-M8 CRPA anti-jam antenna by VNIIR-Progress (Russia), also used on Geran drones and UMPK/UMPB glide kits source

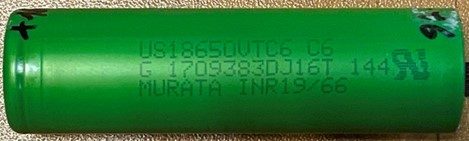

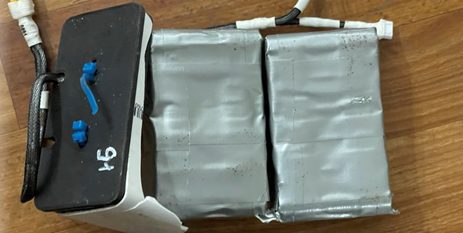

- Batteries — Murata (Japan) source

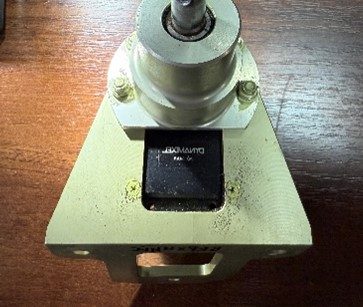

- Control actuators — Dynamixel MX-64AR servo drives by Robotis (South Korea) source

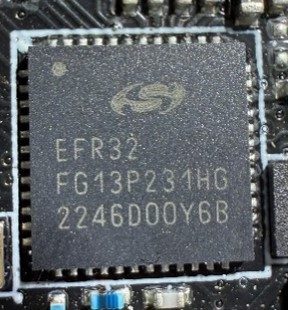

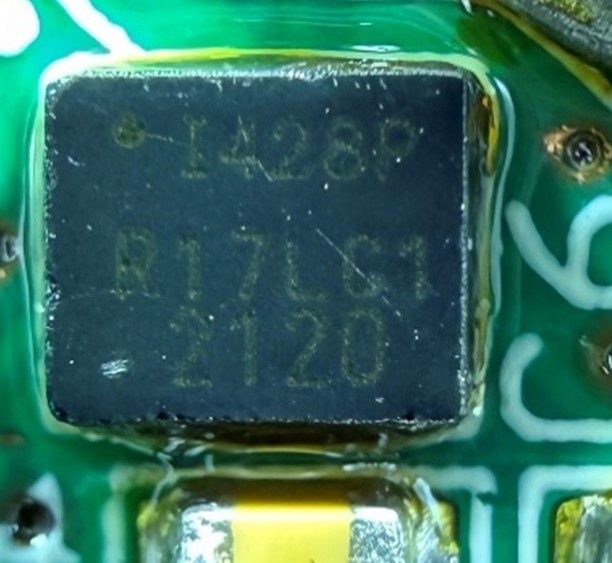

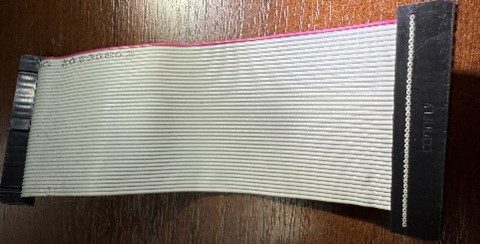

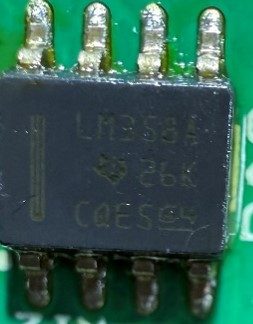

- Microelectronics — About two dozen microchips from US, Chinese, Swiss, Japanese and South Korean makers, mostly sourced via the Russian distributor Chip and Dip source
Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
